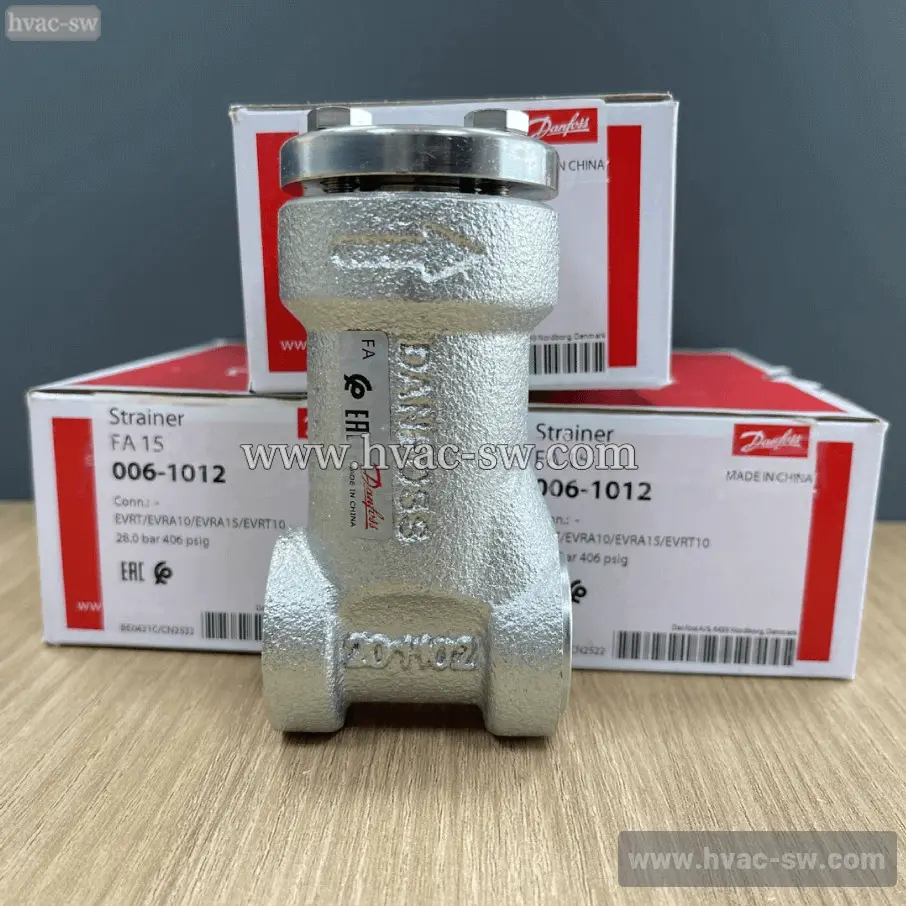

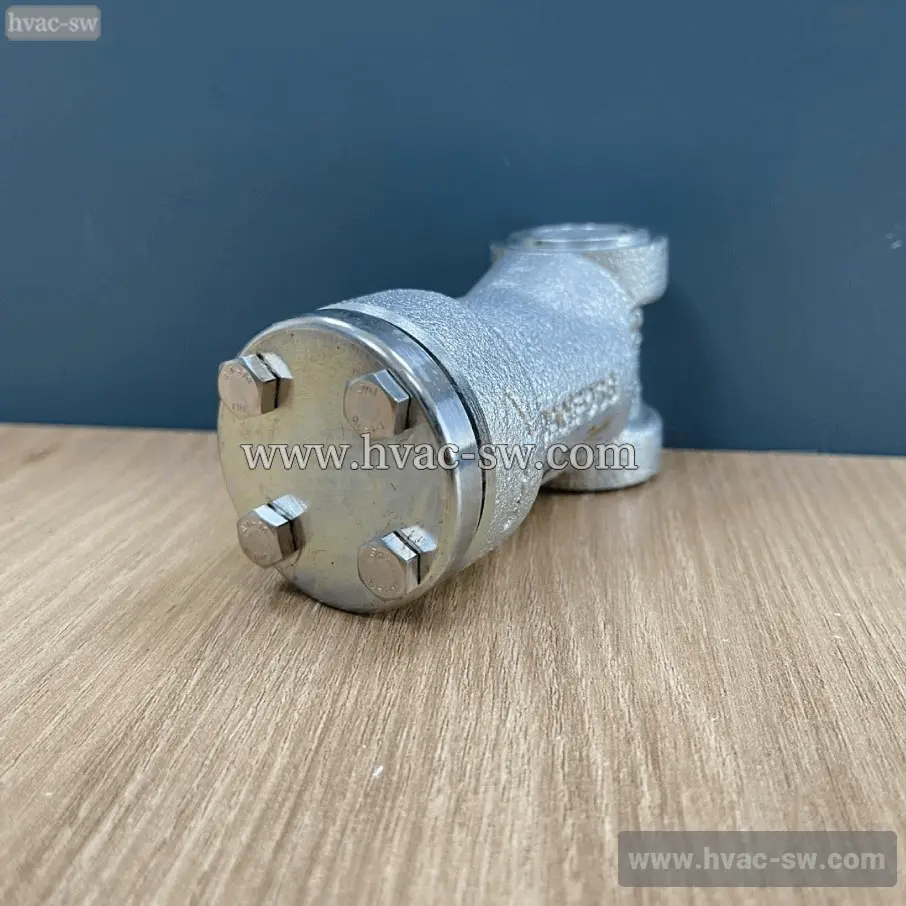

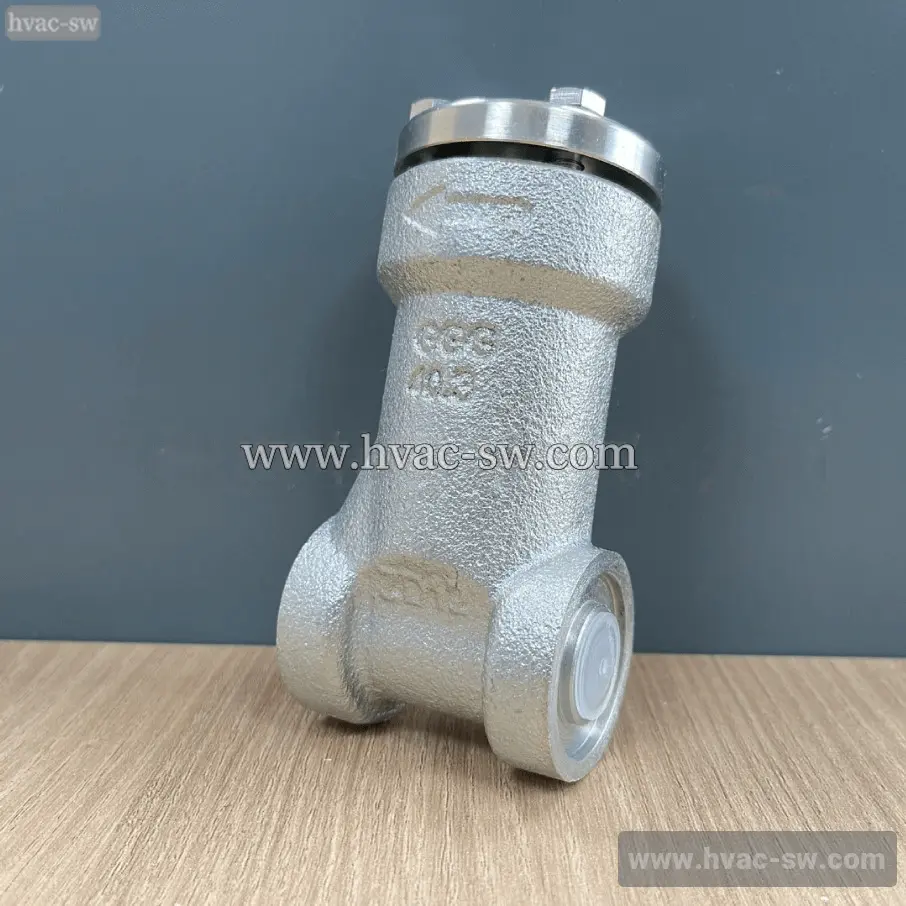

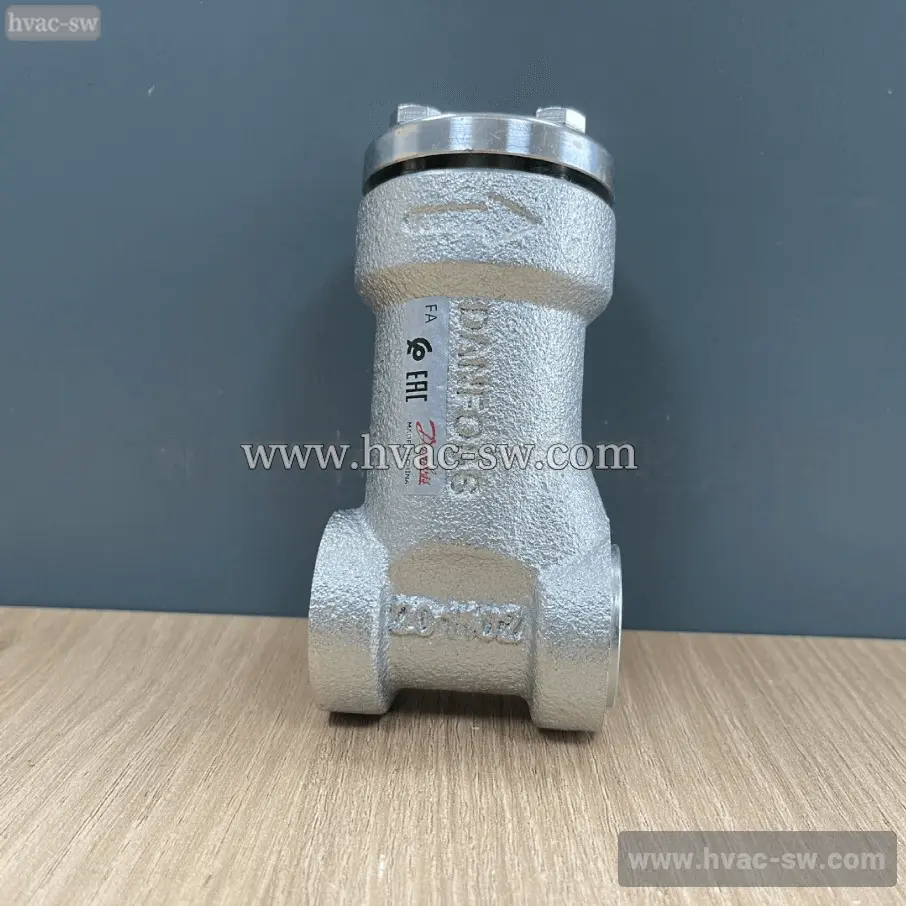

Danfoss 006-1012 Compact Flange Wafer Filter
Danfoss
Description
Danfoss 006-1012 is a compact flange wafer type filter designed for reliable fluid filtration in hydraulic and process systems. Its strainer element captures contaminants, ensuring system cleanliness and operational longevity. The wafer-style design allows for easy installation between standard pipe flanges.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 1.212 Kilogram |
| Net weight | 1.182 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702428191777 |
| Type | FA 15 |
| Product group | Strainers |
| Product Name Description | Strainer, non welded |
| Connection material | Steel |
| Contains batteries | No |
| Cv value [gal/min] | 3.8 gal/min |
| Fluid Group | 1 |
| Kv value [m³/h] | 3.3 m³/h |
| Max. test pressure [bar] | 42 bar |
| Max. test pressure [psig] | 609 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Multi pack |

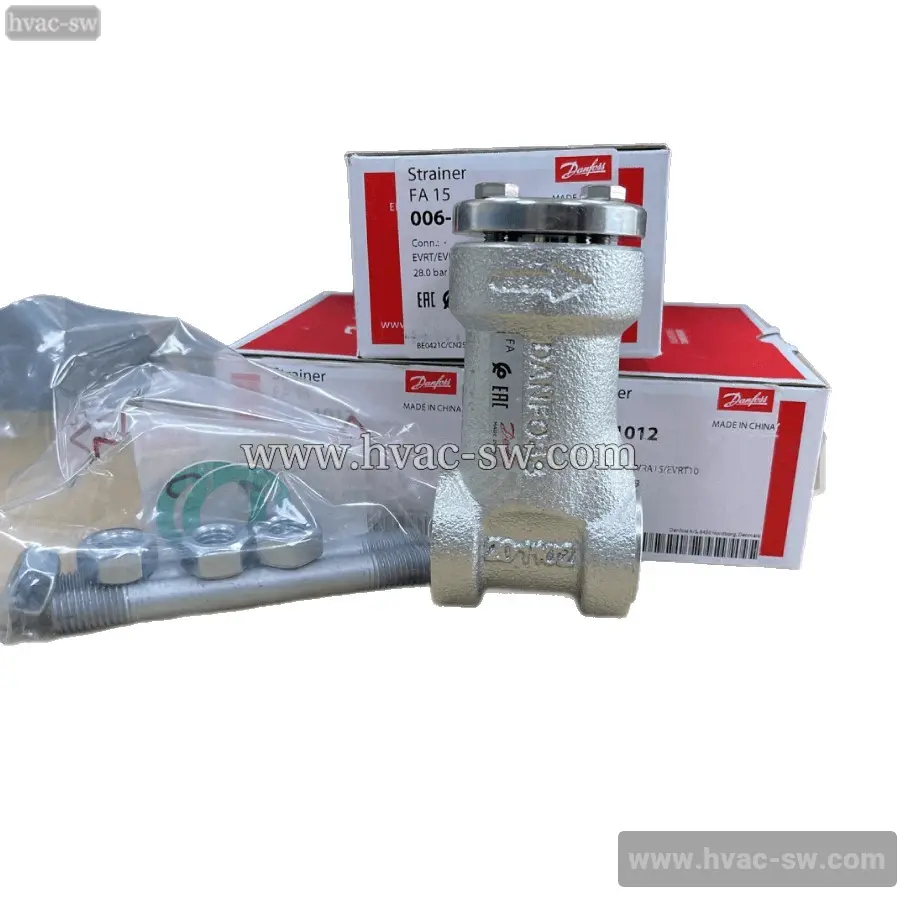

| Parts included | BoltsGasketsScrews |
| PED category | Art. 3, par. 3 |
| Product description | Strainer |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1336mzz(Z)R134aR152aR22R227eaR23R236faR32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR717R507A |
| Staybolts size | M12 x 107 |
| Strainer area [cm2] | 40 cm² |
| Strainer area [in2] | 6.2 in² |
| Strainer volume [cm3] | 68 cm³ |
| Strainer volume [in3] | 4.15 in³ |
| Temperature range [°C] [max] | 140 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 284 °F |
| Temperature range [°F] [min] | -58 °F |
| Used for product | EVRA 10EVRA 15EVRTEVRT 10 |
| Used for product comments | Direct fitting on valve |
| Weave fineness [Mesh] | 100 Mesh |
| Weave fineness [µm] | 150 µm |
