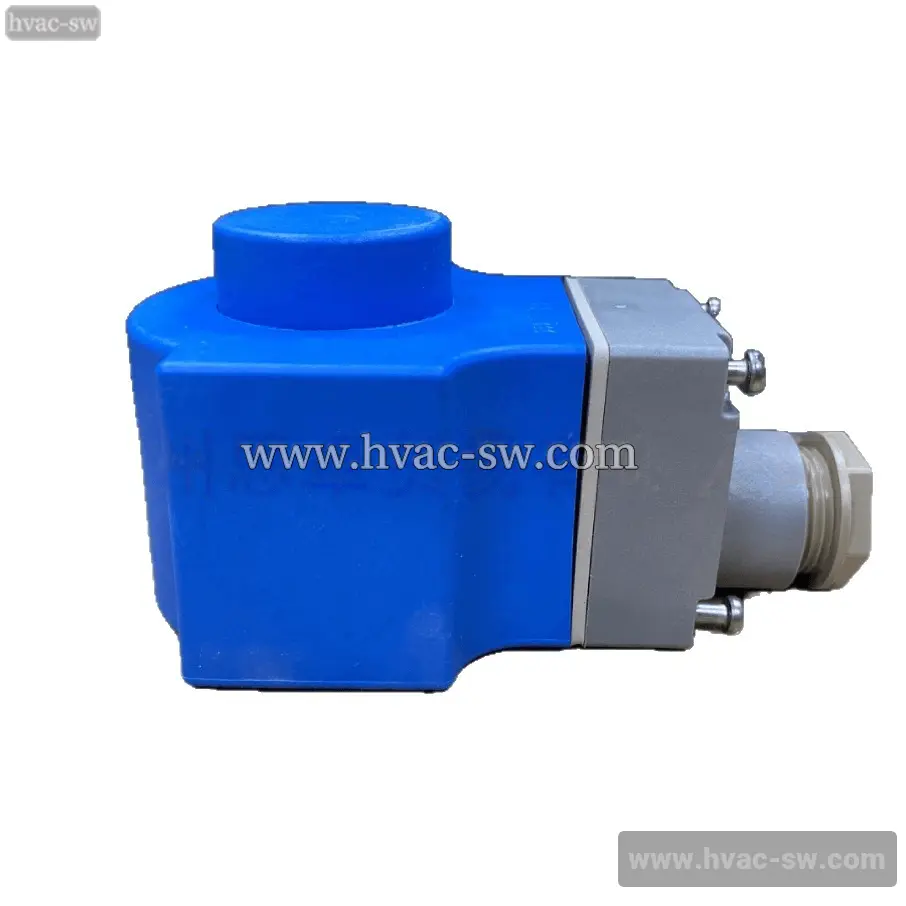

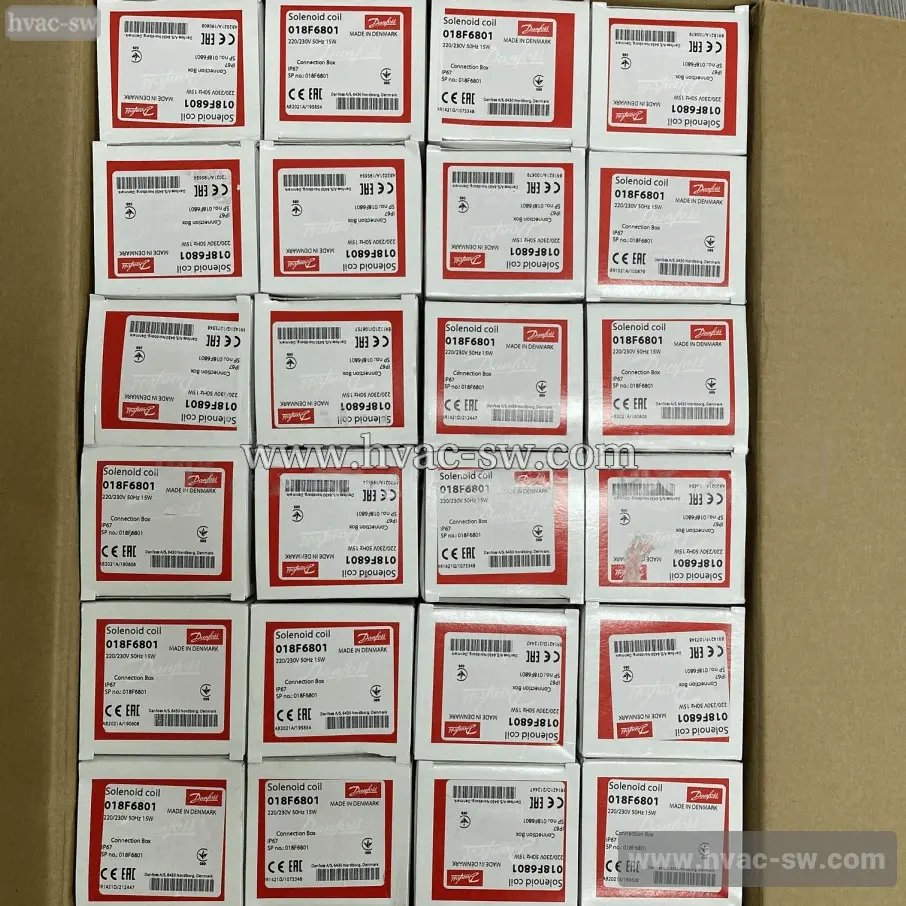

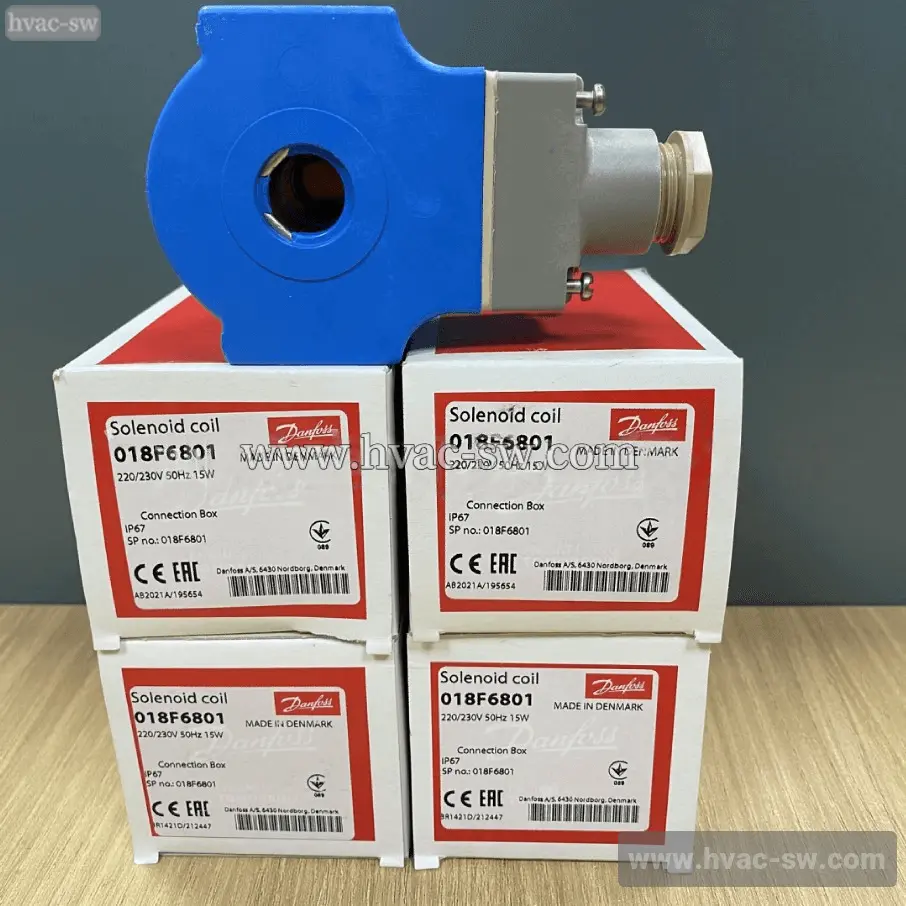

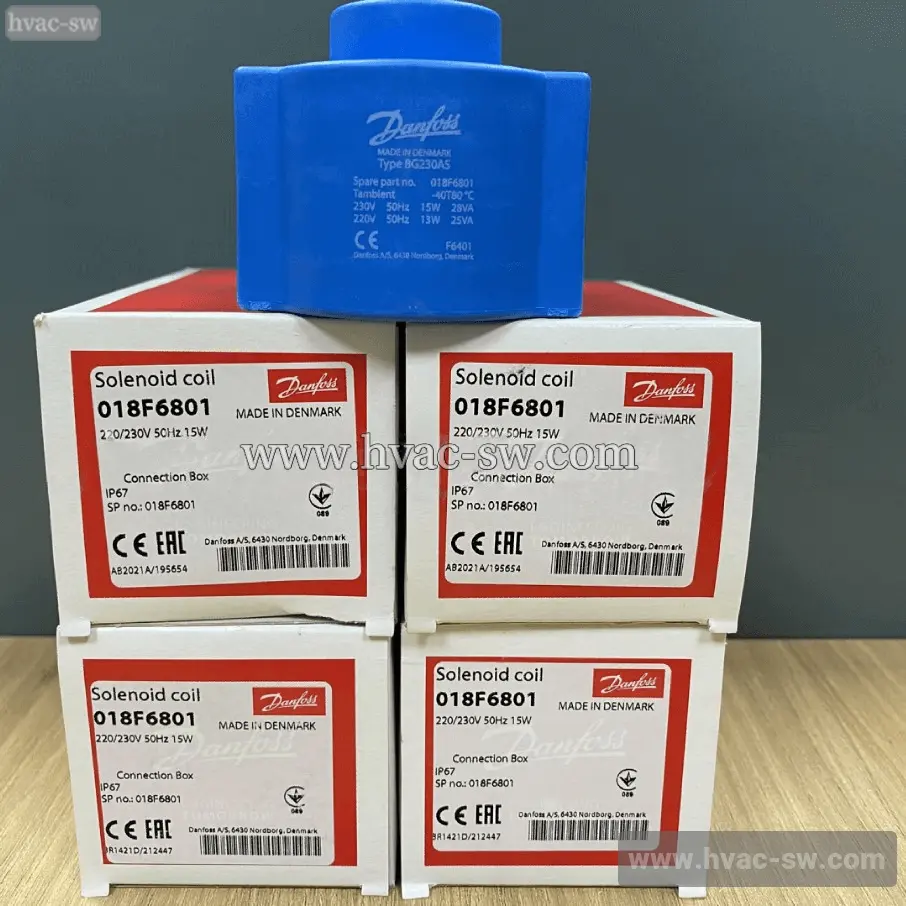

Danfoss 018F6801 Solenoid Valve Coil BG230AS
Danfoss 018F6801 BG230AS Solenoid Valve Coil is a genuine OEM component designed for 220-230V AC power supplies at 50Hz. It ensures reliable operation and is a direct replacement for compatible Danfoss valve systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.502 Kilogram |
| Net weight | 0.482 Kilogram |
| Volume | 0.573 Liter |
| EAN | 5702428027304 |
| Type | BG230AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CECMIMEACLLC CDC TYSK |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Coil connection | Connection Box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Electrical connector | Screwed cable entry |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50 Hz |
| Identical product | 018F8801 |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV250B |
| Power cons Dual 50Hz [VA] | 25 mW |
| Power cons Dual 50Hz [W] | 13 W |
| Power consumption 50Hz [VA] | 28 VA |
| Power consumption [W] 50Hz | 15 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F6801 |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | BG230AS |
