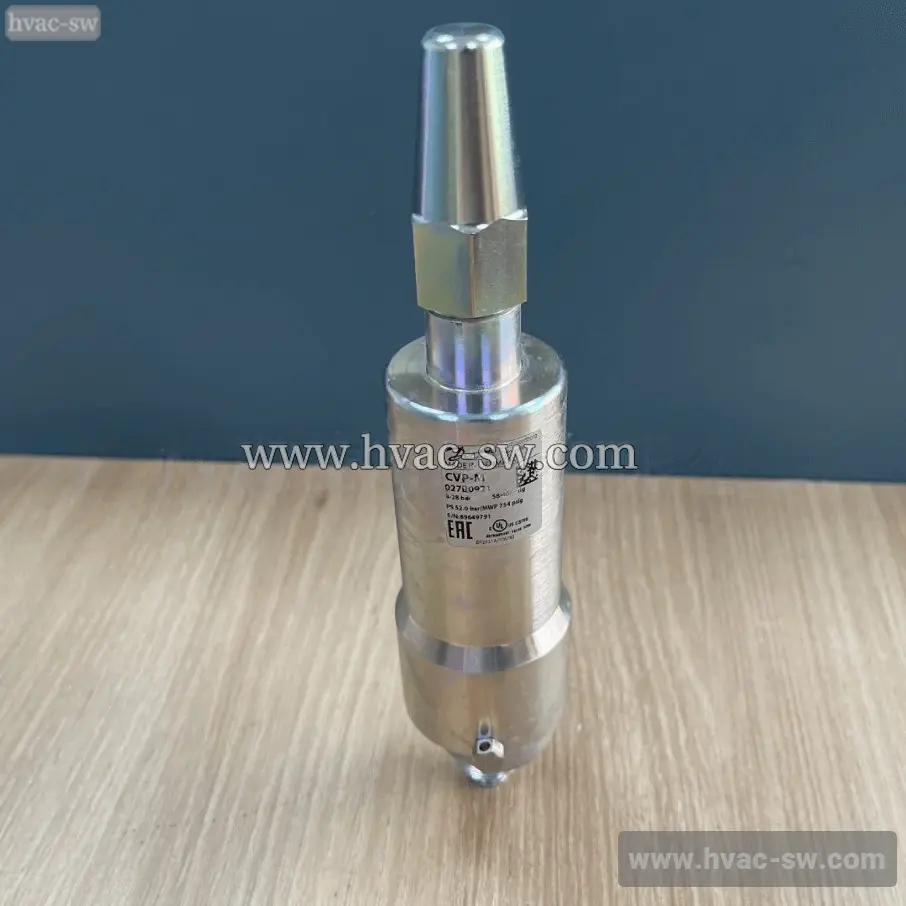

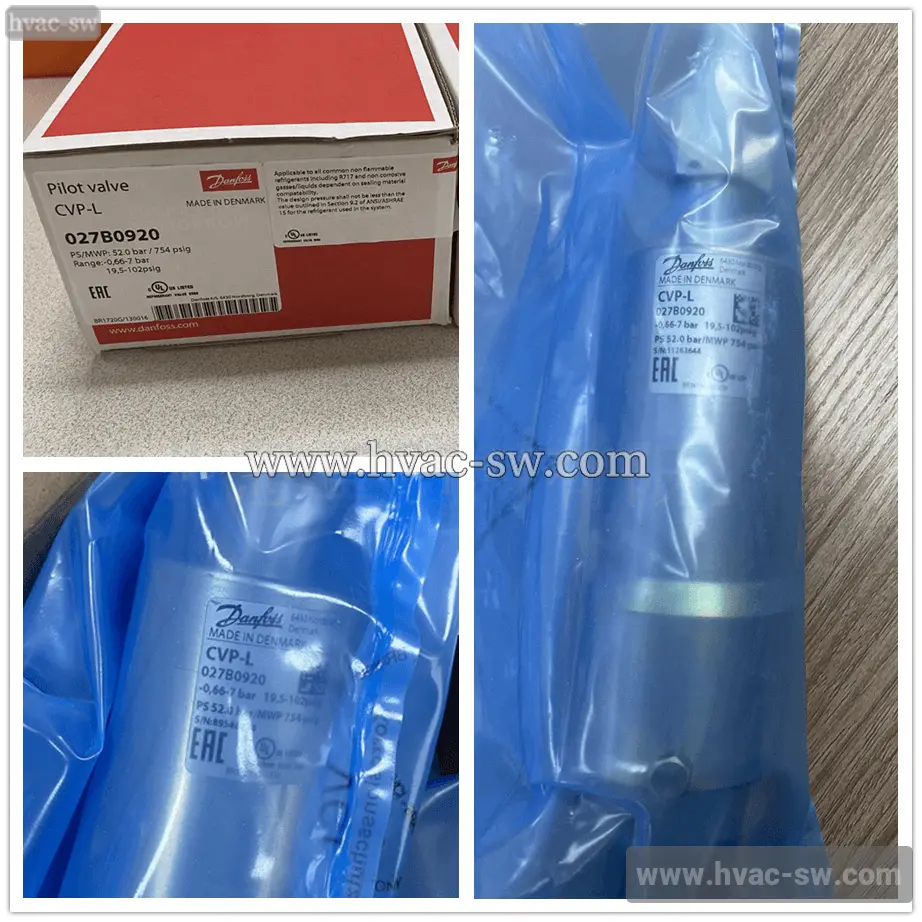

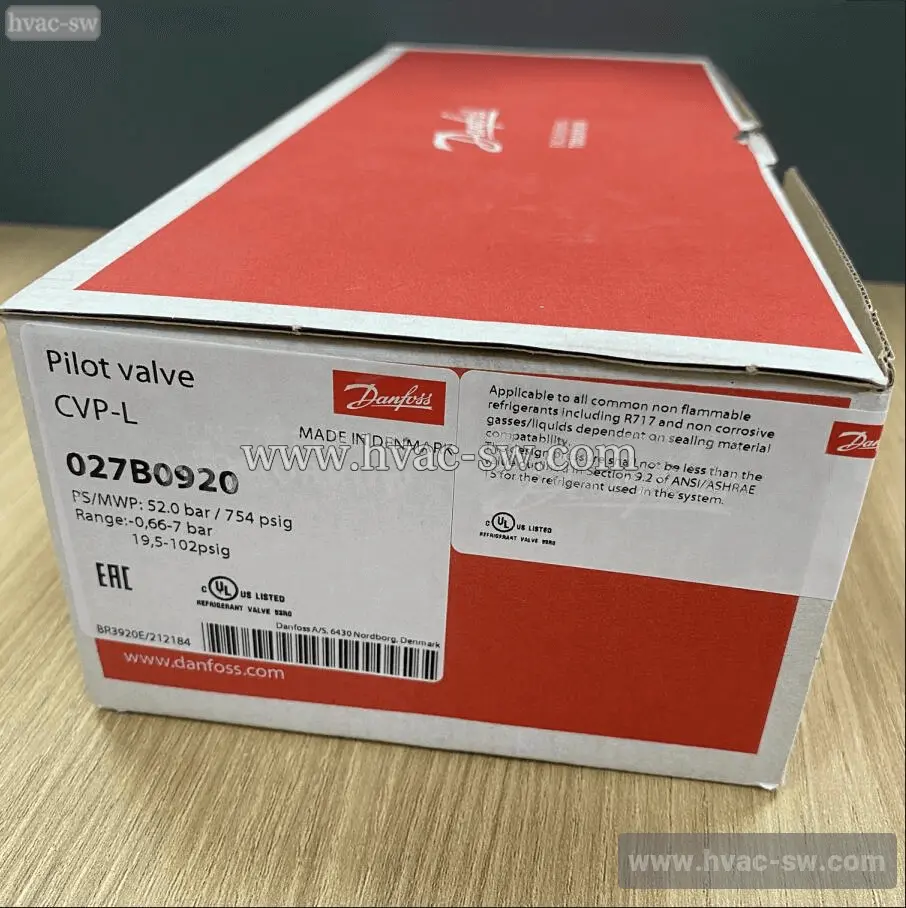

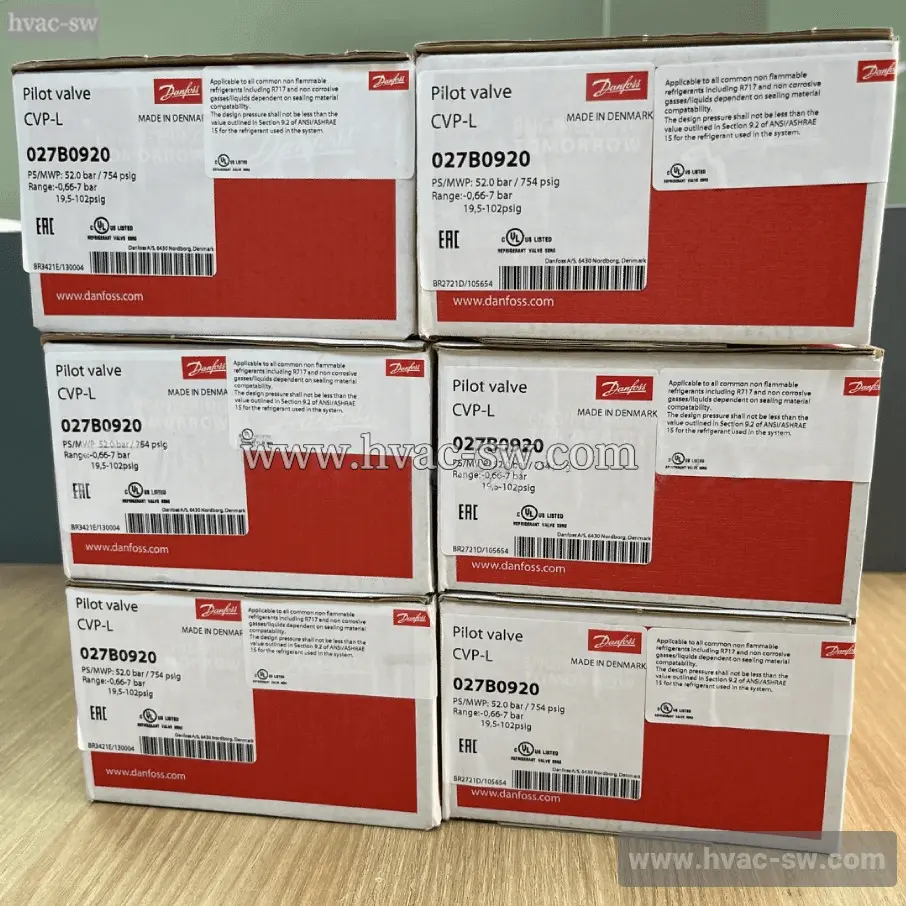

Danfoss 027B0920 Pressure Pilot Valve CVP-L
The Danfoss 027B0920 CVP-L Pressure Pilot Valve is designed for precise control in refrigeration, air conditioning, and industrial hydraulic systems. It ensures reliable operation for regulating evaporator pressure, condenser pressure, or acting as a differential pressure valve. The valve offers accurate settings, robust construction, and is engineered for stability and long service life in demanding applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 1.608 Kilogram |
| Net weight | 1.365 Kilogram |
| Volume | 2.97 Liter |
| EAN | 5702428973236 |
| Type | CVP-L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Approval | EACUL |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.46 gal/min |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.4 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Multi pack |
| Parts included | Gasket |
| Parts Program name | CVHICSICFPM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 7 bar |
| Pressure range [bar] Pe [min] | -0.66 bar |
| Pressure range [psig] Pe [max] | 102 psig |
| Pressure range [psig] Pe [min] | -9.6 psig |
| Product accessories | No |
| Product description | Constant-pressure pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Regulation range | 19.5inHg - 102psig |
| Serviceable | Pilot valve spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve version | Low pressure |
