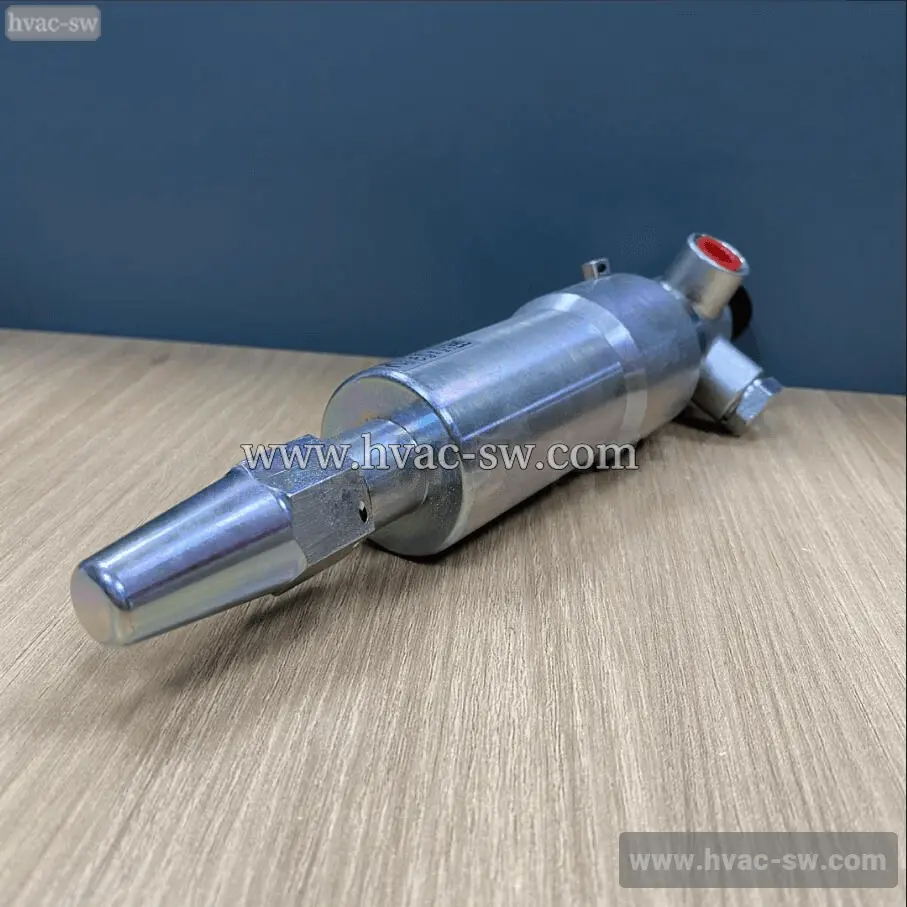

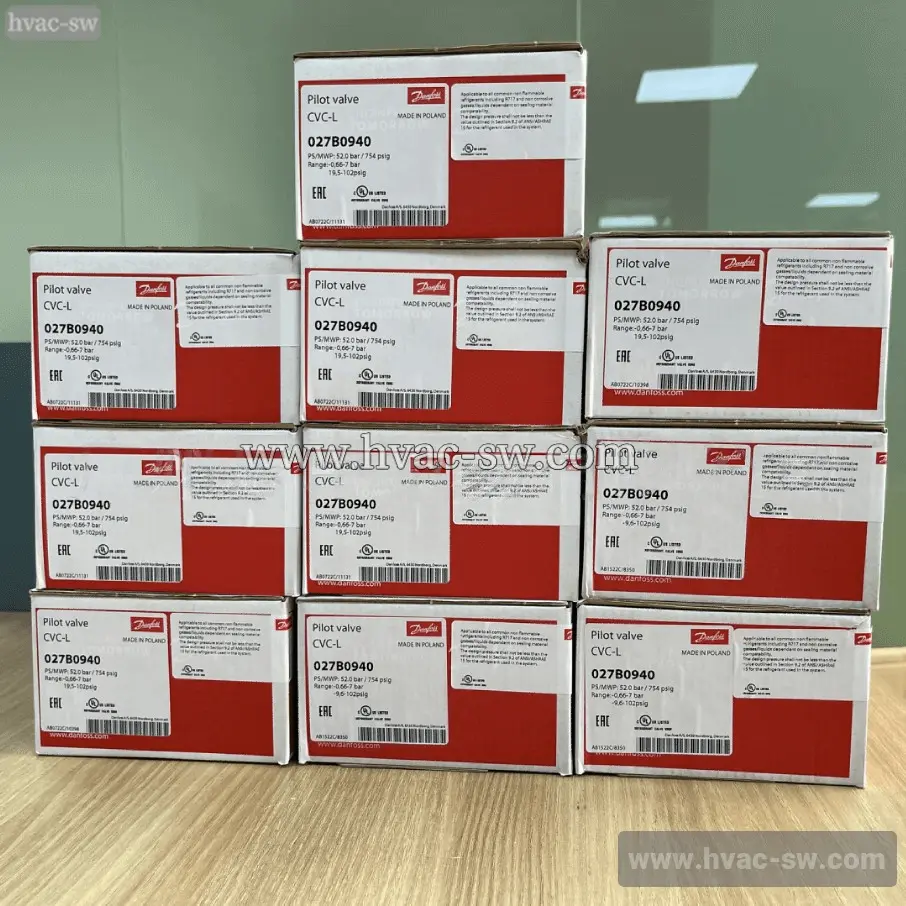

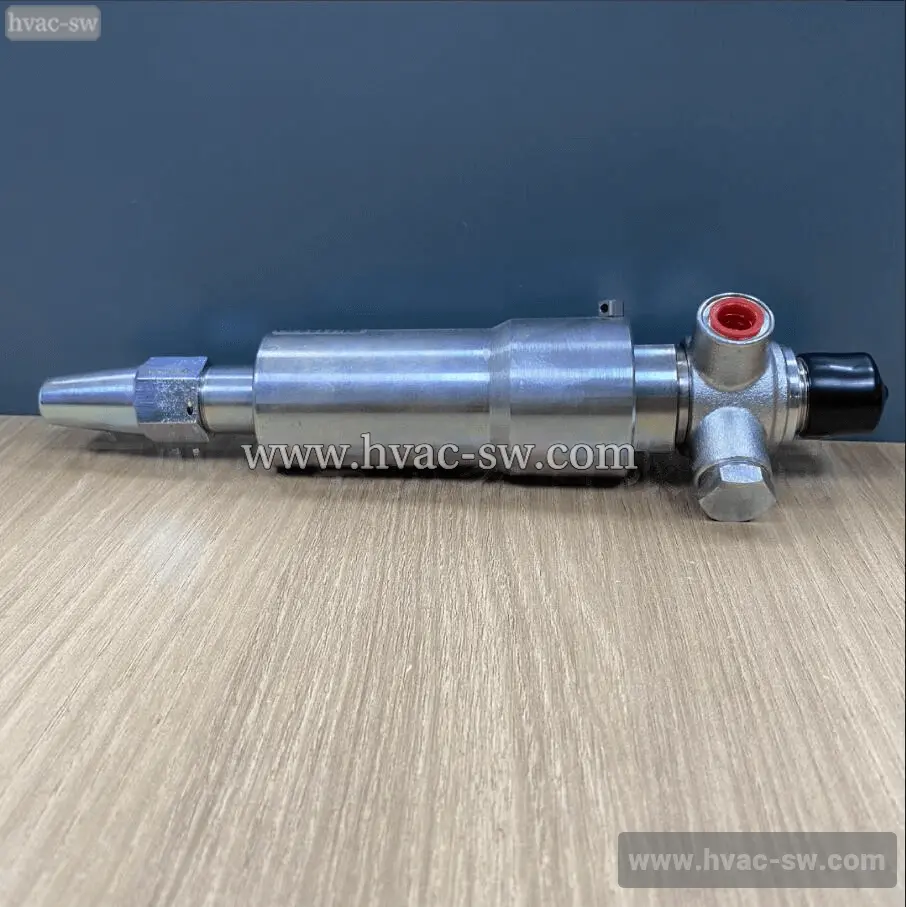

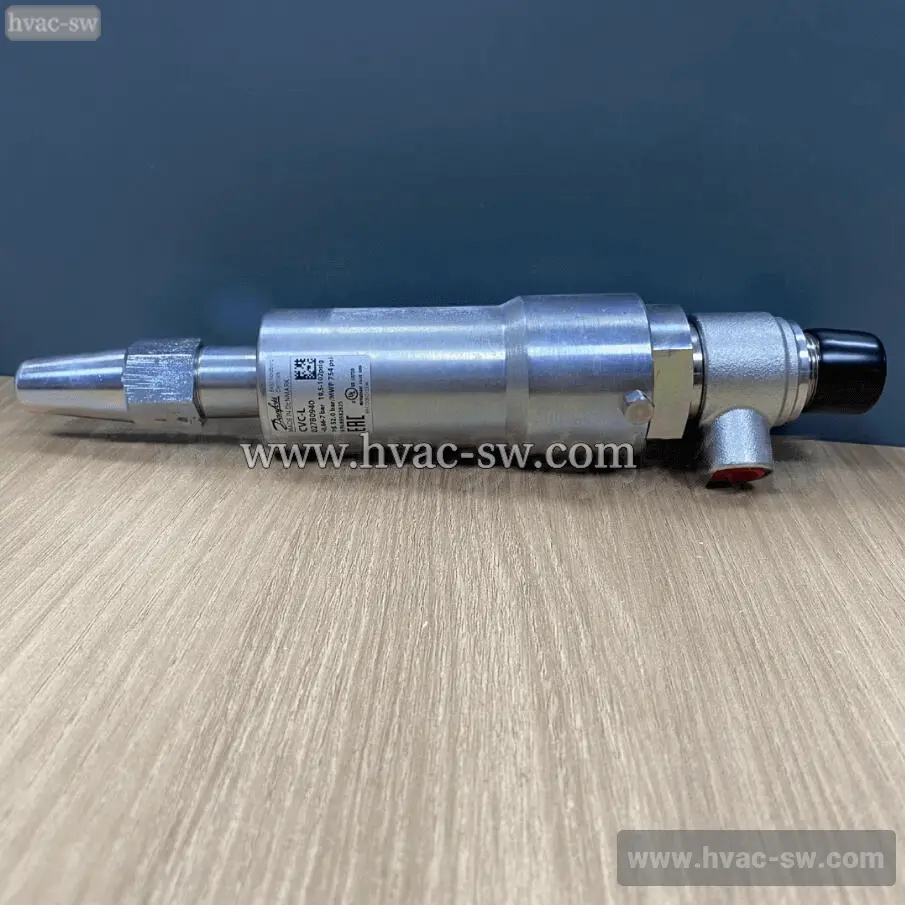

DANFOSS 027B0940 Pressure Pilot Valve CVC-L
The DANFOSS 027B0940 CVC-L Pressure Pilot Valve ensures precise pressure control in refrigeration and air conditioning systems, enhancing efficiency and reliability with its robust construction and consistent performance.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 2.043 Kilogram |
| Net weight | 1.78 Kilogram |
| Volume | 2.85 Liter |
| EAN | 5702428557672 |
| Type | CVC-L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Approval | EACUL |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.23 gal/min |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.2 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Multi pack |
| Parts included | AdapterGasket |
| Parts Program name | CVHICSICFPM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 7 bar |
| Pressure range [bar] Pe [min] | -0.66 bar |
| Pressure range [psig] Pe [max] | 102 psig |
| Pressure range [psig] Pe [min] | -9.6 psig |
| Product accessories | No |
| Product description | Pressure-operated pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Regulation range | 19.5inHg - 102psig |
| Serviceable | Pilot valve spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve version | Low pressure |
