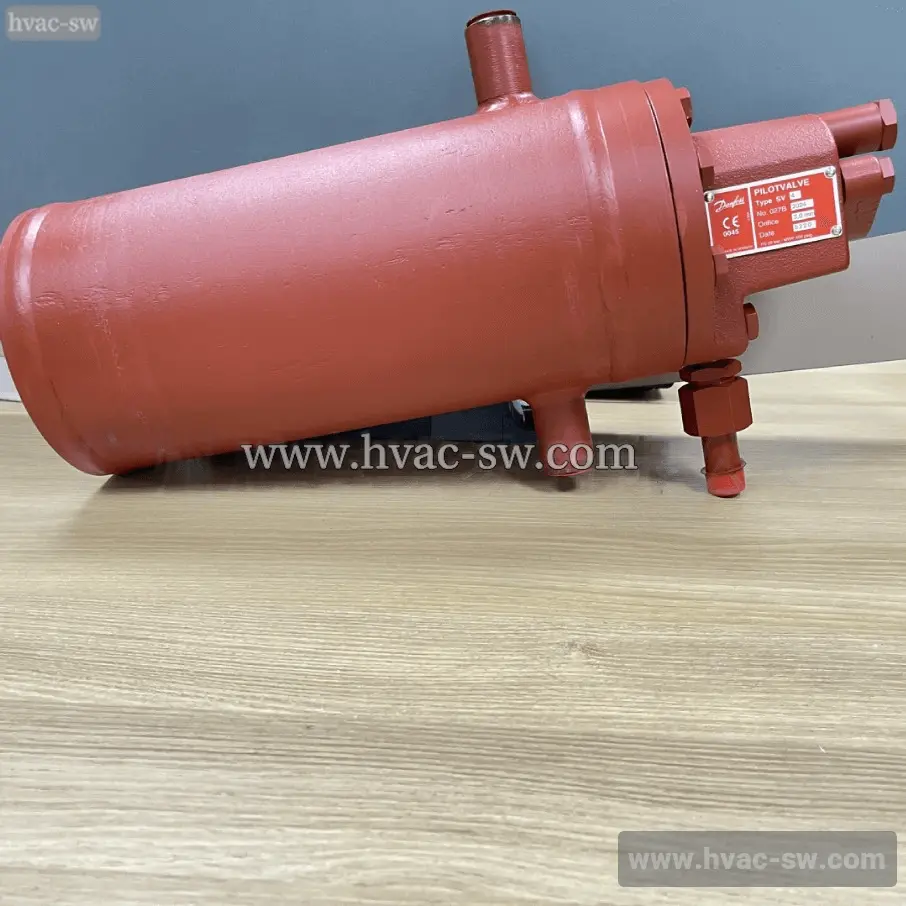

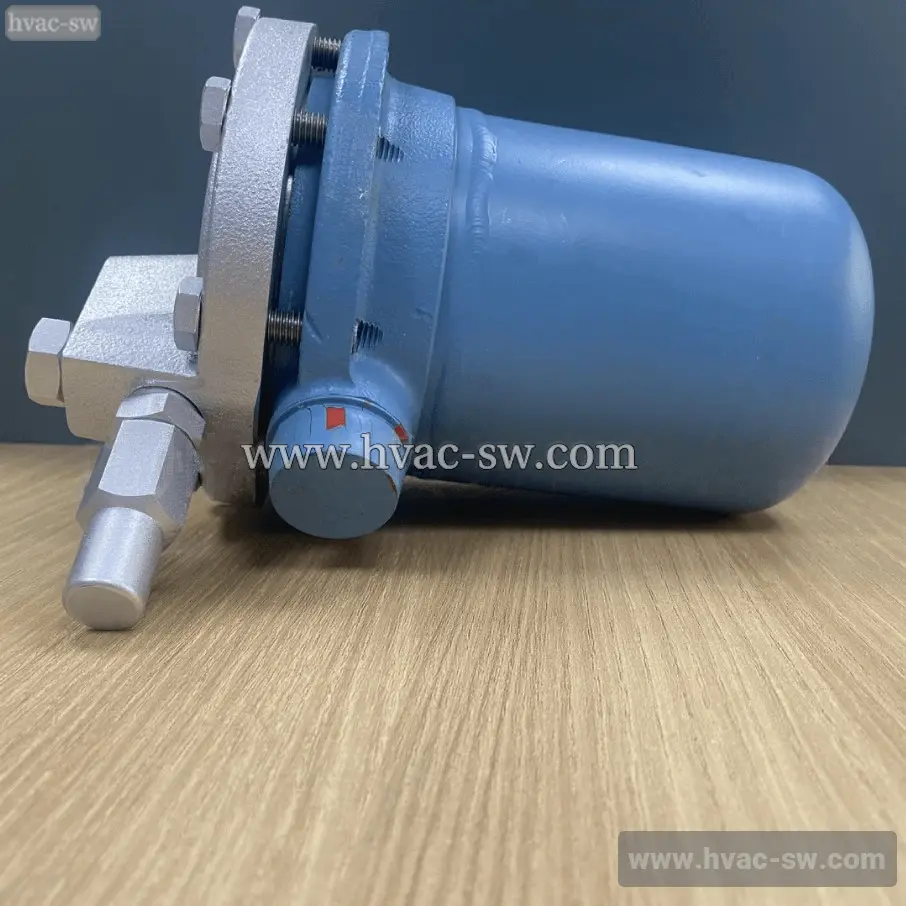

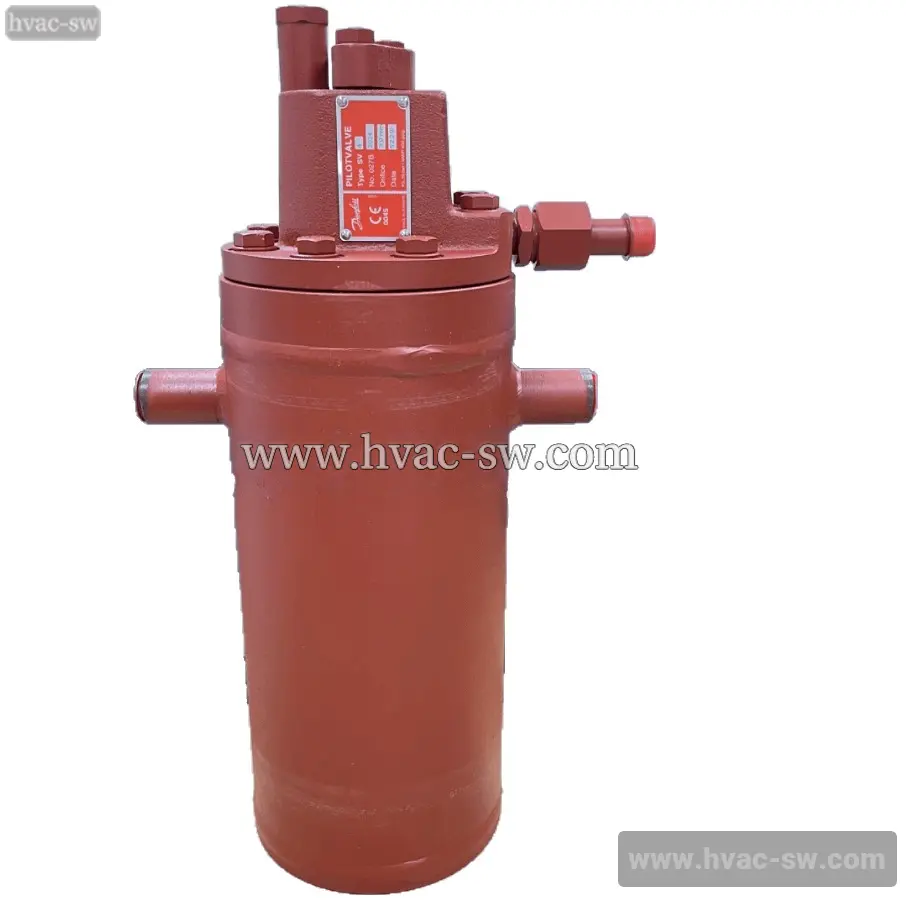

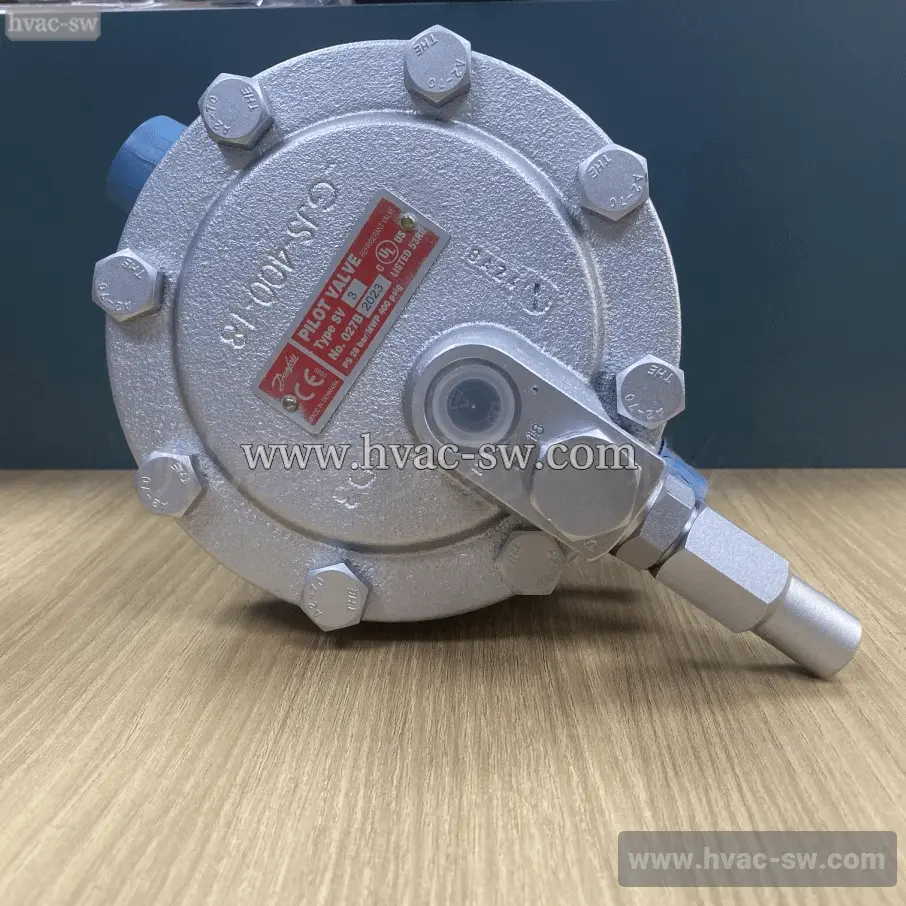

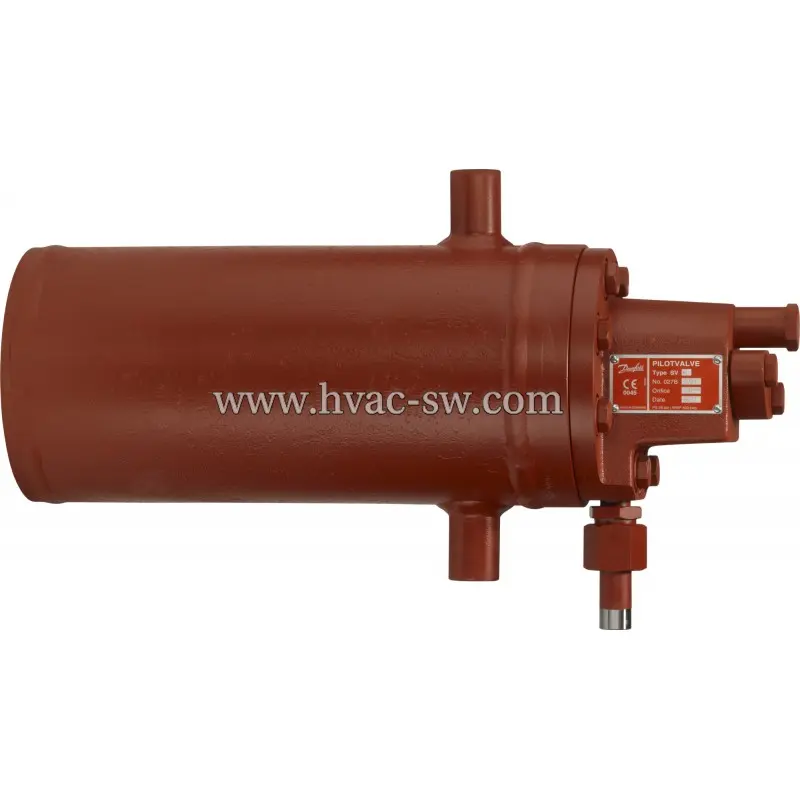

Danfoss SV 6 Float Valve 027B2026, for Large Industrial Refrigeration, CE/EAC Certified
The Danfoss SV6 027B2026 Level Float Valve is designed for reliable liquid level control in various applications. It automatically opens or closes to maintain a preset fluid level, ensuring system efficiency and preventing overflow or dry running.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| SV4/027B2014/2027B2014 | DN10 | 28 | Cast Steel | Welding | Medium |
| SV5/027B2025/027B2015 | DN15 | 28 | Cast Steel | Welding | Medium |
| SV6/027B2025/027B2015 | DN20 | 28 | Cast Steel | Welding | Medium |
| 027B2081 Nozzle Fitting | DN16 | 28 | Cast Steel | Welding | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 25.75 Kilogram |
| Type | SV 6 |
| Balance pipe Weld conn. size | 1 in |
| Quantity per packing format | 1 pc |
| Net weight | 24.5 Kilogram |
| Product group | Liquid level regulating valves |
| Body material | Steel |
| Rated cap. conditions [IMP] | +41 °F/+89,6 °F, sub. Cooling |
| Volume | 69.3 Liter |
| Product Name Description | Float valve |
| CE evaluated | Yes |
| Rated cap. conditions [SI] | +5 °C/+32 °C, sub. Cooling 4 K |
| EAN | 5702422148159 |
| China RoHS compliance | Out of scope |
| Rated cap. R404A/R507A [kW] | 28.1 kW |
| Connection material | Steel |
| Rated cap. R404A/R507A [TR] | 7.99 TR |
| Contains batteries | No |
| Rated capacity R134a [kW] | 29.9 kW |
| Cv value [gal/min] | 0.5 gal/min |
| Rated capacity R134a [TR] | 8.5 TR |
| Differential pressure max[bar] | 19 bar |
| Rated capacity R22 [kW] | 38.3 kW |
| Differential pressure max[psi] | 276 psi |
| Rated capacity R22 [TR] | 10.89 TR |
| EU RoHS compliance | Out of scope |
| Rated capacity R717 [kW] | 186 kW |
| Float housig material | Steel |
| Rated capacity R717 [TR] | 52.9 TR |
| Fluid Group | 12 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Inlet connection size [mm] | 21.8 mm |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507AR717 |
| Kv value [m³/h] | 0.43 m³/h |
| SCIP dossier no. | d8b0f6a1-728a-40b2-874a-789152b4342b |
| Max. Working Pressure [bar] | 28 bar |
| SCIP dossier product name | SV |
| Max. Working Pressure [psig] | 406 psig |
| Temperature range [°C] [max] | 120 °C |
| Packing format | Single pack |
| Temperature range [°C] [min] | -50 °C |
| PED category | II |
| Temperature range [°F] [max] | 248 °F |
| Pilot line connection type | Welding |
| Temperature range [°F] [min] | -58 °F |
| Product description | Float Valve |
| UL evaluated | Yes |
