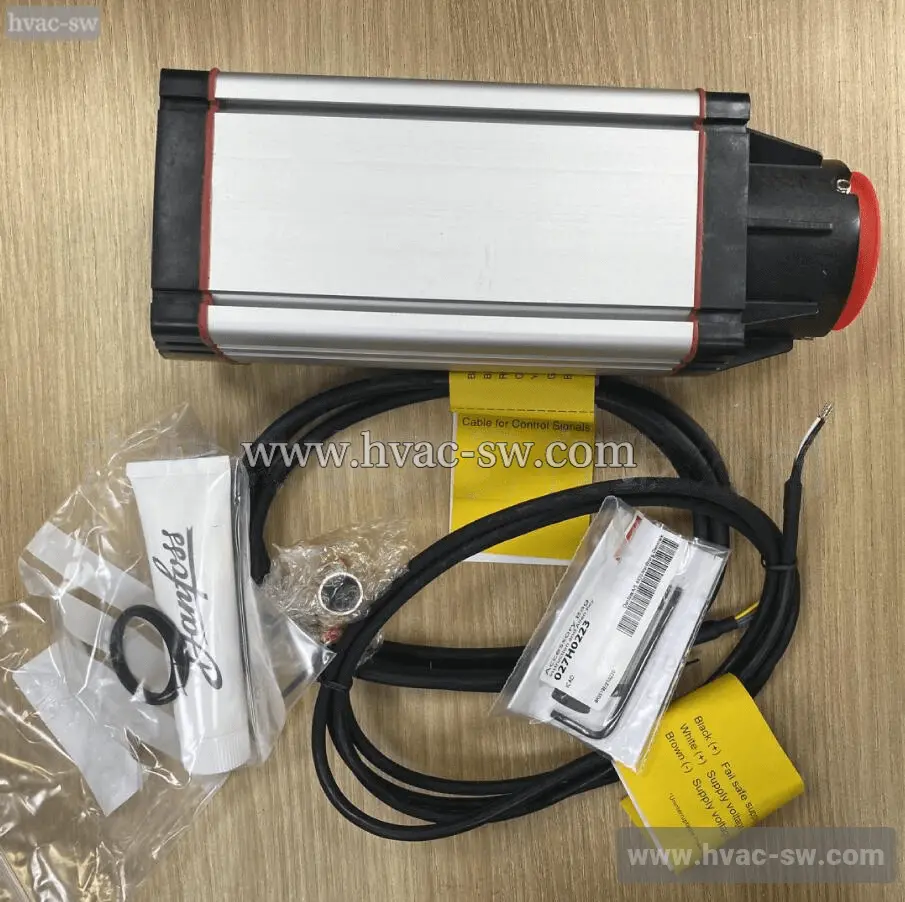

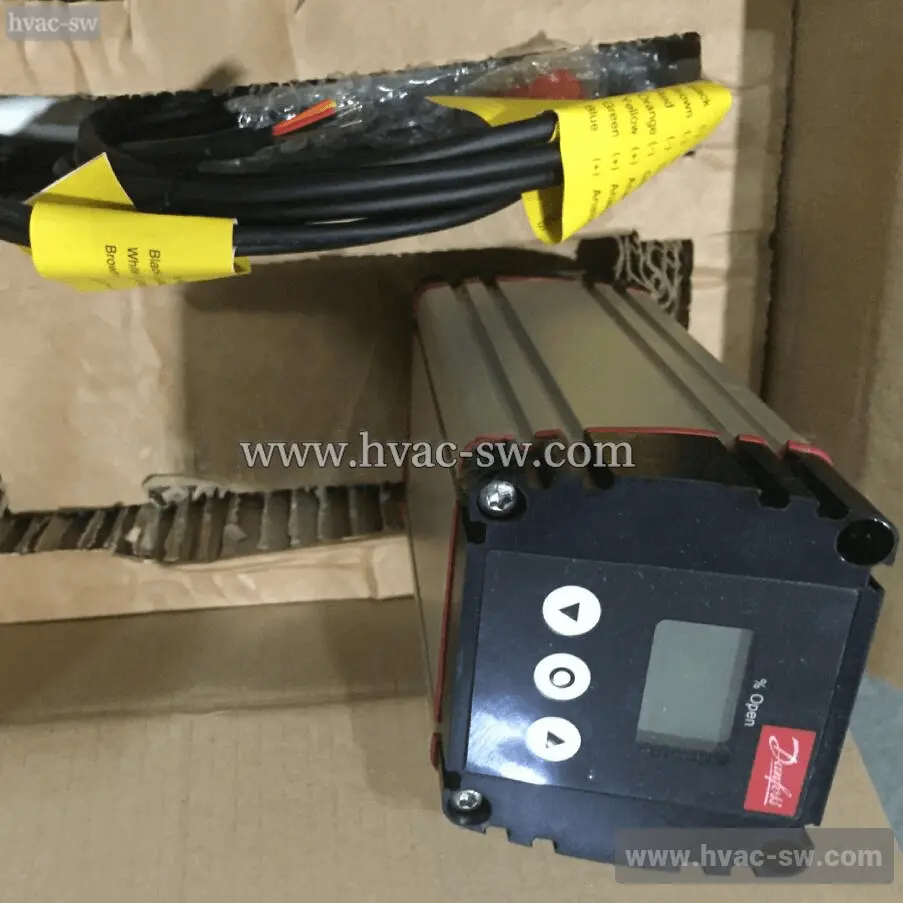

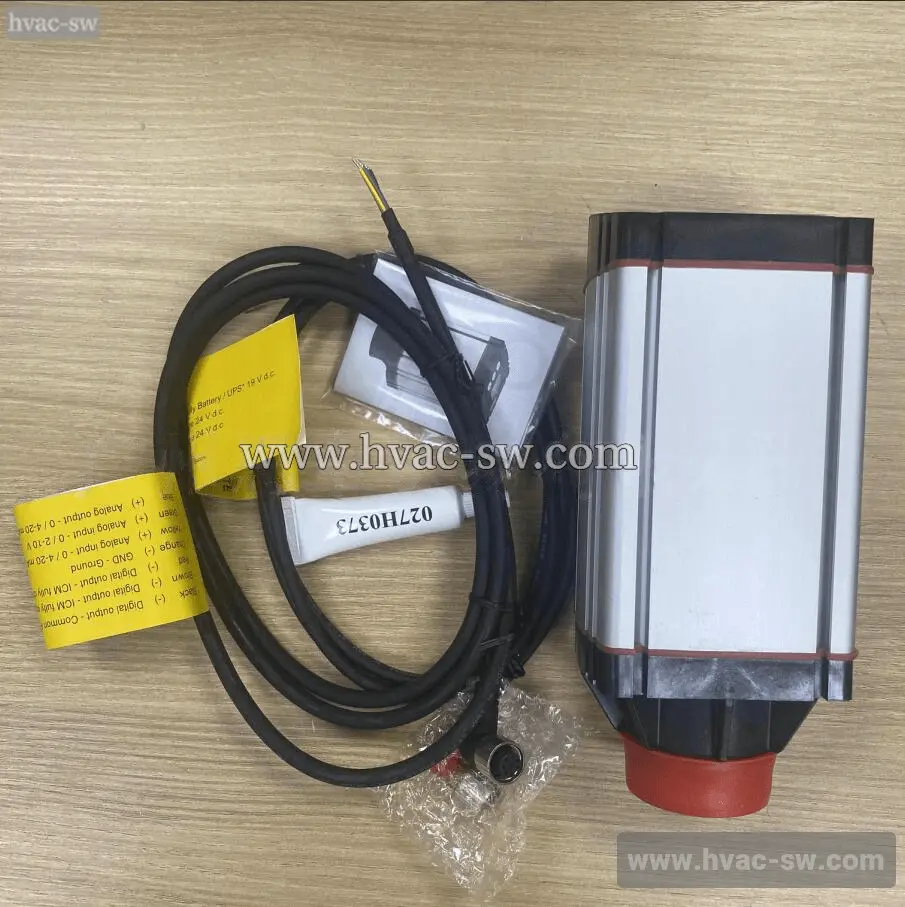

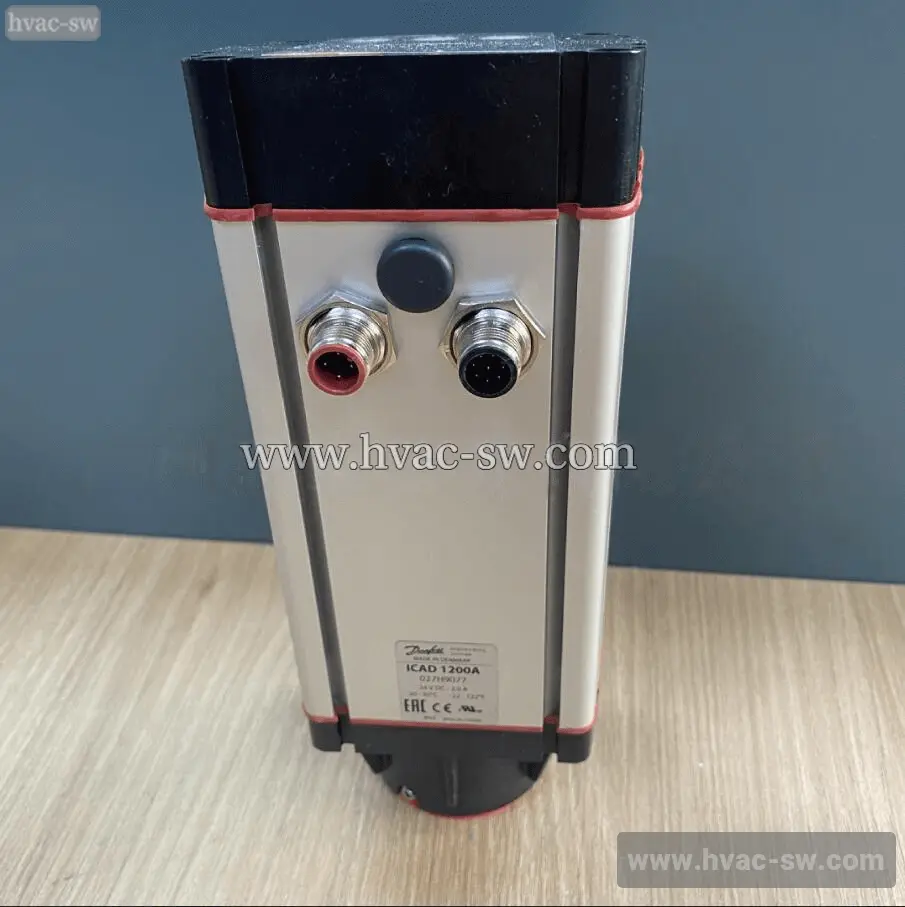

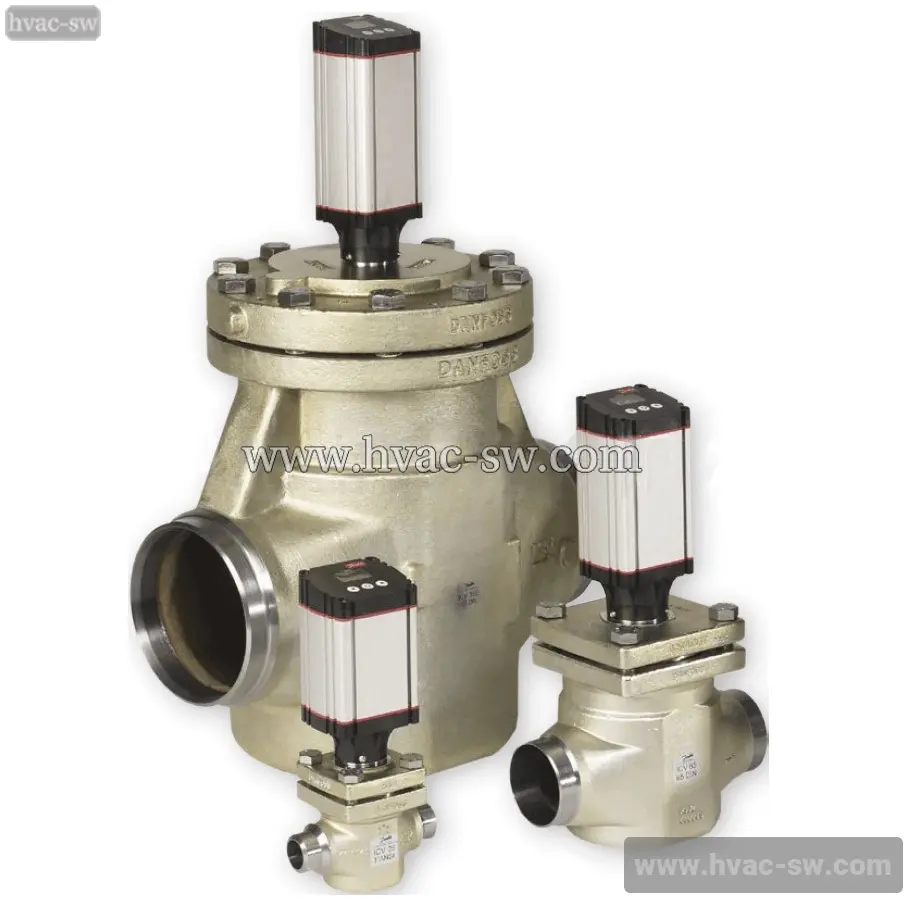

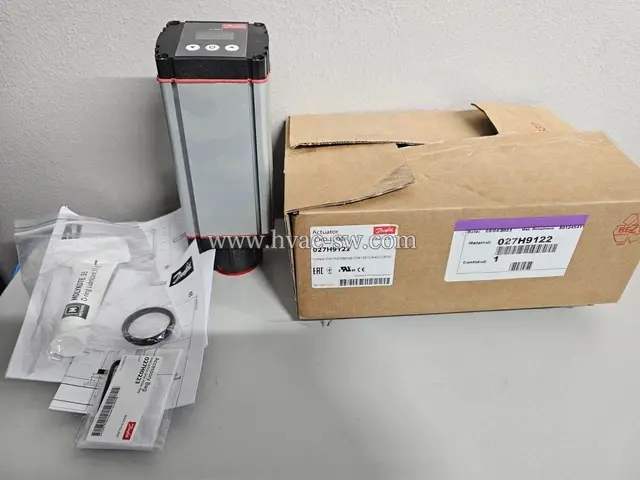

Danfoss 027H9122 Electric Valve Actuator ICAD1200A
The Danfoss ICAD1200A 027H9122 Electric Valve Actuator is designed for precise control of valves in HVAC and industrial applications. It offers reliable performance and easy integration into building management systems, ensuring efficient operation and seamless connectivity.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type | Shape |
|---|---|---|---|---|---|
| ICM40 | DN20 | 52 | Cast Steel | Welding | Medium |
| ICAD1200A | DN40 | 52 | Cast Steel | Welding | Medium |
| Attribute | Value |
|---|---|
| Gross weight | 2.37 Kilogram |
| Type | ICAD 1200A |
| Ambient temperature range [°C] [max] | 50 °C |
| Function | Digital output |
| Net weight | 1.889 Kilogram |
| Product group | Press. and temp. regul. valves |
| Ambient temperature range [°C] [min] | -30 °C |
| Load Analog input Current[Ohm] | 200 Ohm |
| Volume | 6.248 Liter |
| Product Name Description | Actuator |
| Ambient temperature range [°F] [max] | 122 °F |
| Load Analog input Voltage[Ohm] | 10000 Ohm |
| EAN | 5702428889520 |
| Ambient temperature range [°F] [min] | -22 °F |
| Analog input current opt. [mA] [max] | 20 mA |
| Load Analog output max [Ohm] | 250 Ohm |
| Analog input current opt. [mA] [min] | 4 mA |
| Analog input Volt opt. [V] d.c [max] | 10 V |
| Output configuration | NPN Transistor |
| Packing format | Single pack |
| Analog input Volt opt. [V] d.c [min] | 2 V |
| Analog output options [mA] [max] | 20 mA |
| Parts Program name | ICM |
| Product description | Actuator |
| Analog output options [mA] [min] | 4 mA |
| Approval | CECRNEACLLC CDC TYSKUL |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Cable length [in] | 60 in |
| Cable length [m] | 1.5 m |
| SCIP dossier no. | aaf4df04-232e-4c2f-a798-03522fc35abf |
| SCIP dossier product name | ICAD |
| CE evaluated | Yes |
| Contains batteries | No |
| Supply cable size [AWG] | 3 x ~22 AWG, Ø0.19 in |
| Supply cable size [mm2] | 3 x 0,34 mm, Ø4,8 mm |
| Control cable size [AWG] | 7 x ~24 AWG, Ø0.24 in |
| Control cable size [mm2] | 7 x 0,25 mm, Ø6 mm |
| Supply voltage [V] DC | 24 V |
| Supply voltage load [A] | 2 A |
| Dig. Output-Ext supply [V] d.c [max] | 24 V |
| Dig. Output-Ext supply [V] d.c [min] | 5 V |
| Supply voltage tolerance [%] [max] | 10 % |
| Supply voltage tolerance [%] [min] | -15 % |
| Digital Output-Load [Ohm] | 50 Ohm |
| Digital Output-Max Load [mA] | 50 mA |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -30 °C |
| Digital outputs (DO) [pc] | 3 pc |
| Display type | LCD |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -22 °F |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Used for product | ICM 40ICM 50ICM 65ICM100ICM125ICM150 |
