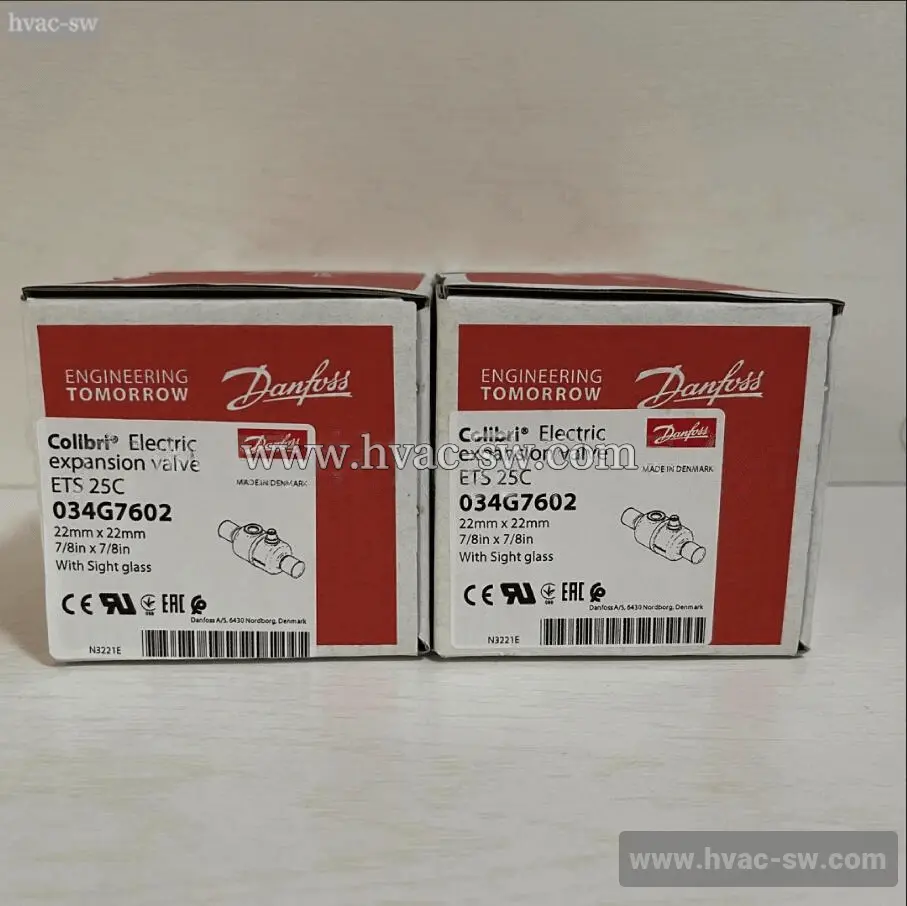

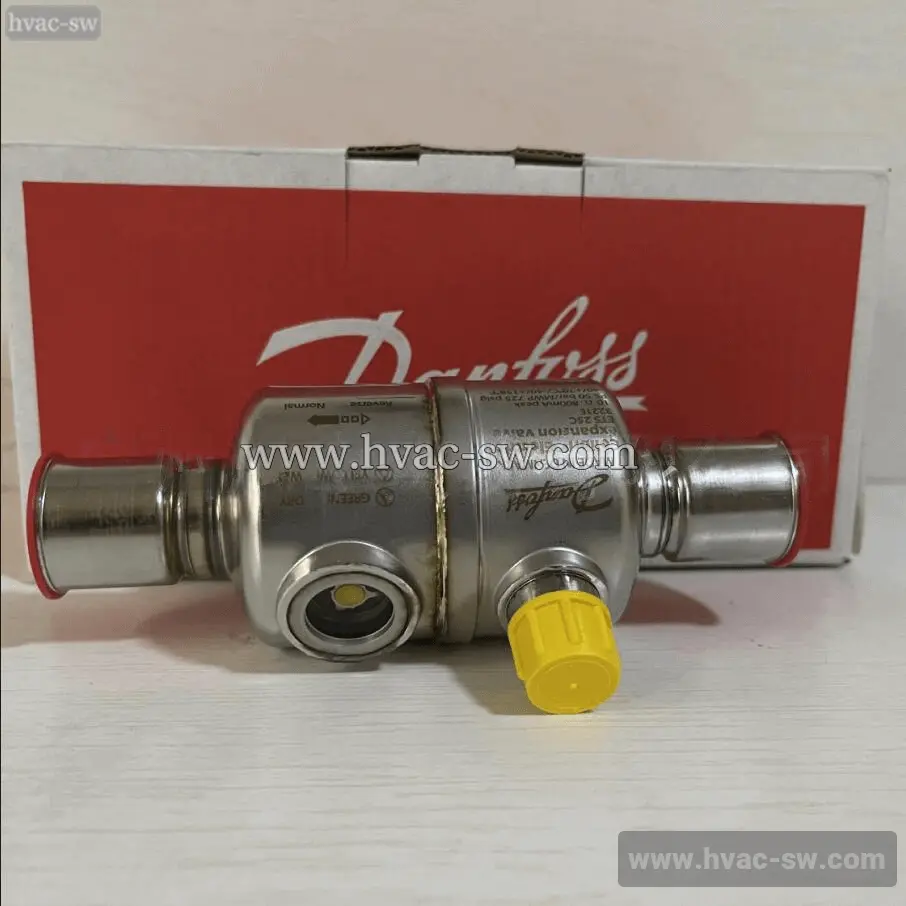

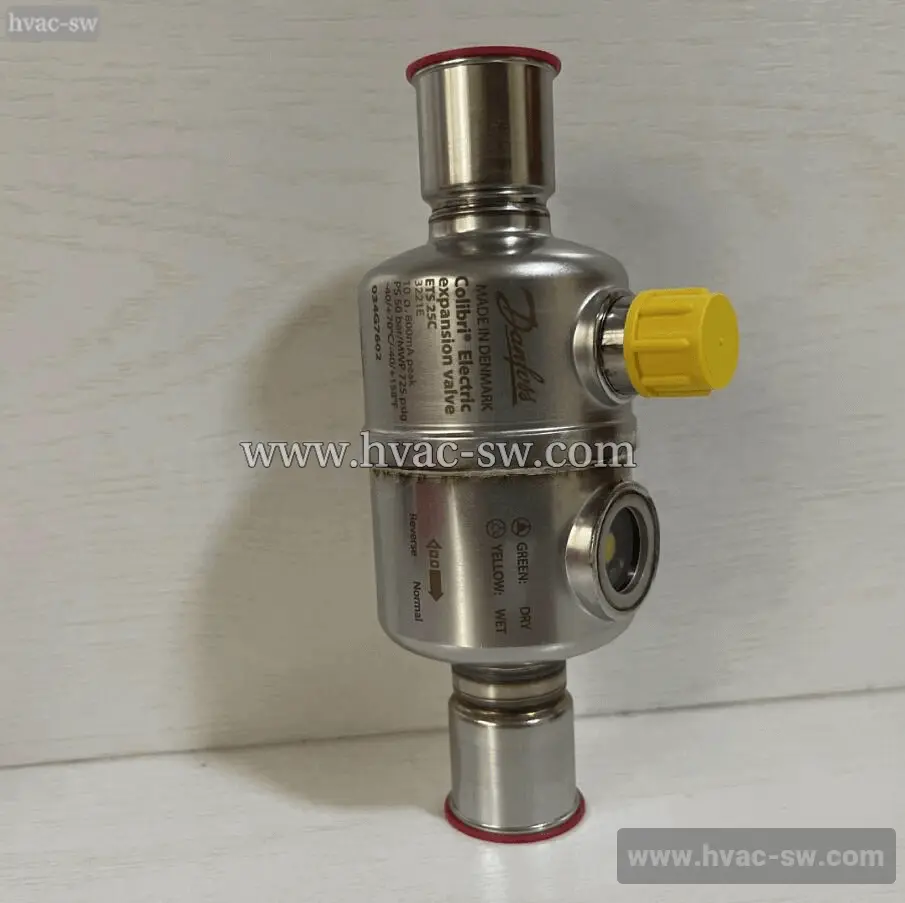

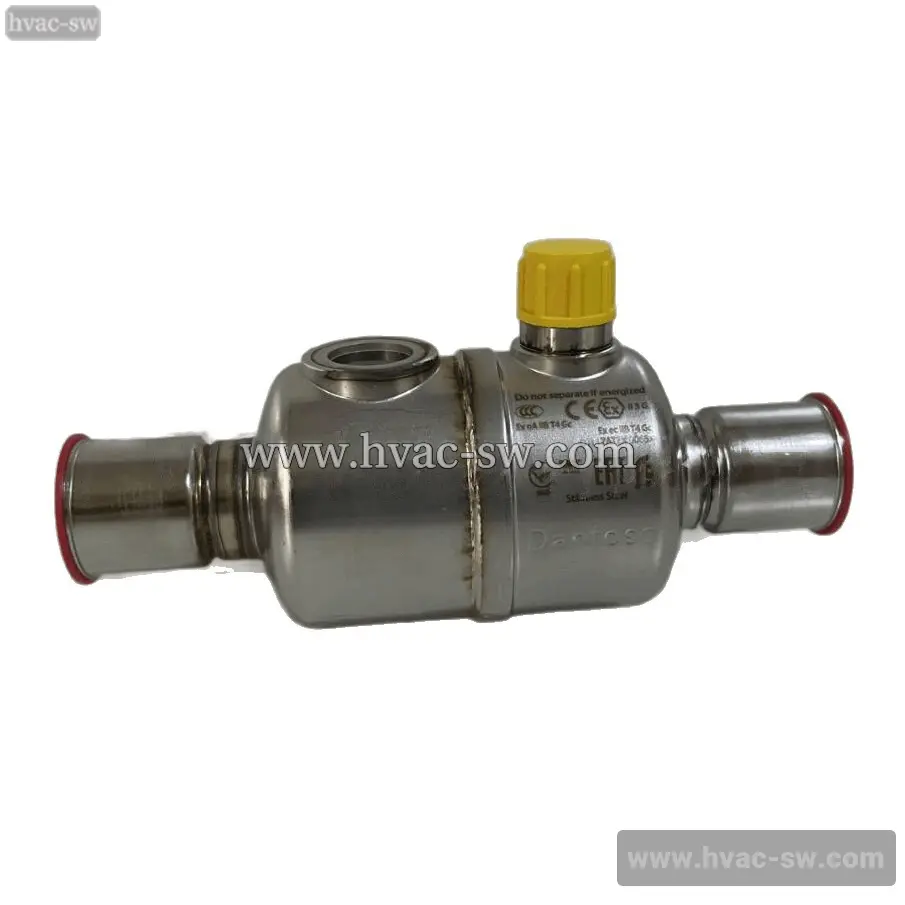

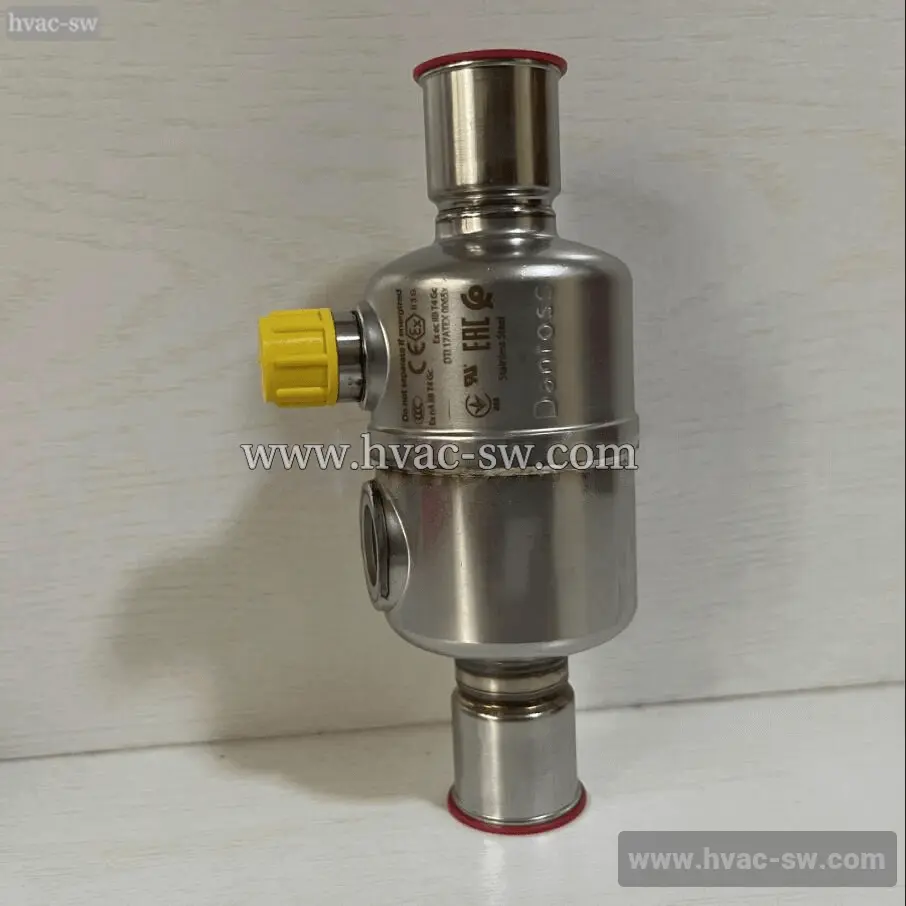

Danfoss 034G7602 ETS25C Electronic Expansion Valve
The Danfoss 034G7602 ETS25C is a high-performance Electronic Expansion Valve designed for precise refrigerant flow control in HVAC/R systems. It ensures efficient heat exchange, stable operation, and energy savings, making it ideal for commercial and industrial applications requiring accurate refrigerant regulation.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model No. | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Valve Body Material | Connection Type |
|---|---|---|---|---|
| ICLX100 | DN100 | 4 | Cast Steel | Welding |
| ICLX125 | DN125 | 4 | Cast Steel | Welding |
| ICLX150 | DN150 | 4 | Cast Steel | Welding |
| EVM 027B1130 | DN15 | 6 | Cast Steel | Male Thread |
| Attribute | Value |
|---|---|
| Gross weight | 0.411 Kilogram |
| Net weight | 0.315 Kilogram |
| Volume | 1.651 Liter |
| EAN | 5702428887922 |
| Type | ETS 25C |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEXCCCCECMIMEACLLC CDC TYSKUKCAUR |
| Balanced port [Yes/No] | Yes |
| Body material | Stainless steel |
| Brand | Colibri |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compatible Danfoss controllers | EKE 1AEKE 1BEKE 1CMCX 061VMCX 152V |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
