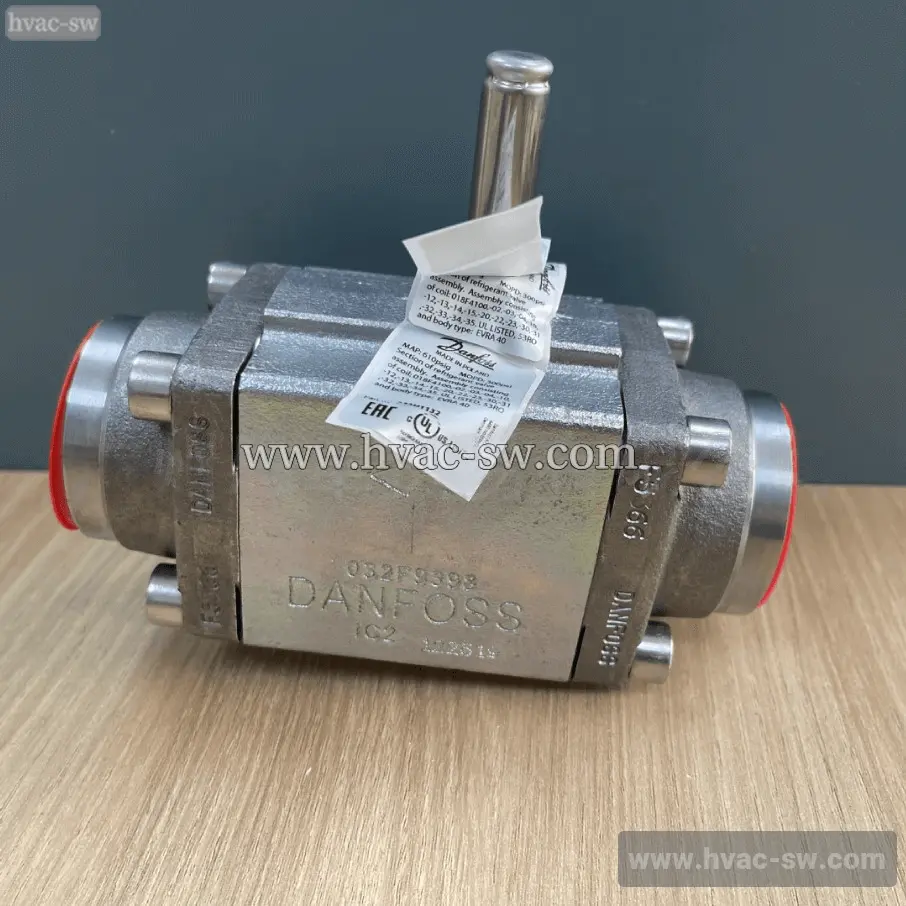

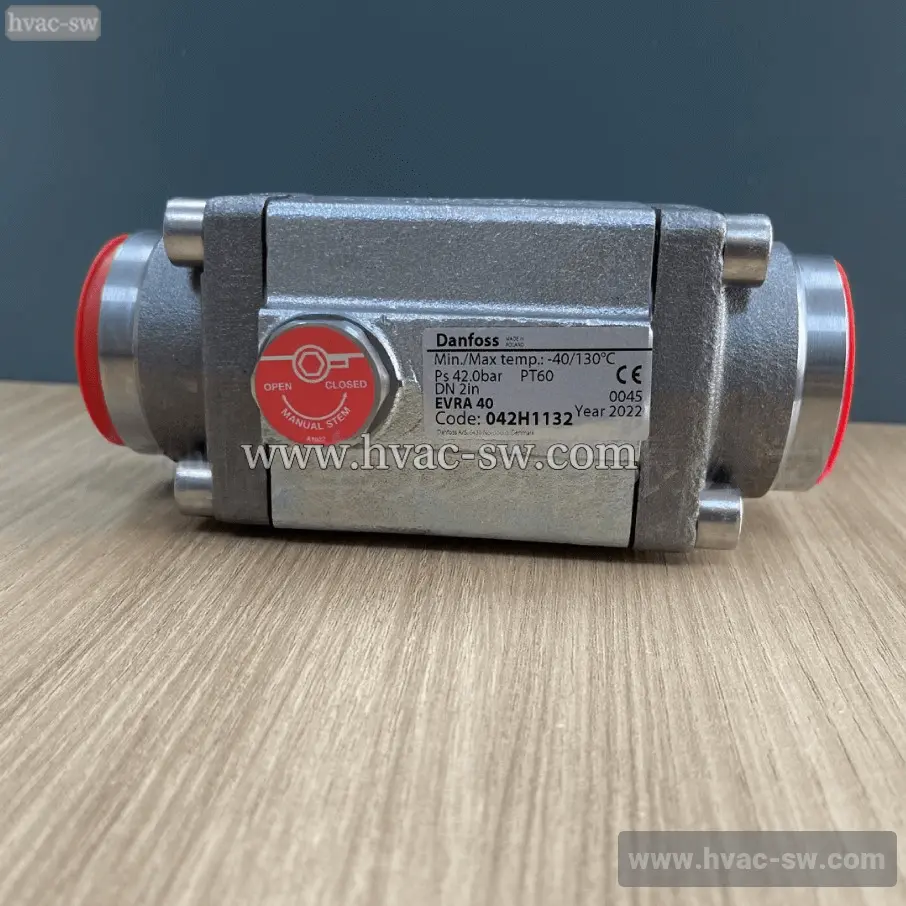

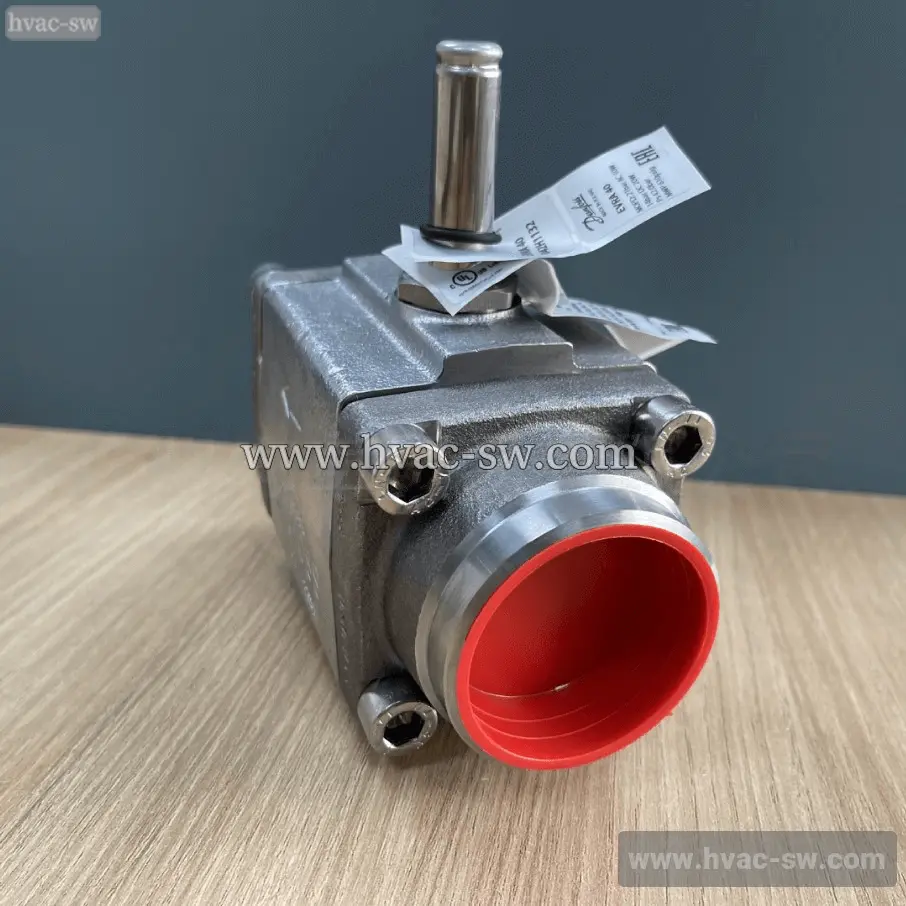

Danfoss 042H1132 Ammonia Solenoid Valve EVRA40
The Danfoss 042H1132 EVRA40 is a direct-acting, normally closed solenoid valve designed for ammonia applications in industrial refrigeration systems. It is suitable for liquid line, suction line, and hot gas line service, offering a compact design and high reliability in demanding low-temperature environments.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 4.674 Kilogram |
| Net weight | 4.332 Kilogram |
| Volume | 7.56 Liter |
| EAN | 5702428517171 |
| Type | EVRA 40 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Body material | Cast iron |
| China RoHS compliance | Out of scope |
| Coil | No |
| Connection material | Steel |
| Connection standard, inlet | EN 10220 |
| Connection standard, outlet | EN 10220 |
| Contains batteries | No |
| Cv value [gal/min] | 28.9 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | Butt weld |
| Inlet size [in] | 2 in |
| Kv value [m³/h] | 25 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 25.4 mm |
| Outlet connection type | Butt weld |
| Outlet size [in] | 2 in |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507AR717 |
| SCIP dossier no. | d38f86ba-12bb-4e70-8d9f-ec3fd58b7365 |
| SCIP dossier product name | EVRA EVRAT |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL evaluated | Yes |
| Valve operation | Servo-piston |
