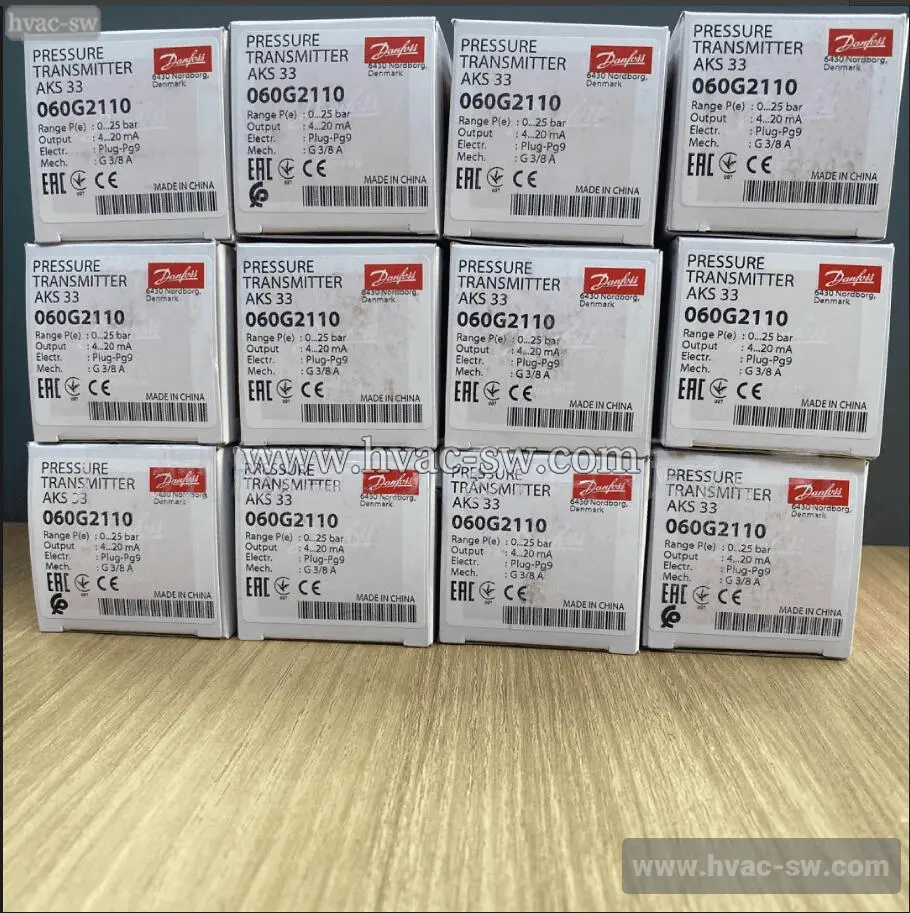

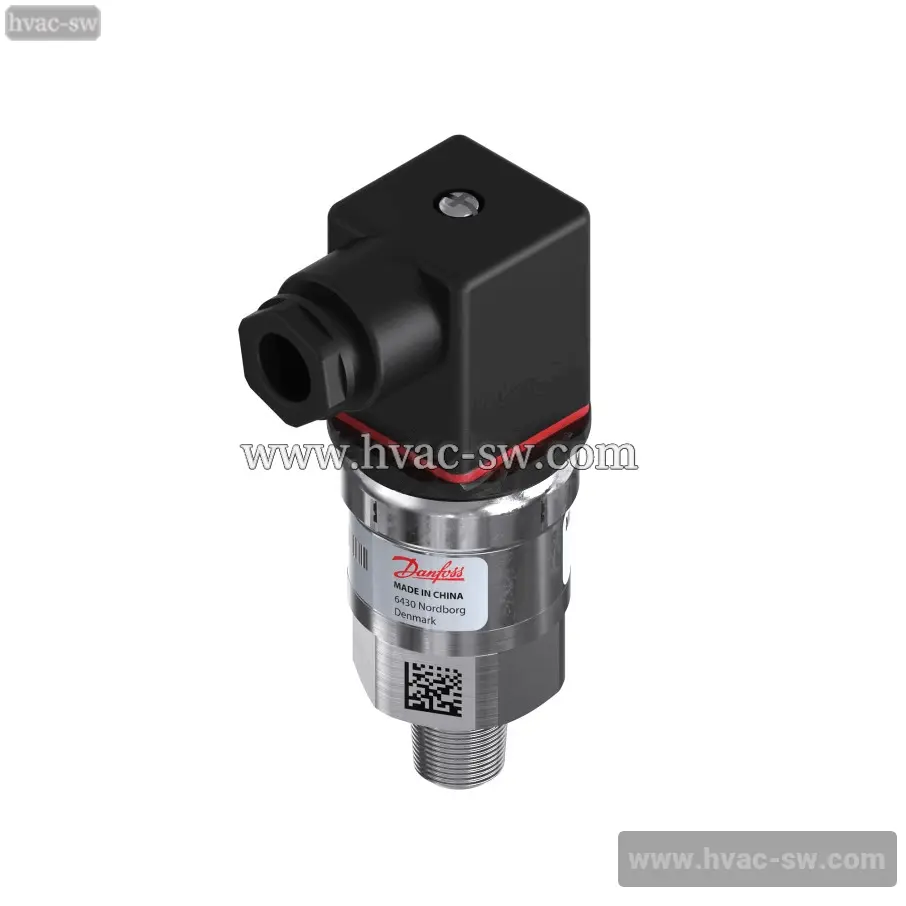

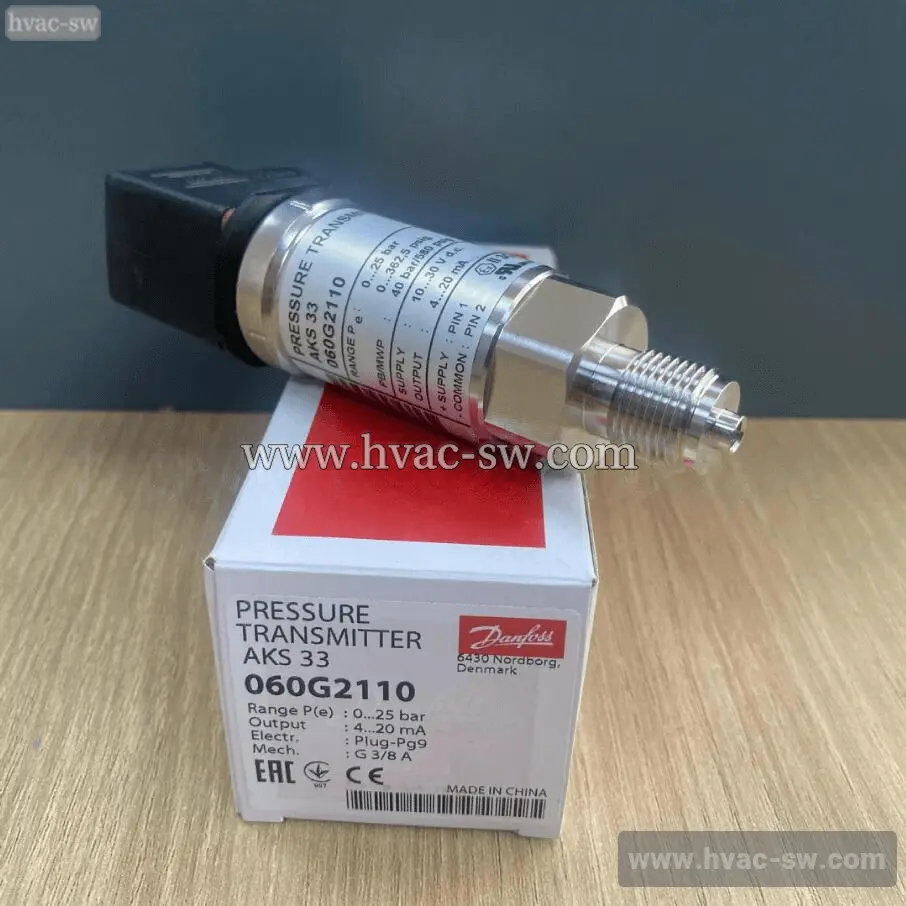

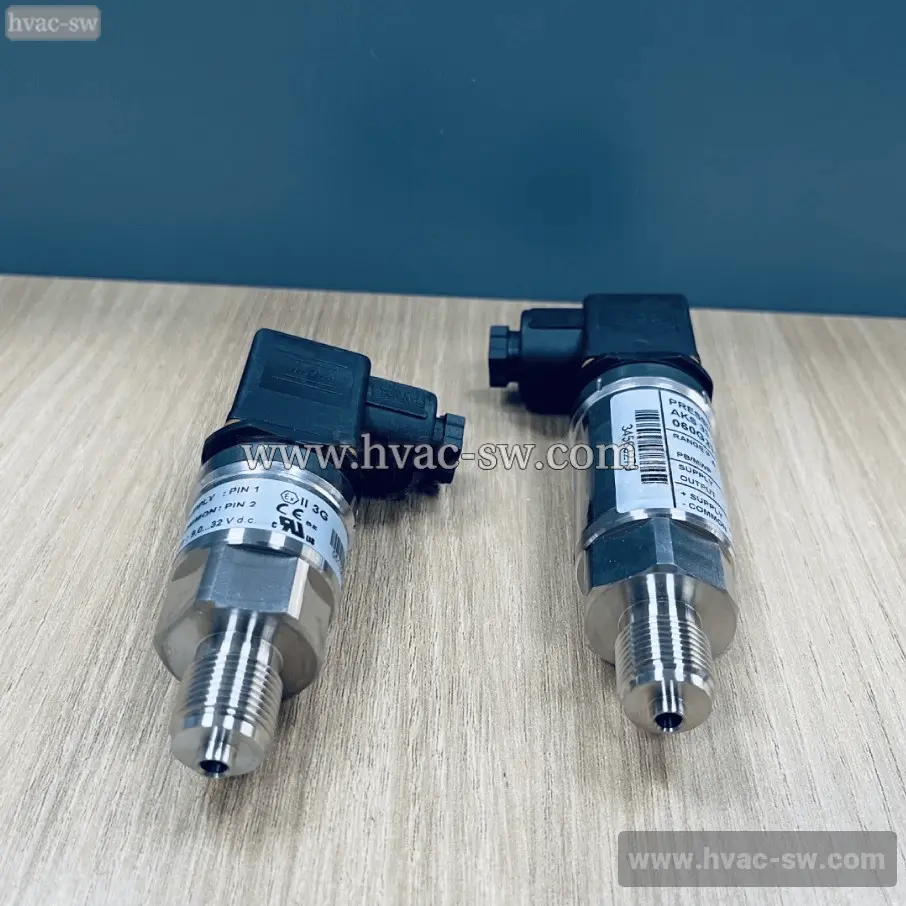

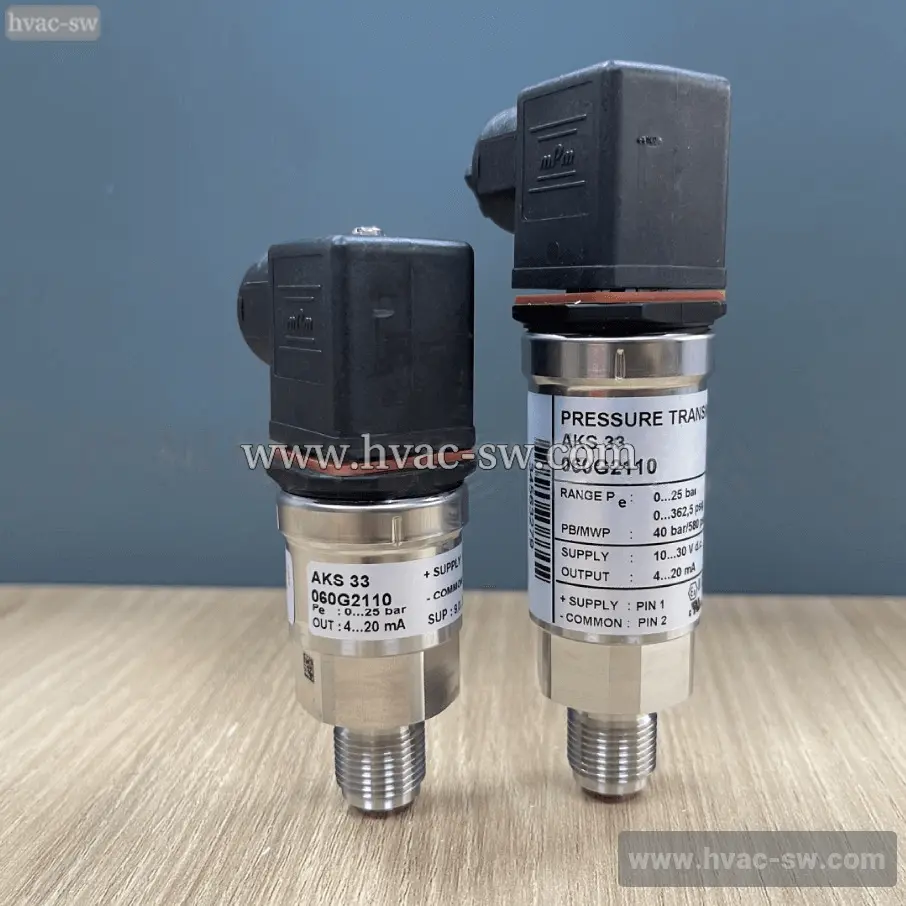

Danfoss 060G2110 AKS33 Industrial Pressure Sensor
Danfoss
Description
Danfoss 060G2110 AKS33 is a high-precision pressure sensor designed for industrial applications. It offers accurate and stable pressure measurement in hydraulic and pneumatic systems. The robust construction ensures durability in demanding environments, making it ideal for various industrial uses.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 0.19 Kilogram |
| Net weight | 0.168 Kilogram |
| Volume | 0.413 Liter |
| EAN | 5702422066880 |
| Type | AKS 33 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.8 % |
| Accuracy, typical [±FS%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEXGOST POCCCEC UL US UL Recognized |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179E227388E31024 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 40 °C |
| Compensated temp. range [°C] [min] | -30 °C |
| Compensated temp. range [°F] [max] | 104 °F |
| Compensated temp. range [°F] [min] | -22 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| International Article Number | 5702422066880 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 33 bar |
| Overload pressure max. [psi] | 479 psi |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | EN 837 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 9 bar |
| Pressure range [bar] [min] | -1 bar |
| Pressure range [psi] [max] | 130.5 psi |
| Pressure range [psi] [min] | -14.5 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89 |
| SCIP dossier product name | Sensor AKS 33 |
| Specification key | AKS 33-D631-A1AB06-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| UL evaluated | Yes |
