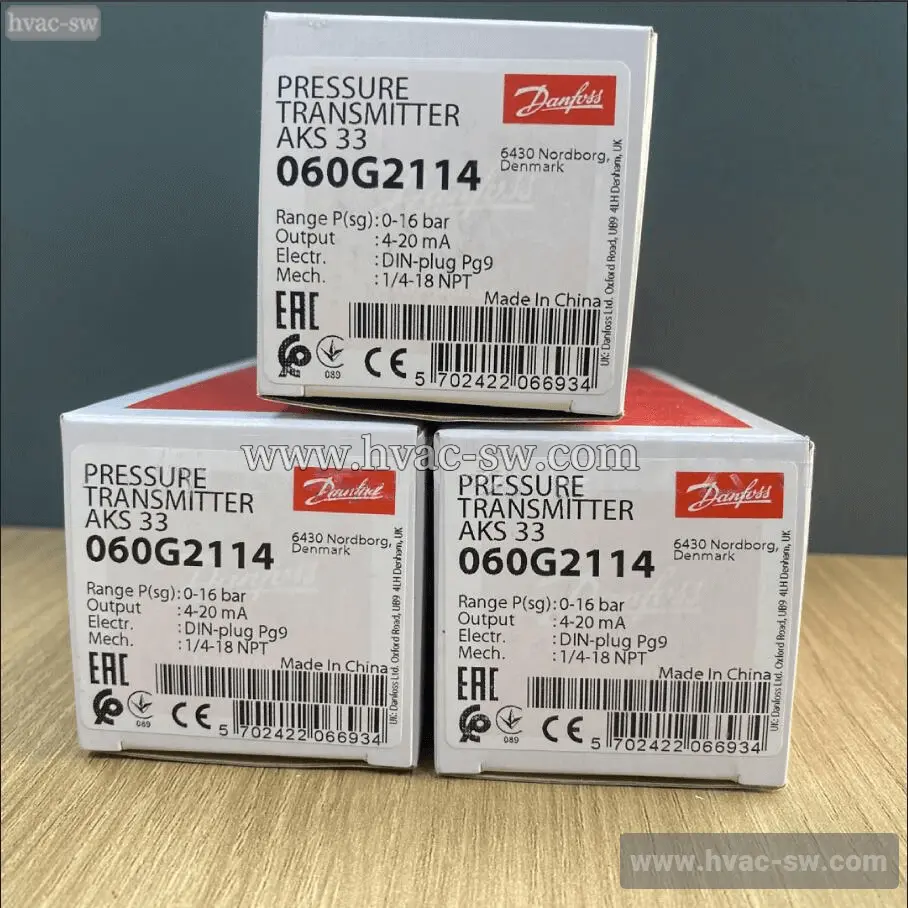

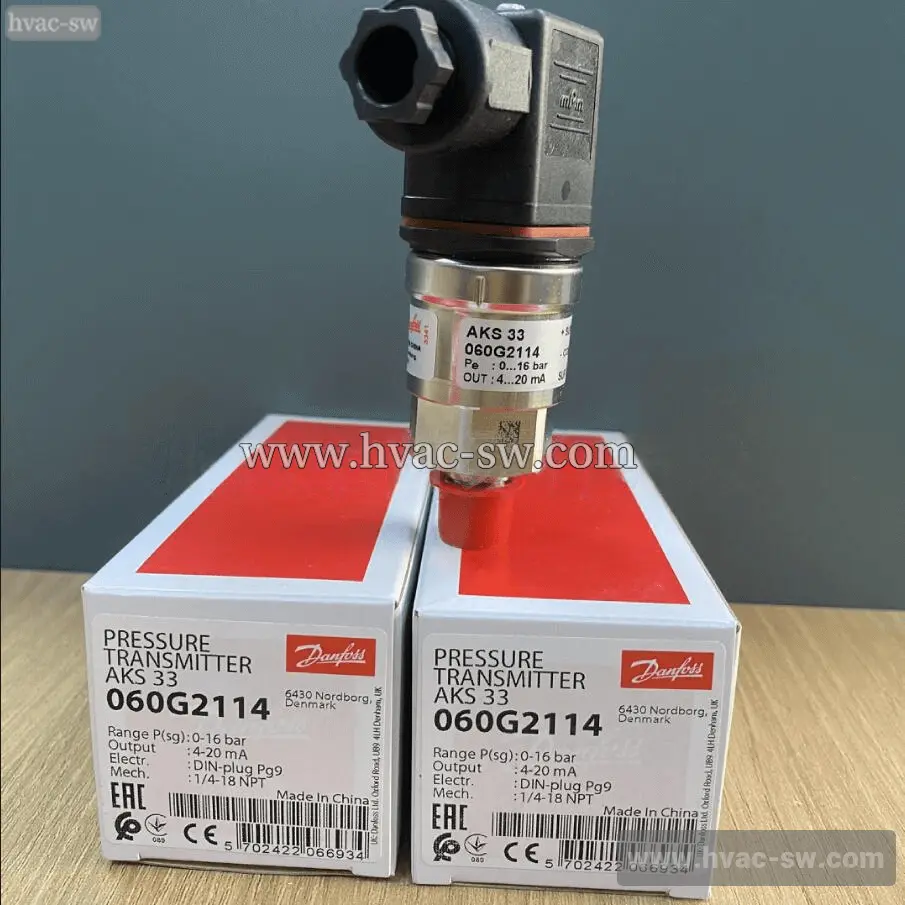

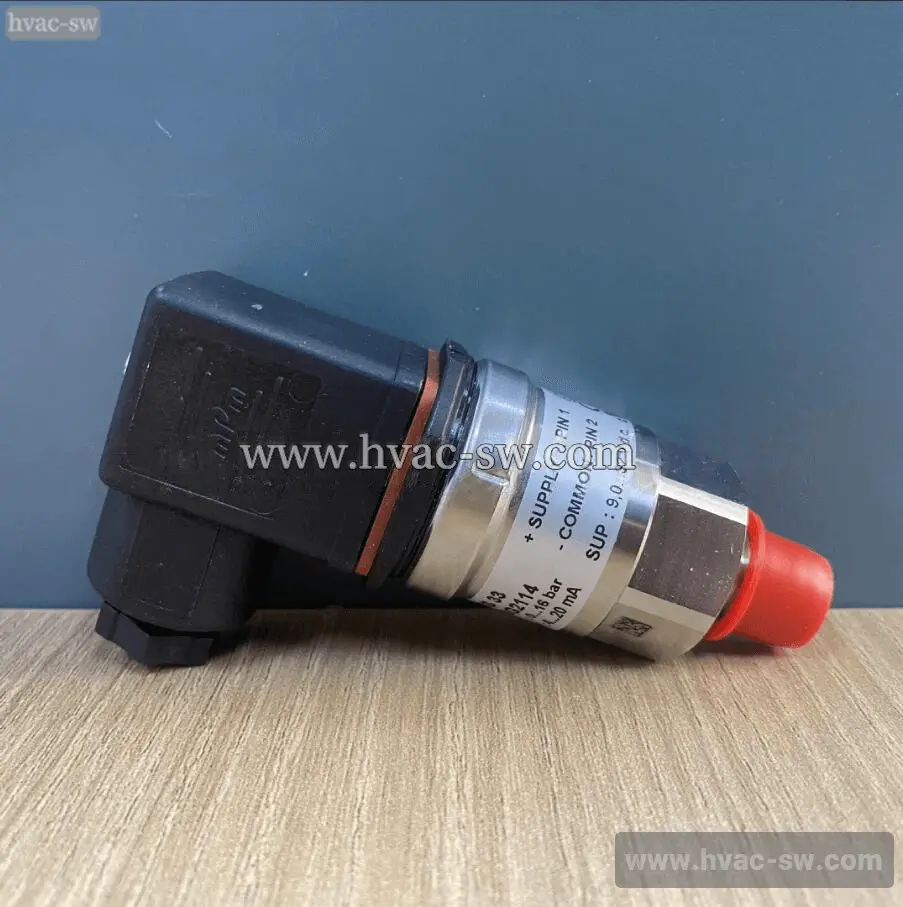

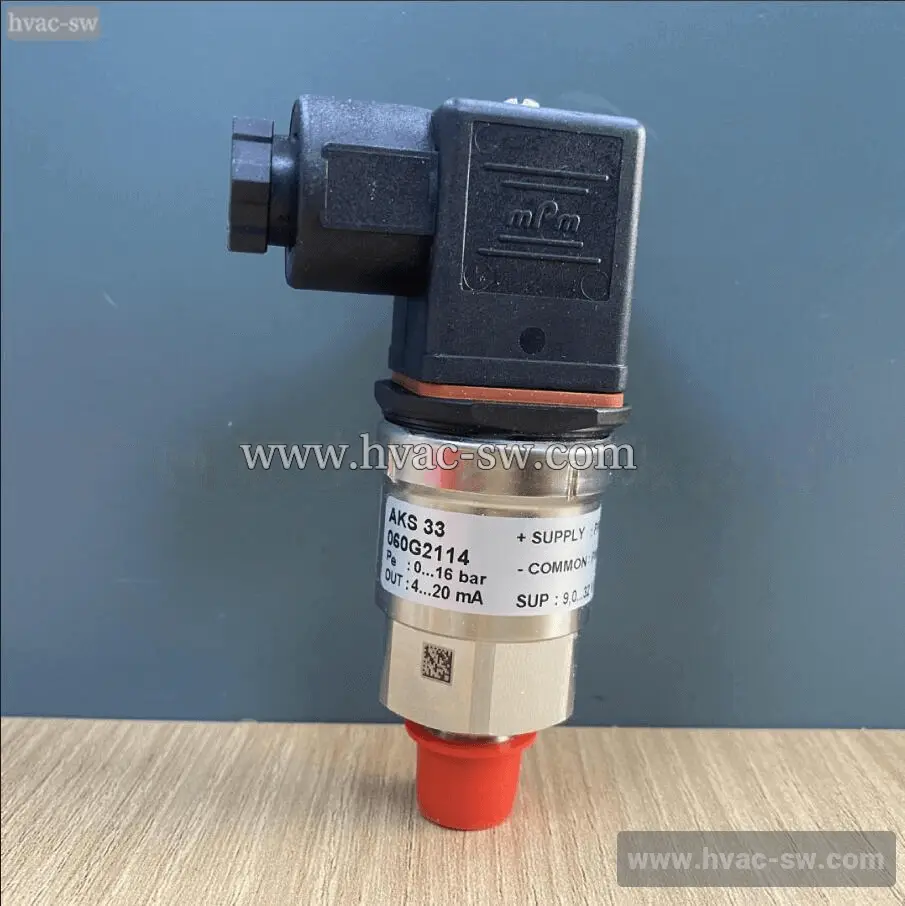

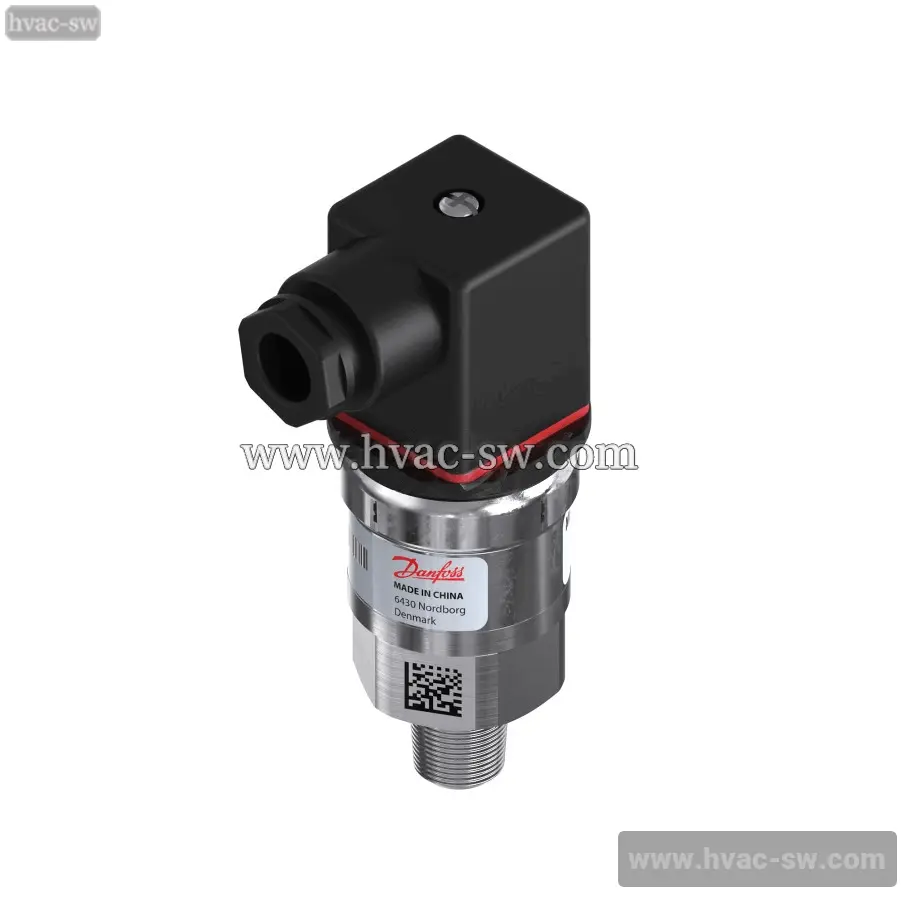

Danfoss 060G2114 AKS33 Pressure Sensor Industrial Grade
The Danfoss 060G2114 AKS33 is a high-performance pressure sensor designed for industrial applications. It provides accurate and reliable pressure measurement in hydraulic and pneumatic systems, ensuring precise monitoring and control. The sensor features a robust electrical signal output and a compact, easy-to-install design.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.18 Kilogram |
| Type | AKS 33 |
| + supply | Pin 1 |
| Low Clipping level | 3.6 |
| Net weight | 0.157 Kilogram |
| Product group | Sensors |
| - common | Pin 2 |
| Medium temperature range [°C] [max] | 85 °C |
| Volume | 0.405 Liter |
| Product Name Description | Pressure transmitter |
| Accuracy, max. [±FS%] | 0.8 % |
| Medium temperature range [°C] [min] | -40 °C |
| EAN | 5702422066934 |
| Accuracy, typical [±FS%] | 0.3 % |
| Medium temperature range [°F] [max] | 185 °F |
| Adj. zero point and span | No |
| Medium temperature range [°F] [min] | -40 °F |
| Ambient temperature range [°C] [max] | 85 °C |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Ambient temperature range [°C] [min] | -40 °C |
| Output signal | Current |
| Ambient temperature range [°F] [max] | 185 °F |
| Output signal [mA] [max] | 20 mA |
| Ambient temperature range [°F] [min] | -40 °F |
| Output signal [mA] [min] | 4 mA |
| Approval | ATEXGOST POCCCEC UL US UL Recognized |
| Overload pressure max. [bar] | 40 bar |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Overload pressure max. [psi] | 580 psi |
| Approval standard | 6967179E227388E31024 |
| Packing format | Multi pack |
| CE evaluated | Yes |
| Pressure connection size | 1/4-18 |
| China RoHS compliance | Out of scope |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Compensated temp. range [°C] [max] | 40 °C |
| Pressure connection type | NPT |
| Compensated temp. range [°C] [min] | -30 °C |
| Pressure Male/Female | Male |
| Compensated temp. range [°F] [max] | 104 °F |
| Pressure range [bar] [max] | 16 bar |
| Compensated temp. range [°F] [min] | -22 °F |
| Pressure range [bar] [min] | 0 bar |
| Contains batteries | No |
| Pressure range [psi] [max] | 232 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Pressure range [psi] [min] | 0 psi |
| Electrical conn. Male/Female | Male and Female |
| Pressure reference | Sealed gauge |
| Electrical connection | Angular connector |
| Pulse-snubber | No |
| Electrical connection size | Pg 9 |
| Quantity per packing format | 14 pc |
| Electrical connection standard | EN 175301-803-A |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Enclosure rating IP | IP65 |
| Response time max. [ms] | 4 ms |
| EU RoHS compliance | Yes with exemptions |
| SCIP dossier no. | 5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89 |
| EU RoHS exemption clause | 6(c) |
| SCIP dossier product name | Sensor AKS 33 |
| Flush diaphragm | No |
| Specification key | AKS 33-2231-A1EC04-0 |
| High Clipping Level | 22.4 |
| Supply voltage [V] DC [max] | 32 V |
| In scope of WEEE | Yes |
| Supply voltage [V] DC [min] | 9 V |
| International Article Number | 5702422066934 |
| UL evaluated | Yes |
| Intrinsically safe | No |
