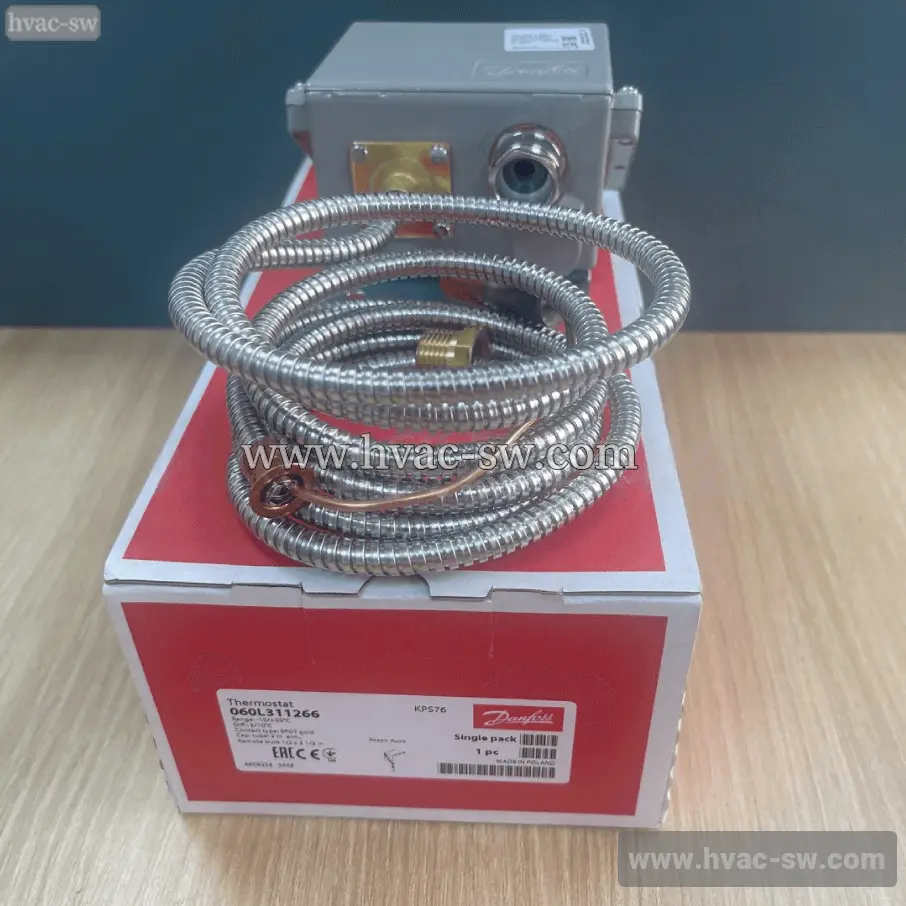

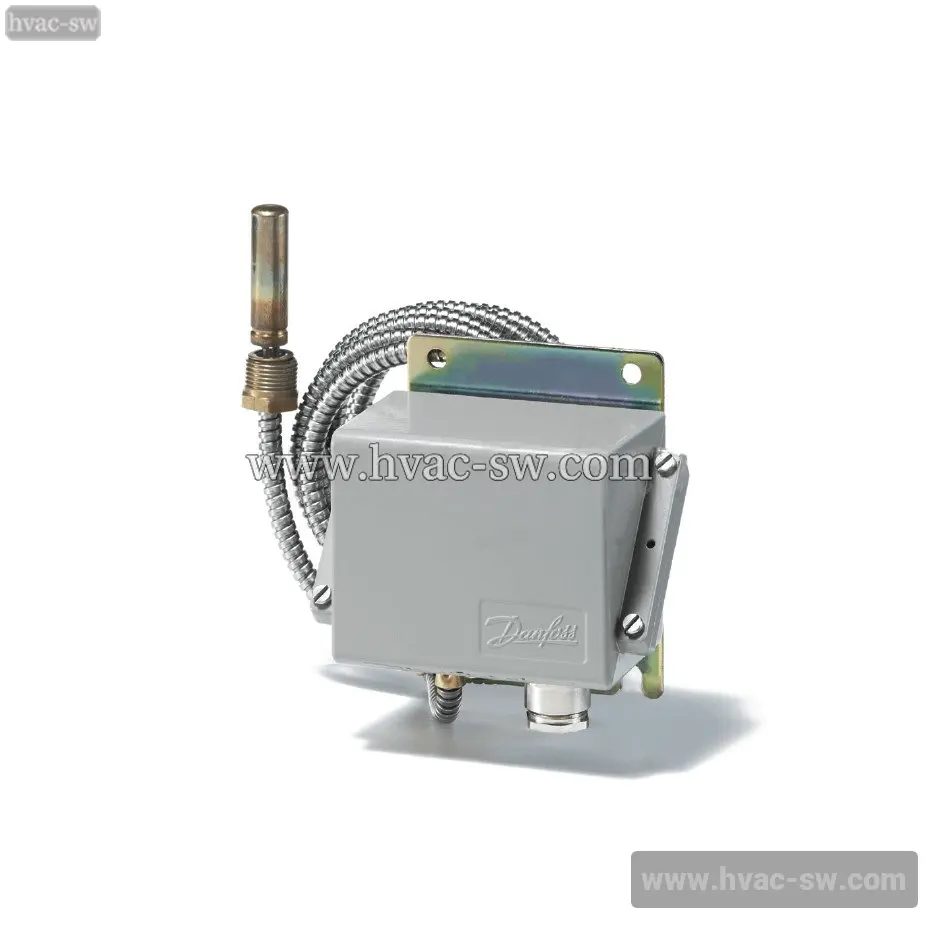

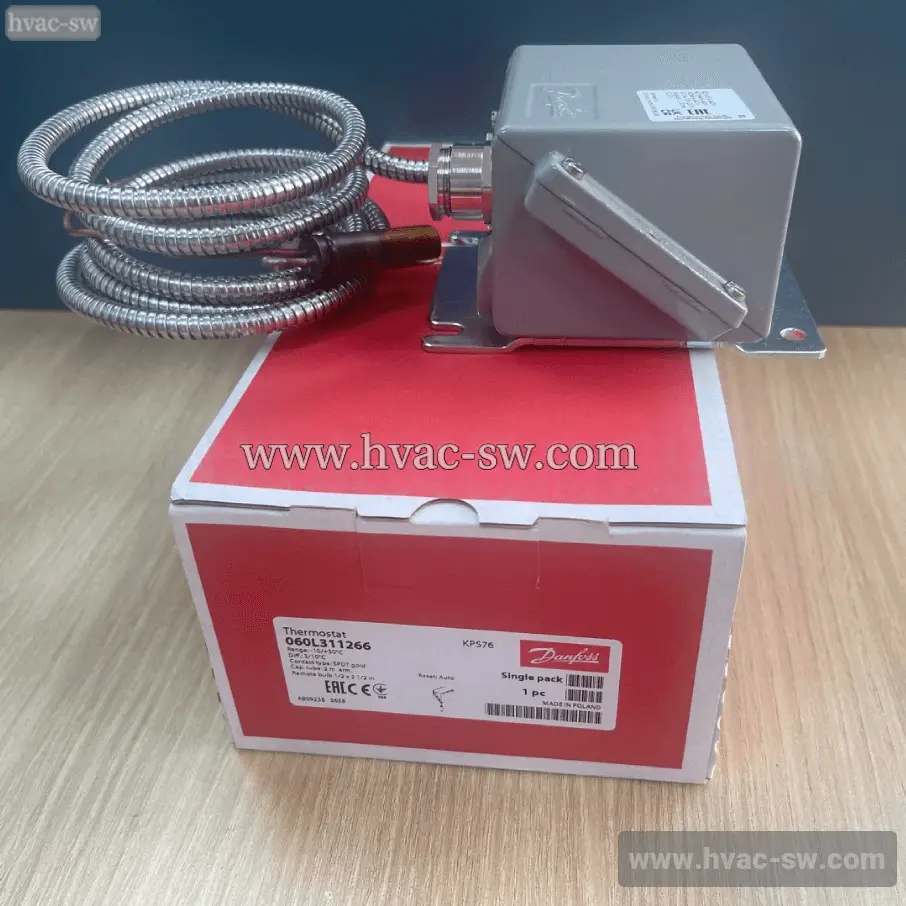

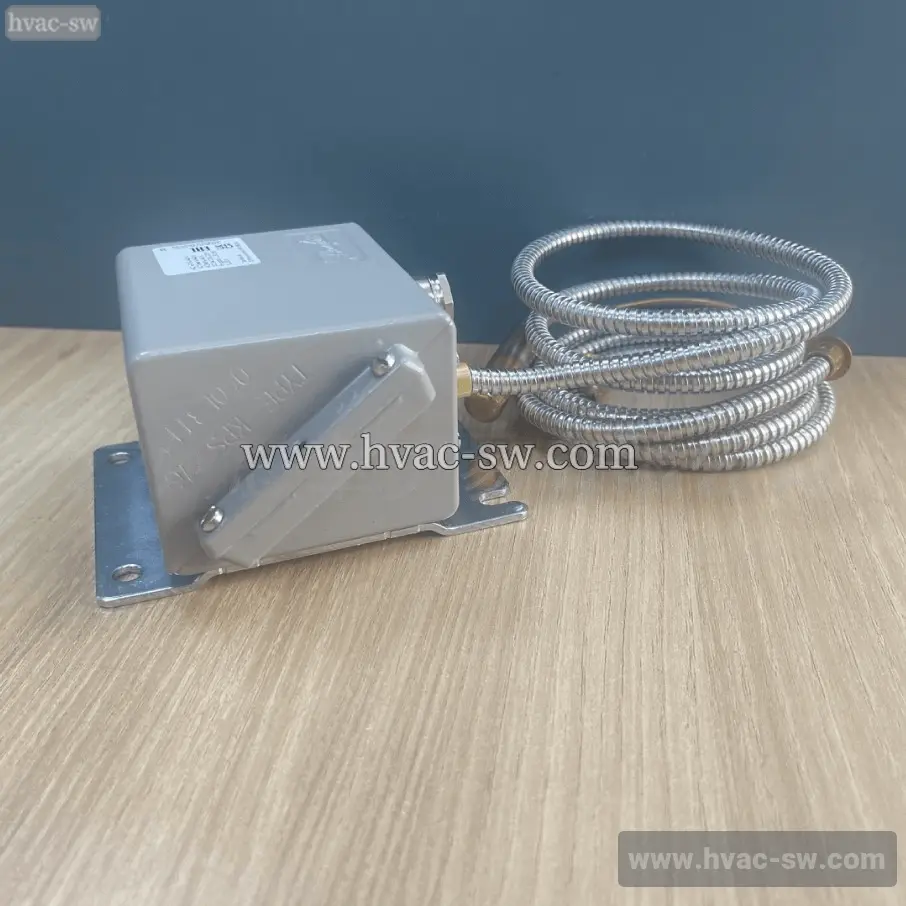

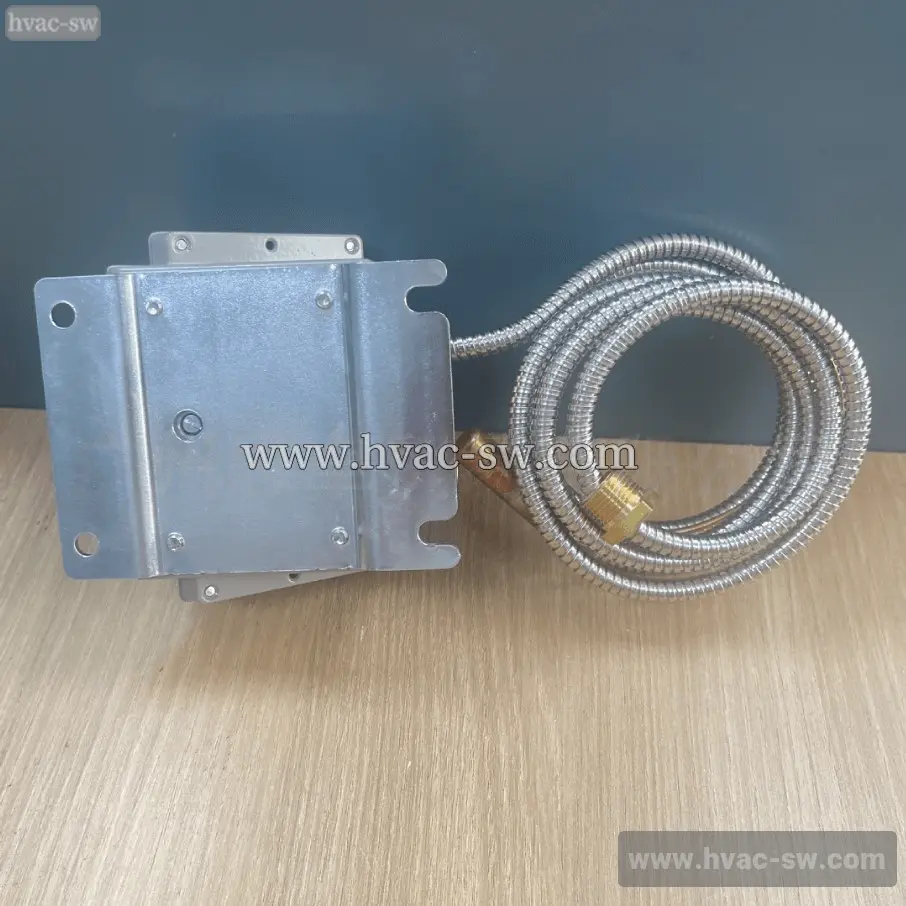

Danfoss 060L311266 Temperature Controller KPS76
The Danfoss KPS76 060L311266 and KPS77 060L310166 are high-quality temperature controllers and switches designed for precise thermal regulation in refrigeration, HVAC, and industrial applications. Built to Danfoss's stringent standards, these units ensure system safety and efficiency with robust performance.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|
| KPS76 060L311266 060L310266 | 10 | 5.2 | ABS | Threaded |
| KPS77 060L310166 060L310066 060L311866 060L310266 | 12 | 5.2 | ABS | Threaded |
| 060L326266 060L328166 060L327166 060L340366 | 13 | 5.2 | ABS | Threaded |
| Attribute | Value |
|---|---|
| Gross weight | 1.256 Kilogram |
| Net weight | 1.158 Kilogram |
| Volume | 3.684 Liter |
| EAN | 5702423147663 |
| Type | KPS76 |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABSBVCCCCCSCEDNVEACGLLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUL |
| Armoring | Yes |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 Vfor gold 1…30mA, 5...30V |
| Contains batteries | No |
| Diff. @ Min. range setting [K] [max] | 10 K |
| Diff. @ Min. range setting [K] [min] | 3 K |
| Diff. @ Min. range setting[°C] [max] | 10 °C |
| Diff. @ Min. range setting[°C] [min] | 3 °C |
| Differential type | Adjustable |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| Equipment | Armored cap. tube |
| EU RoHS compliance | Out of scope |
| Max. sensor temperature [°C] | 80 °C |
| Max. sensor temperature [°F] | 176 °F |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1)Cadmium oxide (CAS no.1306-19-0) |
| Reset function | Auto |
| SCIP dossier no. | c1a694ec-501f-43db-83d2-8a9a314459e0 |
| SCIP dossier product name | KP KPS KPU Thermostat |
| Sensor pocket length min. [in] | 3 in |
| Sensor pocket length min. [mm] | 75 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 1/2 in |
| Sensor size (Ø x L) [mm] | 13 x 63 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Temperature range [°C] [max] | 30 °C |
| Temperature range [°C] [min] | -10 °C |
| Temperature range [°F] [max] | 86 °F |
| Temperature range [°F] [min] | 14 °F |
| UL approval file name | E73170 |
| UL evaluated | Yes |
