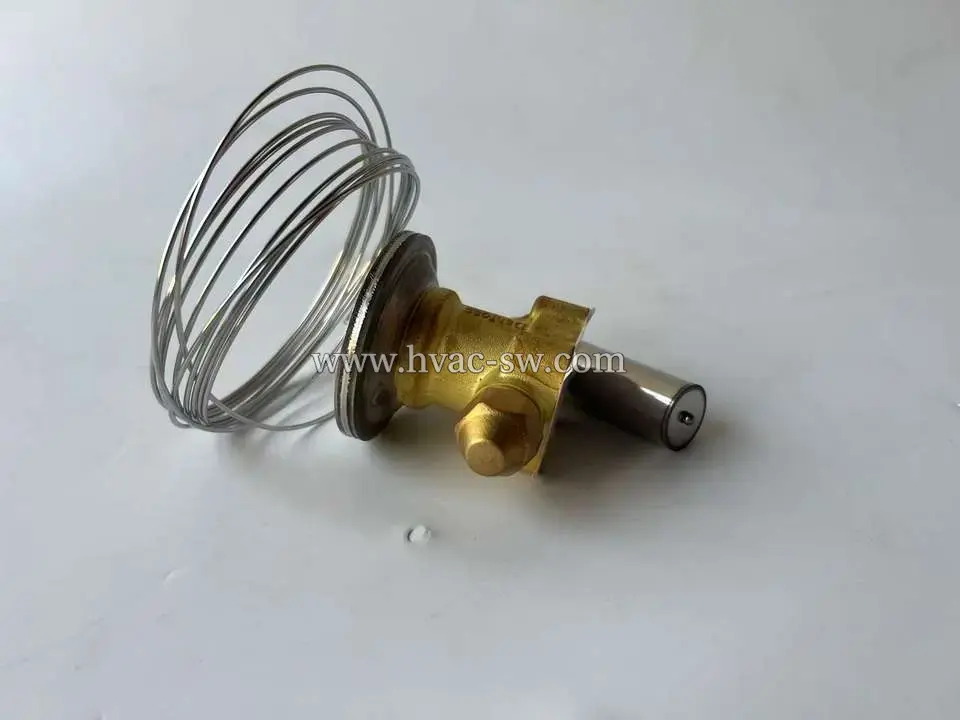

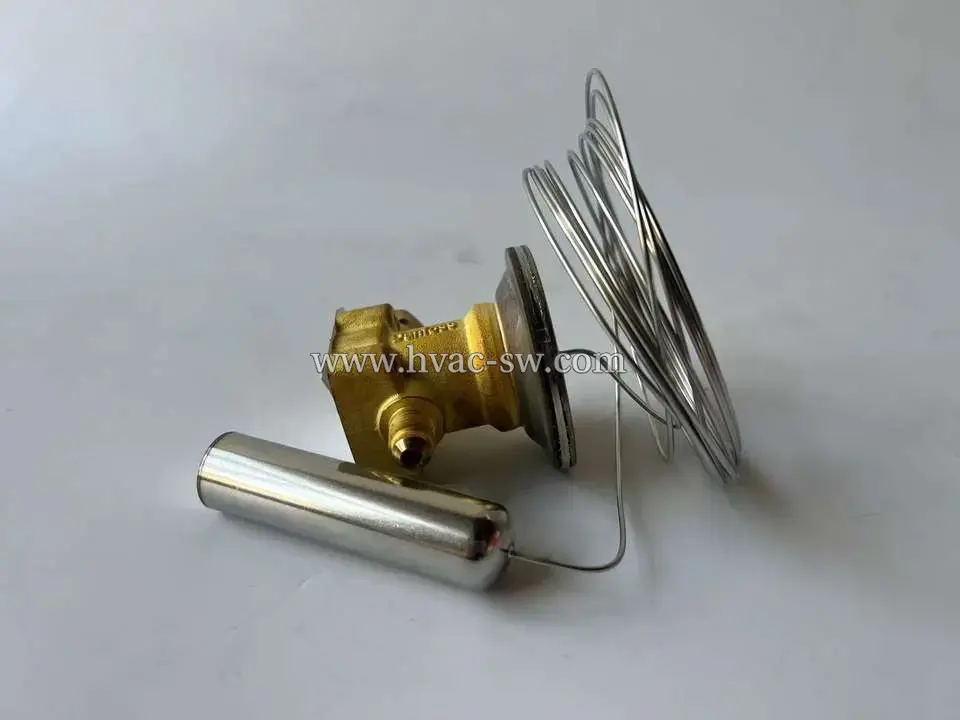

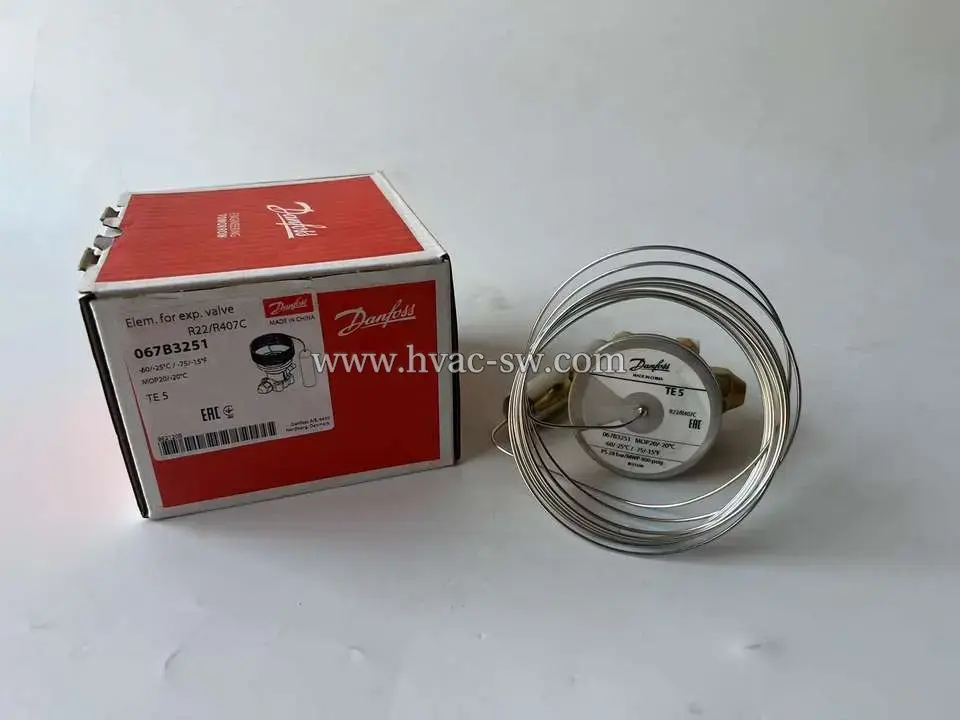

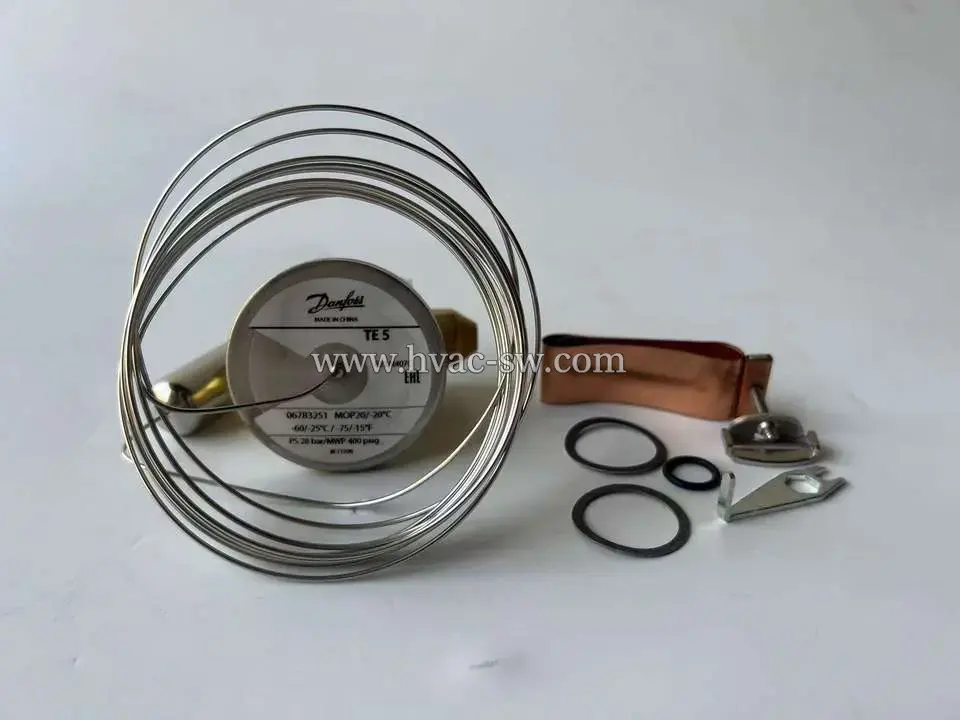

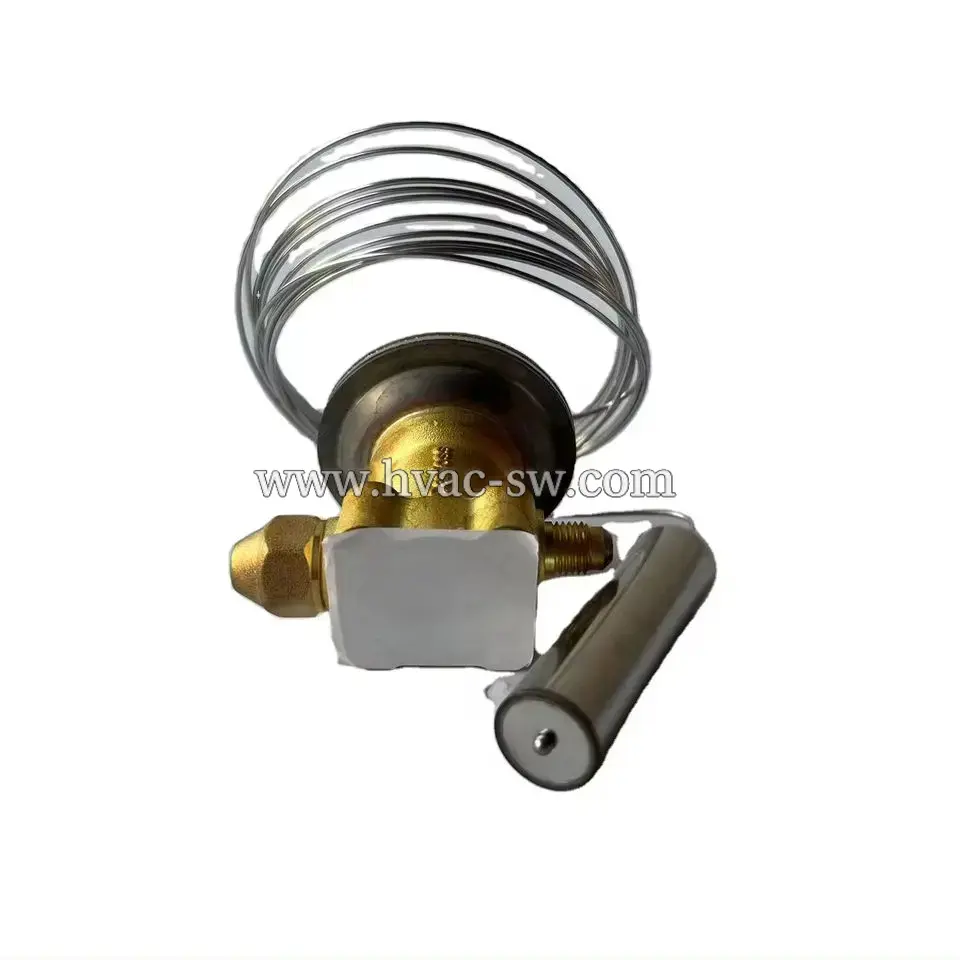

Danfoss TEX 5 067B3251 Expansion Valve
Danfoss TEX 5 067B3251 Expansion Valve. Confirm medium, working pressure, temperature and end connections before ordering.
- Brand
- Danfoss
- Product type
- Expansion Valve
- Model number
- TEX 5
- Part number
- 067B3251
Request pricing & availability
Share your quantity and delivery destination. We’ll confirm the configuration, availability and lead time in your quotation.
Need help identifying a part?
Include a nameplate photo or datasheet with your inquiry so we can check the exact reference.
At a glance
Product overview
Danfoss TEX 5 067B3251 Expansion Valve is documented by Danfoss. The linked official reference confirms the listed product identity; additional technical ratings require the exact model documentation.
For selection, compare medium, working pressure, temperature and end connections with the installed equipment. A similar model code does not establish interchangeability.
Key features
- Catalog classification: Expansion Valve
- Identification reference: TEX 5
- Exact configuration and ratings must be confirmed before selection.
Technical reference
Technical specifications
| Volume | 1.663 Liter |
|---|---|
| Approval | EAC LLC CDC TYSK |
| Net weight | 0.48 Kilogram |
| Gross weight | 0.57 Kilogram |
| Product Type | TE 5 |
| Product name | Element for expansion valve |
| Refrigerants | R22/R407C R454C R455A |
| Body material | Brass |
| MOP Point [°C] | -20 °C |
| MOP Point [°F] | -5 °F |
| MOP Point [psig] | MOP 20 |
| Type designation | Element |
| Manufacturer code | 067B3251 |
| Material Description | TE 5 Element BMOP |
| Pressure equalization | Externally equalized |
| Equalization size [in] | 1/4 in |
| Capillary tube length [in] | 118.0 in |
| Capillary tube length [mm] | 3000 mm |
| Max. Working Pressure [bar] | 28.0 bar |
| Equalization connection type | Flare |
| Max. Working Pressure [psig] | 400 psig |
| Temperature range [°C] [max] | -25 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | -15 °F |
| Temperature range [°F] [min] | -75 °F |
Check the exact variant and operating limits against the applicable manufacturer documentation. View the recorded source.
Selection context
Applications
- Fluid-control system maintenance; confirm the exact configuration before use.
- Replacement-part evaluation against the original equipment documentation.
Confirm compatibility with your equipment and operating conditions before selecting a replacement.
Traceable information
Documents & sources
Product information source
- Source
- Danfoss
- Source type
- Manufacturer source
- Source last checked
This reference identifies the recorded information source. It does not establish authorized distributor status or certify the condition or origin of an individual supplied item.
Before you order
Ordering information
- Model
- TEX 5
- Quantity
- Specify the required quantity in the inquiry.
- Lead time
- To be confirmed for the selected configuration and destination.
- Product reference
- Danfoss TEX 5 067B3251
- Price and availability
- Subject to quotation; confirm before placing an order.
- Configuration to confirm
- Medium, working pressure, temperature and end connections
- Manufacturer part number
- 067B3251
Identify the part
Send the complete model, part number and any required suffix or configuration.
Share your requirements
Include quantity, destination, target delivery date and required documents.
Confirm the quotation
Review availability, condition, origin, lead time and commercial terms before ordering.
Product questions
Frequently asked questions
How should I identify Danfoss TEX 5 067B3251?
Use the reference Danfoss TEX 5 067B3251 together with a clear nameplate photo and the complete equipment model. Confirm any suffixes before ordering.
Which specifications should be checked before ordering?
Check medium, working pressure, temperature and end connections. Only the specification items shown with the linked official source were confirmed in this review; do not assume other configurations share the same ratings.
Can a similar model be used as a replacement?
Do not select a replacement by a similar name alone. Compare the full code, interfaces, operating limits and equipment requirements with the manufacturer documentation.
What information is needed for a quotation?
Provide Danfoss TEX 5 067B3251, quantity, destination and required delivery date. Include photos or an existing datasheet if the configuration is uncertain.
Are price, stock and lead time confirmed on this page?
No. Request a current quotation for the exact configuration. Availability, lead time and applicable warranty terms must be agreed before ordering.
