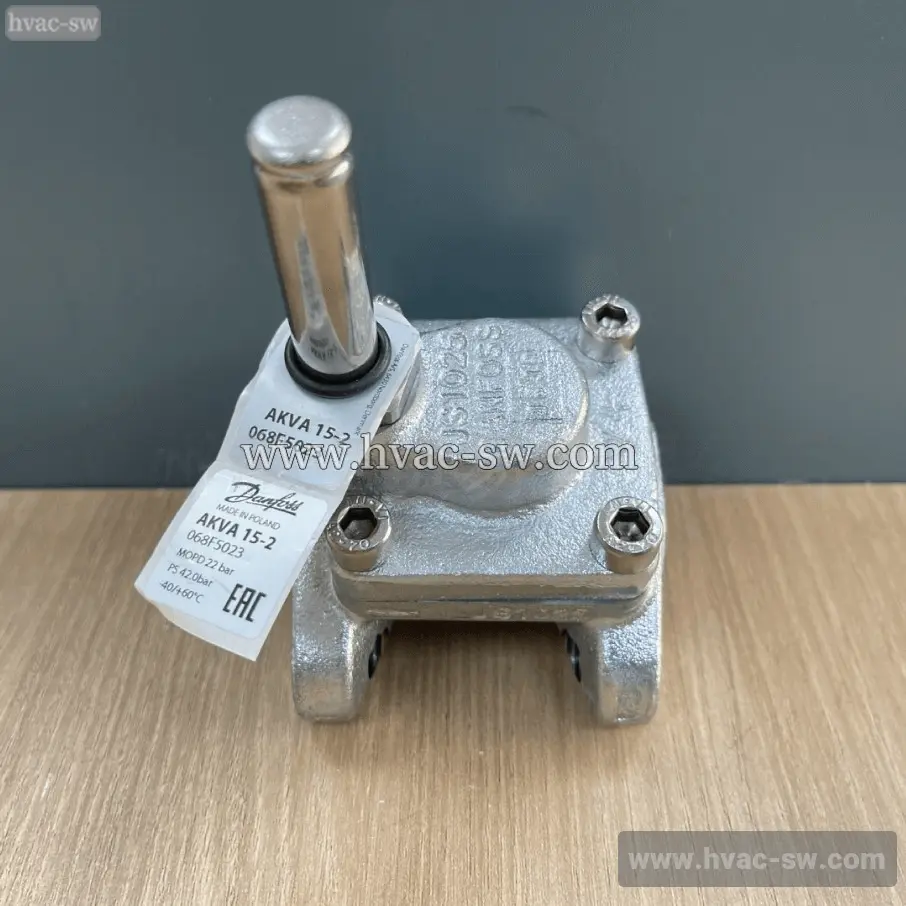

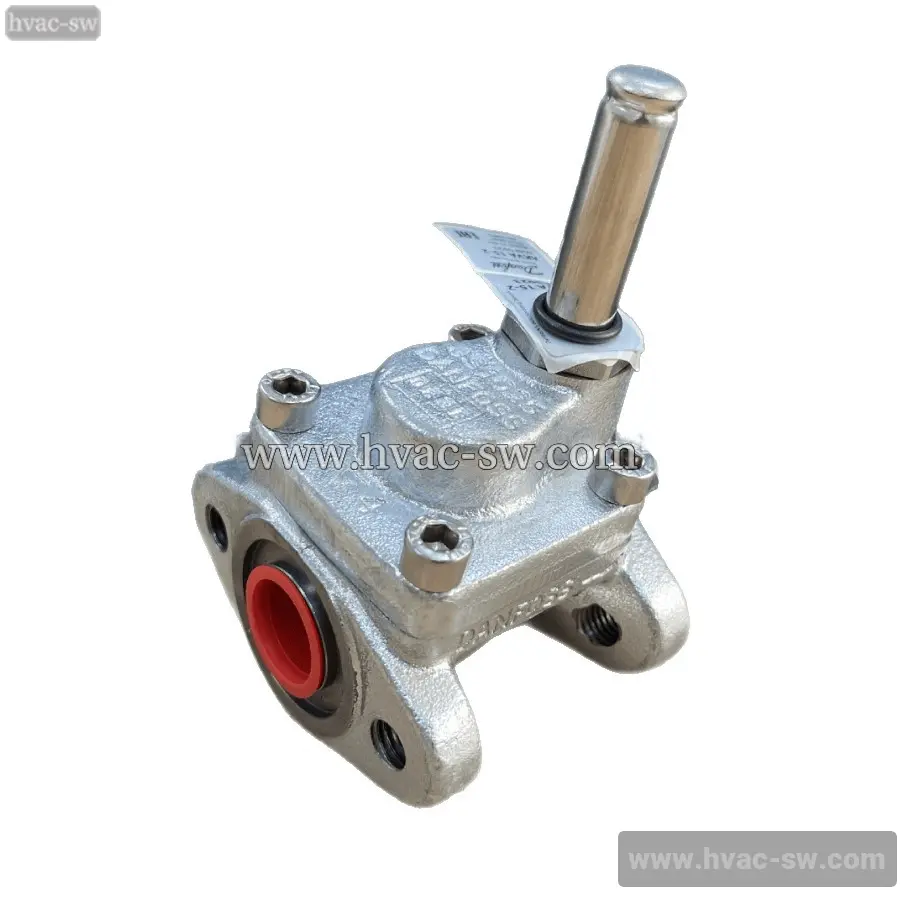

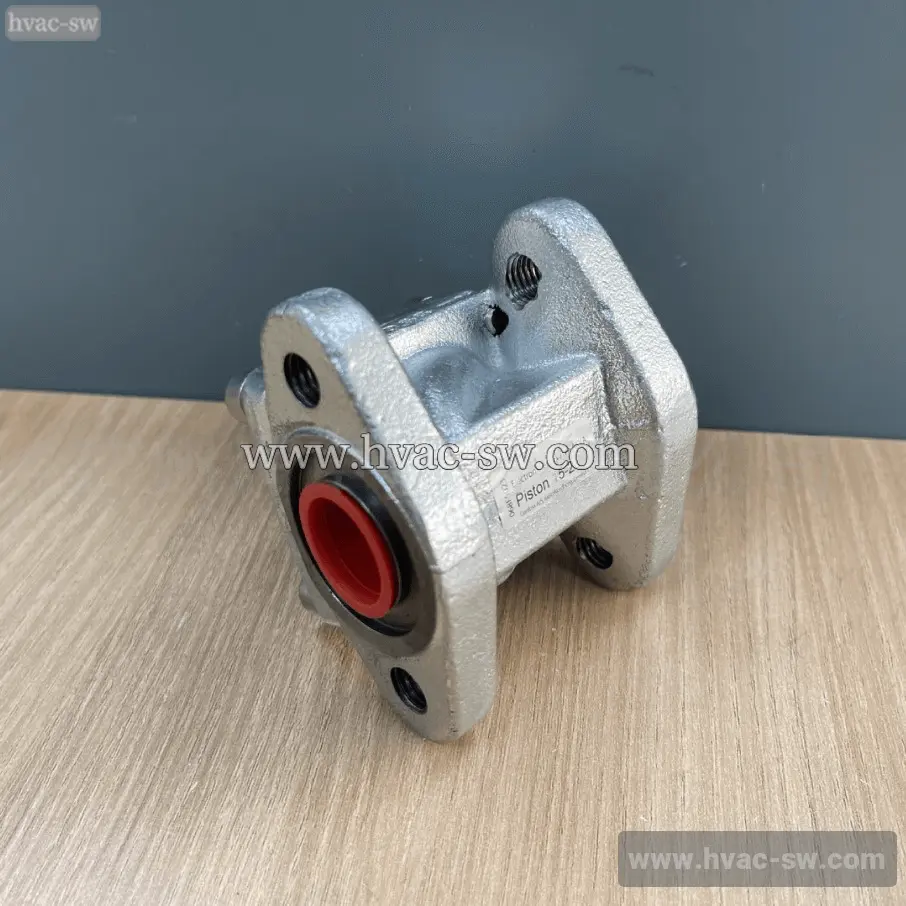

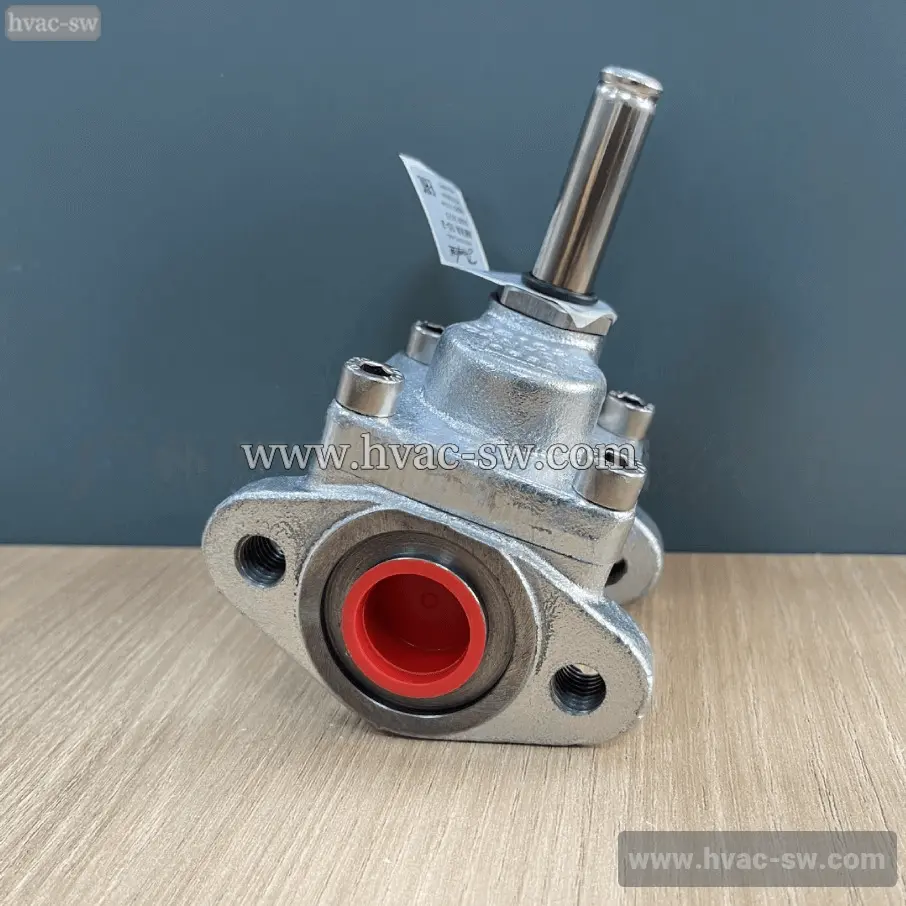

Danfoss 068F5023 AKVA15 Electronic Expansion Valve
Danfoss
Description
The Danfoss 068F5023 AKVA15 Electronic Expansion Valve is designed for ammonia (R717) refrigeration systems. It offers precise superheat control, high reliability, and excellent capacity modulation, ensuring optimal system efficiency in industrial cooling applications.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 2.126 Kilogram |
| Net weight | 1.993 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428516525 |
| Type | AKVA 15-2 |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EACLLC CDC TYSK |
| Body material | Steel |
| China RoHS compliance | Out of scope |
| Coil | No |
| Compatible Danfoss controllers | EKC 315AEKE 347 |
| Contains batteries | No |
| Cv value [gal/min] | 0.462 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | Flange connection |
| Inlet size [in] | 3/4 in |
| Kv value [m³/h] | 0.4 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 22 bar |
| MaxOPD[psi] 10W AC | 318 psi |
| Medium temperature range [°C] [max] | 60 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 140 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.45 bar |
| MinODP [psi] | 6.52 psi |
| MOPD[bar/psi] | 22 bar |
| Orifice size [mm] | 5.6 mm |
| Outlet connection type | Flange connection |
| Outlet size [in] | 3/4 in |
| Packing format | Single pack |
| Parts Program name | AKVA |
| Product accessories | FlangesElectric valve accessories |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | tcond=90 °Ftliq=82 °Ftevap=4 |
| Rated cap. conditions [SI] | tcond=32 °Ctliq=28 °Ctevap=5 |
| Rated capacity R717 [kW] | 200 kW |
| REACH Candidate List substances | No |
| Refrigerants | R744R717 |
| Serviceable | Electric valve spare parts |
| Type designation | Electric expansion valve |
| Working principle | PWM |
