Danfoss 084G2206 EMP2 Pressure Transmitter For Harsh Environments
The Danfoss 084G2206 EMP2 Series Pressure Transmitter is a high-performance device engineered for demanding applications in harsh environments. Manufactured in Denmark, it delivers reliable and accurate pressure readings across a versatile measurement range.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Product Introduction
The Danfoss EMP 2 Series Pressure Transmitter (code: 084G2206) represents cutting-edge pressure measurement technology, meticulously engineered to meet the rigorous demands of modern industrial applications. Manufactured in Denmark under Danfoss's stringent quality standards, this transmitter embodies decades of expertise in hydraulic and automation solutions, delivering unparalleled reliability in challenging operational environments.
Technical Specifications
This precision instrument features an impressive measurement range of -1 to 4 bar, covering both vacuum and positive pressure applications with remarkable accuracy. The device employs state-of-the-art piezoresistive sensing technology to deliver consistent, repeatable measurements essential for process control and monitoring applications. Its robust construction incorporates a corrosion-resistant stainless steel pressure port that ensures long-term stability even when exposed to aggressive media.
The transmitter generates a standard 4-20mA current loop output, universally recognized in industrial automation as the gold standard for analog signal transmission. This two-wire configuration simplifies wiring infrastructure while providing exceptional immunity to electromagnetic interference and voltage drops along extended cable runs. The device operates on a nominal 24V DC supply voltage, compatible with virtually all industrial power systems and control equipment.
Construction and Durability

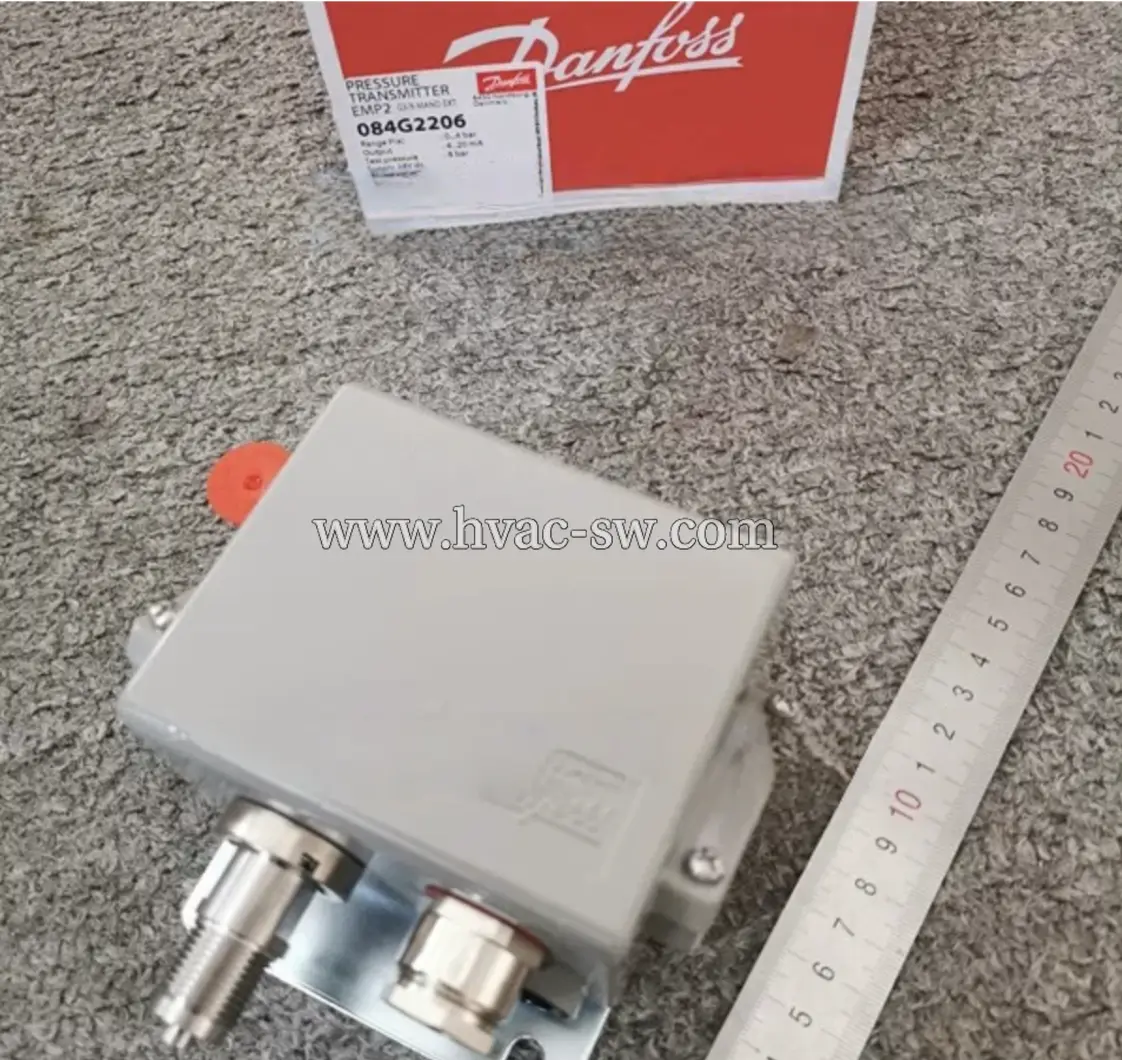

Engineered for industrial endurance, the EMP 2 transmitter features a durable grey composite housing designed to withstand vibration, moisture, and dust ingress. The sealed construction protects internal electronics from environmental contaminants, ensuring consistent performance throughout the device's operational lifespan. The inclusion of a red protective cap on the side port provides additional protection during storage and initial installation phases.

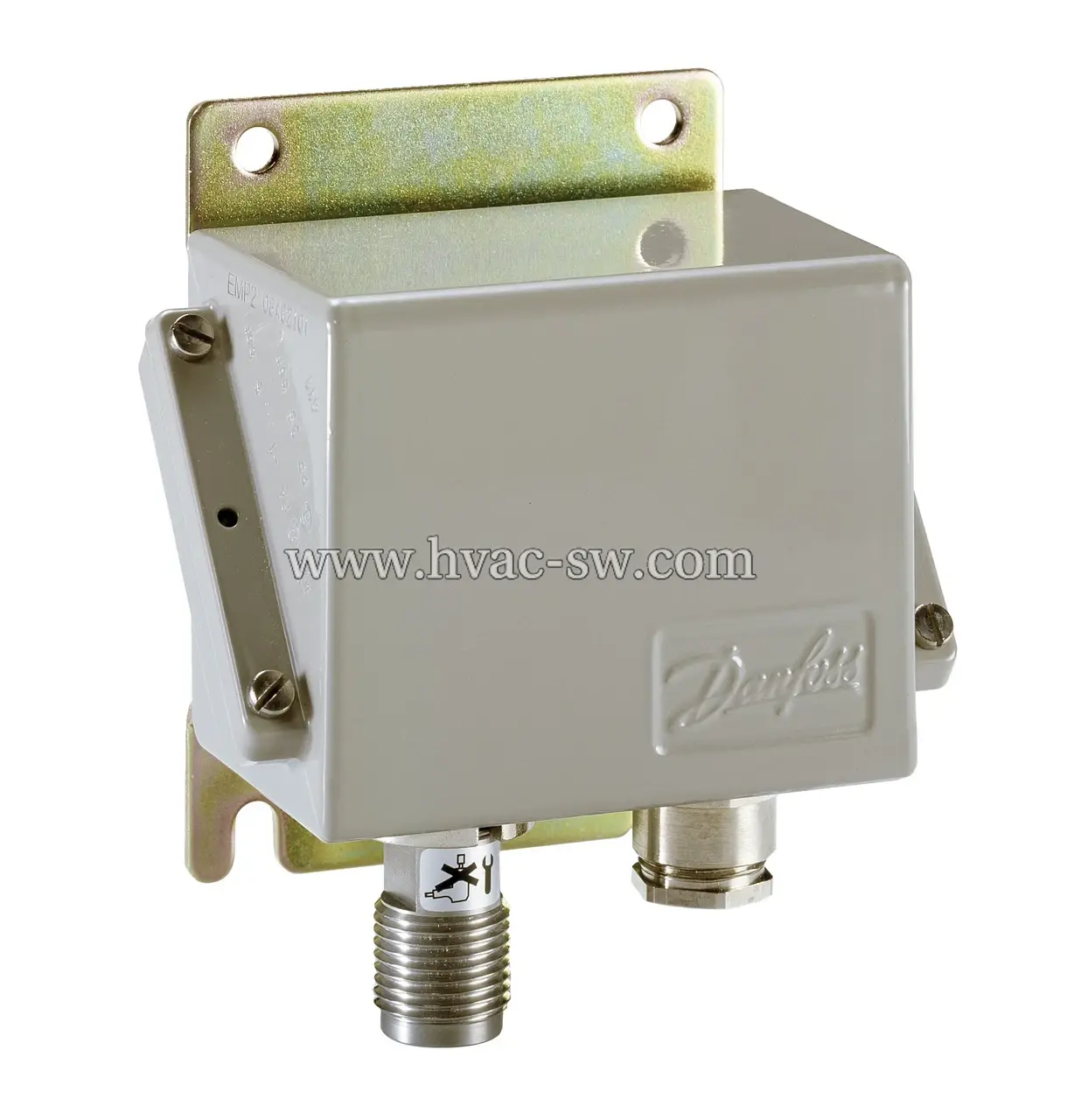

A sturdy metal mounting bracket allows secure attachment to control panels, equipment frames, or wall surfaces, facilitating straightforward installation in any orientation. The compact dimensions of approximately 80-90mm width and 60-70mm height ensure flexible placement even in space-constrained applications.
Performance Characteristics
With a test pressure rating of 8 bar, this transmitter offers a generous safety margin above its normal operating range, ensuring reliable operation during pressure spikes and transient conditions. The device maintains accuracy and stability across its entire operating envelope, providing engineering professionals with confidence in their measurement data.
Application Areas
The versatility of the Danfoss EMP 2 Series makes it ideal for numerous industrial sectors:
- Hydraulic power systems and fluid power equipment
- Marine and offshore applications
- Industrial process control and automation
- Heating, ventilation, and air conditioning (HVAC) systems
- Shipbuilding and maritime engineering
- Mobile equipment and machinery
Quality Assurance
As an original Danfoss product manufactured in Denmark, this pressure transmitter undergoes rigorous quality testing and validation procedures. The Danfoss brand represents a legacy of innovation and reliability in industrial automation, providing customers worldwide with solutions they can trust for critical applications.
| Danfoss EMP 2 Pressure Transmitter - Technical Specifications | |
|---|---|
| Parameter | Specification |
| Brand | Danfoss |
| Product Series | EMP 2 |
| Model / Code Number | 084G2206 |
| Product Type | Pressure Transmitter |
| Pressure Range | -1 to 4 bar |
| Test Pressure | 8 bar |
| Output Signal | 4-20 mA (Current Loop) |
| Supply Voltage | 24V DC |
| Connection Type | Stainless Steel Pressure Port |
| Housing Material | Grey Industrial Composite |
| Mounting | Metal Bracket (included) |
| Dimensions (approx.) | 80-90mm (W) × 60-70mm (H) |
| Protection Class | Dust and Moisture Resistant |
| Country of Origin | Denmark |
| Applications | Hydraulic Systems, Marine, Industrial Automation, HVAC |
