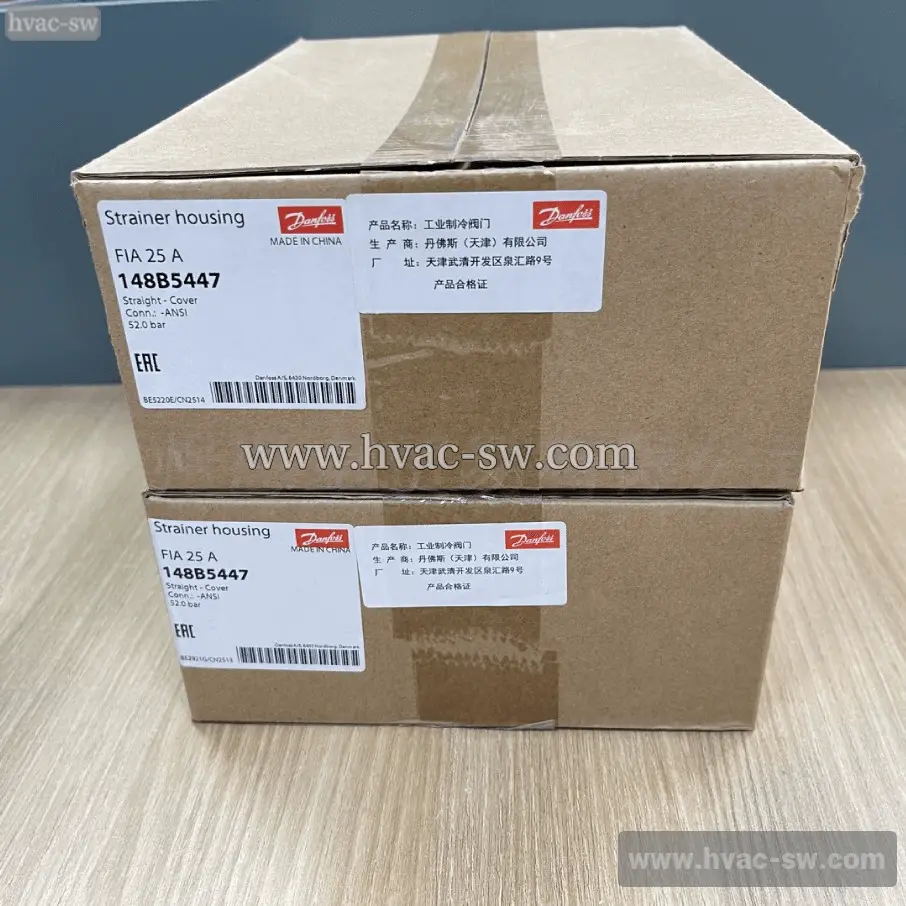

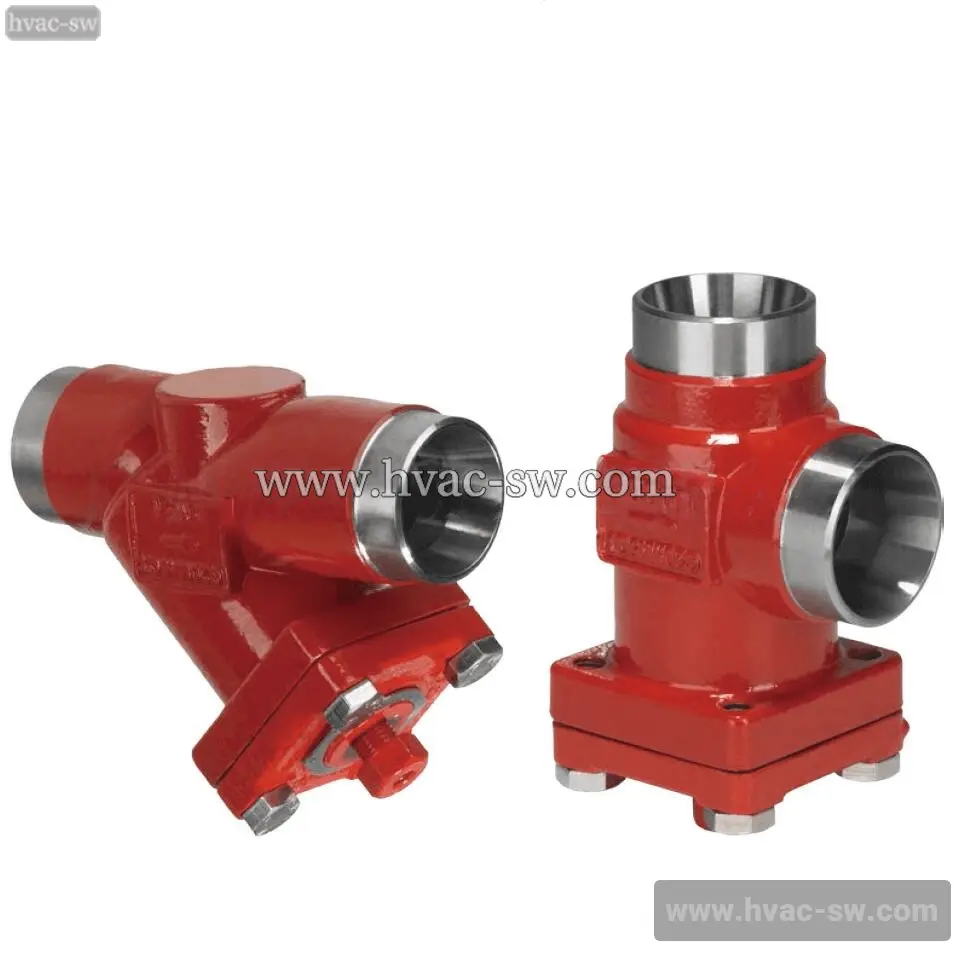

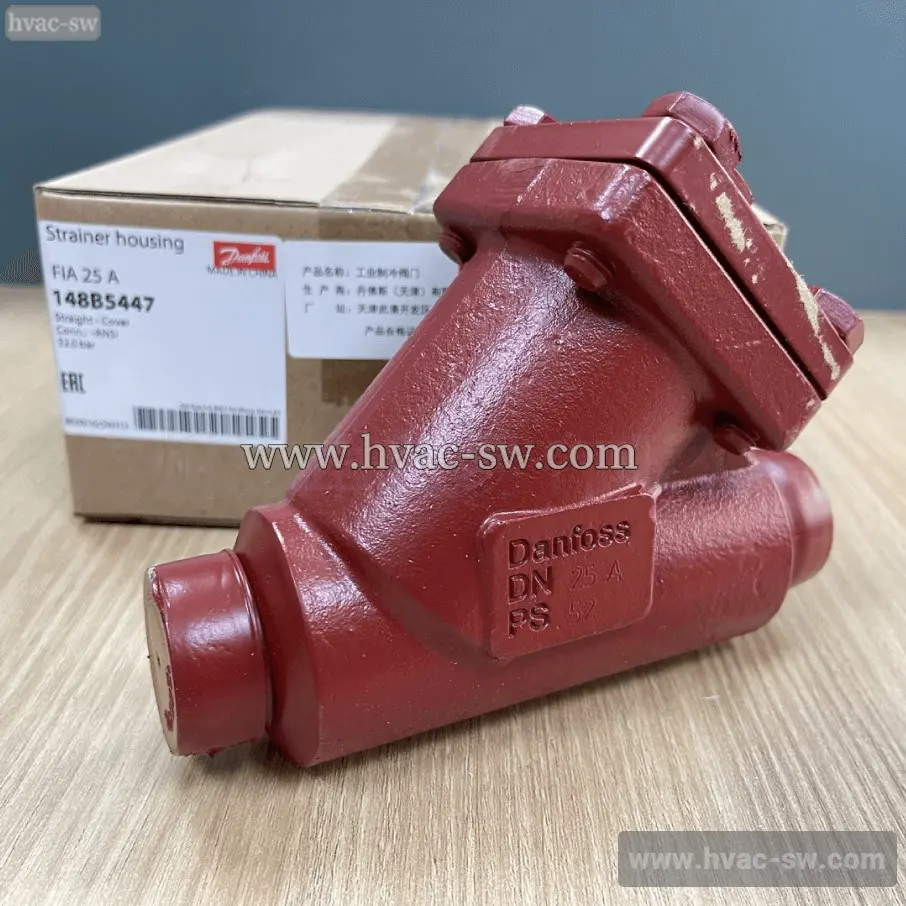

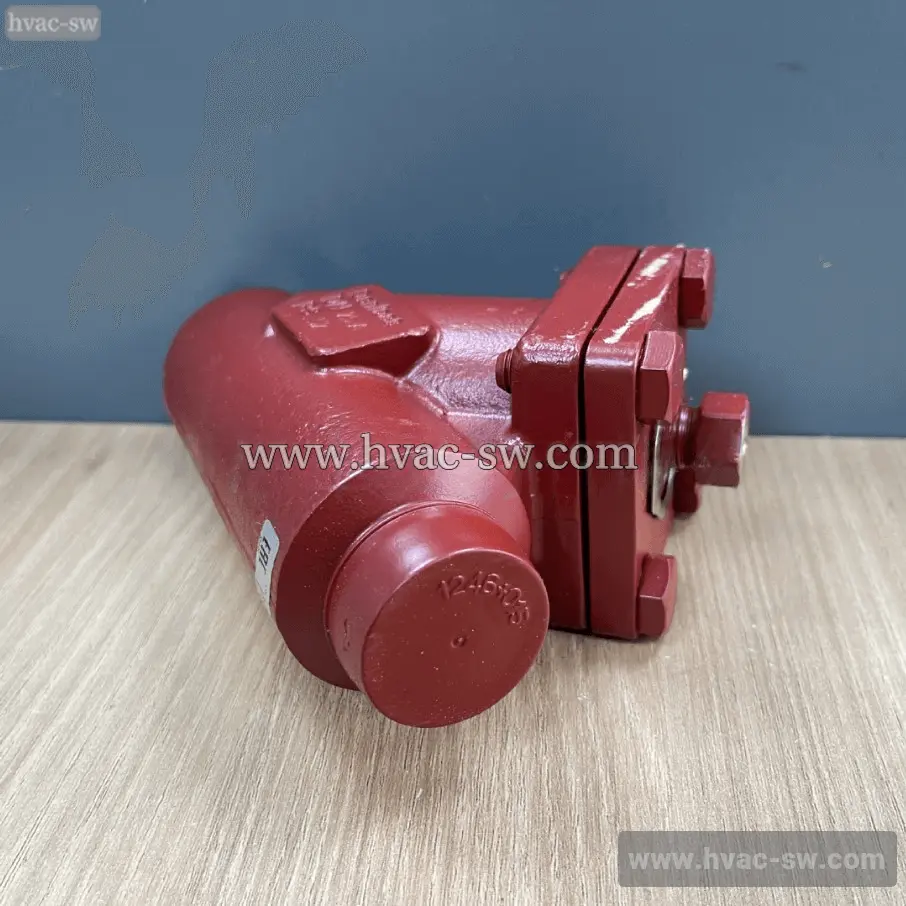

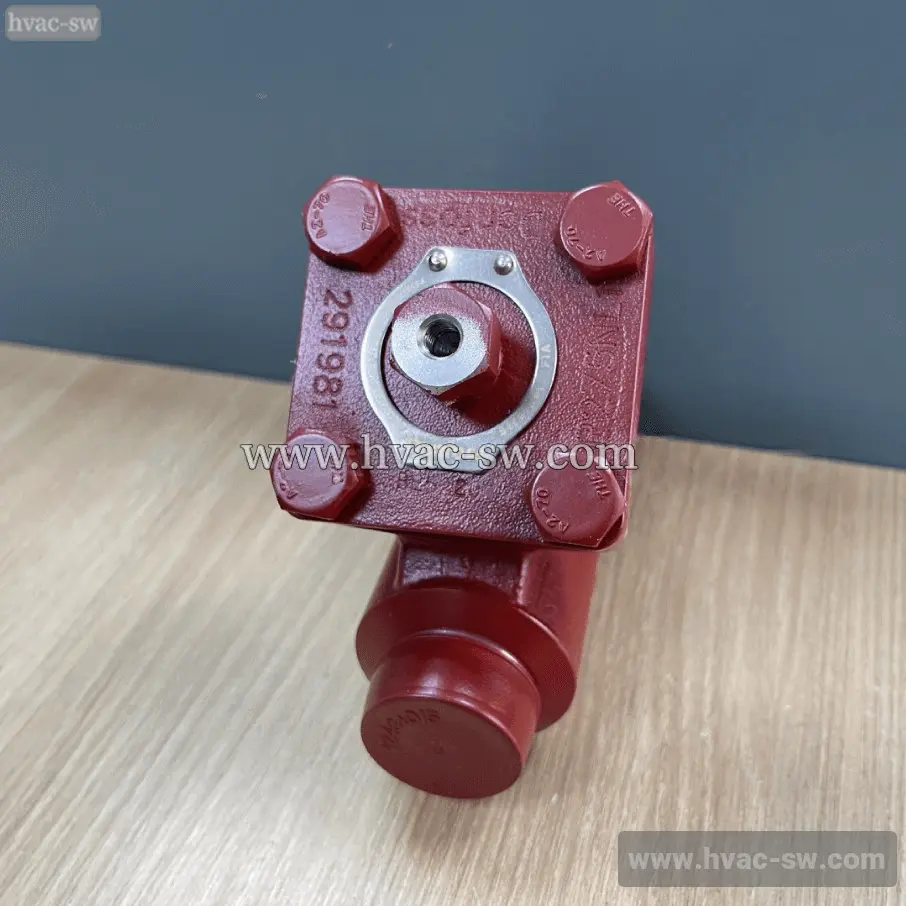

Danfoss 148B5447 FIA25 Refrigeration Filter
Danfoss FIA25 148B5447 is a high-performance refrigeration filter designed to remove moisture, acids, and solid contaminants. It ensures reliable operation and extends the lifespan of compressors and other critical components, making it ideal for commercial and industrial refrigeration applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 3.43 Kilogram |
| Net weight | 2.9 Kilogram |
| Volume | 5.372 Liter |
| EAN | 5702428476324 |
| Type | FIA 25 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Brand | SVL Flexline |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 47.11 gal/min |
| Cv value [gal/min] 100 pleated | 60.76 gal/min |
| Cv value [gal/min] 150 plain | 46.23 gal/min |
| Cv value [gal/min] 38 plain | 51.07 gal/min |
| Cv value [gal/min] 72 plain | 48.87 gal/min |
| Cv value [gal/min] 72 pleated | 63.84 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 12 |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ100 plain | 10.5 m³/h |
| Kv value [m3/h] µ150 plain | 10.7 m³/h |
| Kv value [m3/h] µ150 pleated | 13.8 m³/h |
| Kv value [m3/h] µ250 plain | 11.1 m³/h |
| Kv value [m3/h] µ250 pleated | 14.5 m³/h |
| Kv value [m3/h] µ500 plain | 11.6 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | Art. 4, par. 3 |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
