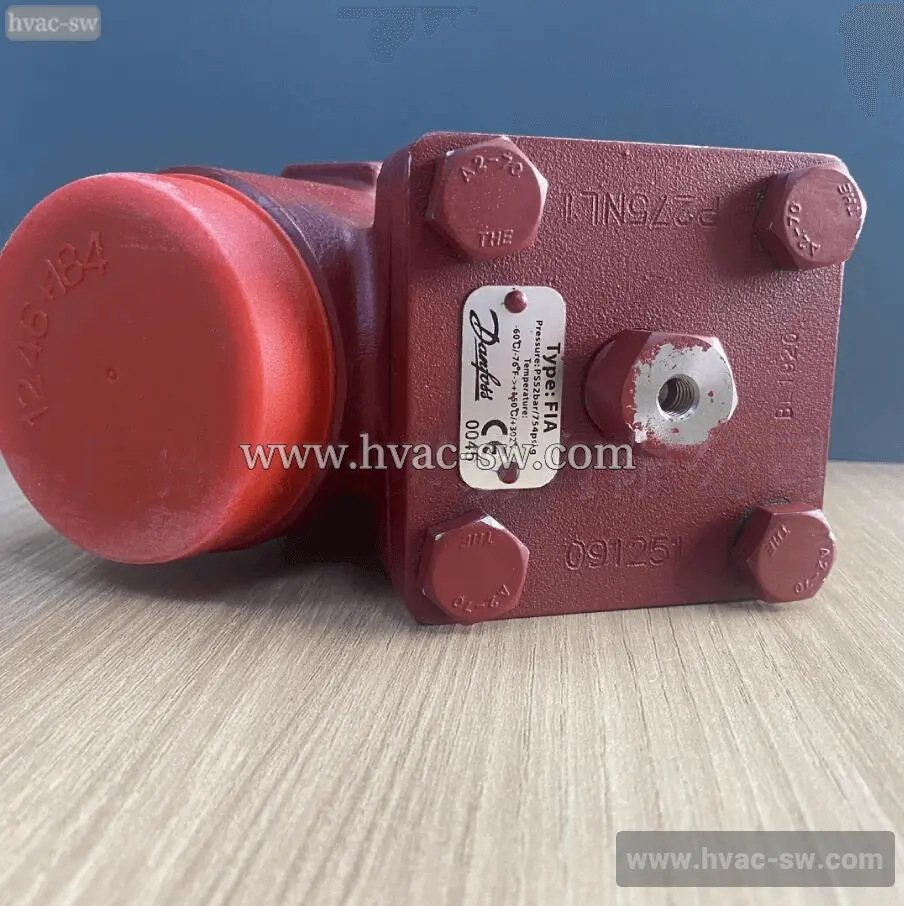

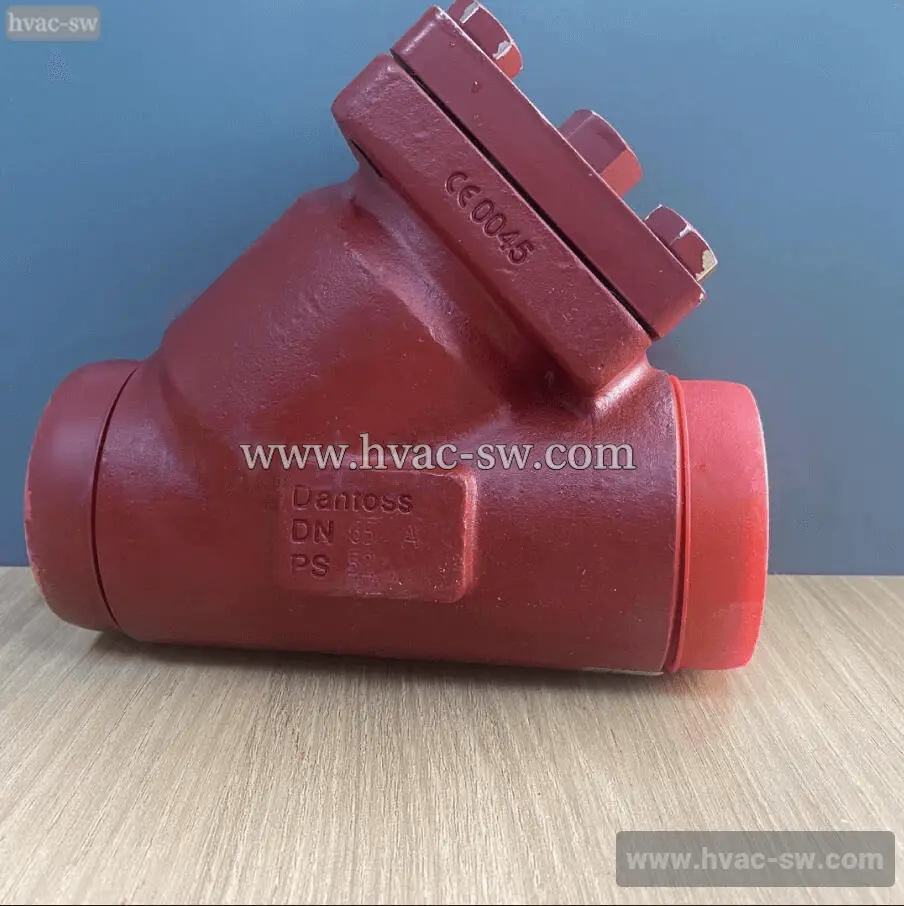

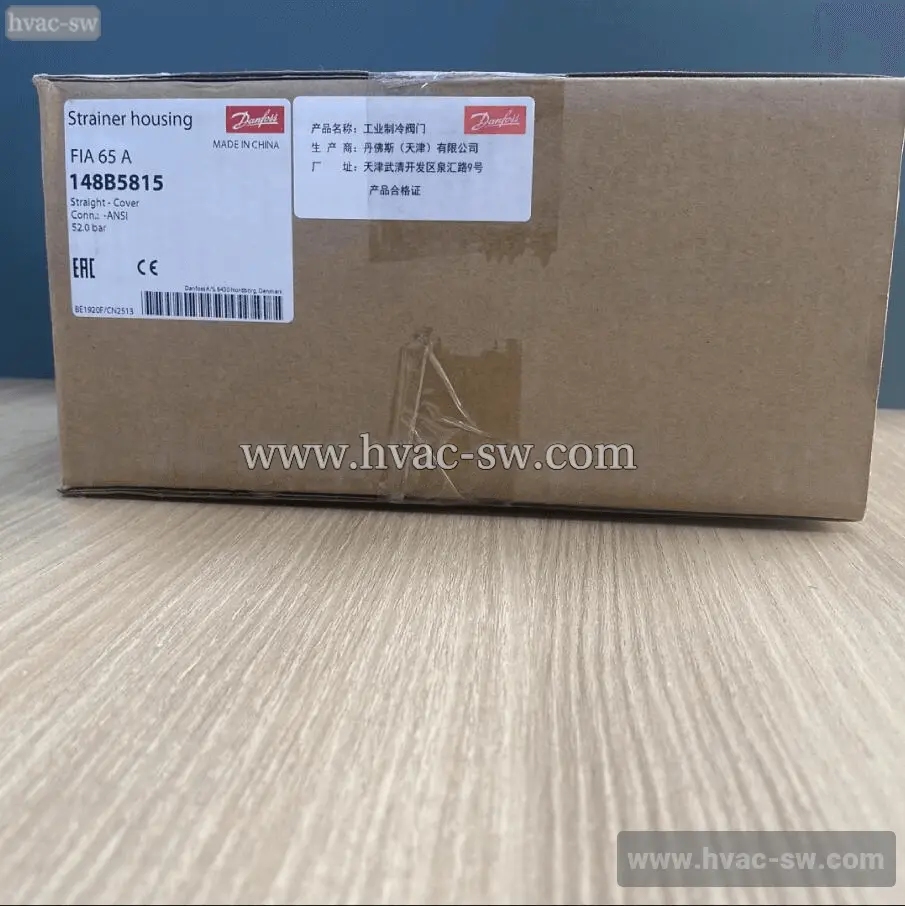

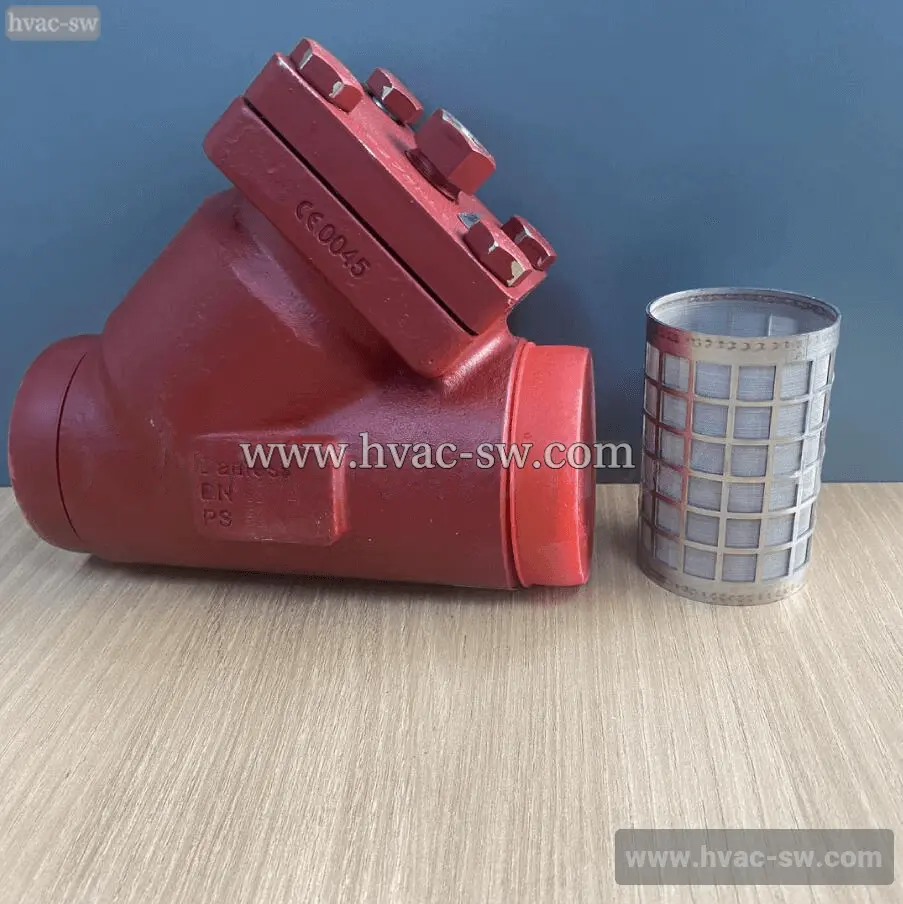

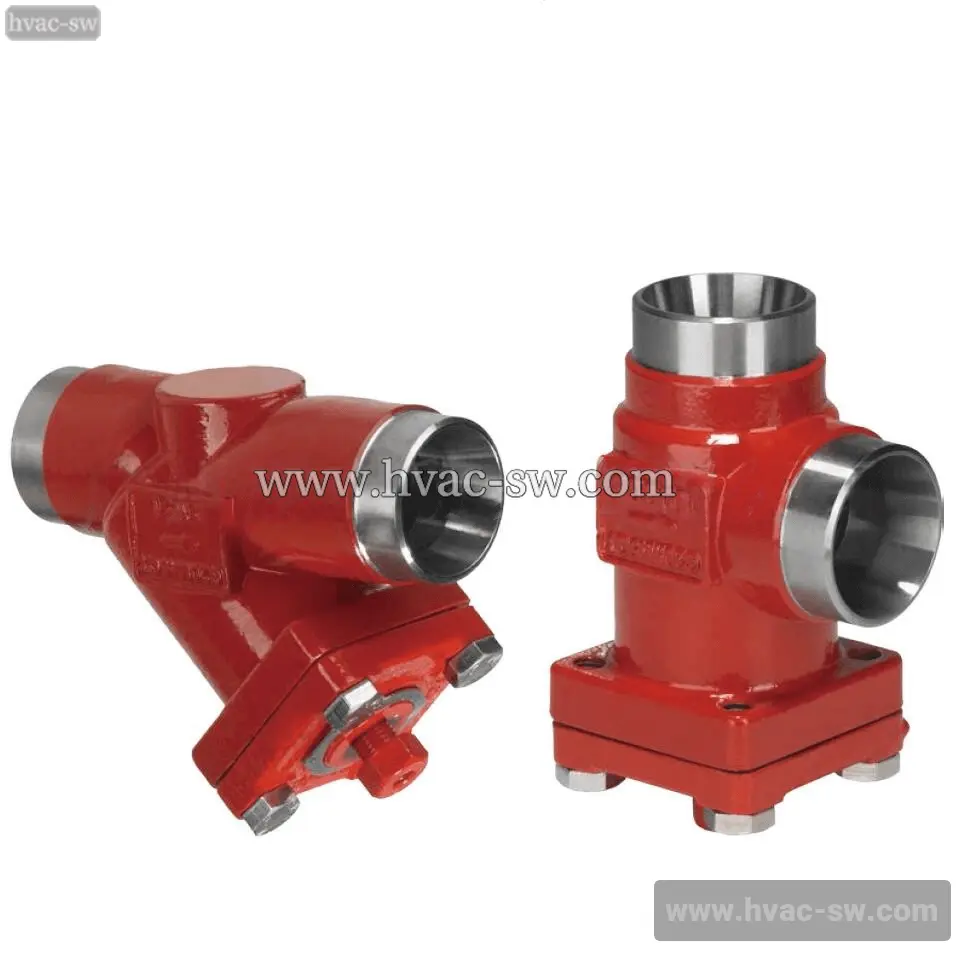

Danfoss 148B5815 FIA65 Refrigeration Filter Drier
The Danfoss FIA65 148B5815 is a genuine replaceable core filter drier designed for refrigeration and air conditioning systems. It effectively removes moisture, acids, and solid contaminants, protecting critical components like compressors and expansion valves. This model ensures reliable system operation, enhances efficiency, and extends equipment service life. Suitable for various refrigerants and applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 5.886 Kilogram |
| Net weight | 5.4 Kilogram |
| Volume | 6.996 Liter |
| EAN | 5702428476355 |
| Type | FIA 65 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Approval | CE |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 188.88 gal/min |
| Cv value [gal/min] 100 pleated | 247 gal/min |
| Cv value [gal/min] 38 plain | 203.41 gal/min |
| Cv value [gal/min] 38 pleated | 265.93 gal/min |
| Cv value [gal/min] 72 plain | 194.61 gal/min |
| Cv value [gal/min] 72 pleated | 254.49 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ150 plain | 42.9 m³/h |
| Kv value [m3/h] µ150 pleated | 56.1 m³/h |
| Kv value [m3/h] µ250 plain | 44.2 m³/h |
| Kv value [m3/h] µ250 pleated | 57.8 m³/h |
| Kv value [m3/h] µ500 plain | 46.2 m³/h |
| Kv value [m3/h] µ500 pleated | 60.4 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A R508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
