Danfoss 148H3127 72 Mesh Filter Screen
Danfoss
Description

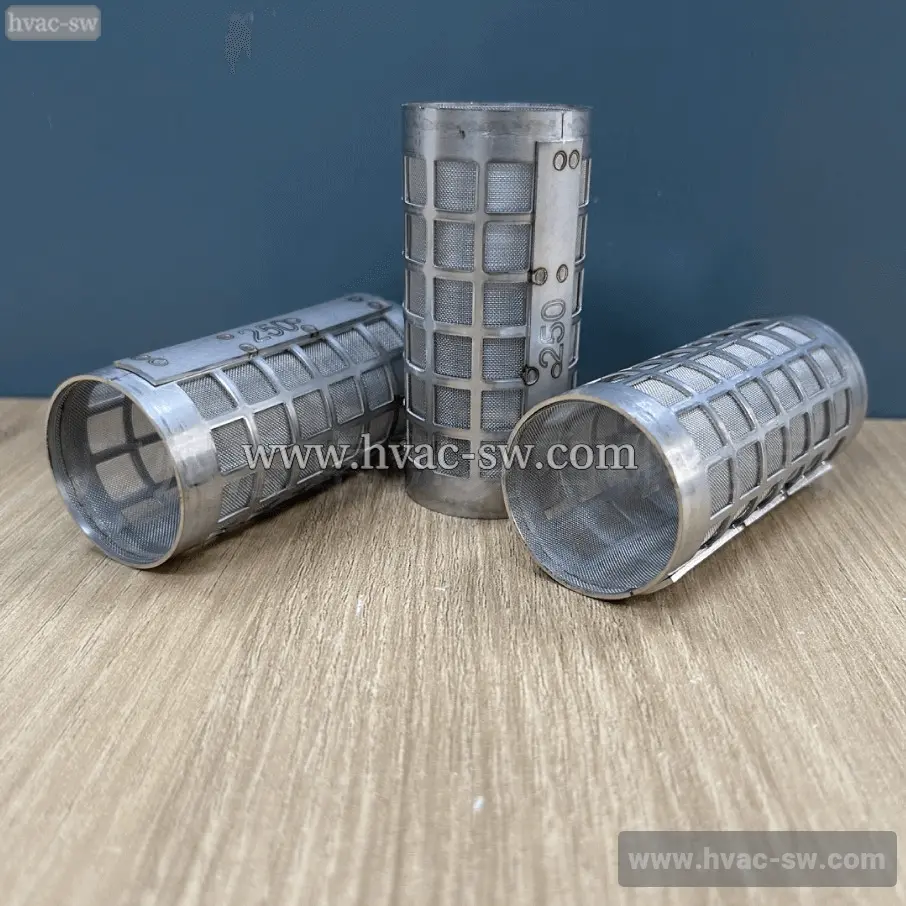

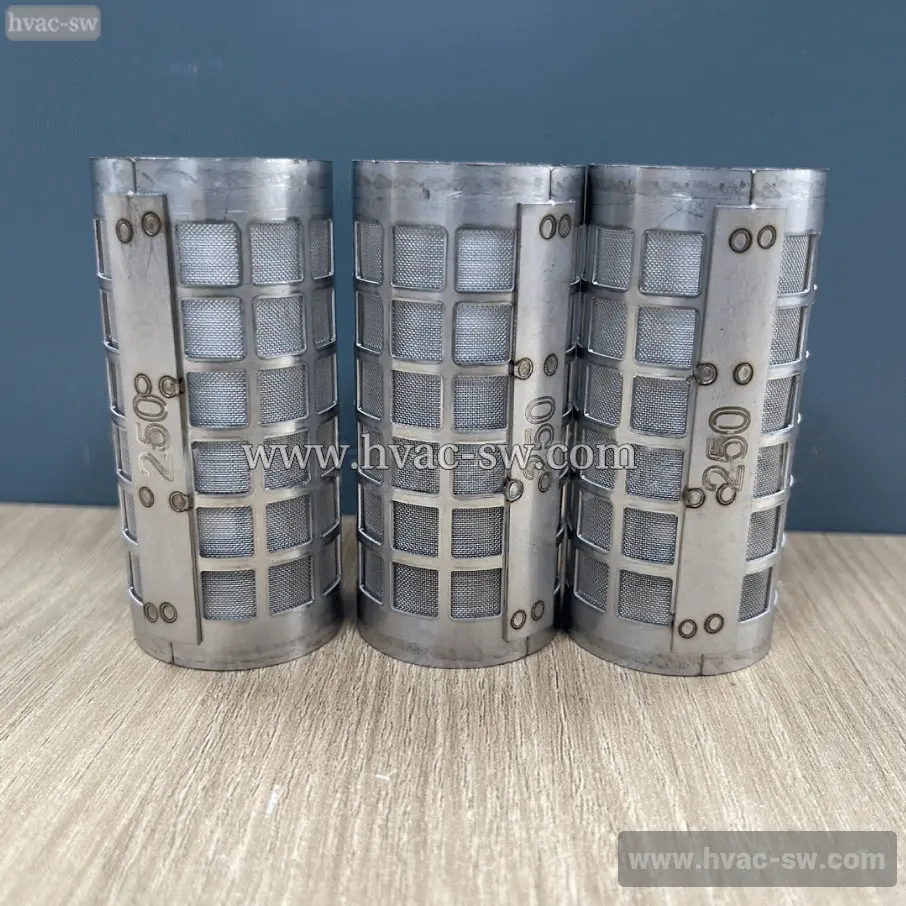

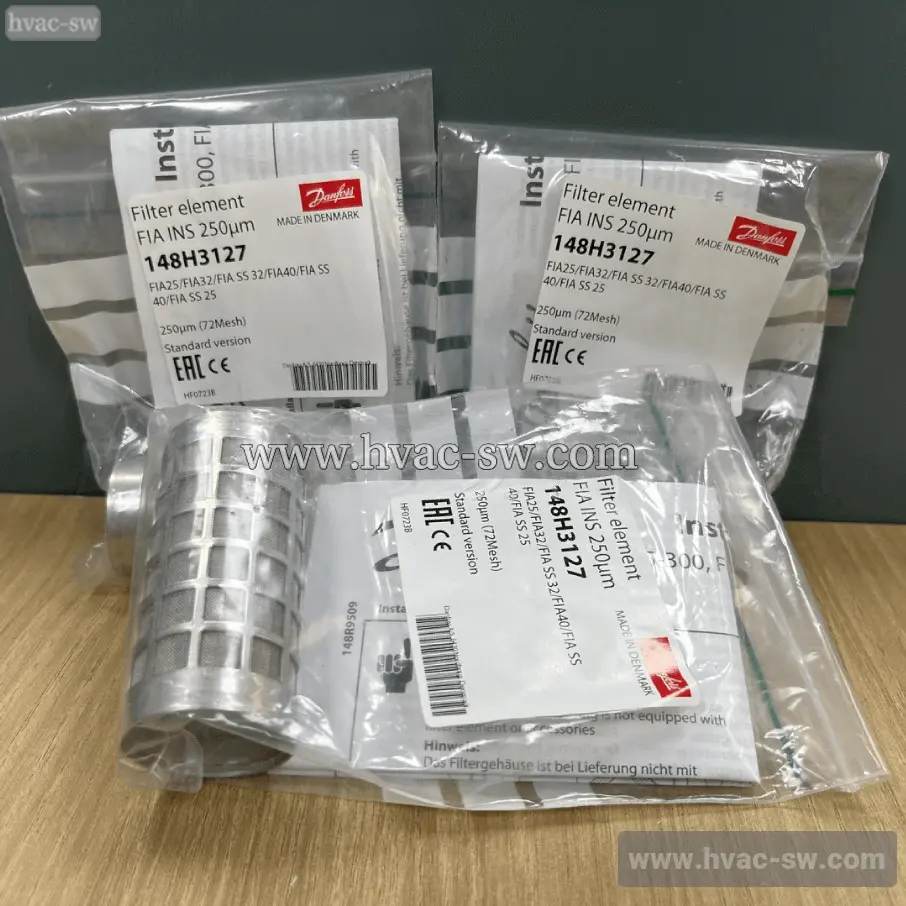

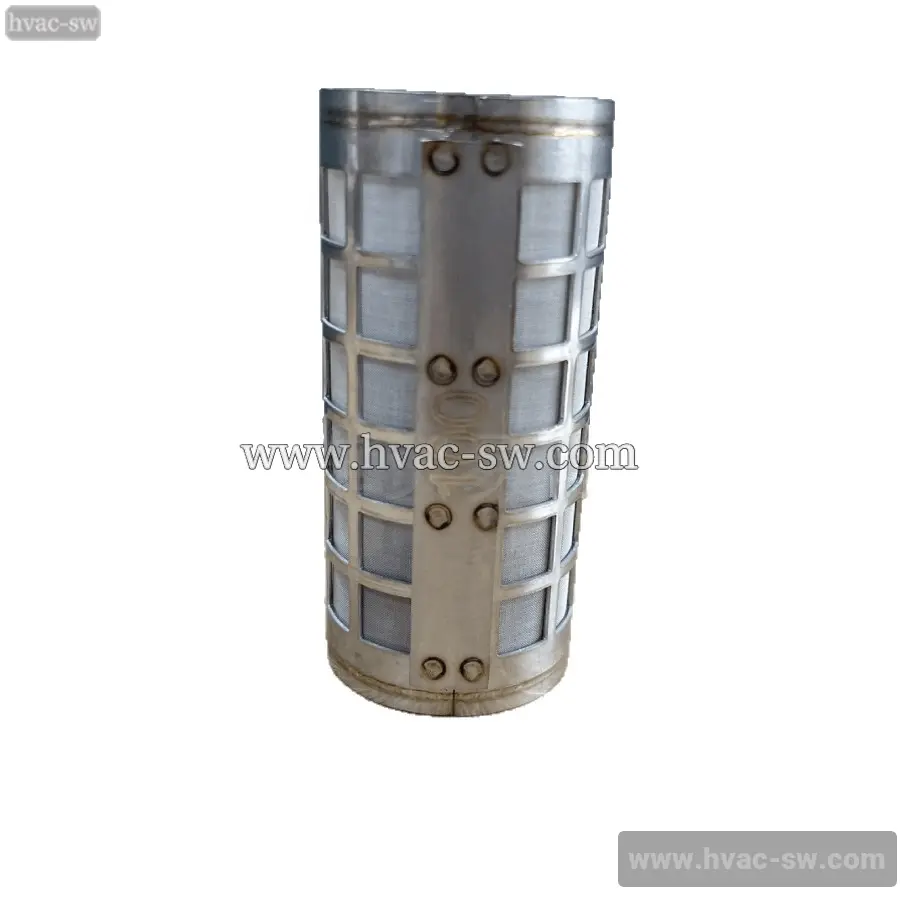

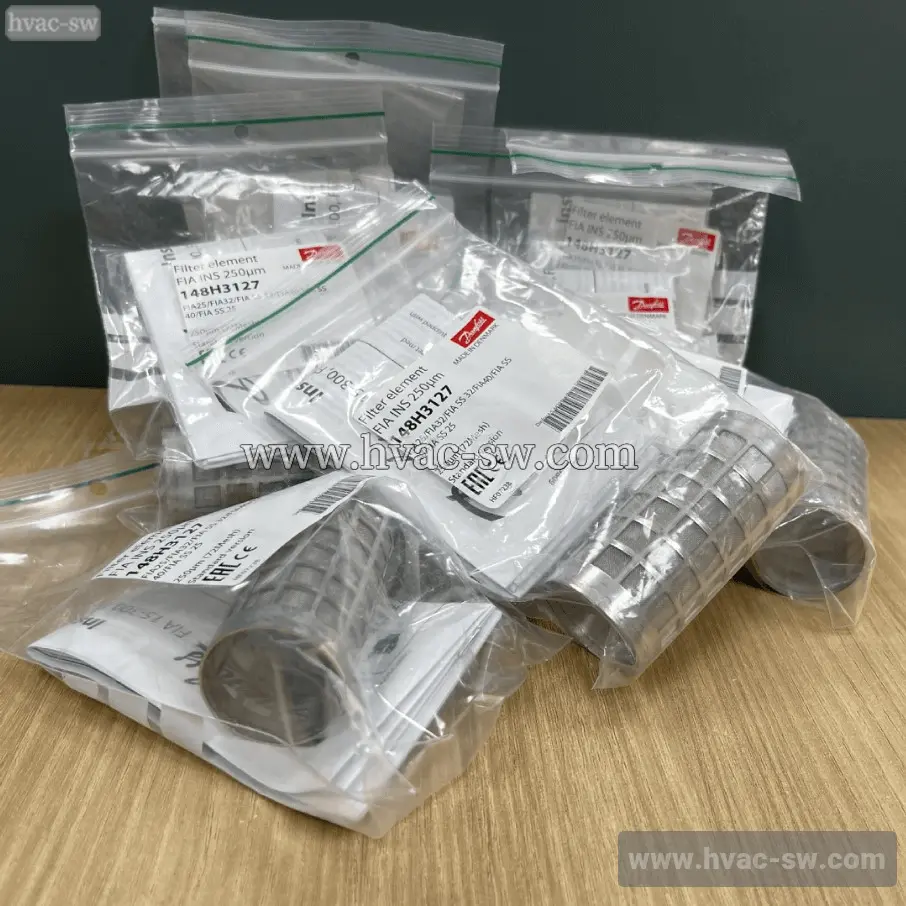

Danfoss 148H3127 is a 72-mesh stainless steel filter screen designed for FIA25, FIA32, and FIA40 hydraulic filter housings. It effectively captures contaminants, ensuring optimal fluid cleanliness and system efficiency while meeting OEM specifications for reliable performance.
Product Details
| Model | Product Specifications | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Material |
|---|---|---|---|---|
| 148B4062 | 25 | 5.2 | Cast Steel | Flange |
| 148B4065 | 80 | 5.2 | Cast Steel | Welding |
| Attribute | Value |
|---|---|
| Gross weight | 0.052 Kilogram |
| Net weight | 0.052 Kilogram |
| Volume | 0.092 Liter |
| EAN | 5702428190961 |
| Type | FIA INS |
| Product group | Strainers |
| Product Name Description | Strainer insert |
| Brand | SVL Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Filter version | Standard Version |
| Free space [%] | 51 % |
| Packing format | Multi pack |
| Parts Program name | FIA |
| Product accessories | SVL Flexline accessories |
| Product description | Filter element |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Screen area [cm2] | 71 cm² |
| Screen area [in2] | 11 in² |
| Serviceable | SVL Flexline spare parts |
| Used for product | FIA 25FIA 32FIA 40FIA SS 25FIA SS 32FIA SS 40 |
| Weave fineness [Mesh] | 72 Mesh |
| Weave fineness [µm] | 250 µm |
| Wire thickness [in] | 0.004 in |
| Wire thickness [mm] | 0.1 mm |
