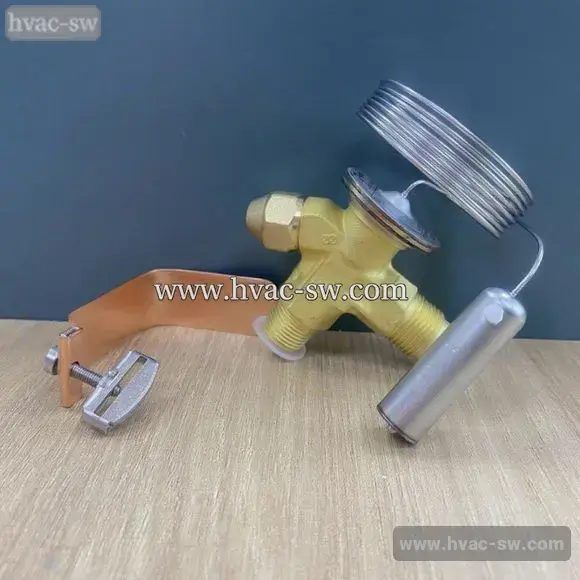

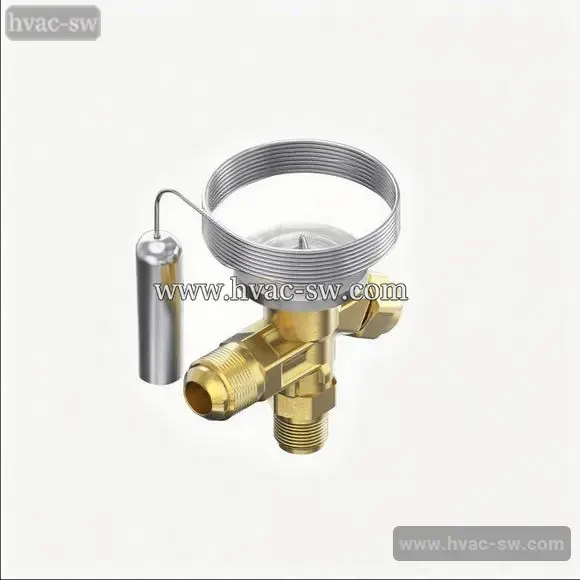

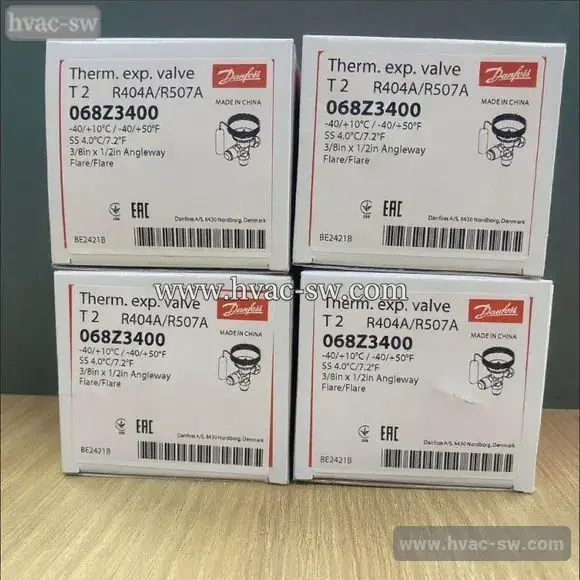

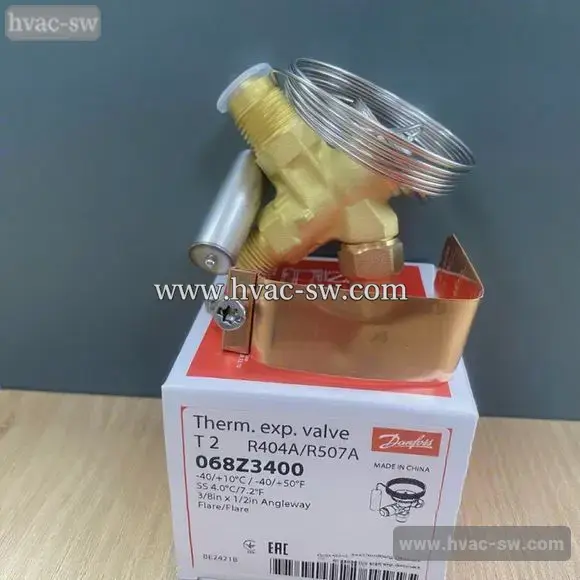

Danfoss T2 Thermostatic Expansion Valve 068Z3400, R404A/R507A, 3/8"×1/2" Flare, Angleway
Danfoss T2 Thermostatic Expansion Valve 068Z3400, R404A/R507A, 3/8"×1/2" Flare, Angleway. Confirm medium, working pressure, temperature and end connections before ordering.
- Brand
- Danfoss
- Product type
- Thermostatic Expansion Valve
- Model number
- TS2
- Part number
- 068Z3400
Request pricing & availability
Share your quantity and delivery destination. We’ll confirm the configuration, availability and lead time in your quotation.
Need help identifying a part?
Include a nameplate photo or datasheet with your inquiry so we can check the exact reference.
At a glance
Product overview
Danfoss T2 Thermostatic Expansion Valve 068Z3400, R404A/R507A, 3/8"×1/2" Flare, Angleway is listed as a expansion valve for sourcing and identification. Exact technical ratings and manufacturer identity must be checked against the nameplate and official documentation before ordering.
For selection, compare medium, working pressure, temperature and end connections with the installed equipment. A similar model code does not establish interchangeability.
Key features
- Catalog classification: Expansion Valve
- Identification reference: 068Z3400
- Exact configuration and ratings must be confirmed before selection.
Technical reference
Technical specifications
| Volume | 0.489 Liter |
|---|---|
| Approval | EAC UA |
| Direction | Angleway |
| Net weight | 0.284 Kilogram |
| Gross weight | 0.306 Kilogram |
| Product Type | T 2 |
| Product name | Thermostatic expansion valve |
| Refrigerants | R404A/R507A |
| Body material | Brass |
| Flow direction | Single-flow |
| Parts included | Bulb strap |
| Inlet size [in] | 3/8 in |
| Outlet size [in] | 1/2 in |
| Identical product | 068Z3508 |
| Manufacturer code | 068Z3400 |
| Superheat setting | Adjustable |
| Connection material | Brass |
| Material Description | T 2 Therm. exp. valve Flare/Flare |
| Inlet connection type | Flare |
| Pressure equalization | Internally equalized |
| Outlet connection type | Flare |
| Flow direction indicator | Embossed 1-way arrow |
| Capillary tube length [in] | 59.0 in |
| Capillary tube length [mm] | 1500 mm |
| Max. Working Pressure [bar] | 34.0 bar |
| Static Superheat (SS) [°C] | 4.00 °C |
| Static Superheat (SS) [°F] | 7.20 °F |
| Max. Working Pressure [psig] | 500 psig |
| Rated cap. cond. Range N [SI] | OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Rated cap. cond. Range N [IMP] | OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
Check the exact variant and operating limits against the applicable manufacturer documentation.
Selection context
Applications
- Fluid-control system maintenance; confirm the exact configuration before use.
- Replacement-part evaluation against the original equipment documentation.
Confirm compatibility with your equipment and operating conditions before selecting a replacement.
Before you order
Ordering information
- Quantity
- Specify the required quantity in the inquiry.
- Lead time
- To be confirmed for the selected configuration and destination.
- Product reference
- Danfoss 068Z3400
- Price and availability
- Subject to quotation; confirm before placing an order.
- Configuration to confirm
- Medium, working pressure, temperature and end connections
- Manufacturer part number
- 068Z3400
Identify the part
Send the complete model, part number and any required suffix or configuration.
Share your requirements
Include quantity, destination, target delivery date and required documents.
Confirm the quotation
Review availability, condition, origin, lead time and commercial terms before ordering.
Product questions
Frequently asked questions
How should I identify Danfoss 068Z3400?
Use the reference Danfoss 068Z3400 together with a clear nameplate photo and the complete equipment model. Confirm any suffixes before ordering.
Which specifications should be checked before ordering?
Check medium, working pressure, temperature and end connections. No model-specific numerical ratings have been independently confirmed from official documentation for this listing.
Can a similar model be used as a replacement?
Do not select a replacement by a similar name alone. Compare the full code, interfaces, operating limits and equipment requirements with the manufacturer documentation.
What information is needed for a quotation?
Provide Danfoss 068Z3400, quantity, destination and required delivery date. Include photos or an existing datasheet if the configuration is uncertain.
Are price, stock and lead time confirmed on this page?
No. Request a current quotation for the exact configuration. Availability, lead time and applicable warranty terms must be agreed before ordering.
