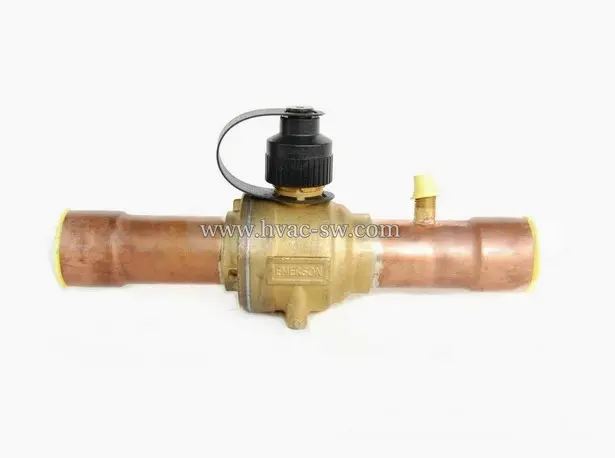

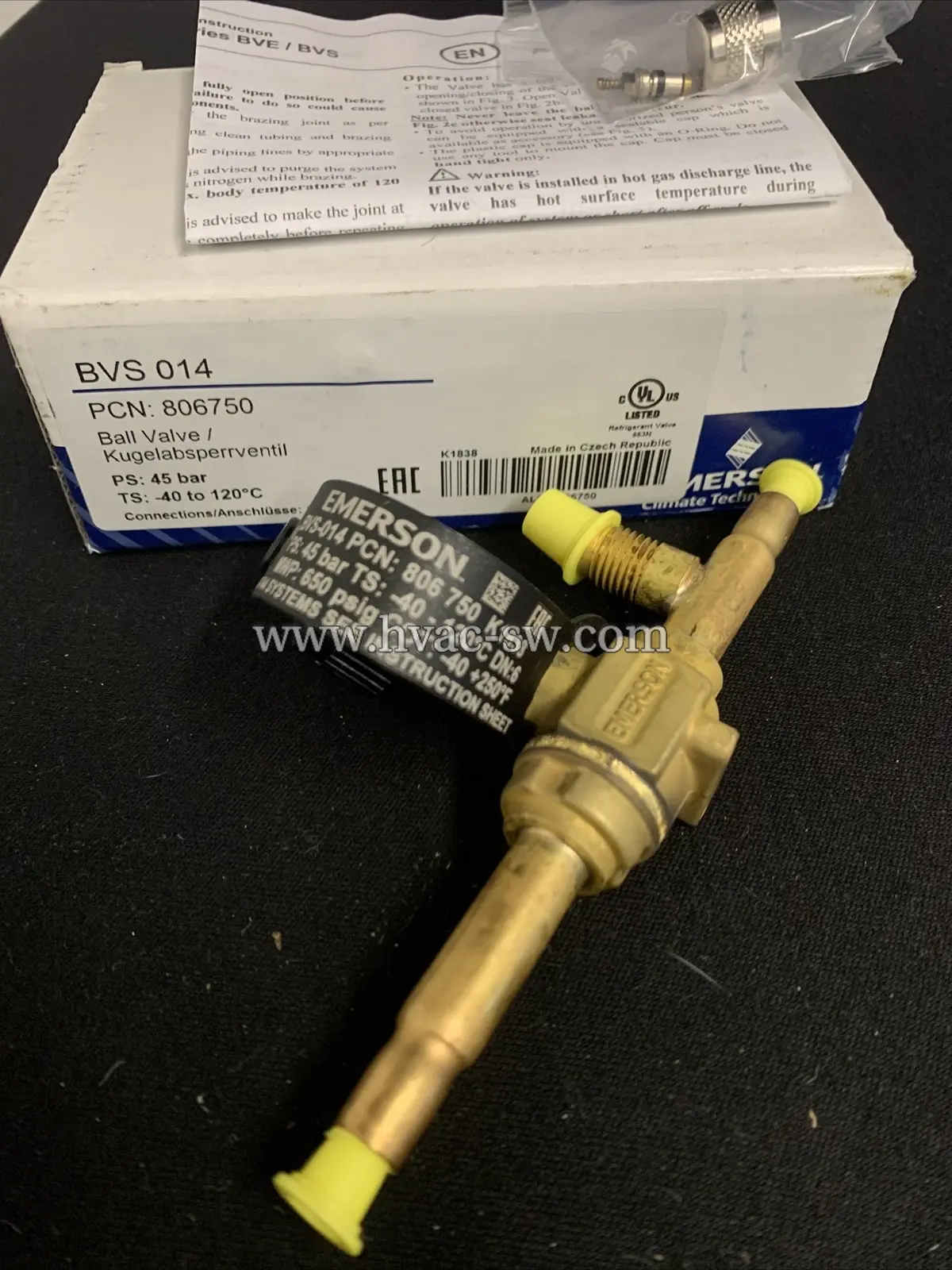

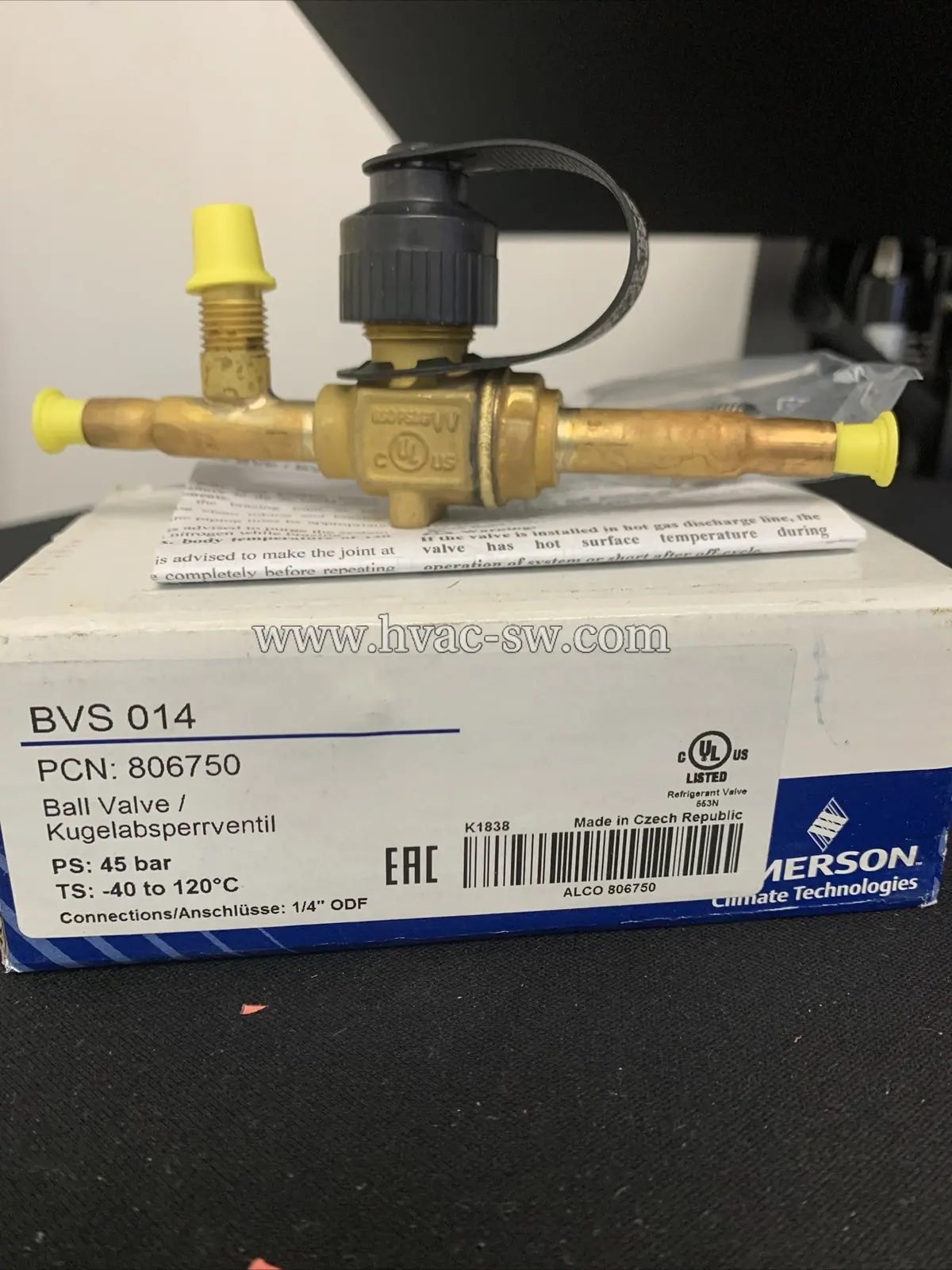

Emerson 806750 Ball Valve BVS 014 with Access Port 1/4" ODF 45 bar
Emerson BVS 014 806750 refrigeration ball valve with access port, 1/4" ODF solder connection, rated pressure 45 bar (650 psig), temperature range -40℃ to +120℃. Forged brass body, UL/EAC certified, made in Czech Republic. Designed for HVAC&R systems to isolate lines, enable refrigerant charging, ideal for AC, cold storage, chillers and heat pumps.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Emerson BVS 014 806750 Refrigeration Ball Valve with Access Port
Key Features & Benefits
Robust Brass Construction: Precision-forged brass valve body provides excellent corrosion resistance, high pressure resistance, and long-term durability, ensuring reliable performance in harsh refrigeration environments.
High Pressure & Temperature Rating: Rated working pressure of 45 bar (650 psig), with a wide operating temperature range from -40℃ to +120℃, compatible with all common refrigerants including R410A, R22, R407C, R134a, and more.
Reliable Sealing: Tight shutoff design with premium sealing materials prevents refrigerant leakage, ensuring system safety and compliance with environmental regulations.
Integrated Access Port: Built-in 1/4" SAE access valve enables direct refrigerant charging, pressure testing, evacuation, and system diagnosis without additional line tapping, significantly reducing maintenance time and cost.
Easy Operation: 90° quarter-turn operation for quick, effortless opening and closing, ideal for system isolation during maintenance, repair, or shutdown.
Certified Quality: UL and EAC certified, manufactured in the Czech Republic to Emerson's strict global quality standards, ensuring compliance with international safety and performance norms.
Application Scenarios
Commercial and residential air conditioning systems
Cold storage, freezers, and commercial refrigeration equipment
Water chillers and heat pump systems
Industrial refrigeration and process cooling systems
HVAC system installation, maintenance, and retrofitting
| Parameter | Specification |
|---|---|
| Brand | Emerson (Alco) |
| Series | BVS |
| Model Number | BVS 014 |
| PCN (Part Control Number) | 806750 |
| Product Type | Refrigerant Ball Valve with Access Port |
| Connection Type | ODF Solder |
| Connection Size | 1/4 in (6.35 mm) |
| Access Port Size | 1/4 in SAE |
| Rated Working Pressure (PS) | 45 bar (650 psig) |
| Operating Temperature Range (TS) | -40℃ ~ +120℃ (-40℉ ~ +248℉) |
| Body Material | Forged Brass |
| End Material | Copper |
| Compatible Refrigerants | R410A, R22, R407C, R134a, etc. |
| Certifications | UL Listed, EAC |
| Origin | Made in Czech Republic |
| Application | HVAC&R Systems, AC, Cold Storage, Chillers, Heat Pumps |
