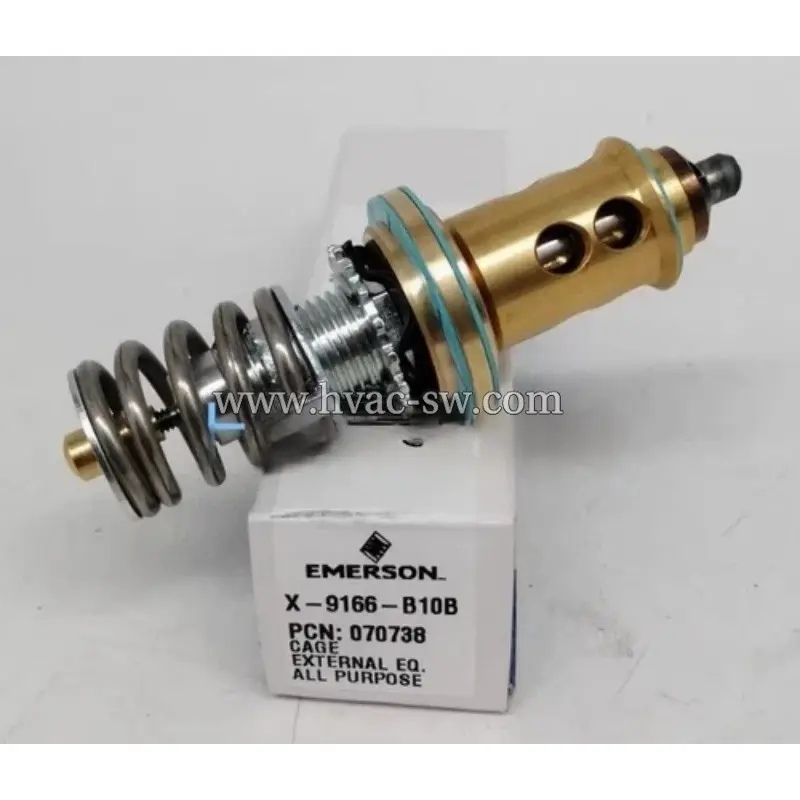

Emerson X-9166-B10B 070738 valve core packaging
Emerson X-9166-B10B 070738 valve core packaging
Emerson X-9166-B10B 070738 valve core
Emerson X-9166-B10B 070738 valve core product image

name

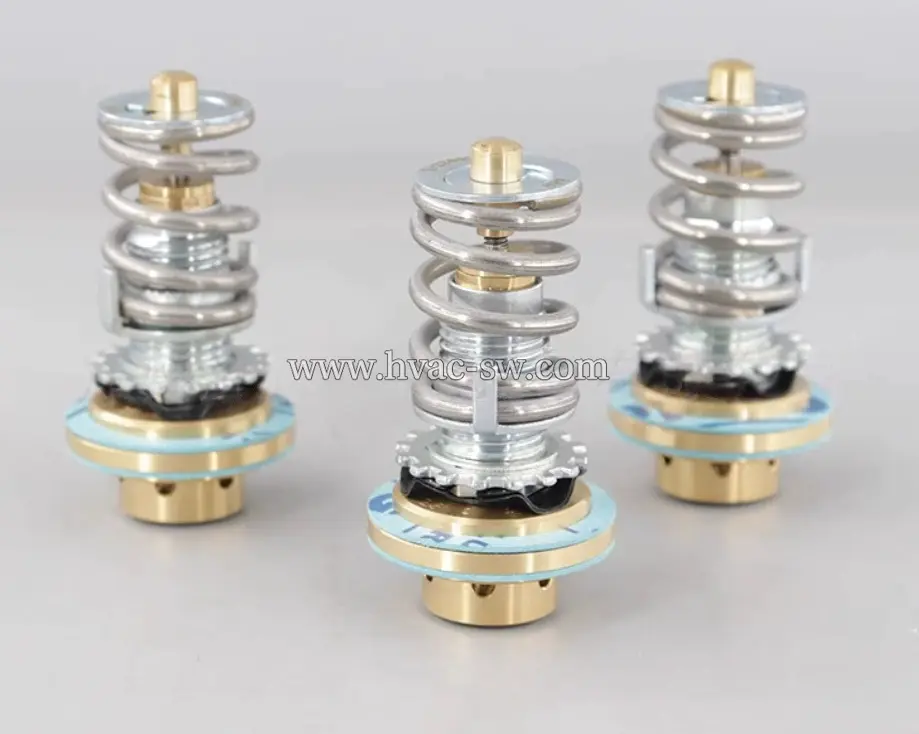

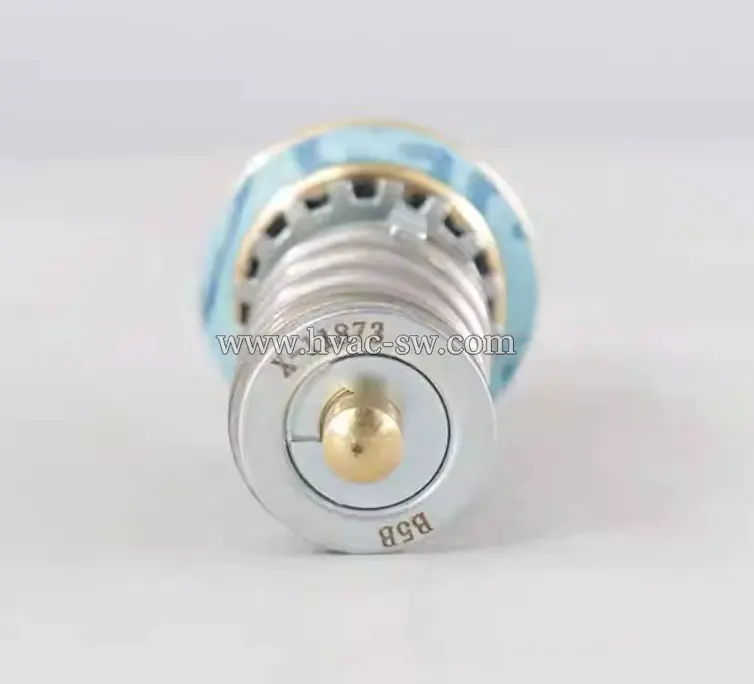

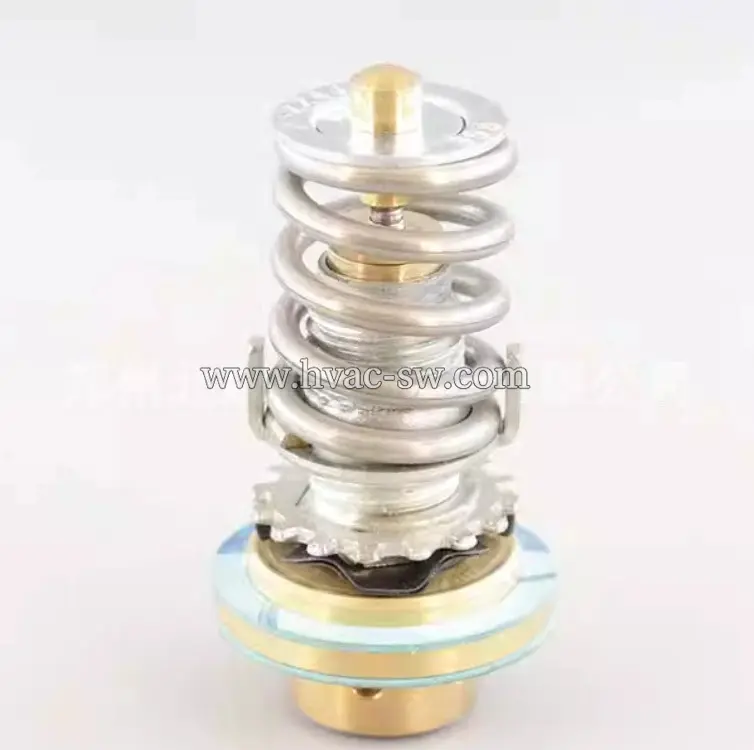

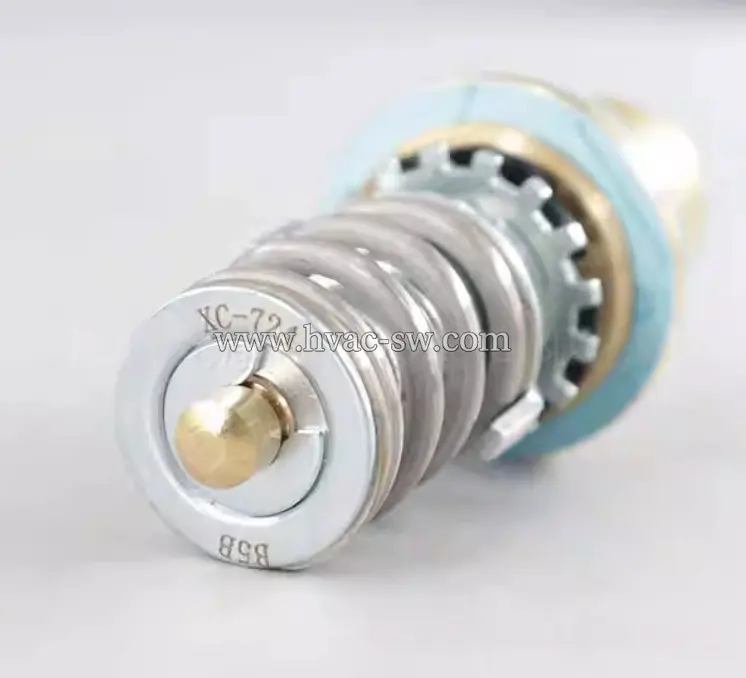

Emerson X-9166-B10B 070738 Precision Expansion Valve Core
Emerson

Description

Emerson X-9166-B10B (SKU/PCN/PN: 070738) is a precision expansion valve core designed for reliable refrigerant flow control in refrigeration and air conditioning systems. This genuine OEM part ensures accurate metering and stable superheat for optimal system efficiency and performance. It is compatible with specific Emerson valve bodies and is suited for various commercial and industrial applications.

Product Details

T-SERIES SMALL POWER ASSEMBLIES

VALVE TYPESYSTEM REFRIGERANT CODECHARGE CODECAP LENGTHEQUALIZERMODEL NUMBERITEM NUMBER
TCL, TCLE, TJLE, TJRH (R-22)W35 (MOP)5 Ft.ExternalXB-1019HW35-1B089975
H (R-22)W55 (MOP)5 Ft.ExternalXB-1019HW55-1B039152
H (R-22)W65 (MOP)5 Ft.ExternalXB-1019HW65-1B089445
H (R-22)CA (Heat Pump)5 Ft.ExternalXB-1019HCA-1B056039
H (R-22)Z (Low Temp.)10 Ft.ExternalXB-1019HZ-2B054105
H (R-22)Z (Low Temp.)5 Ft.ExternalXB-1019HZ-1B040568
H (R-22)C (Med. Temp.)10 Ft.ExternalXB-1019HC-2B054390
H (R-22)C (Med. Temp.)20 Ft.ExternalXB-1019HW-4B055703
H (R-22)C (Med. Temp.)5 Ft.InternalXB-1019HC-1A062078
H (R-22)C (Med. Temp.)5 Ft.ExternalXB-1019HC-1B053416
TCL, TCLE, TJLE, TJRM (R-134a)W55 (MOP)5 Ft.ExternalXB-1019MW55-1B057370
M (R-134a)Z (Low Temp.)5 Ft.ExternalXB-1019MZ-1B061946
M (R-134a)C (Med. Temp.)10 Ft.ExternalXB-1019MC-2B059548
M (R-134a)C (Med. Temp.)5 Ft.ExternalXB-1019MC-1B057878
TCL, TCLE, TJLE, TJRN (R-407C)W100 (MOP)5 Ft.ExternalXB-1019NW100-1B063069
N (R-407C)C (Med. Temp.)5 Ft.ExternalXB-1019NC-1B064837
TCL, TCLE, TJLE, TJRP (R-507)W40 (MOP)5 Ft.ExternalXB-1019PW40-1B064200
P (R-507)Z (Low Temp.)5 Ft.ExternalXB-1019PZ-1B061951
P (R-507)C (Med. Temp.)5 Ft.ExternalXB-1019PC-1B061949
TCL, TCLE, TJLE, TJRR (R-502)W15 (MOP)5 Ft.ExternalXB-1019RW15-1B070346
R (R-502)W35 (MOP)5 Ft.ExternalXB-1019RW35-1B063644
R (R-502)W45 (MOP)10 Ft.ExternalXB-1019RW45-2B055704
R (R-502)W45 (MOP)5 Ft.ExternalXB-1019RW45-1B055881
R (R-502)W65 (MOP)5 Ft.ExternalXB-1019RW65-1B063114
R (R-502)Z (Low Temp.)10 Ft.ExternalXB-1019RZ-2B047358
R (R-502)Z (Low Temp.)5 Ft.ExternalXB-1019RZ-1B046474
R (R-502)C (Med. Temp.)10 Ft.ExternalXB-1019RC-2B054415
TCL, TCLE, TJLE, TJRR (R-502)C (Med. Temp.)5 Ft.ExternalXB-1019RC-1B052955
S (R-404A)W40 (MOP)5 Ft.ExternalXB-1019SW40-1B059130
S (R-404A)W65 (MOP)5 Ft.ExternalXB-1019SW65-1B063541
S (R-404A)Z (Low Temp.)10 Ft.ExternalXB-1019SZ-2B061948
S (R-404A)C (Med. Temp.)5 Ft.ExternalXB-1019SC-1B059189

T-SERIES LARGE CAPACITY CAGE KITS

VALVE TYPENOMINAL CAPACITY - TONSEQUALIZERMODEL NUMBERITEM NUMBER
R-12R-134aR-22R-404A/R-507R-407CR-502
TER131622142214ExternalX-9117-B6B077896
TER151926162616ExternalX-9117-B7B078117
TER202535213521ExternalX-9117-B8B071155
TER253145274527ExternalX-9117-B9B029429
TIR354555375537ExternalX-9166-B10B070738
THR354555375537ExternalX-9144-B10B071238
THR455575487048ExternalX-9144-B11B020846
THR556885608560ExternalX-9144-B13B021067
TMR556810060100-ExternalX-9144-B14B065123

T-SERIES LARGE CAPACITY FLANGES

VALVE TYPECONFIGURATIONINLET CONNECTIONOUTLET CONNECTIONMODEL NUMBERITEM NUMBER
TERAngle7/8" ODF or 1-1/8" ODM7/8" ODF or 1-1/8" ODM9153027919
TERStraight Thru7/8" ODF or 1-1/8" ODM7/8" ODF or 1-1/8" ODM9152027918
TIRAngle7/8" ODF or 1-1/8" ODM7/8" ODF or 1-1/8" ODM9151027926
TIRStraight Thru7/8" ODF or 1-1/8" ODM7/8" ODF or 1-1/8" ODM9150028849
THRAngle1-1/8" ODM1-1/8" ODM9149028030
THRStraight Thru1-1/8" ODM1-1/8" ODM9148028032
TMRAngle1-1/8" ODM1-1/8" ODM9149-1065124
TMRStraight Thru1-1/8" ODM1-1/8" ODM9148-1065125

POWER ASSEMBLY MODEL NOMENCLATURE

PRINT REFERENCE XB-1019SYSTEM REFRIGERANT CODECHARGE CODECAPILLARY TUBE LENGTH CODEEQUALIZER
XB-1019 = Drawing NumberF=R-12; H=R-22; M=R-134a; N=R-407C; P=R-507; R=R-502; S=R-404AC=Medium Temp.; CA=Heat Pump; W(MOP)=Press. Limiting; Z=Low Temp.1=5 Ft.; 2=10 Ft.; 3=15 Ft.A=Internal; B=External

T-SERIES LARGE POWER ASSEMBLIES

VALVE TYPESYSTEM REFRIGERANT CODECHARGE CODECAPILLARY TUBEEQUALIZERMODEL NUMBERITEM NUMBER
TER, TIR, THR, TMRF (R-12)W55 (MOP)10 Ft.ExternalXC-726FW55-2B035000
F (R-12)C (Med. Temp.)10 Ft.ExternalXC-726FC-2B052957
H (R-22)W100 (MOP)10 Ft.ExternalXC-726HW100-2B036750
H (R-22)W35 (MOP)10 Ft.ExternalXC-726HW35-2B024511
H (R-22)W65 (MOP)10 Ft.ExternalXC-726HW65-2B025011
H (R-22)CA (Heat Pump)10Ft.ExternalXC-726HCA-2B059333
H (R-22)Z (Low Temp.)10 Ft.ExternalXC-726HZ-2B040569
H (R-22)C (Med. Temp.)10 Ft.ExternalXC-726HC-2B056421
M (R-134a)M55 (MOP)10 Ft.ExternalXC-726MW55-2B057372
M (R-134a)Z (Low Temp.)10 Ft.ExternalXC-726MZ-2B063075
M (R-134a)C (Med. Temp.)10 Ft.ExternalXC-726MC-2B057235
R (R-502)W15 (MOP)10 Ft.ExternalXC-726RW15-2B023351
R (R-502)W35 (MOP)10 Ft.ExternalXC-726RW35-2B070866
R (R-502)W65 (MOP)10 Ft.ExternalXC-726RW65-2B071421
R (R-502)Z (Low Temp.)10 Ft.ExternalXC-726RZ-2B046692
R (R-502)C (Med. Temp.)10 Ft.ExternalXC-726RC-2B052958
S (R-404A)W40 (MOP)10 Ft.ExternalXC-726SW40-2B063127
S (R-404A)W65 (MOP)10 Ft.ExternalXC-726SW65-2B061692
S (R-404A)Z (Low Temp.)10 Ft.ExternalXC-726SZ-2B063974
TER, TIR, THR, TMRS (R-404A)C (Med. Temp.)10 Ft.ExternalXC-726SC-2B062303
TCLE, TJLE, TJRER-12Rapid Response5 Ft.ExternalX-8019FWS-1B031654
R-22Rapid Response10 Ft.ExternalX-8019HWS-2B055873
R-22Rapid Response5 Ft.ExternalX-8019HWS-1B055652
R-502Rapid Response10 Ft.ExternalX-8019RWS-2B042426
R-502Rapid Response5 Ft.InternalX-8019RWS-1A032131

Angle Style Flanges Type 9153, 9153-MM for TERE, TIRE

ConnectionsLay-in lengthABCDEFGWeight kg
2222 ODF191914087519259-231.4
7/87/8 ODF1919140--9259-251.4

Angle Style Flanges Type 9149 for THRE

ConnectionsLay-in lengthABCDEFGWeight kg
22,222,2 ODF191915487511067325-1.45
7/87/8 ODF1919154--1067325-1.45

Straight Through Flanges Type 9152 for TERE, TIRE

ConnectionsLay-in lengthABCDEFGWeight kg
22,222,2 ODF191913951457416,558251.5
7/87/8 ODF1919139------1.5

Straight through Flanges Type 9148 for THRE

ConnectionsLay-in lengthABCDEFGWeight kg
22,222,2 ODF191913951457416,558251.45
7/87/8 ODF1919139------1.45
