Emerson XC-726HW100-2B 036750 Thermostatic Expansion Valve
Emerson
Description

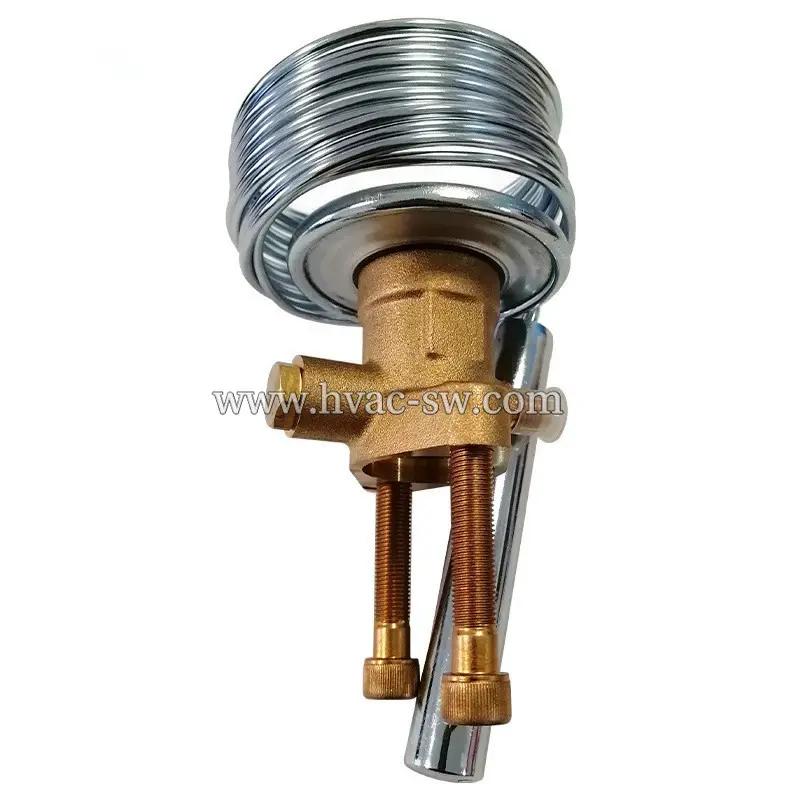

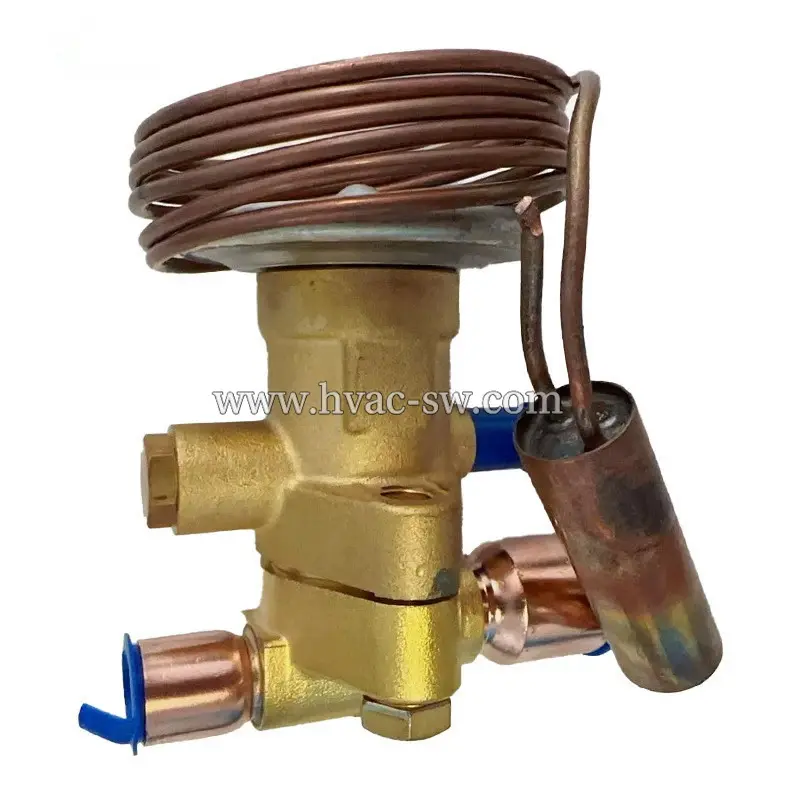

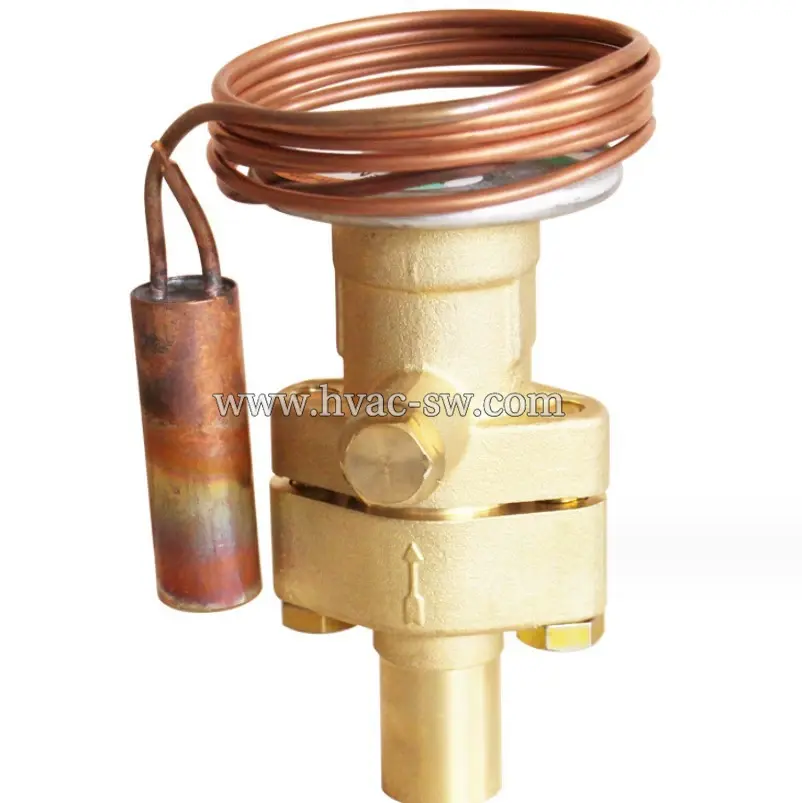

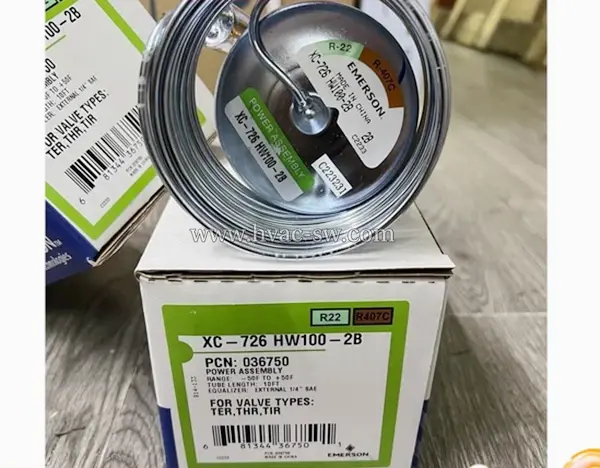

Emerson XC-726HW100-2B (SKU/PCN/PN: 036750) is a thermostatic expansion valve power element designed for precise refrigerant flow control. Its sensing bulb responds to evaporator outlet temperature, modulating the valve opening to maintain optimal superheat, ensure system efficiency, and protect the compressor. This model is suitable for various applications requiring reliable thermal regulation.
Product Details
T-SERIES SMALL POWER ASSEMBLIES
| VALVE TYPE | SYSTEM REFRIGERANT CODE | CHARGE CODE | CAP LENGTH | EQUALIZER | MODEL NUMBER | ITEM NUMBER |
|---|---|---|---|---|---|---|
| TCL, TCLE, TJLE, TJR | H (R-22) | W35 (MOP) | 5 Ft. | External | XB-1019HW35-1B | 089975 |
| H (R-22) | W55 (MOP) | 5 Ft. | External | XB-1019HW55-1B | 039152 | |
| H (R-22) | W65 (MOP) | 5 Ft. | External | XB-1019HW65-1B | 089445 | |
| H (R-22) | CA (Heat Pump) | 5 Ft. | External | XB-1019HCA-1B | 056039 | |
| H (R-22) | Z (Low Temp.) | 10 Ft. | External | XB-1019HZ-2B | 054105 | |
| H (R-22) | Z (Low Temp.) | 5 Ft. | External | XB-1019HZ-1B | 040568 | |
| H (R-22) | C (Med. Temp.) | 10 Ft. | External | XB-1019HC-2B | 054390 | |
| H (R-22) | C (Med. Temp.) | 20 Ft. | External | XB-1019HW-4B | 055703 | |
| H (R-22) | C (Med. Temp.) | 5 Ft. | Internal | XB-1019HC-1A | 062078 | |
| H (R-22) | C (Med. Temp.) | 5 Ft. | External | XB-1019HC-1B | 053416 | |
| TCL, TCLE, TJLE, TJR | M (R-134a) | W55 (MOP) | 5 Ft. | External | XB-1019MW55-1B | 057370 |
| M (R-134a) | Z (Low Temp.) | 5 Ft. | External | XB-1019MZ-1B | 061946 | |
| M (R-134a) | C (Med. Temp.) | 10 Ft. | External | XB-1019MC-2B | 059548 | |
| M (R-134a) | C (Med. Temp.) | 5 Ft. | External | XB-1019MC-1B | 057878 | |
| TCL, TCLE, TJLE, TJR | N (R-407C) | W100 (MOP) | 5 Ft. | External | XB-1019NW100-1B | 063069 |
| N (R-407C) | C (Med. Temp.) | 5 Ft. | External | XB-1019NC-1B | 064837 | |
| TCL, TCLE, TJLE, TJR | P (R-507) | W40 (MOP) | 5 Ft. | External | XB-1019PW40-1B | 064200 |
| P (R-507) | Z (Low Temp.) | 5 Ft. | External | XB-1019PZ-1B | 061951 | |
| P (R-507) | C (Med. Temp.) | 5 Ft. | External | XB-1019PC-1B | 061949 | |
| TCL, TCLE, TJLE, TJR | R (R-502) | W15 (MOP) | 5 Ft. | External | XB-1019RW15-1B | 070346 |
| R (R-502) | W35 (MOP) | 5 Ft. | External | XB-1019RW35-1B | 063644 | |
| R (R-502) | W45 (MOP) | 10 Ft. | External | XB-1019RW45-2B | 055704 | |
| R (R-502) | W45 (MOP) | 5 Ft. | External | XB-1019RW45-1B | 055881 | |
| R (R-502) | W65 (MOP) | 5 Ft. | External | XB-1019RW65-1B | 063114 | |
| R (R-502) | Z (Low Temp.) | 10 Ft. | External | XB-1019RZ-2B | 047358 | |
| R (R-502) | Z (Low Temp.) | 5 Ft. | External | XB-1019RZ-1B | 046474 | |
| R (R-502) | C (Med. Temp.) | 10 Ft. | External | XB-1019RC-2B | 054415 | |
| TCL, TCLE, TJLE, TJR | R (R-502) | C (Med. Temp.) | 5 Ft. | External | XB-1019RC-1B | 052955 |
| S (R-404A) | W40 (MOP) | 5 Ft. | External | XB-1019SW40-1B | 059130 | |
| S (R-404A) | W65 (MOP) | 5 Ft. | External | XB-1019SW65-1B | 063541 | |
| S (R-404A) | Z (Low Temp.) | 10 Ft. | External | XB-1019SZ-2B | 061948 | |
| S (R-404A) | C (Med. Temp.) | 5 Ft. | External | XB-1019SC-1B | 059189 |
T-SERIES LARGE CAPACITY CAGE KITS
| VALVE TYPE | NOMINAL CAPACITY - TONS | EQUALIZER | MODEL NUMBER | ITEM NUMBER | |||||
|---|---|---|---|---|---|---|---|---|---|
| R-12 | R-134a | R-22 | R-404A/R-507 | R-407C | R-502 | ||||
| TER | 13 | 16 | 22 | 14 | 22 | 14 | External | X-9117-B6B | 077896 |
| TER | 15 | 19 | 26 | 16 | 26 | 16 | External | X-9117-B7B | 078117 |
| TER | 20 | 25 | 35 | 21 | 35 | 21 | External | X-9117-B8B | 071155 |
| TER | 25 | 31 | 45 | 27 | 45 | 27 | External | X-9117-B9B | 029429 |
| TIR | 35 | 45 | 55 | 37 | 55 | 37 | External | X-9166-B10B | 070738 |
| THR | 35 | 45 | 55 | 37 | 55 | 37 | External | X-9144-B10B | 071238 |
| THR | 45 | 55 | 75 | 48 | 70 | 48 | External | X-9144-B11B | 020846 |
| THR | 55 | 68 | 85 | 60 | 85 | 60 | External | X-9144-B13B | 021067 |
| TMR | 55 | 68 | 100 | 60 | 100 | - | External | X-9144-B14B | 065123 |
T-SERIES LARGE CAPACITY FLANGES
| VALVE TYPE | CONFIGURATION | INLET CONNECTION | OUTLET CONNECTION | MODEL NUMBER | ITEM NUMBER |
|---|---|---|---|---|---|
| TER | Angle | 7/8" ODF or 1-1/8" ODM | 7/8" ODF or 1-1/8" ODM | 9153 | 027919 |
| TER | Straight Thru | 7/8" ODF or 1-1/8" ODM | 7/8" ODF or 1-1/8" ODM | 9152 | 027918 |
| TIR | Angle | 7/8" ODF or 1-1/8" ODM | 7/8" ODF or 1-1/8" ODM | 9151 | 027926 |
| TIR | Straight Thru | 7/8" ODF or 1-1/8" ODM | 7/8" ODF or 1-1/8" ODM | 9150 | 028849 |
| THR | Angle | 1-1/8" ODM | 1-1/8" ODM | 9149 | 028030 |
| THR | Straight Thru | 1-1/8" ODM | 1-1/8" ODM | 9148 | 028032 |
| TMR | Angle | 1-1/8" ODM | 1-1/8" ODM | 9149-1 | 065124 |
| TMR | Straight Thru | 1-1/8" ODM | 1-1/8" ODM | 9148-1 | 065125 |
POWER ASSEMBLY MODEL NOMENCLATURE
| PRINT REFERENCE XB-1019 | SYSTEM REFRIGERANT CODE | CHARGE CODE | CAPILLARY TUBE LENGTH CODE | EQUALIZER |
|---|---|---|---|---|
| XB-1019 = Drawing Number | F=R-12; H=R-22; M=R-134a; N=R-407C; P=R-507; R=R-502; S=R-404A | C=Medium Temp.; CA=Heat Pump; W(MOP)=Press. Limiting; Z=Low Temp. | 1=5 Ft.; 2=10 Ft.; 3=15 Ft. | A=Internal; B=External |
T-SERIES LARGE POWER ASSEMBLIES
| VALVE TYPE | SYSTEM REFRIGERANT CODE | CHARGE CODE | CAPILLARY TUBE | EQUALIZER | MODEL NUMBER | ITEM NUMBER |
|---|---|---|---|---|---|---|
| TER, TIR, THR, TMR | F (R-12) | W55 (MOP) | 10 Ft. | External | XC-726FW55-2B | 035000 |
| F (R-12) | C (Med. Temp.) | 10 Ft. | External | XC-726FC-2B | 052957 | |
| H (R-22) | W100 (MOP) | 10 Ft. | External | XC-726HW100-2B | 036750 | |
| H (R-22) | W35 (MOP) | 10 Ft. | External | XC-726HW35-2B | 024511 | |
| H (R-22) | W65 (MOP) | 10 Ft. | External | XC-726HW65-2B | 025011 | |
| H (R-22) | CA (Heat Pump) | 10Ft. | External | XC-726HCA-2B | 059333 | |
| H (R-22) | Z (Low Temp.) | 10 Ft. | External | XC-726HZ-2B | 040569 | |
| H (R-22) | C (Med. Temp.) | 10 Ft. | External | XC-726HC-2B | 056421 | |
| M (R-134a) | M55 (MOP) | 10 Ft. | External | XC-726MW55-2B | 057372 | |
| M (R-134a) | Z (Low Temp.) | 10 Ft. | External | XC-726MZ-2B | 063075 | |
| M (R-134a) | C (Med. Temp.) | 10 Ft. | External | XC-726MC-2B | 057235 | |
| R (R-502) | W15 (MOP) | 10 Ft. | External | XC-726RW15-2B | 023351 | |
| R (R-502) | W35 (MOP) | 10 Ft. | External | XC-726RW35-2B | 070866 | |
| R (R-502) | W65 (MOP) | 10 Ft. | External | XC-726RW65-2B | 071421 | |
| R (R-502) | Z (Low Temp.) | 10 Ft. | External | XC-726RZ-2B | 046692 | |
| R (R-502) | C (Med. Temp.) | 10 Ft. | External | XC-726RC-2B | 052958 | |
| S (R-404A) | W40 (MOP) | 10 Ft. | External | XC-726SW40-2B | 063127 | |
| S (R-404A) | W65 (MOP) | 10 Ft. | External | XC-726SW65-2B | 061692 | |
| S (R-404A) | Z (Low Temp.) | 10 Ft. | External | XC-726SZ-2B | 063974 | |
| TER, TIR, THR, TMR | S (R-404A) | C (Med. Temp.) | 10 Ft. | External | XC-726SC-2B | 062303 |
| TCLE, TJLE, TJRE | R-12 | Rapid Response | 5 Ft. | External | X-8019FWS-1B | 031654 |
| R-22 | Rapid Response | 10 Ft. | External | X-8019HWS-2B | 055873 | |
| R-22 | Rapid Response | 5 Ft. | External | X-8019HWS-1B | 055652 | |
| R-502 | Rapid Response | 10 Ft. | External | X-8019RWS-2B | 042426 | |
| R-502 | Rapid Response | 5 Ft. | Internal | X-8019RWS-1A | 032131 |

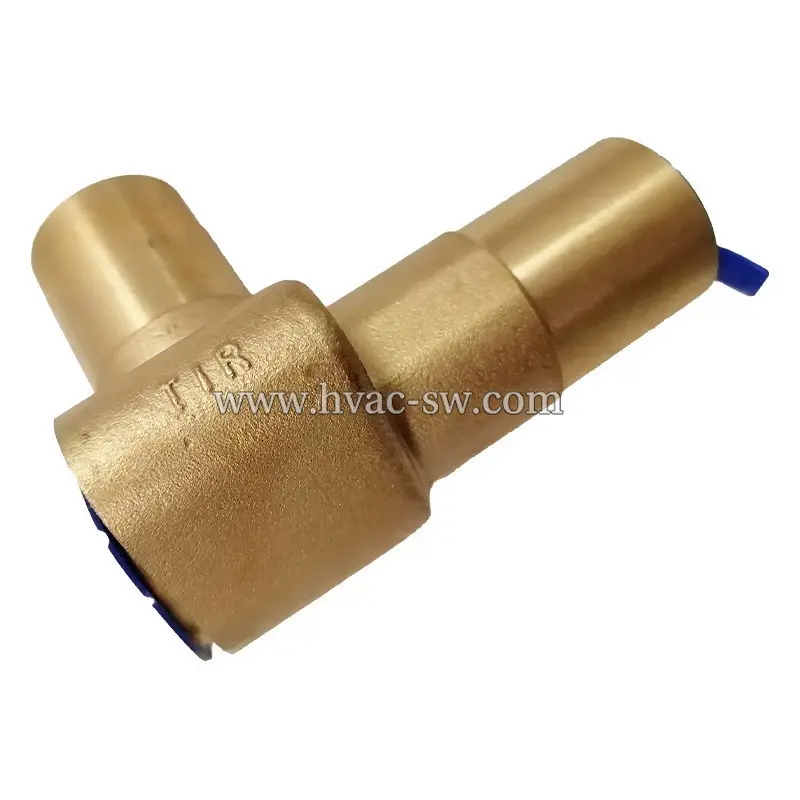

Angle Style Flanges Type 9153, 9153-MM for TERE, TIRE
| Connections | Lay-in length | A | B | C | D | E | F | G | Weight kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 22 ODF | 19 | 19 | 140 | 87 | 51 | 92 | 59 | - | 23 | 1.4 |
| 7/8 | 7/8 ODF | 19 | 19 | 140 | - | - | 92 | 59 | - | 25 | 1.4 |
Angle Style Flanges Type 9149 for THRE
| Connections | Lay-in length | A | B | C | D | E | F | G | Weight kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22,2 | 22,2 ODF | 19 | 19 | 154 | 87 | 51 | 106 | 73 | 25 | - | 1.45 |
| 7/8 | 7/8 ODF | 19 | 19 | 154 | - | - | 106 | 73 | 25 | - | 1.45 |

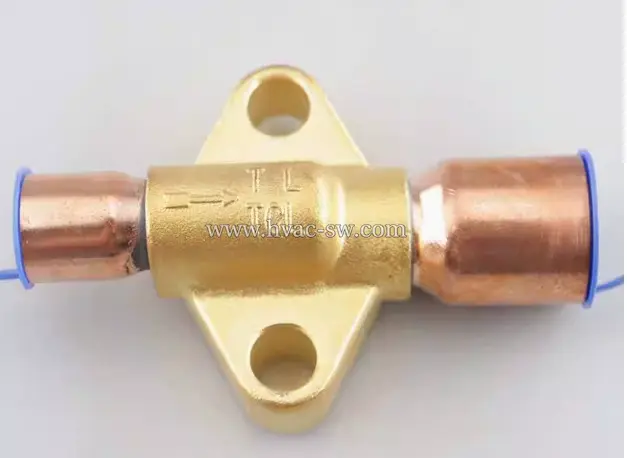

Straight Through Flanges Type 9152 for TERE, TIRE
| Connections | Lay-in length | A | B | C | D | E | F | G | Weight kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22,2 | 22,2 ODF | 19 | 19 | 139 | 51 | 45 | 74 | 16,5 | 58 | 25 | 1.5 |
| 7/8 | 7/8 ODF | 19 | 19 | 139 | - | - | - | - | - | - | 1.5 |
Straight through Flanges Type 9148 for THRE
| Connections | Lay-in length | A | B | C | D | E | F | G | Weight kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22,2 | 22,2 ODF | 19 | 19 | 139 | 51 | 45 | 74 | 16,5 | 58 | 25 | 1.45 |
| 7/8 | 7/8 ODF | 19 | 19 | 139 | - | - | - | - | - | - | 1.45 |
