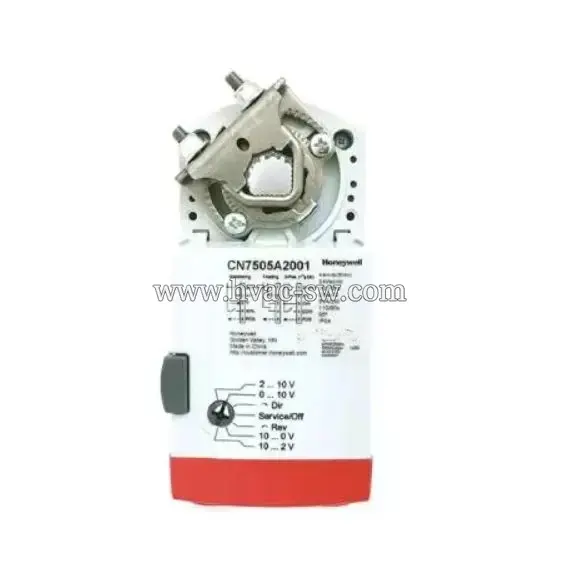

Honeywell CN7505A2001 5Nm 24VAC/DC Damper Actuator
The Honeywell CN7505A2001 is a high-torque 5Nm damper actuator designed for precise HVAC control. Operating on 24VAC/DC, it features a 0-10V proportional control signal for accurate modulation. With a 95° rotation angle and rugged IP54-rated housing, it ensures reliable performance and durability in demanding environments for commercial air management systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Key Features & Advantages
Flexible Control Modes: Supports multiple analog control signals (2~10V, 0~10V, 10~0V, 10~2V), with adjustable direction (Direct/Reverse) and manual override for flexible system integration.
5Nm Rated Torque: Sufficient torque for driving medium-sized air dampers, suitable for most commercial HVAC applications, ensuring stable and reliable operation.
Manual Override Function: Equipped with a manual adjustment switch, allowing on-site manual operation during commissioning, maintenance or power failure, ensuring system safety.
Easy Installation: Direct mount design for standard damper shafts, no additional brackets required, with clear terminal markings for quick wiring and commissioning.
High Reliability: Industrial-grade motor and gearbox design, with long mechanical and electrical life, low noise operation, and high resistance to vibration and temperature fluctuations.
Global Compliance: Compliant with international building automation standards, compatible with mainstream BAS controllers, ensuring worldwide applicability.
| Parameter | Specification |
|---|---|
| Brand | Honeywell |
| Model Number | CN7505A2001 |
| Product Type | Modulating Damper Actuator |
| Rated Torque | 5 Nm |
| Control Signal | 2~10V, 0~10V, 10~0V, 10~2V (Selectable) |
| Control Mode | Modulating (Analog), Direct/Reverse Adjustable |
| Manual Override | Yes (Manual Adjustment Switch) |
| Position Feedback | Yes |
| Application | HVAC Air Handling Units, VAV Systems, Building Automation, Duct Dampers |
| Condition | New Genuine OEM Part |
