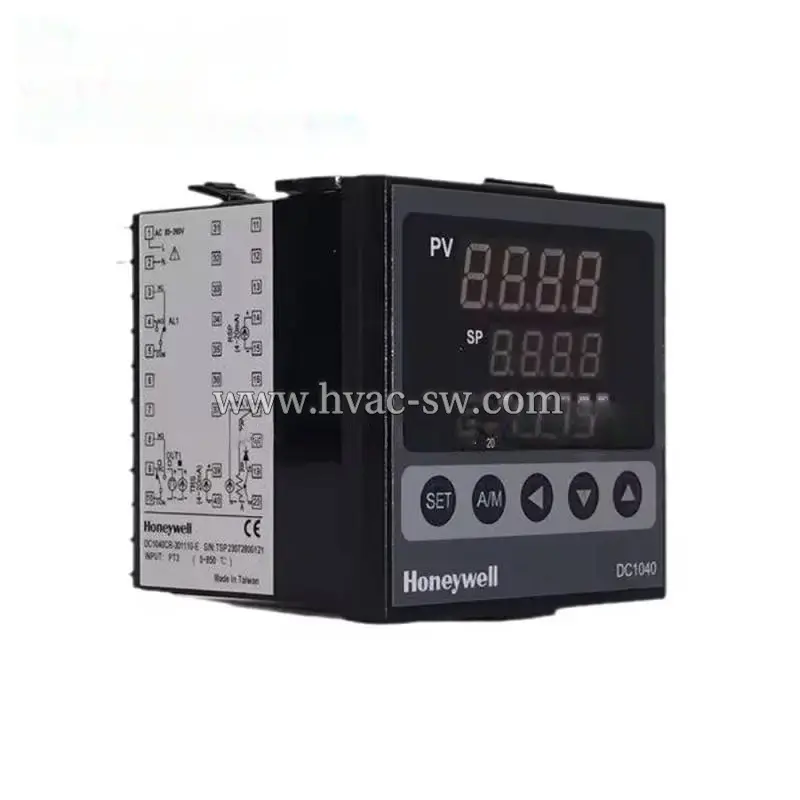

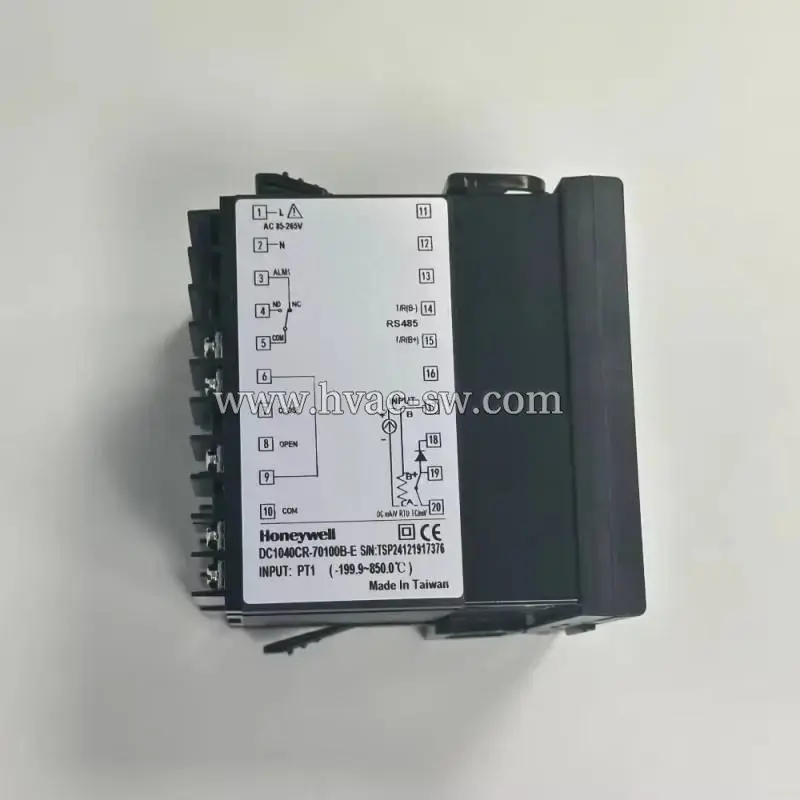

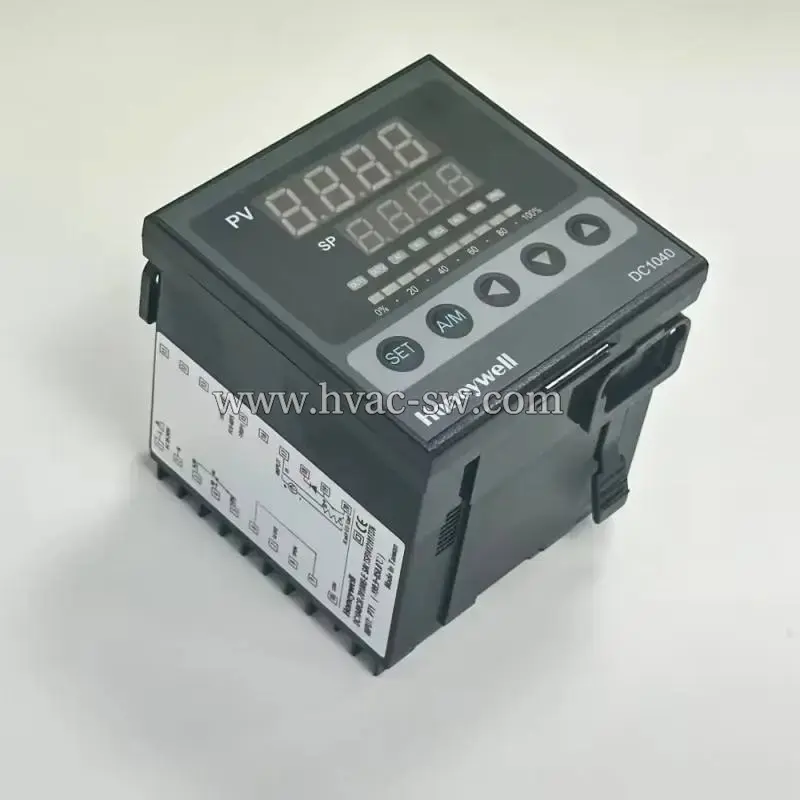

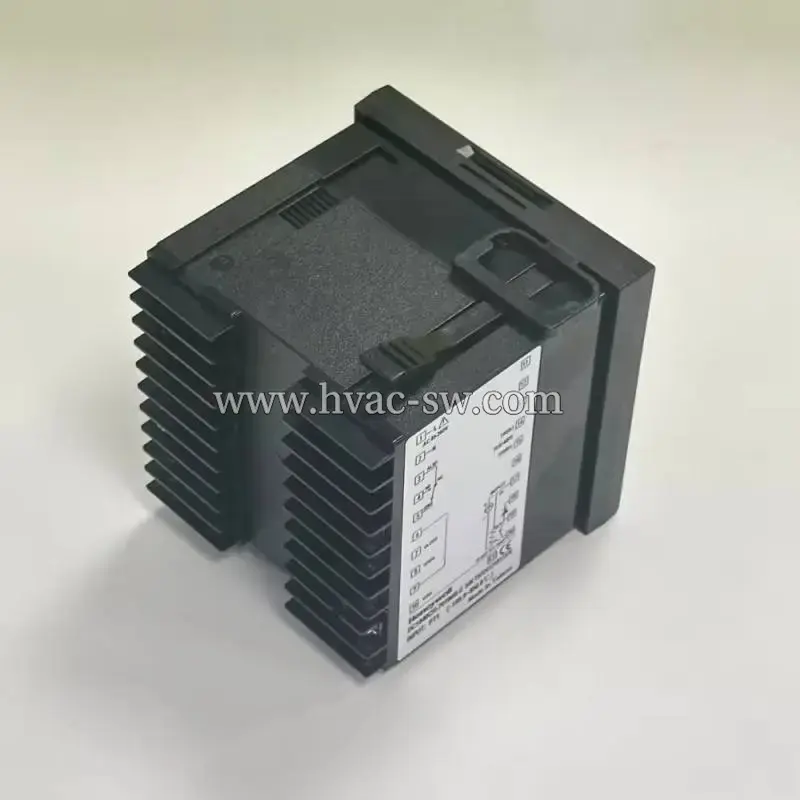

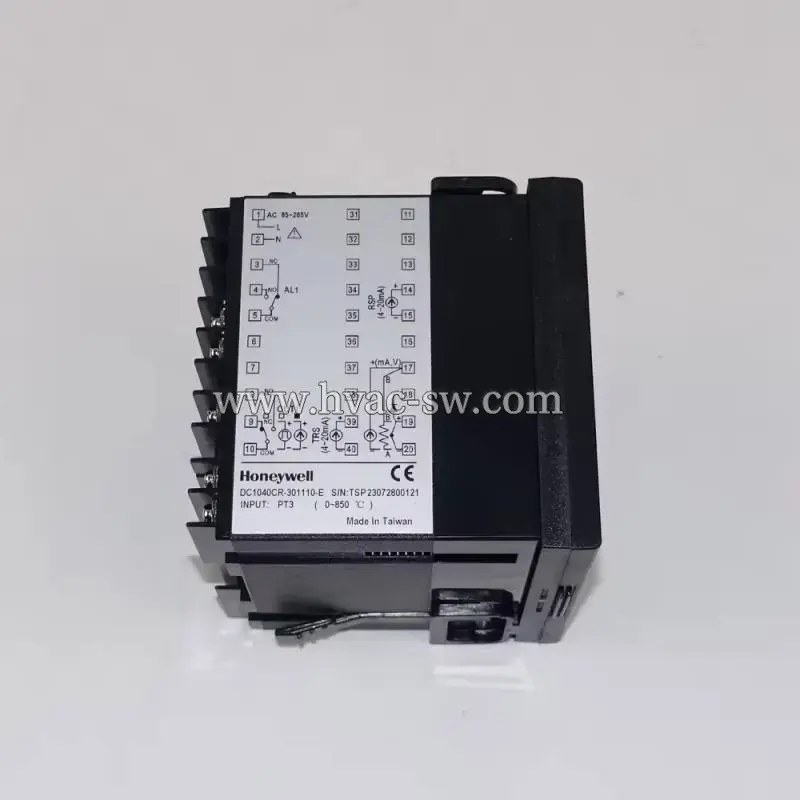

Honeywell DC1040 Series Temperature Controllers
The Honeywell DC1040 Series offers precise temperature and limit control for boilers and industrial systems. Models include DC1040CR-70100B-E, DC1040CT-30100B-E, and DC1040CT-101000-E. These reliable controllers ensure safe operation, efficient performance, and easy installation. Ideal for replacement or upgrade, they provide durable, accurate monitoring for heating applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Material | Brass |
| Type | Gas burner |
| Warranty | 1 Year |
| Video outgoing-inspection | Provided |
| Machinery test report | Provided |
| Weight (kg) | 1.5 |
| Place of origin | United States |
| Brand name | Honeywell |
| Application | Dryers, Semiconductor Packaging/Testing, Painting and Coating |
| Size | 1/16 DIN (48x48mm), 1/8 DIN (48x96mm), 3/16 DIN (72x72mm), 1/4 DIN |
| Control Algorithm | PID, ON/OFF, Heat/Cool with Dual PID, Motor Position Control |
| Input Type | Thermocouple (K,J,R,S,B,E,N,T,W,PLII,U,L), RTD (Pt100, JPt100, JPt50) |
| Output Type | Relay, Voltage Pulse, 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 2-10V |
| Communication | RS232, RS485, Modbus RTU/ASCII, Up to 30 Controllers Network |
| Power Supply | 85-264Vac 50/60Hz, Optional 24Vdc |
| Operating Conditions | 0°C to +50°C, 50-85% RH Non-Condensing |
| Display | Dual 4-Digit LED, 10-Segment Bargraph, Status LEDs for Outputs |
| Alarm Function | Up to 3 Alarms, 17 Modes, Deviation/Band/High/Low/Timer, Other |
| Selling Units | Single item |
| Single package size | 10.0X10.0X6.0 cm |
| Single gross weight | 0.350 kg |
