name

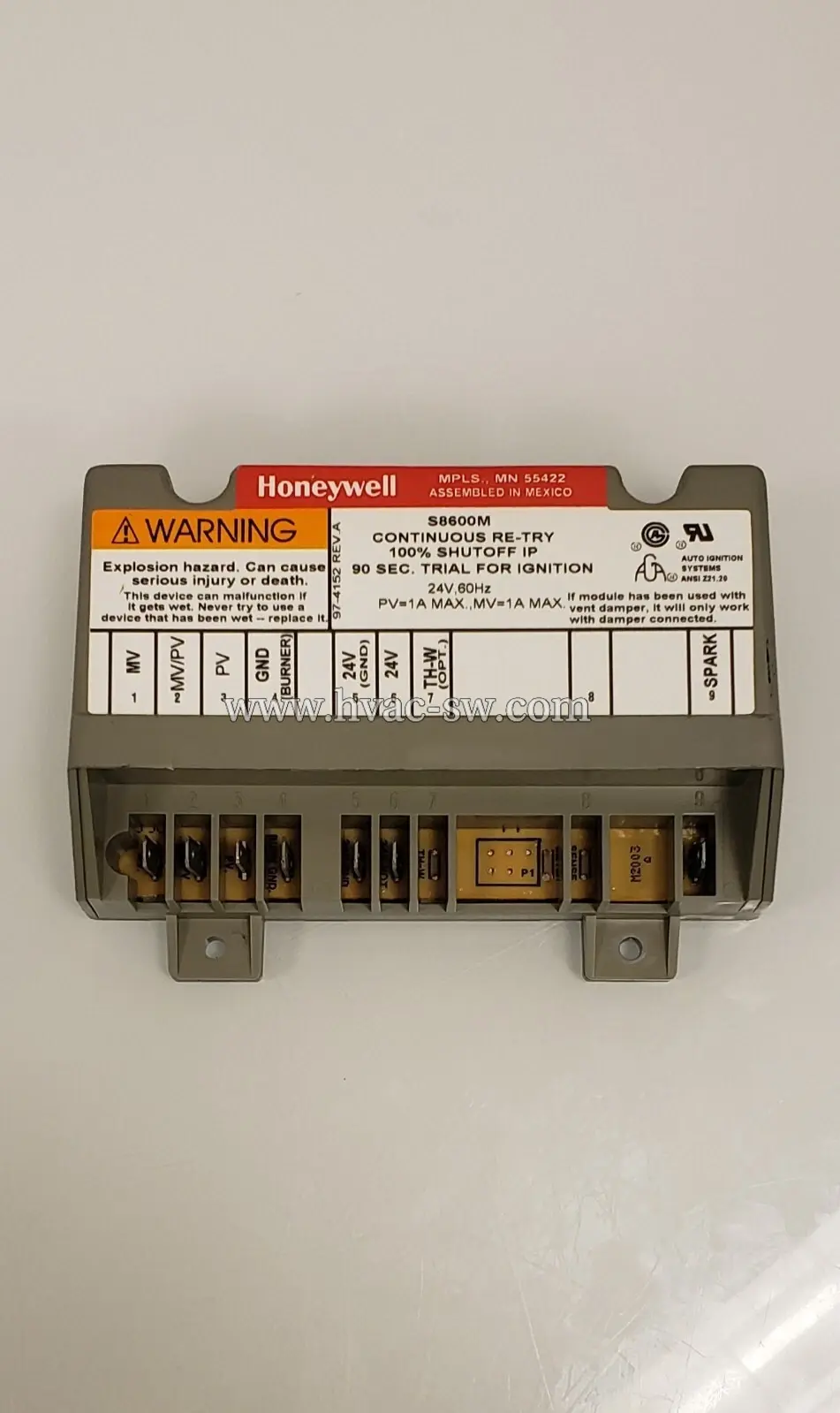

Honeywell S8600M Ignition Module Compatible with Lennox/Carrier/Trane/Heil/York
Honeywell
Description
Genuine Honeywell S8600M intermittent pilot ignition control module. 24V, 90s trial, 6min retry delay, LED diagnostics. 1A PV / 1A MV. Universal replacement for many gas furnaces including Lennox, Carrier, Trane, Heil, York.
Product Details
Honeywell S8600M is a genuine OEM Honeywell universal intermittent pilot ignition control module for gas-fired furnaces, unit heaters, and boilers. It provides precise ignition sequencing, flame rectification sensing, and safety shutoff.
Features:
24 VAC, 60 Hz input
90-second ignition trial
6-minute delay before retry
100% safety shutoff on fault
LED flash code diagnostics
Pilot valve (PV): 1A max
Main valve (MV): 1A max
For natural gas (NG) & liquid propane (LP)
Compatible with most standard intermittent pilot gas furnaces
Common Applications:
Fits many models from Lennox, Carrier, Trane, Heil, Tempstar, York, and other brands using 24V IPI controls.
Note: This is a Honeywell genuine part, not a Lennox OEM part. Verify wiring and pinout before installation.
| Parameter | Specification |
|---|---|
| Brand | Honeywell |
| Model | S8600M (S8600M3001 etc.) |
| Type | Intermittent Pilot Ignition Control |
| Voltage | 24 VAC, 60 Hz |
| Ignition Trial | 90 Seconds |
| Retry Delay | 6 Minutes |
| Valve Current | PV 1A, MV 1A |
| Flame Sensing | Rectification |
| Diagnostics | LED Flash Codes |
| Gas Type | NG / LP |
| Compatibility | Universal (Lennox, Carrier, Trane, Heil, York, etc.) |
| Condition | New Genuine Honeywell OEM |
More Products

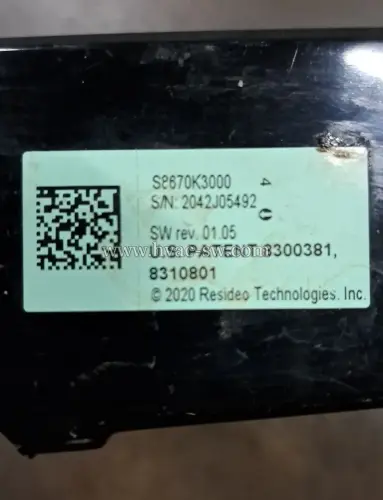

Honeywell S8670K3000 Lennox 30W33 Ignition Control Board for Gas Furnaces
