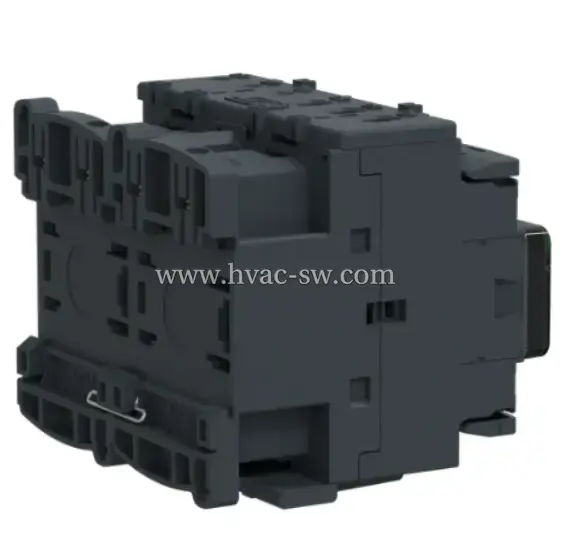

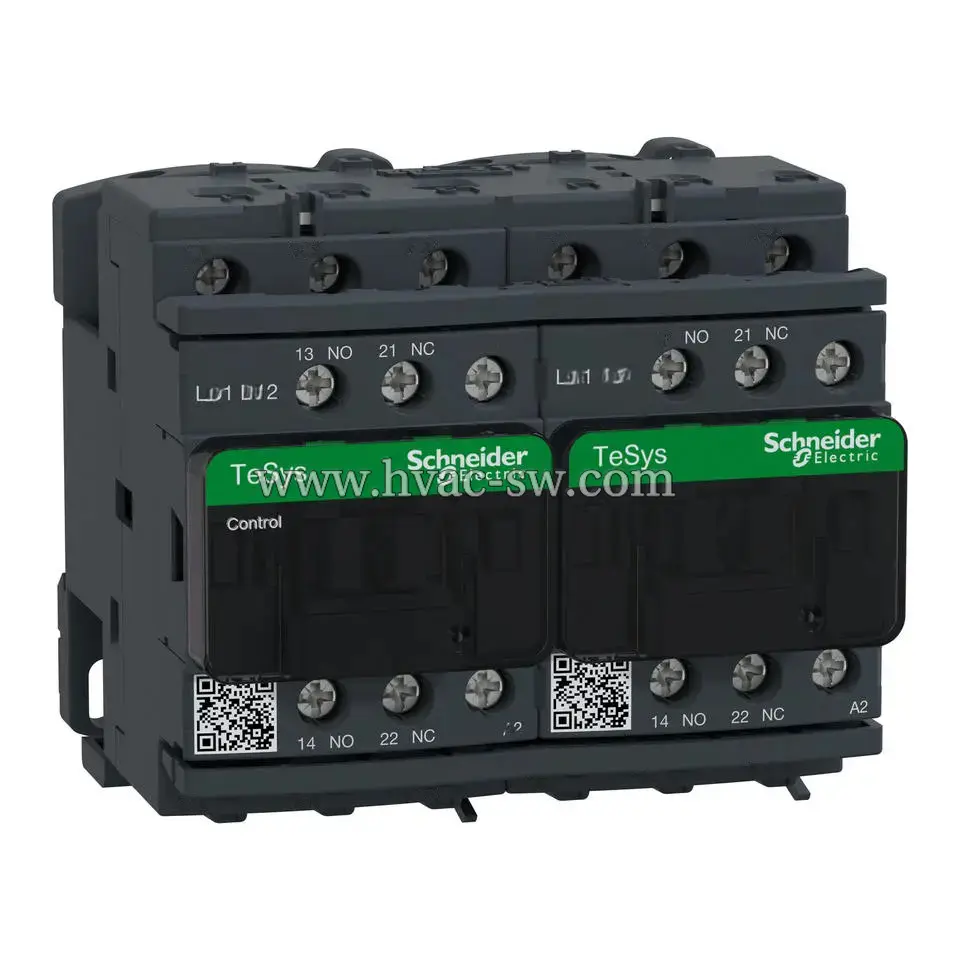

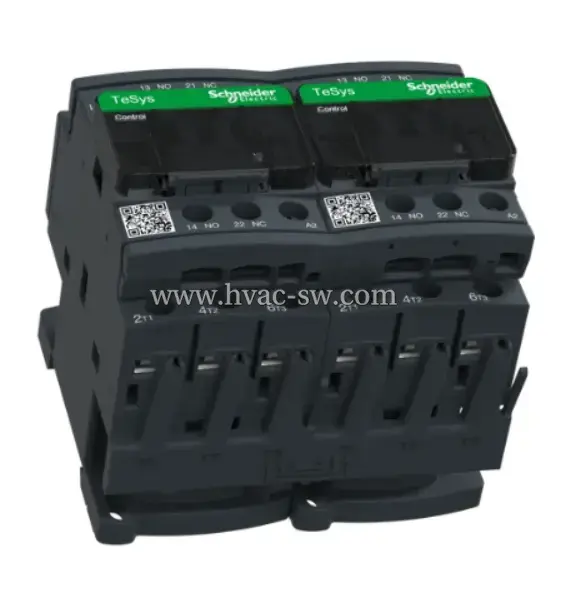

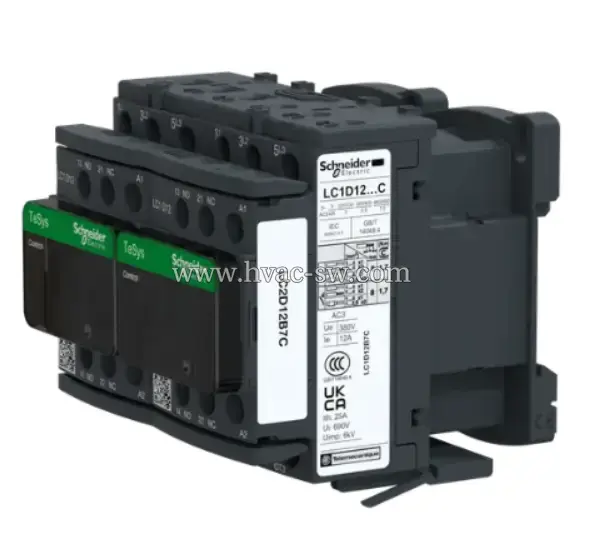

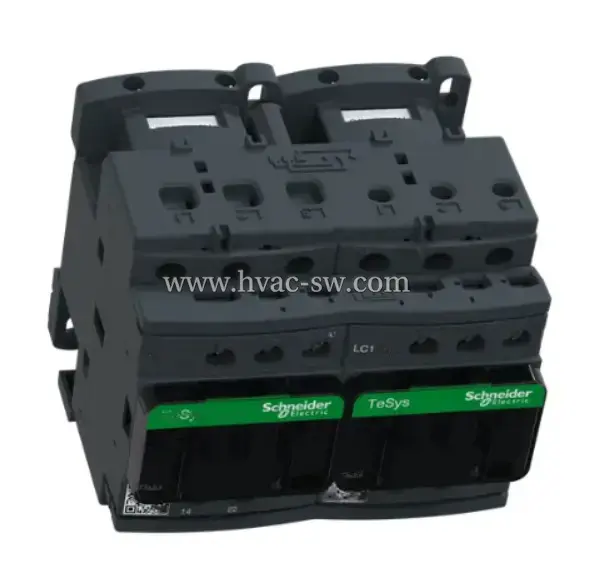

Schneider LC2D12B7C 12A Reversing Contactor
Genuine Schneider LC2D12B7C is a 3-pole reversing contactor from TeSys Deca series, 12A rated current, 24V AC 50/60Hz coil, 1NO+1NC auxiliary contacts, mechanical interlock. IEC/CE/CCC/UKCA certified, high durability, DIN rail mount, for motor forward/reverse control in HVAC and industrial systems. Reliable, safe, ideal for motor starters, fans, pumps and conveyors.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Key Features & Advantages
Safe Reversing Control: Built-in high-reliability mechanical interlock, ensuring only one contactor can close at a time, completely preventing short circuits during motor forward/reverse switching.
High Current Capacity: Rated Ie=12A (AC-3 duty), suitable for controlling motors up to 5.5kW at 380V, meeting the demands of HVAC fans, pumps, conveyors and small industrial equipment.
Built-in Auxiliary Contacts: Equipped with 1 normally open (1NO) + 1 normally closed (1NC) auxiliary contacts for direct integration of control, interlock and status feedback circuits.
Universal Compatibility: 24V AC 50/60Hz coil voltage for industrial control systems, compliant with IEC 60947-4-1, CE, CCC and UKCA safety standards, ensuring worldwide applicability.
Robust & Durable Design: High resistance to shock, vibration and temperature fluctuations, ensuring long electrical and mechanical life even in harsh industrial environments.
Easy Installation: Standard DIN rail mounting, compact size and clear terminal markings for quick, error-free installation in distribution panels and equipment, reducing on-site commissioning time.
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | LC2D12B7C (TeSys Deca Series) |
| Product Type | 3-Pole Reversing Contactor (Motor Forward/Reverse) |
| Rated Operational Current (Ie, AC-3) | 12A |
| Coil Voltage | 24V AC, 50/60Hz |
| Auxiliary Contacts | 1NO + 1NC (1 Open + 1 Closed) |
| Interlock Type | Mechanical Interlock (Anti-short-circuit) |
| Rated Insulation Voltage (Ui) | 690V |
| AC-3 Rated Power (kW) | 3 (220V), 5.5 (380V), 5.5 (500V), 5.5 (690V) |
| Mounting | DIN Rail Mount |
| Standards & Certifications | IEC 60947-4-1, CE, CCC, UKCA |
| Application | Motor Forward/Reverse Control, HVAC Fans, Pumps, Conveyors, Industrial Equipment |
| Condition | New Genuine OEM Part |
| Attribute | Value |
|---|---|
| Application | AC Motor, Industrial Automation |
| Main Circuit Rating Current | Other |
| Phase | 3 |
| Place of Origin | Shanghai, China |
| Electricity Type | AC |
| Model Number | TeSys Deca LC2D |
| Brand Name | Schneider |
| Frequency | 50 Hz, 60 Hz |
| Product name | AC/DC Contactors |
| Series | TeSys LC2D |
| Quality | High-quality |
| Warranty | 1 Year |
| MOQ | 5 Piece |
| Delivery time | 15 Days |
| Package | Carton Box |
| Shipping term | TNT DHL FEDEX EMS UPS |
| Payment term | Paypal \TT \Western Union \Trade Assurance |
| Selling Units | Single item |
