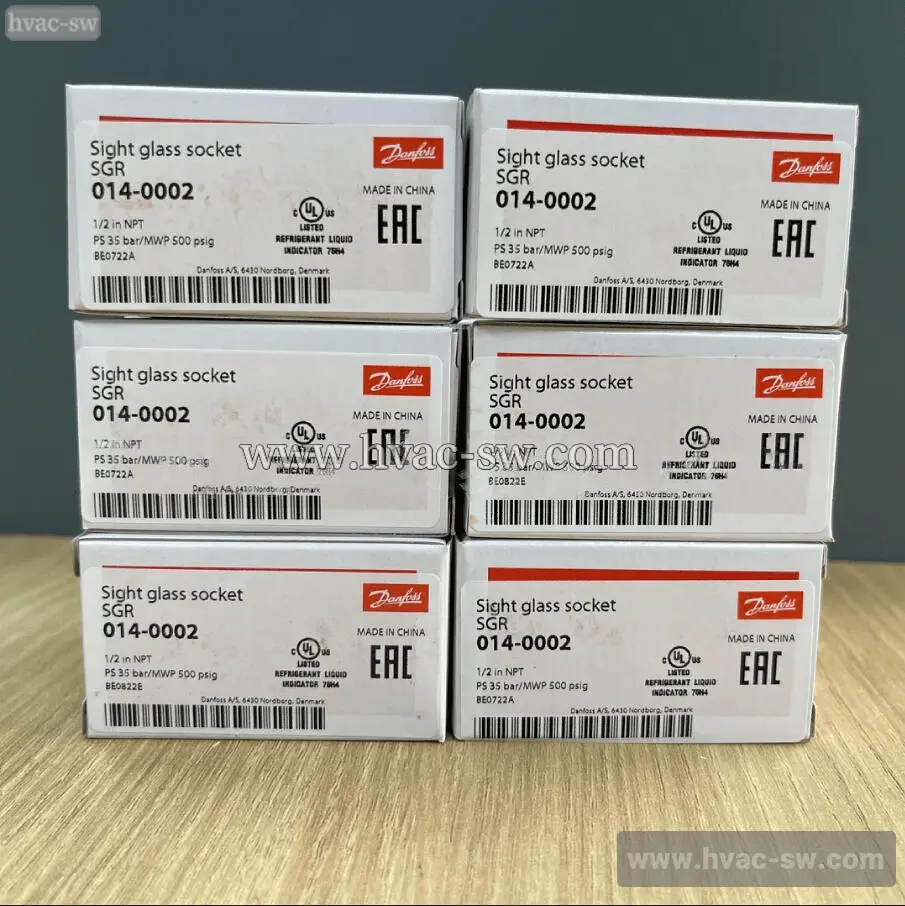

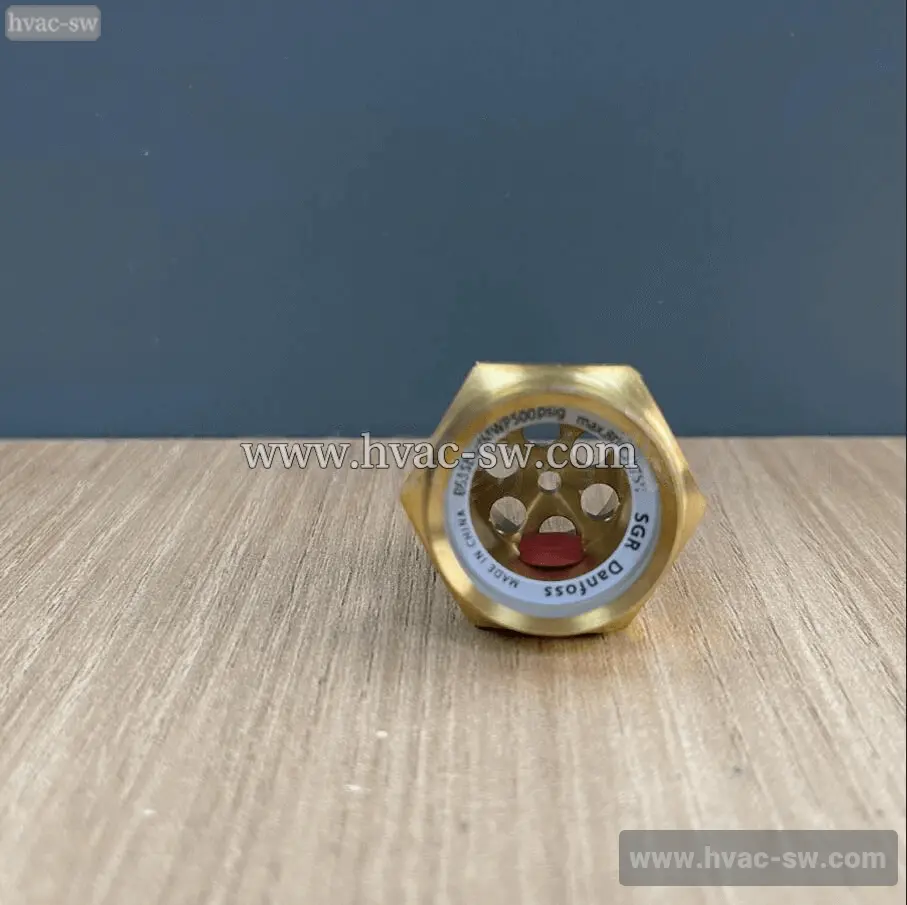

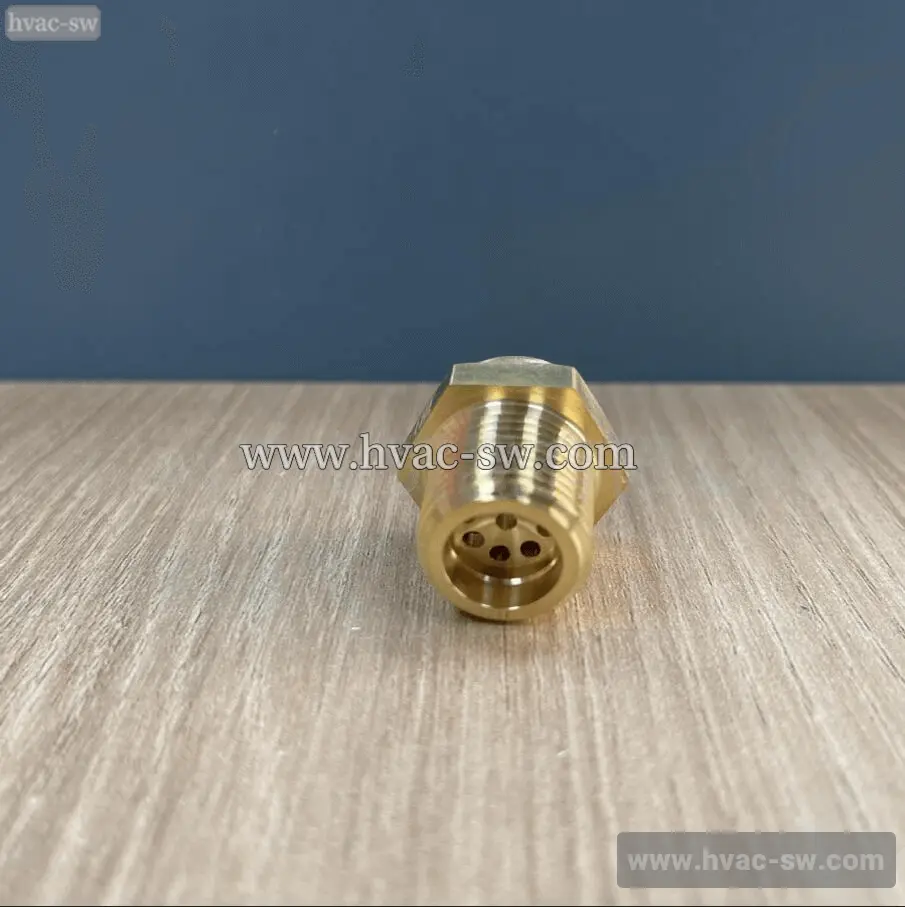

Danfoss 014-0002 SGR Sight Glass

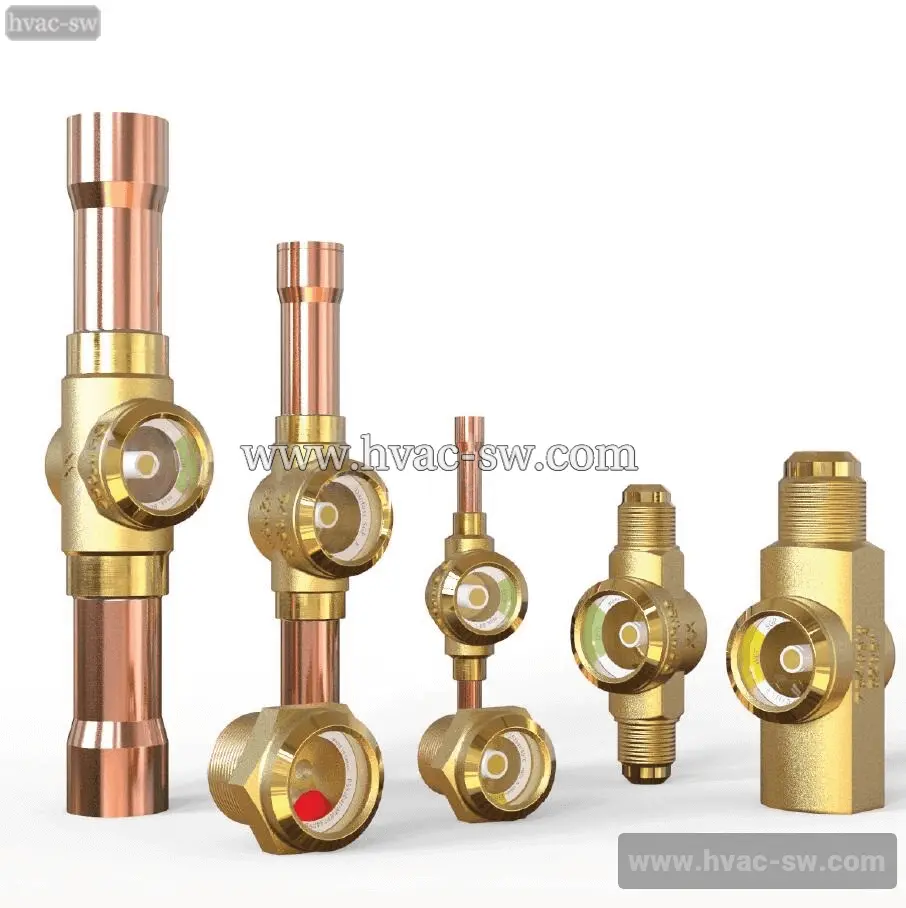

The SGR, SGRI, SGRN, SGS, SGP3/4RX, SGP24RN, and SGP20RN are a series of high-quality sight glasses from DANFOSS. These components are designed for monitoring refrigerant and oil levels in refrigeration and air conditioning systems. They provide a clear visual indication of fluid state and moisture content via an integrated indicator, ensuring efficient system operation and maintenance.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Product Model | Material | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Connection Type |
|---|---|---|---|---|
| SGR G3⁄4A 014-0004 014-0005 014-0002 | Copper | 19 | 3.5 | Welding |
| SGRI 1⁄2 -14 NPT 014-0131 014-1154 M24×1 | Copper | 12 | 3.5 | External Thread |
| SGRN 1⁄2–14 NPT 014-0006 M24×1 014-1155 | Copper | 16 | 3.5 | Welding |
| SGS 014-1071 014-1074 014-1059 014-1056 014-1057 | Copper | 18 | 3.5 | Welding |
| SGP 24RN 014L1155 014-1058 014-1067 014L0006 | Copper | 24 | 3.5 | Welding |
| SGP 3/4RX 014L0004 014L0005 SGP 1/2RX 014L0002 | Copper | 22 | 3.5 | Welding |
| SGP 1/2RI 014L0131 SGP 24RI 014L1154 SGP 1/2RN | Copper | 15 | 3.5 | External Thread |
| Attribute | Value |
|---|---|
| Gross weight | 1.088 Kilogram |
| Net weight | 0.966 Kilogram |
| Volume | 2.518 Liter |
| EAN | 5702423146789 |
| Type | KPS37 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABSBVCCCCCSCEDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUL |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 VLR max. 50 Afor gold 1…30 mA, 5...30 V |
| Contains batteries | No |
| Differential [bar] [max] | 2.5 bar |
| Differential [bar] [min] | 0.85 bar |
| Differential [psi] [max] | 36 psi |
| Differential [psi] [min] | 12 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Out of scope |
| Max. test pressure [bar] Pe | 27 bar |
| Max. test pressure [psig] | 392 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 18 bar |
| Regulation range [bar] Pe [min] | 6 bar |
| Regulation range [MPa] Pe [max] | 1.8 MPa |
| Regulation range [MPa] Pe [min] | 0.6 MPa |
| Regulation range [psig] Pe [max] | 261 psig |
| Regulation range [psig] Pe [min] | 87 psig |
| Reset function | Auto |
| SCIP dossier no. | d1127e97-408e-40d0-9aba-98480f7dad9c |
| SCIP dossier product name | KPS Pressure Switch |
| Serviceable | No |
| UL approval file name | E73170 |
| UL evaluated | Yes |
