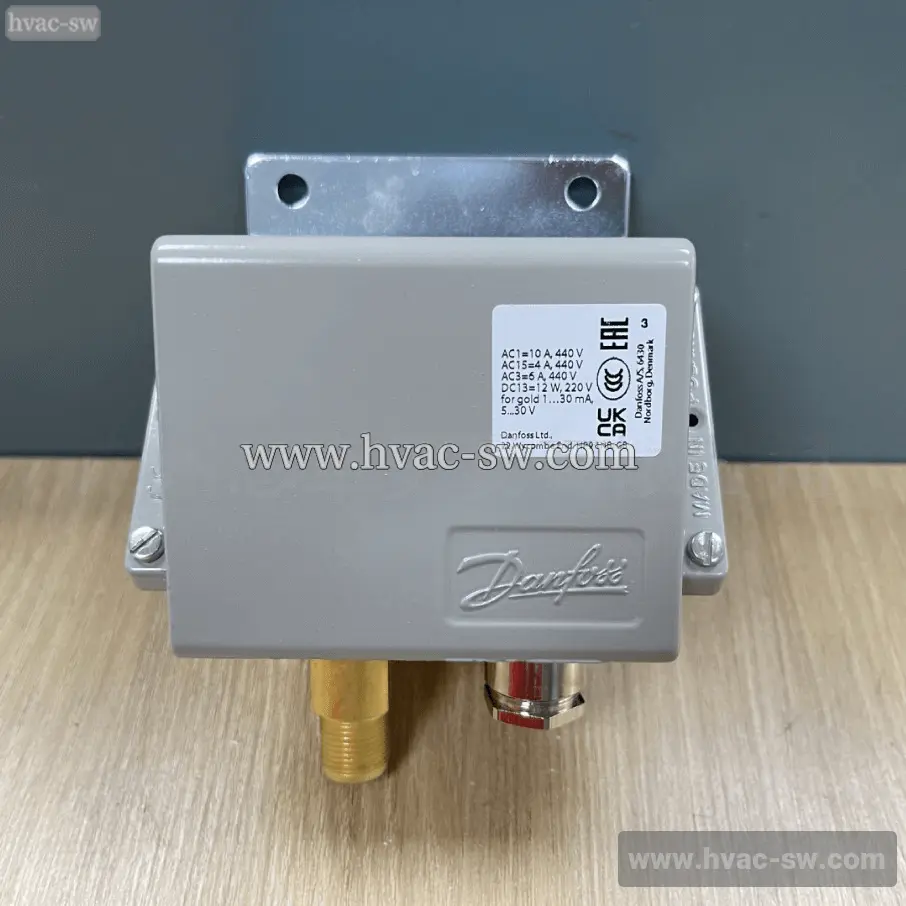

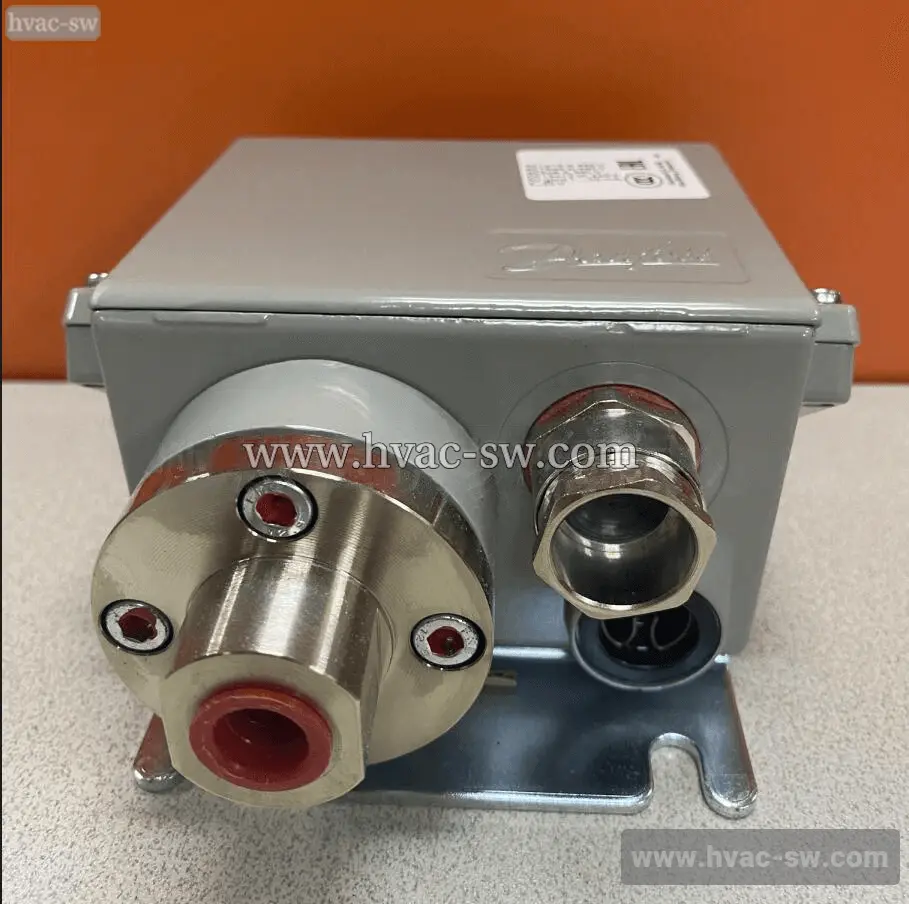

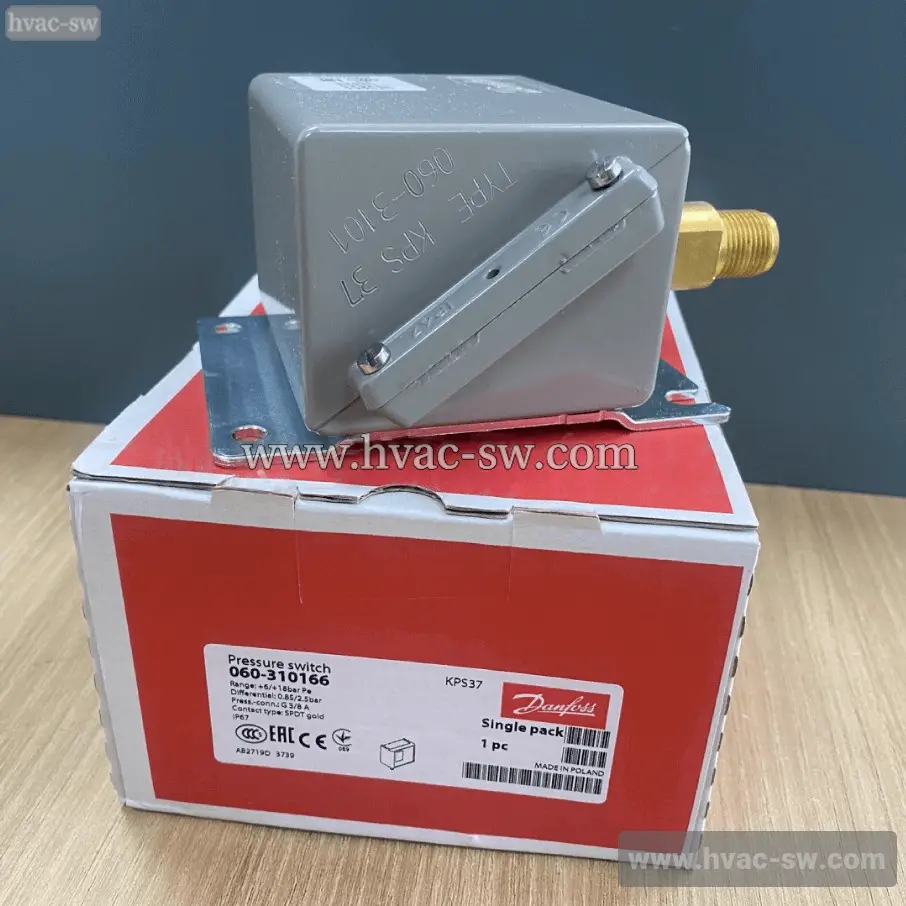

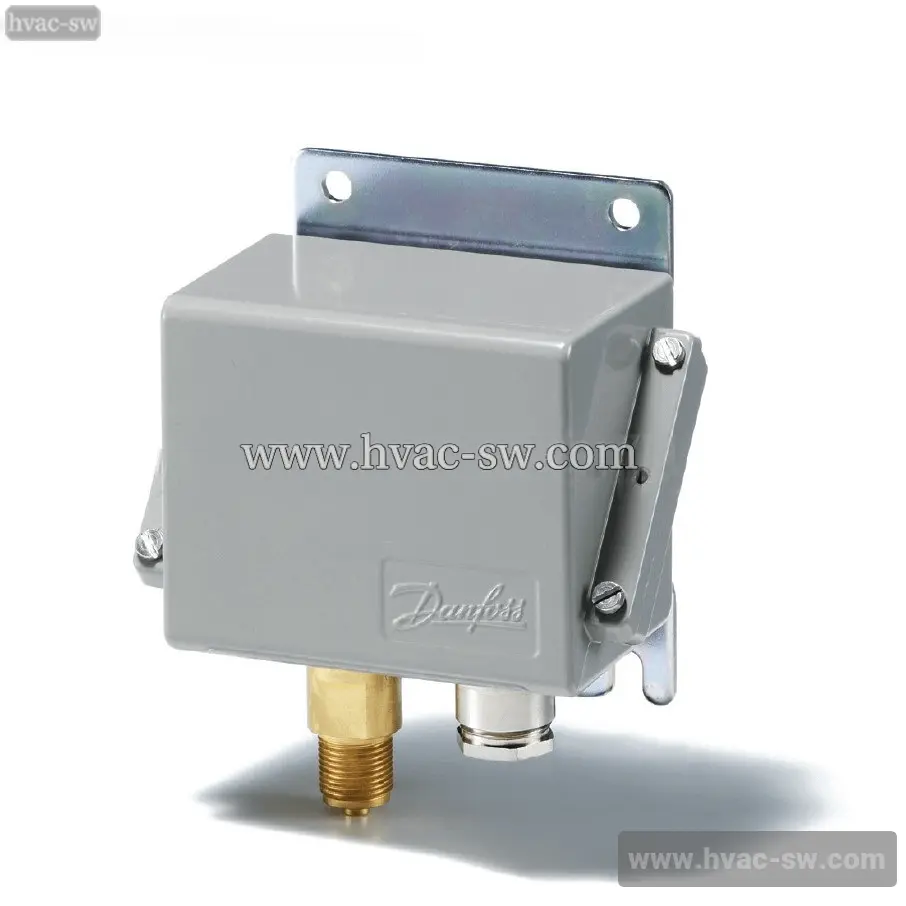

Danfoss KPS37 060-310166 Pressure Switch
The Danfoss KPS37 060-310166 is a compact pressure switch designed for reliable system monitoring and control. It offers precise pressure sensing and high electrical switching capacity, making it ideal for industrial, refrigeration, and hydraulic applications. This robust switch ensures equipment safety and operational efficiency with accurate cut-in and cut-out functionality.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Temperature Resistance (℃) |
|---|---|---|
| KPS37 060-310166 060-310666 | -40~150 | 5 |
| KPS45 060-312166 | -40~150 | 4.5 |
| 060-333366 060-104766 060-017166 | -40~150 | 4 |
| Attribute | Value |
|---|---|
| Gross weight | 1.088 Kilogram |
| Net weight | 0.966 Kilogram |
| Volume | 2.518 Liter |
| EAN | 5702423146789 |
| Type | KPS37 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABSBVCCCCCSCEDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUL |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 VLR max. 50 Afor gold 1…30 mA, 5...30 V |
| Contains batteries | No |
| Differential [bar] [max] | 2.5 bar |
| Differential [bar] [min] | 0.85 bar |
| Differential [psi] [max] | 36 psi |
| Differential [psi] [min] | 12 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Out of scope |
| Max. test pressure [bar] Pe | 27 bar |
| Max. test pressure [psig] | 392 psig |
| Max. Working Pressure [bar] | 22 bar |
| Max. Working Pressure [psig] | 319 psig |
| Packing format | Multi pack |
| Pressure connection size | 3/8 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 18 bar |
| Regulation range [bar] Pe [min] | 6 bar |
| Regulation range [MPa] Pe [max] | 1.8 MPa |
| Regulation range [MPa] Pe [min] | 0.6 MPa |
| Regulation range [psig] Pe [max] | 261 psig |
| Regulation range [psig] Pe [min] | 87 psig |
| Reset function | Auto |
| SCIP dossier no. | d1127e97-408e-40d0-9aba-98480f7dad9c |
| SCIP dossier product name | KPS Pressure Switch |
| Serviceable | No |
| UL approval file name | E73170 |
| UL evaluated | Yes |
