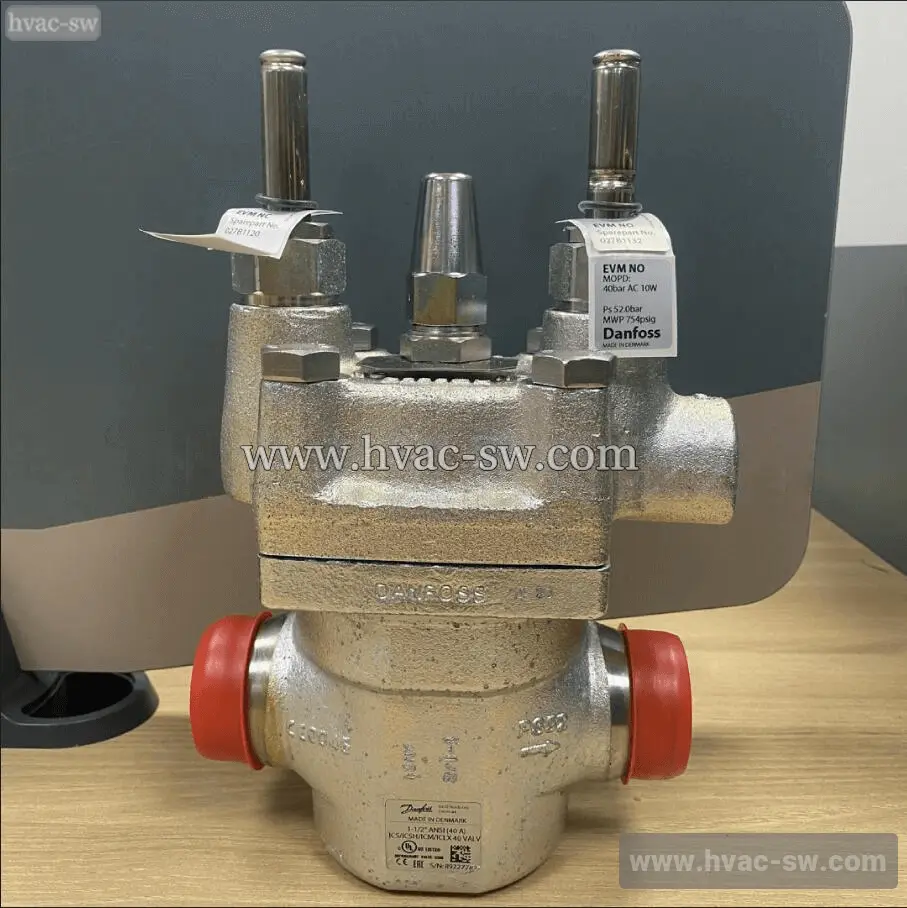

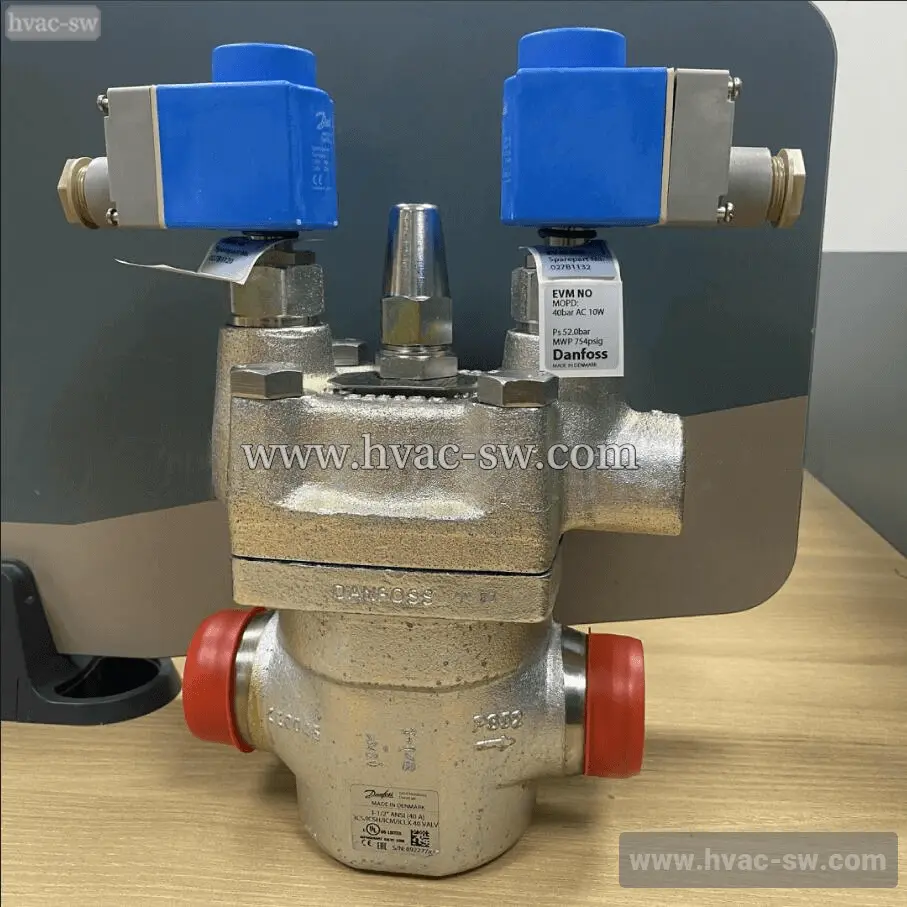

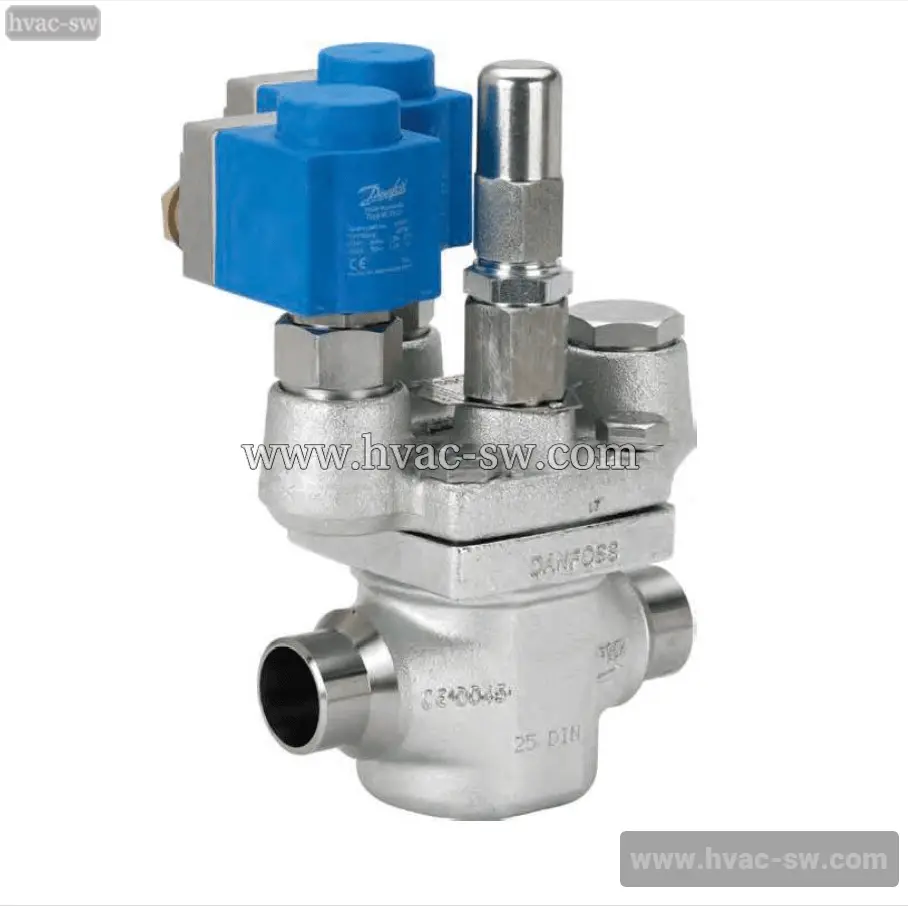

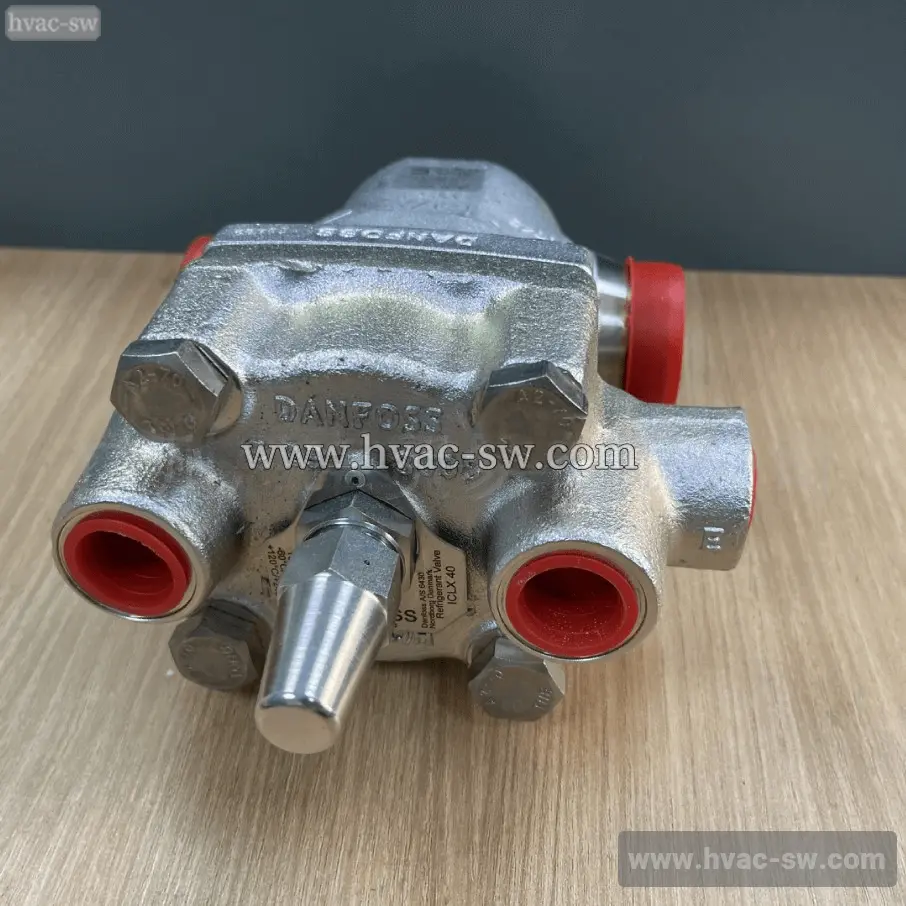

Danfoss ICLX40D 027H4040 Two-Step Opening Solenoid Valve
The Danfoss ICLX40D 027H4040 is a two-step opening solenoid valve designed for precise flow control in refrigeration and air conditioning systems. It ensures reliable operation, energy efficiency, and is suitable for a wide range of industrial and commercial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Grossweight | 9.542Kilogram |
|---|---|
| Netweight | 6.333Kilogram |
| Volume | 8.68Liter |
| EAN | 5702428815598 |
| Type | ICLX40 |
| Productgroup | Solenoidvalves |
| ProductNameDescription | 2-stepsolenoidvalve |
| Actuatorsystem | 2EVMpilotsolvalvemodule |
| Approval | EACLLCCDCTYSKTÜVUL |
| Bodymaterial | Steel |
| Brand | ICVFlexline |
| ChinaRoHScompliance | Outofscope |
| Connectionmaterial | Steel |
| Connectionstandard | EN10220 |
| Containsbatteries | No |
| Cvvalue[gal/min] | 33.64gal/min |
| Description | 2-stepsolenoidvalve |
| Direction | Straightway |
| EURoHScompliance | Outofscope |
| Extpilotpressureconnection | Weldnipple(P2Port) |
| Flowdirectionindicator | Embossed1-wayarrow |
| FluidGroup | 1 |
| Inletconnectionsize[in] | 11/2in |
| Inletconnectionsize[mm] | 40mm |
| Inletconnectiontype | Buttweld |
| Kvvalue[m³/h] | 29m³/h |
| Manualoperationoption | Manualopenspindle |
| Max.WorkingPressure[bar] | 65bar |
| Max.WorkingPressure[psig] | 943psig |
| Openingconfiguration | 1-step(optionalsetting)2-step(default) |
| Outletconnectionsize[in] | 11/2in |
| Outletconnectionsize[mm] | 40mm |
| Outletconnectiontype | Buttweld |
| Packingformat | Singlepack |
| PartsProgramname | ICLX |
| PEDcategory | II |
| Productaccessories | ICM/ICS/ICLXaccessories |
| Productdescription | Solenoidvalve |
| Quantityperpackingformat | 1pc |
| REACHCandidateListsubstances | Lead(CASno.7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | ICM/ICS/ICLXspareparts |
| Step1openingdegree(~)[%] | 10% |
| Step2initialization | Deltap<1.25bar(18psig) |
| Surfacecoating | Zn(TLP) |
| Temperaturerange[°C][max] | 120°C |
| Temperaturerange[°C][min] | -60°C |
| Temperaturerange[°F][max] | 248°F |
| Temperaturerange[°F][min] | -76°F |
| ULapprovalfilename | REFRIGERANTVALVE53R0 |
| ULevaluated | Yes |
| Valveoperation | Solenoidoperated |
| Valveversion | Standardversion |
