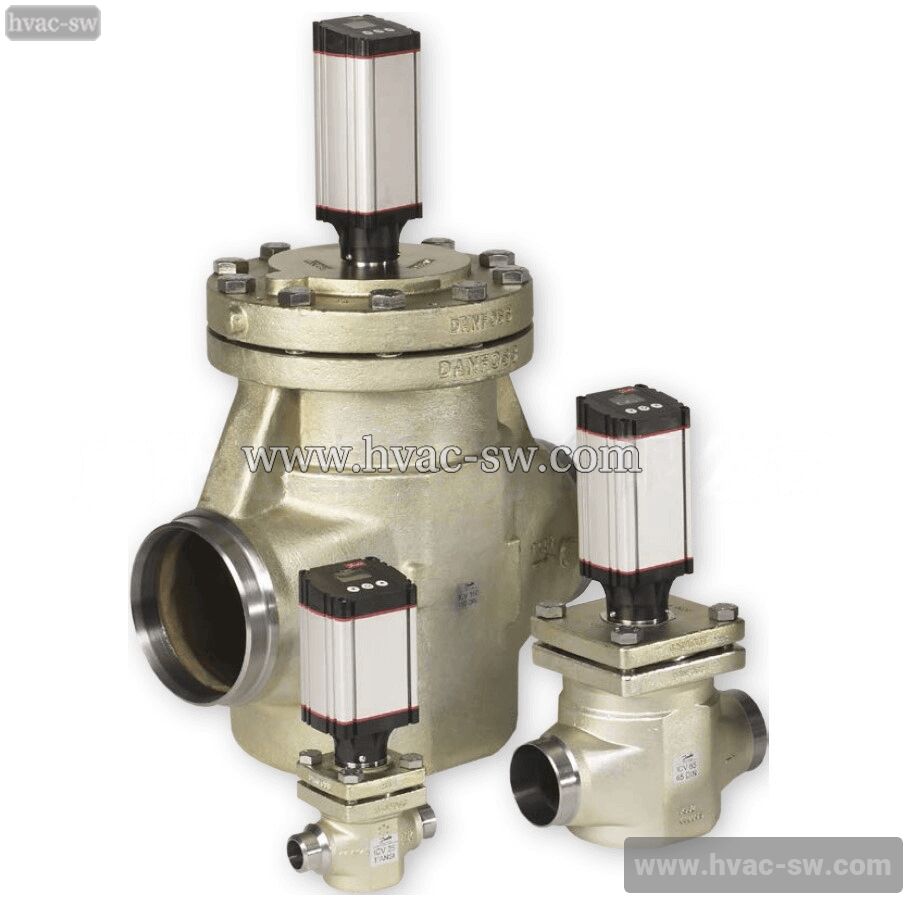

Danfoss 027H6003 Electric Valve ICM65-B HVAC Control
Danfoss 027H6003 is an electric control valve featuring the ICM65-B actuator, designed for precise regulation in HVAC systems. It provides reliable flow control for water and glycol mixtures, ensuring accurate modulating performance, durability, and seamless integration with building management systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 15.556 Kilogram |
| Net weight | 14.353 Kilogram |
| Volume | 23.7 Liter |
| EAN | 5702428235556 |
| Type | ICM 65-B |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Motor operated valve |
| Actuator system | ICAD motor, magnet coupling |
| Approval | EACLLC CDC TYSKTÜVUL |
| Body material | Steel |
| Brand | ICV Flexline |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Cv value [gal/min] | 81.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 70 m³/h |
| Lubricants compatibility | Oilfree applications |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD [bar] | 20 bar |
| MaxOPD [psig] | 271 psig |
| Oil free refrigerants | R1234ze(E)R134a |
| Open/close time [s] | 13 s |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICM |
| PED category | II |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR170R290R600R600aR601R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Top cover | Actuator |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve operation | Motor operated |
| Valve version | Standard version |
