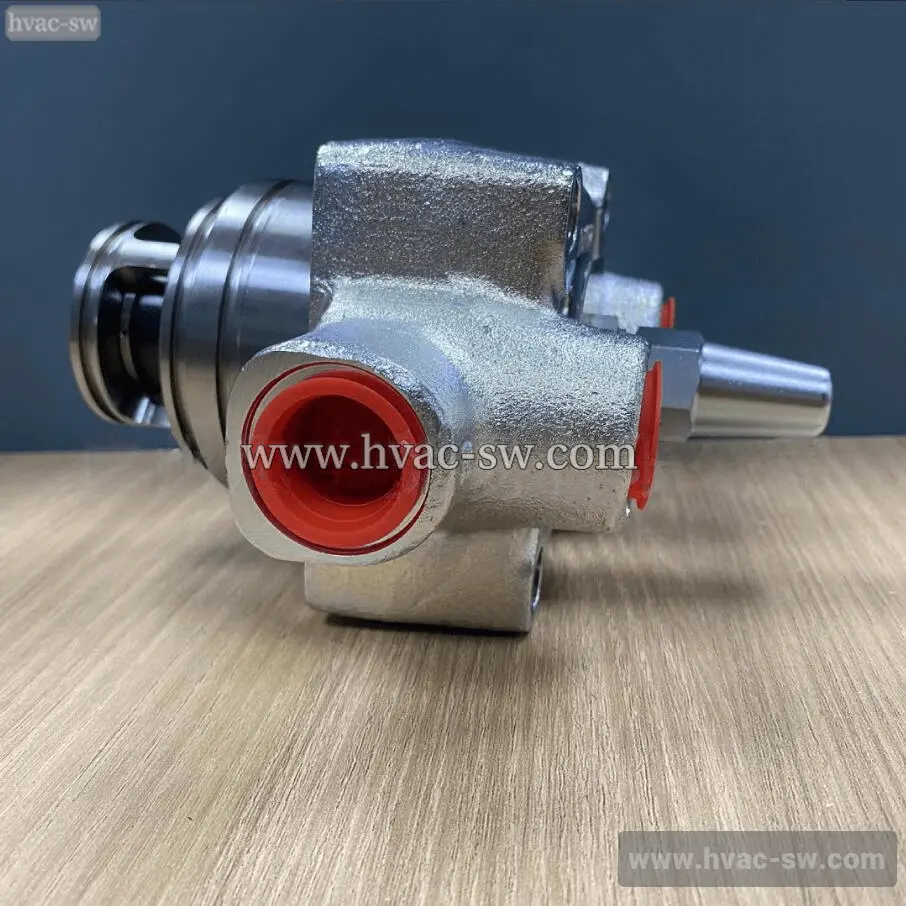

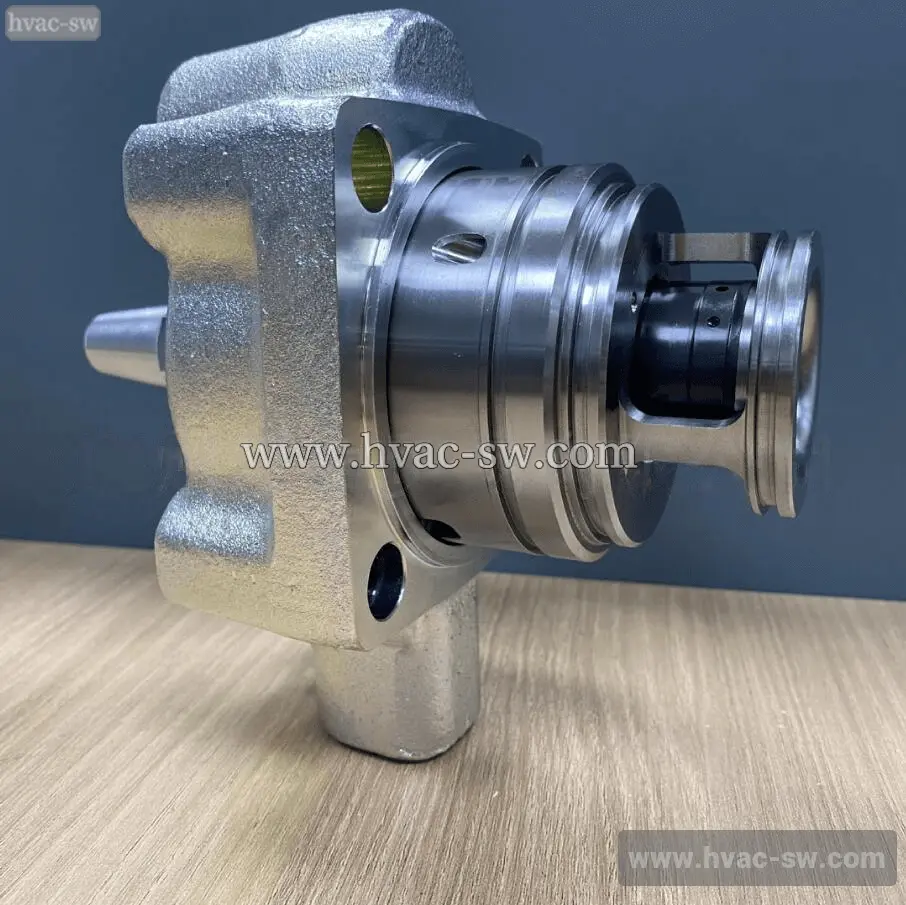

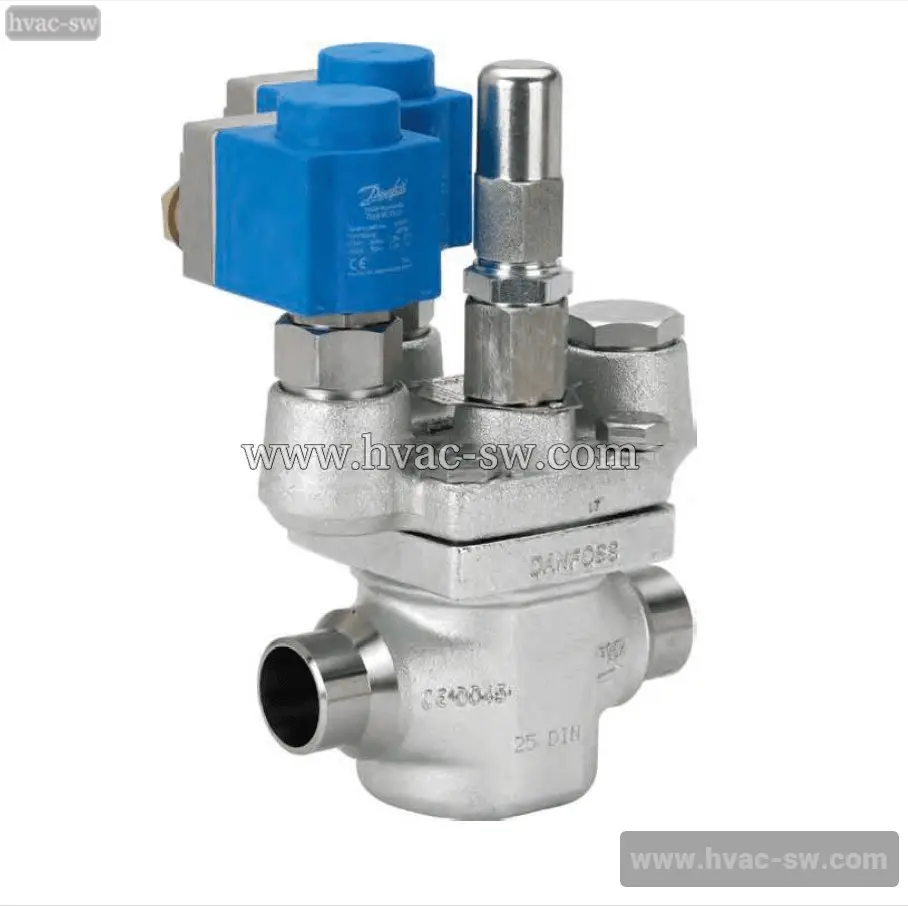

Danfoss 027H4204 ICLX40 Two-Step Solenoid Valve
The Danfoss 027H4204 ICLX40 is a two-step opening solenoid valve function module designed for precise control in refrigeration and air conditioning systems. It ensures reliable and energy-efficient operation by facilitating a soft start for compressors, reducing mechanical stress and improving system longevity.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 6.784 Kilogram |
| Net weight | 3.572 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428483162 |
| Type | ICLX 40 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | 2 EVM pilot sol valve module |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 33.6 gal/min |
| Description | Function module |
| EU RoHS compliance | Out of scope |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Kv value [m³/h] | 29 m³/h |
| Manual operation option | Manual open spindle |
| Opening configuration | 1-step (optional setting)2-step (default) |
| Packing format | Single pack |
| Parts Program name | ICLX |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Used for product | ICV 40 |
| Used for product comments | With top assembly |
| Valve operation | Solenoid operated |
