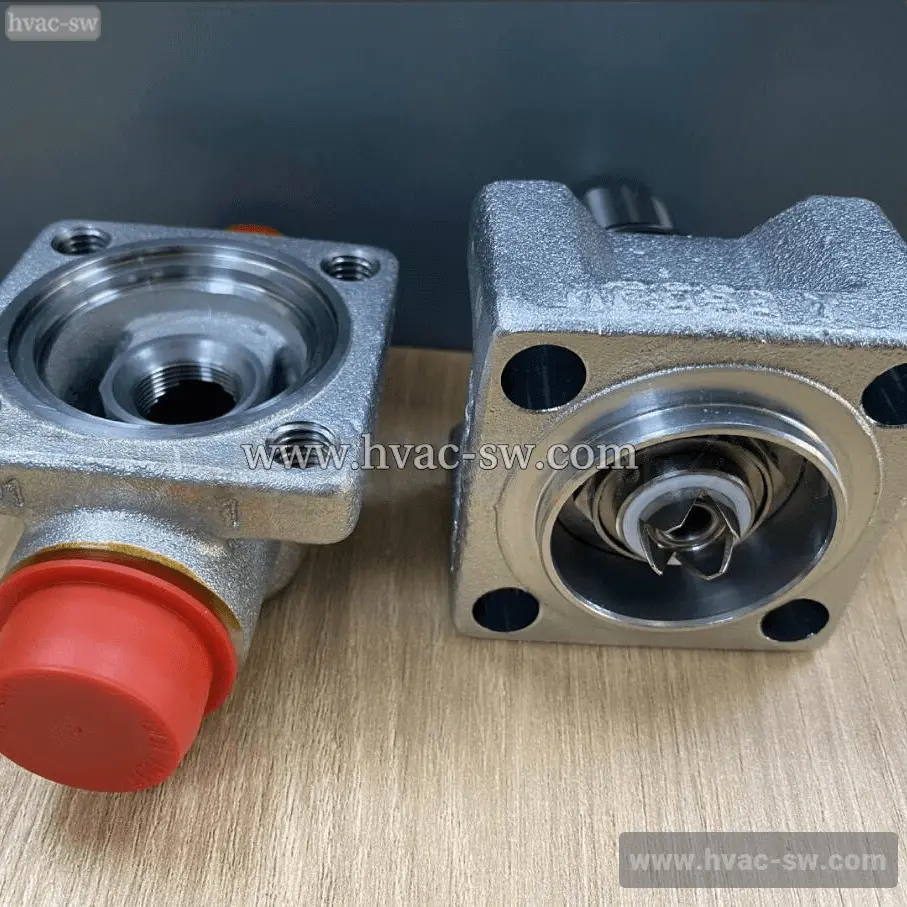

Danfoss 027H1180 ICM20-A Electric Valve Module
Danfoss
Description
The Danfoss 027H1180 ICM20-A is an electric valve function module designed for precise control in HVAC systems. It ensures reliable operation and seamless integration into building management systems for optimized fluid flow regulation.
Product Details
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 1.35 Kilogram |
| Net weight | 1.218 Kilogram |
| Volume | 3.383 Liter |
| EAN | 5702428237666 |
| Type | ICM 20-A |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.7 gal/min |
| EU RoHS compliance | Out of scope |
| Kv value [m³/h] | 0.6 m³/h |
| Manual operation option | Via ICAD settingVia Multifunction tool |
| Open/close time [s] | 3 s |
| Outlet connection size [mm] | 20 mm |

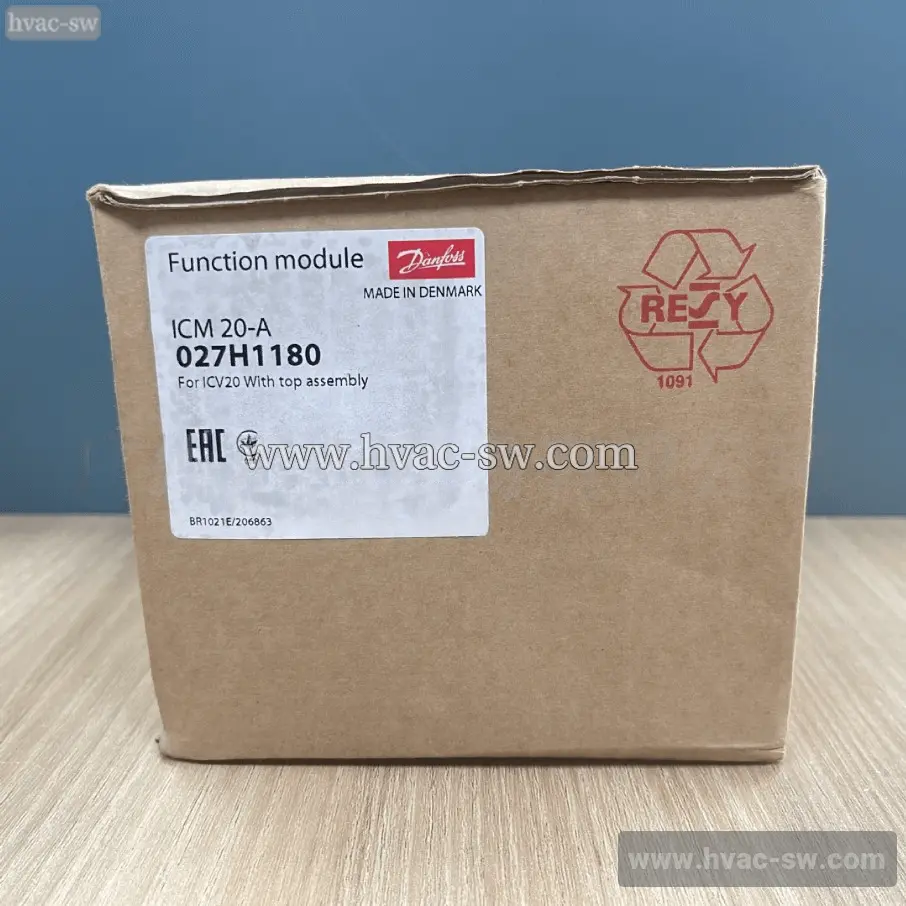

| Packing format | Single pack |

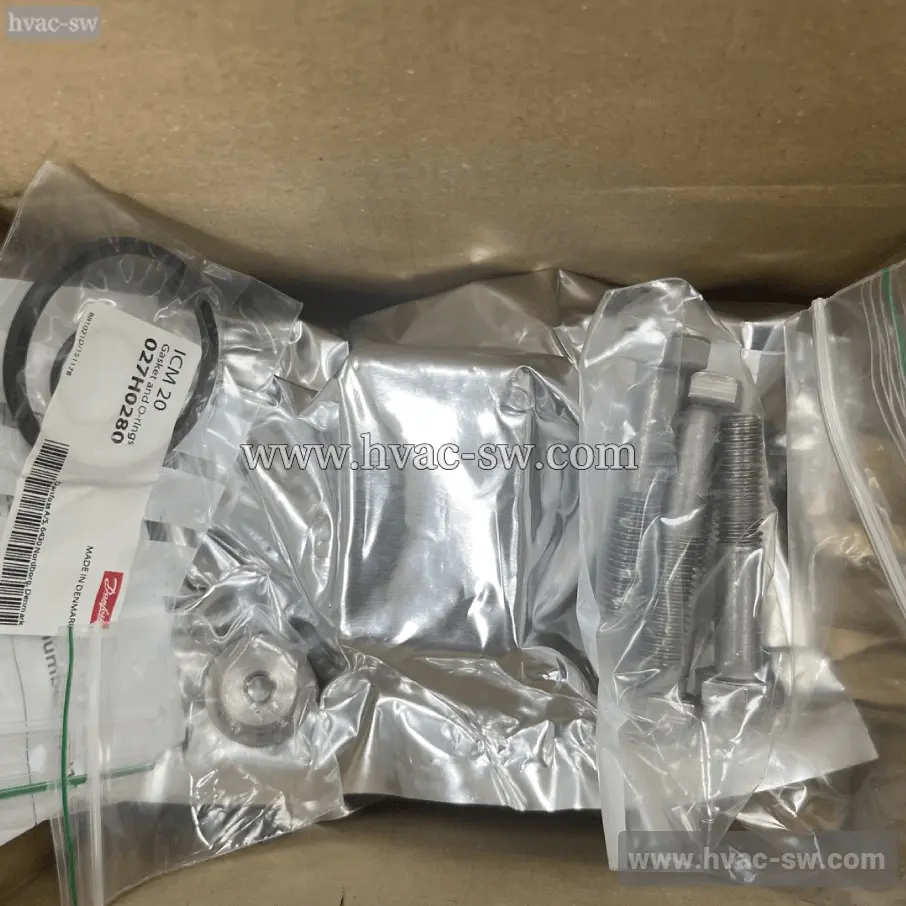

| Parts included | Bolts/O-ringSeat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessoriesICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R1234ze(E)R507AR1234yfR125R227eaR236faR245faR32R407HR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR513AR513BR515AR515BR516AR170R290R600R600aR601R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 20 |

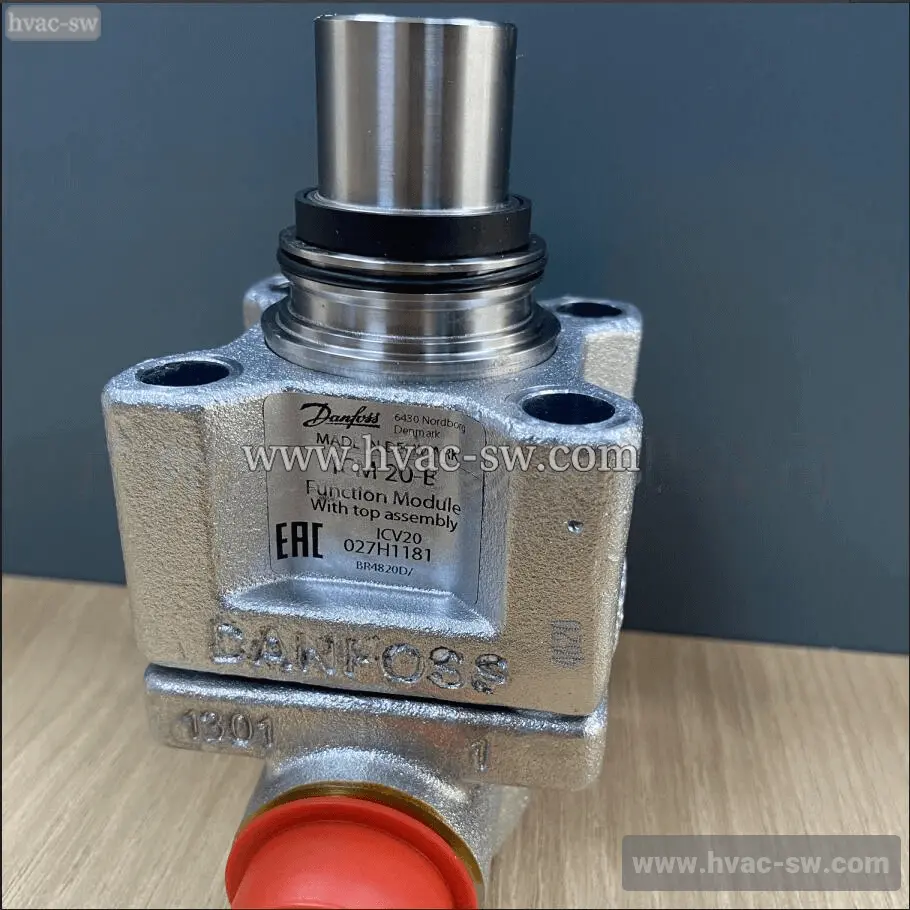

| Used for product comments | With top assembly |
| Valve operation | Motor operated |
