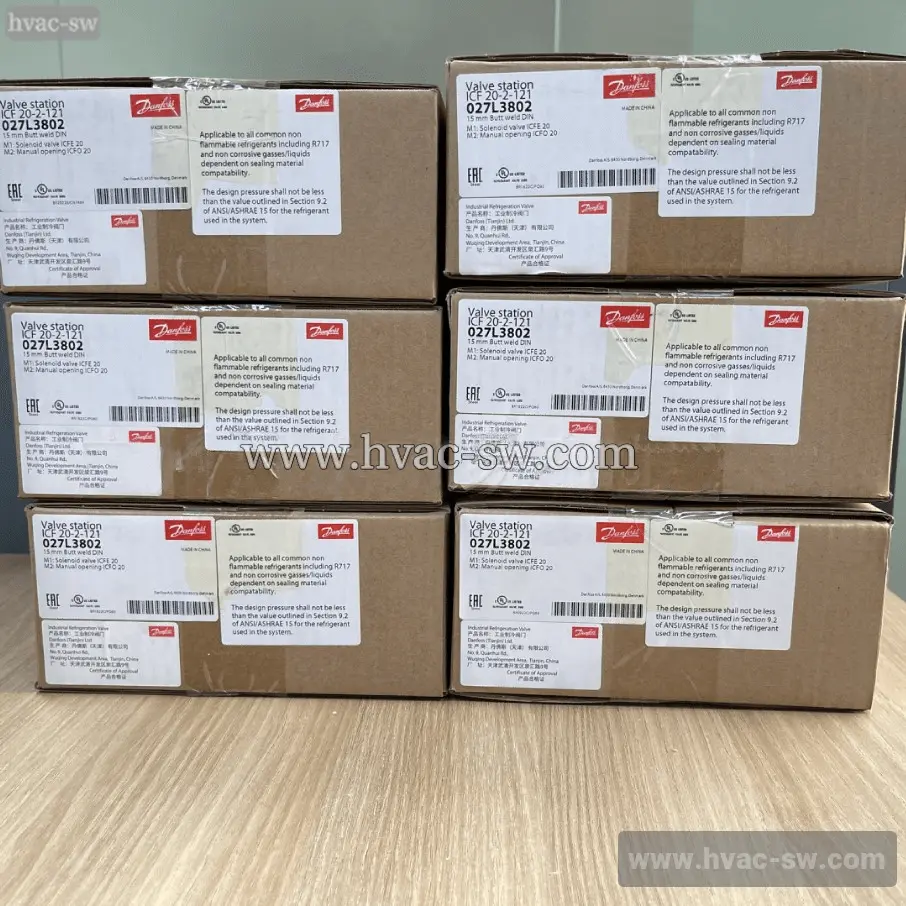

Danfoss 027L3802 ICF20-2-I21 Ammonia Solenoid Valve
Danfoss
Description

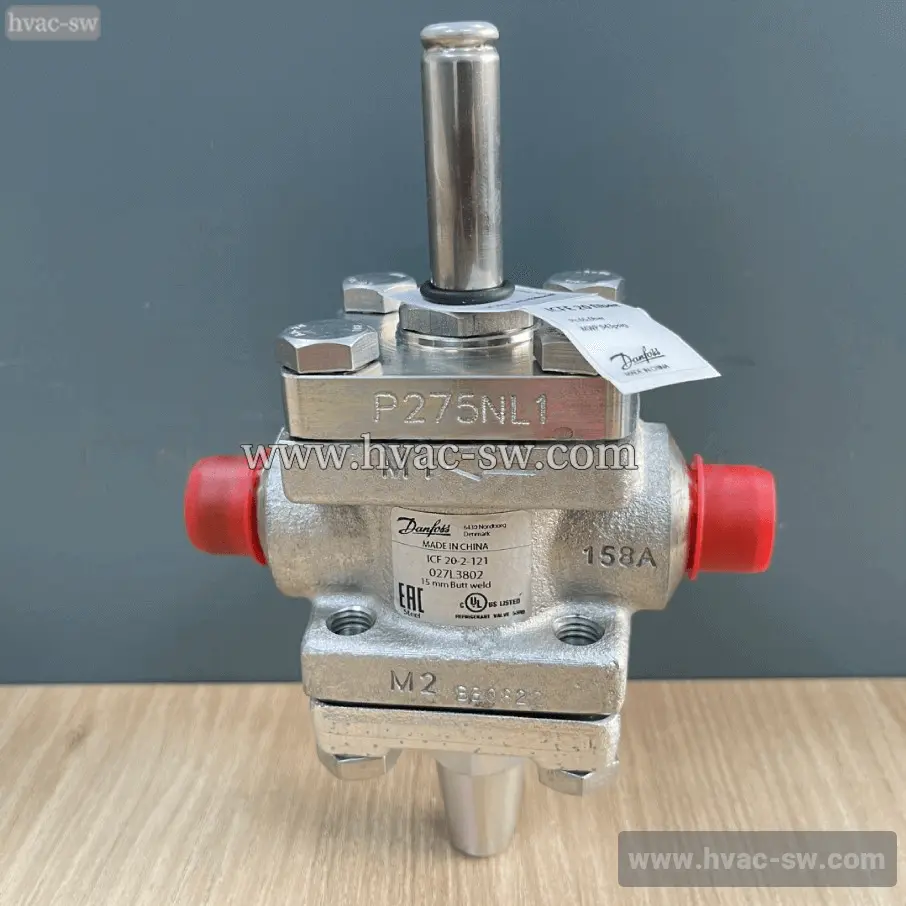

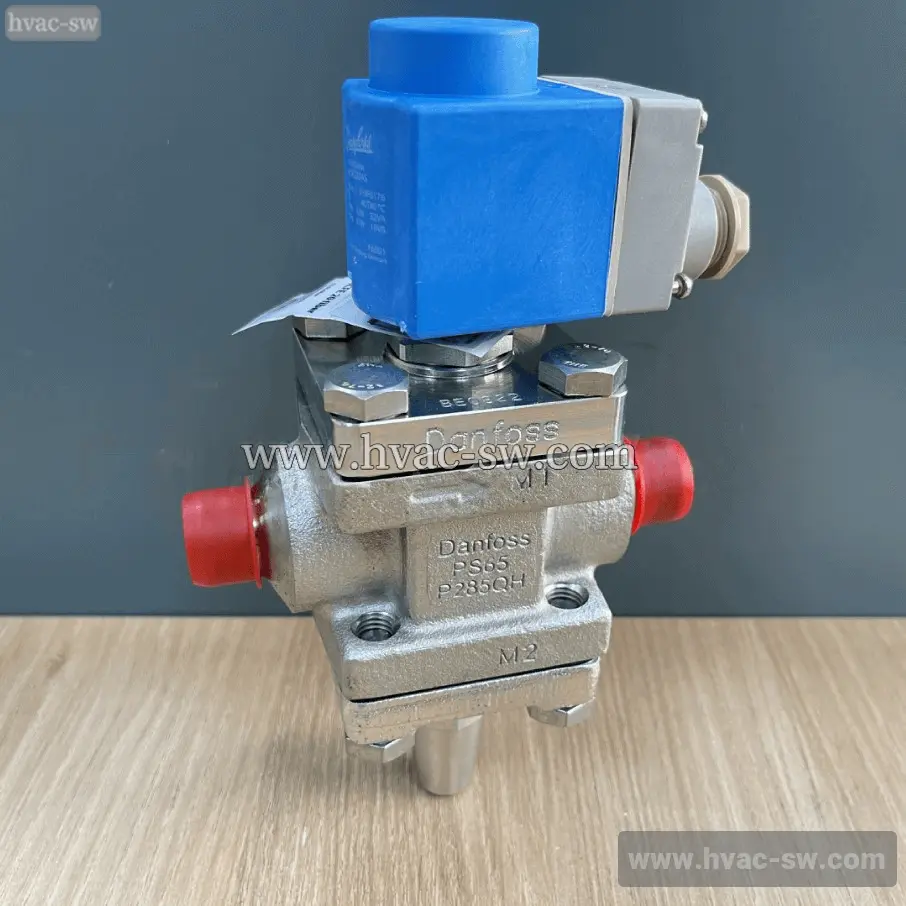

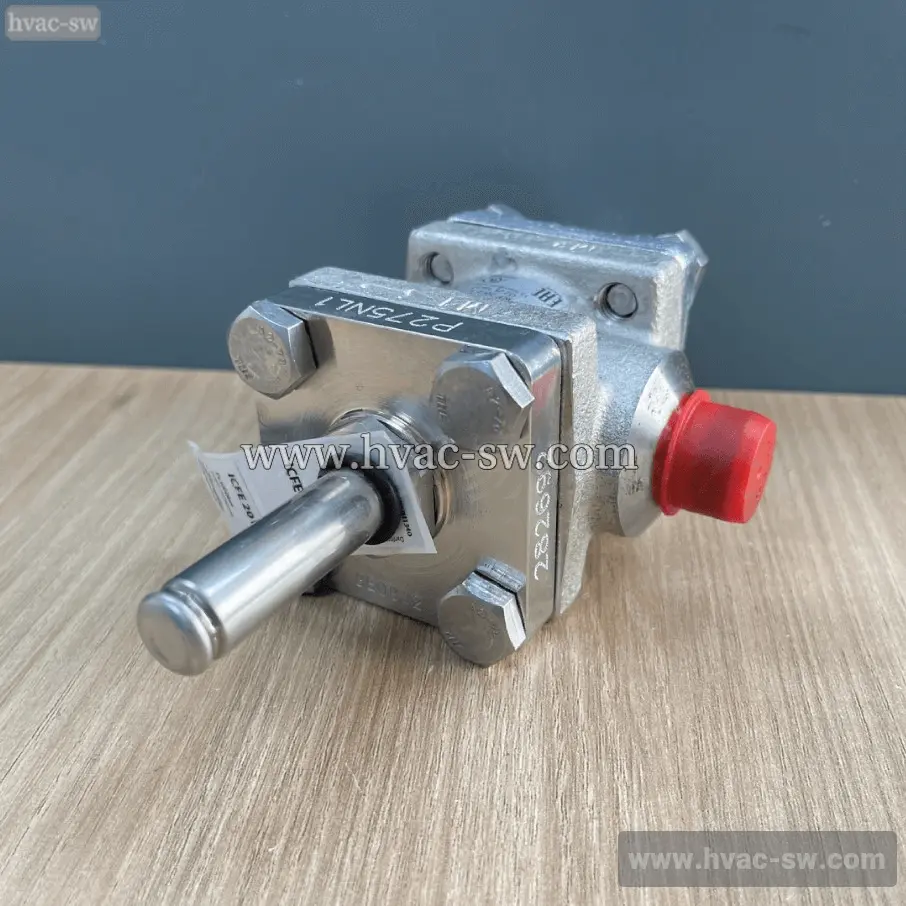

DANFOSS 027L3802 is a DANFOSS ICF20-2-I21 direct-acting solenoid valve designed for ammonia (R717) applications. It features a normally closed operation and is built for reliable performance in refrigeration and industrial systems. This valve is known for its robust construction and tight shut-off capability.
Product Details
| Model | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|
| ICF20-2-I21 027L3802 DN15 | 5.2 | Cast Steel | Welding |
| ICF20-2-I21 027L3803 DN20 | 5.2 | Cast Steel | Welding |
| ICF20-2-I21H 027L3804 20 | 5.2 | Cast Steel | Welding |
| ICF20-2-I21H 027L3806 DN20 | 5.2 | Cast Steel | Butt Weld |
| ICF20-2-I21H 027L3808 25 | 5.2 | Cast Steel | Welding |
| Attribute | Value |
|---|---|
| Gross weight | 3.031 Kilogram |
| Net weight | 2.56 Kilogram |
| Volume | 17.6 Liter |
| EAN | 5702424545123 |
| Type | ICF 20-2-121 |
| Product group | Multifunction valves |
| Product Name Description | Valve station |
| Approval | EACLLC CDC TYSKTÜVUL |
| Body material | Steel |
| China RoHS compliance | Out of scope |
| Connection material | Steel |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Contains batteries | No |
| Direction | Straightway |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Module 1 | Solenoid valve |
| Module 1 type | ICFE 20 |
| Module 2 | Manual opening |
| Module 2 type | ICFO 20 |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Product accessories | ICF accessories |
| Product description | Control Solution |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234yfR1234ze(E)R125R134aR152aR22R227eaR236faR245faR32R401AR402AR404AR407AR407BR407CR407FR407HR409AR410AR413AR417AR421AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR502R507AR512AR513AR513BR515AR515BR516AR717R744 |
| Serviceable | ICF spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Type code ICF | ICF-20-2-15DEXOXXXXXXXXX0LAX |
| UL evaluated | Yes |
