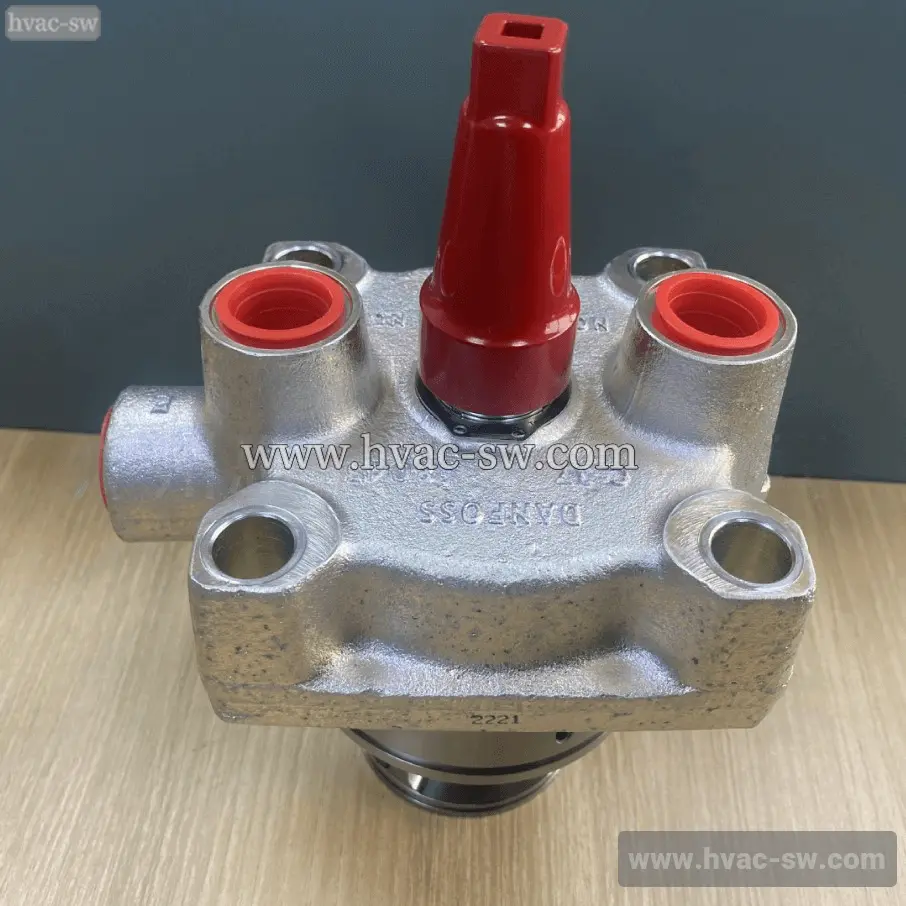

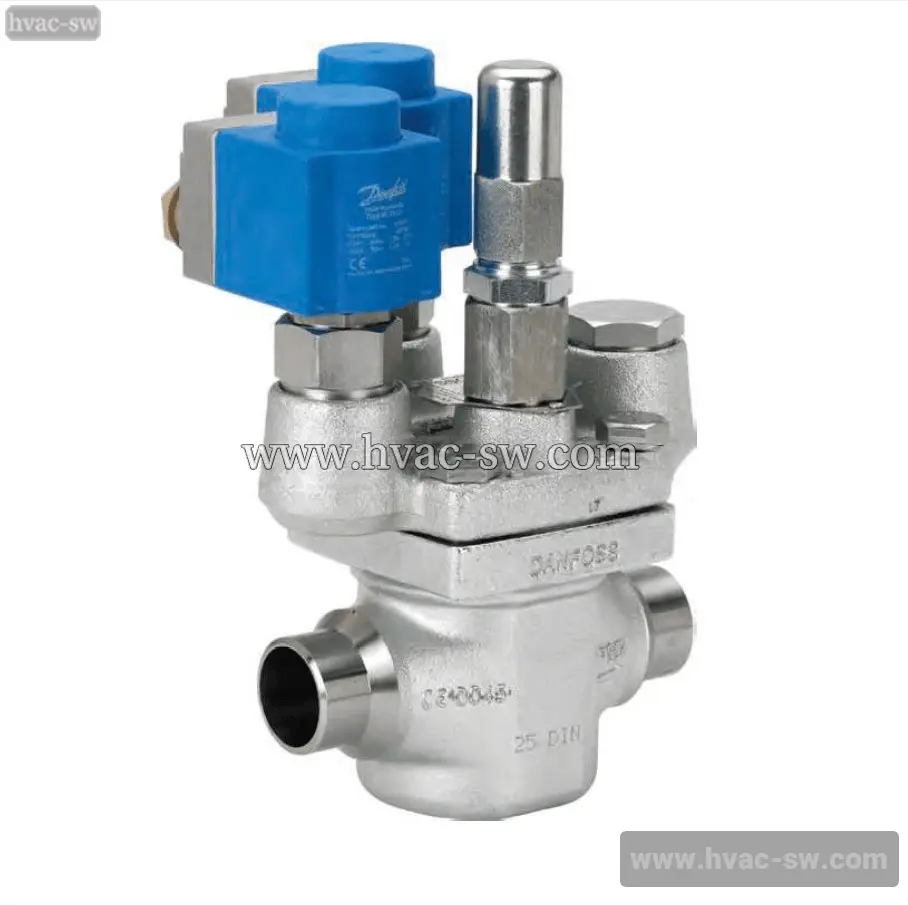

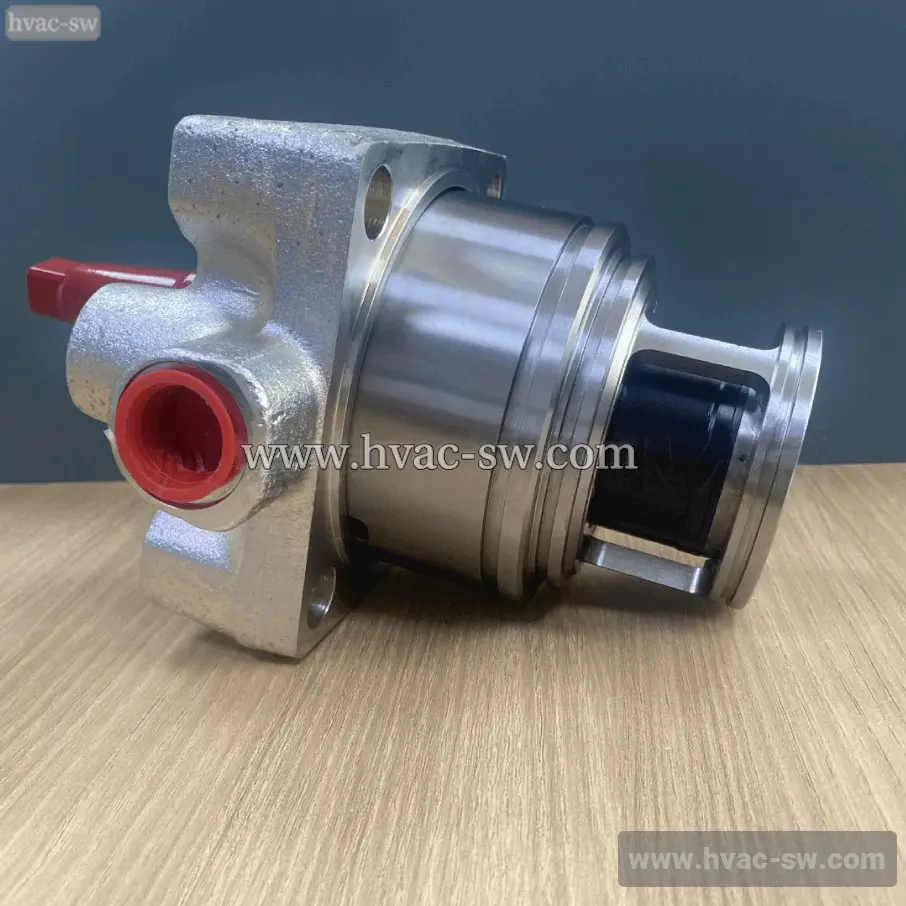

Danfoss 027H6204 ICLX65 Two-Step Solenoid Valve
The Danfoss 027H6204 ICLX65 is a two-step opening solenoid valve designed for precise control in refrigeration and air conditioning systems. It ensures efficient and reliable medium flow regulation, offering durability for demanding industrial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 10.986 Kilogram |
| Net weight | 6.745 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428483186 |
| Type | ICLX 65 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | 2 EVM pilot sol valve module |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 95 gal/min |
| Description | Function module |
| EU RoHS compliance | Out of scope |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Kv value [m³/h] | 82 m³/h |
| Manual operation option | Manual open spindle |
| Opening configuration | 1-step (optional setting)2-step (default) |
| Packing format | Single pack |
| Parts Program name | ICLX |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR290R32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452CR600R600a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Used for product | ICV 65 |
| Used for product comments | With top assembly |
| Valve operation | Solenoid operated |
