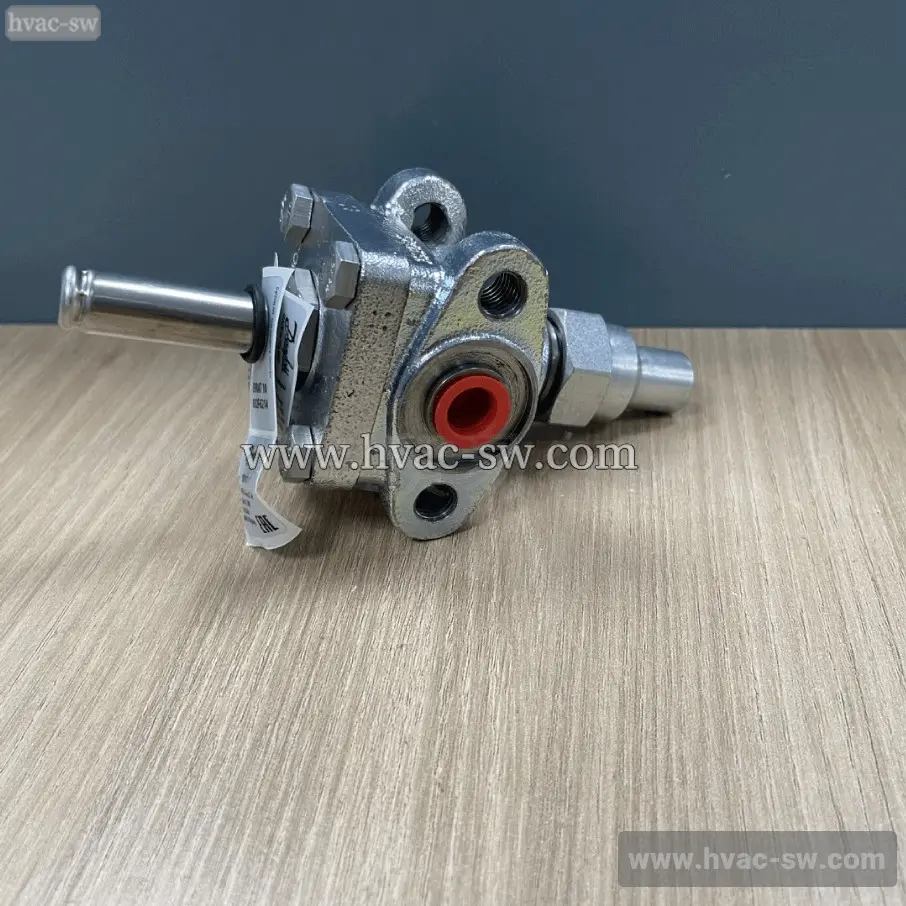

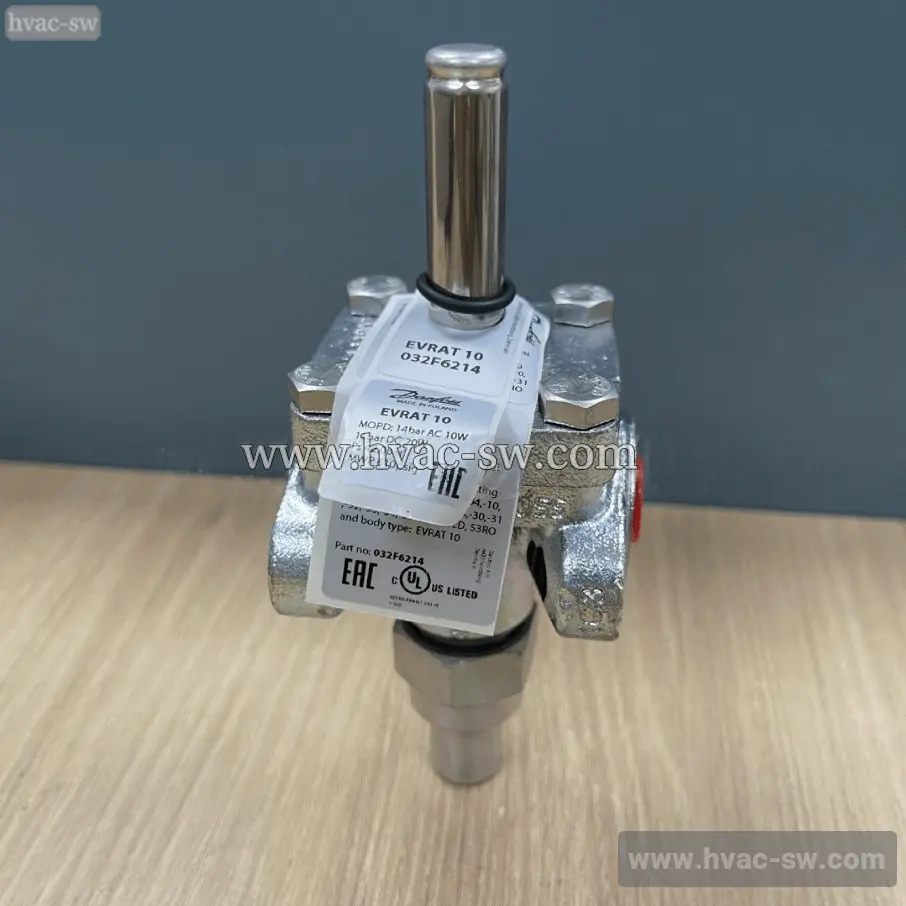

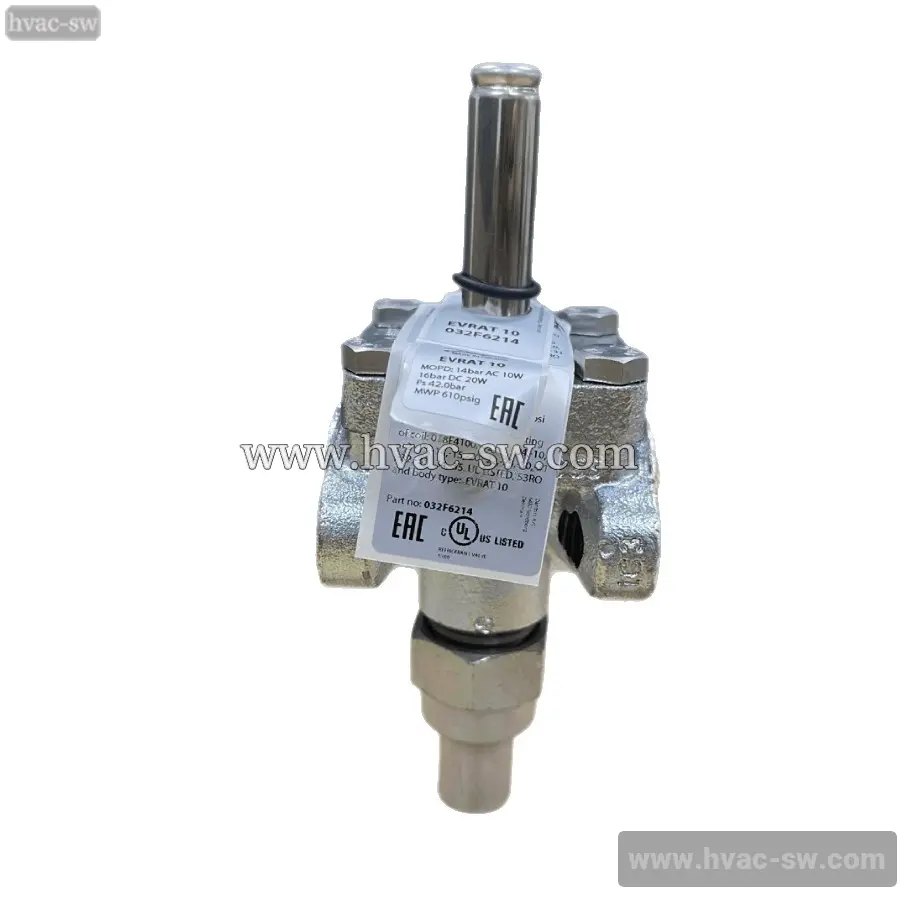

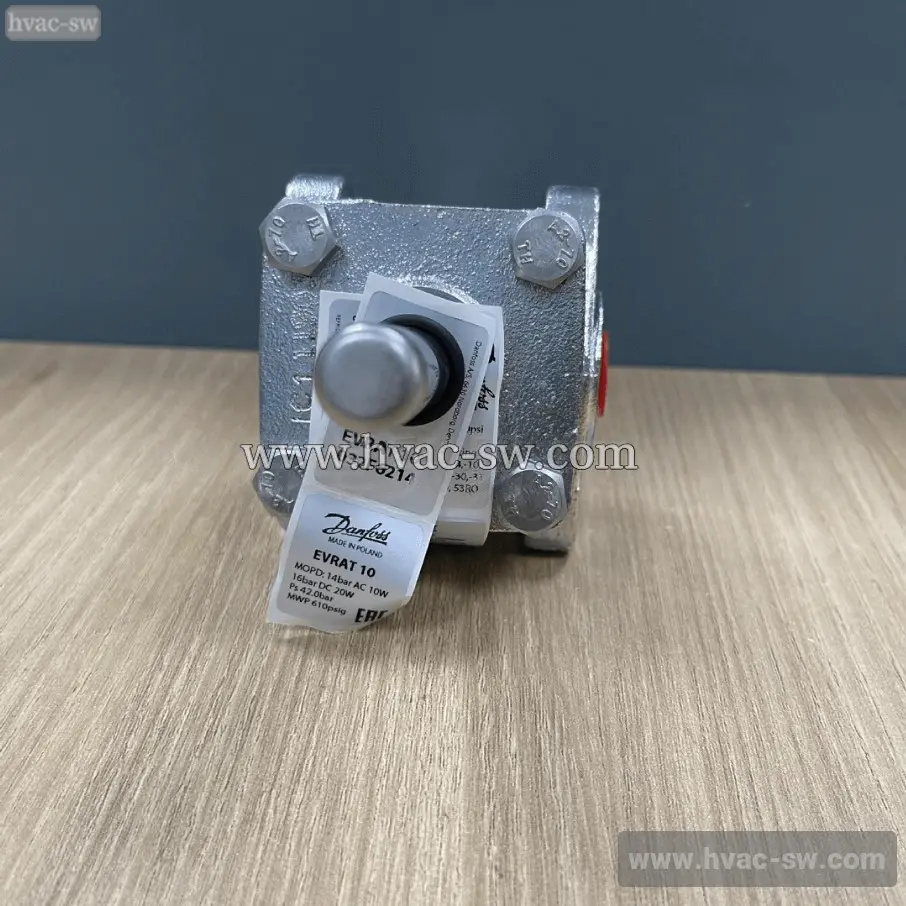

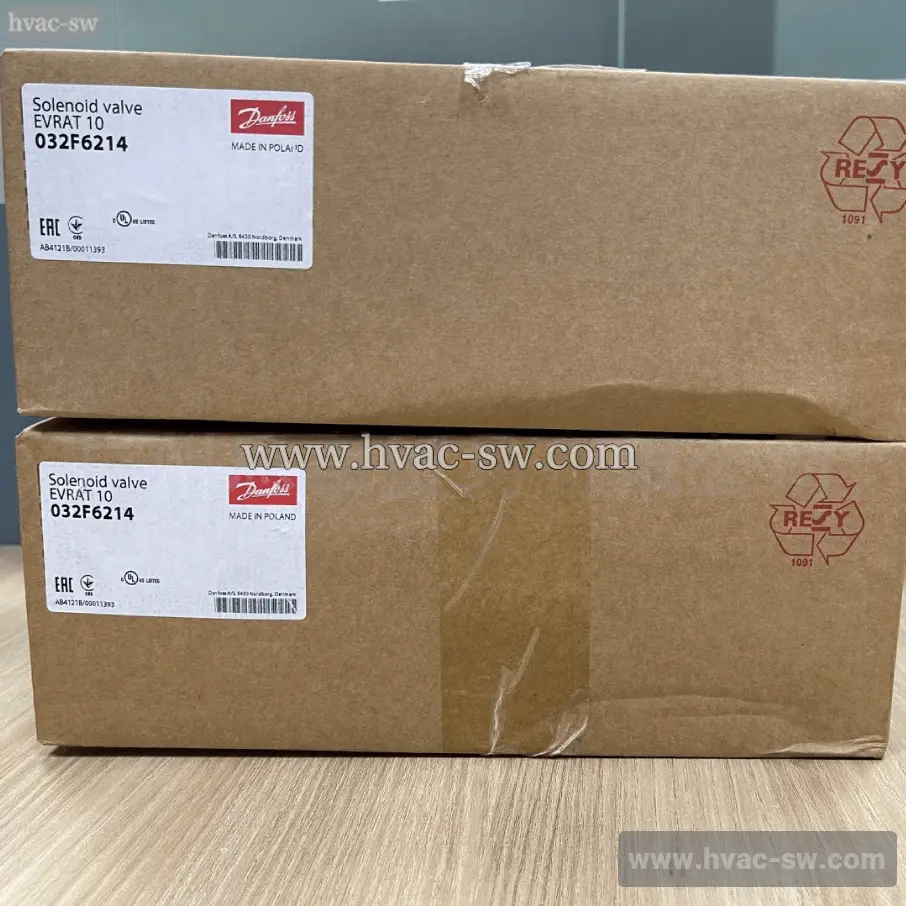

Danfoss 032F6214 EVRAT10 Refrigeration Solenoid Valve
Danfoss
Description
Danfoss 032F6214 is an EVRAT10 solenoid valve designed for reliable on/off control of refrigerant flow in refrigeration systems, heat pumps, and air conditioning units. It features a compact design, tight shut-off, and high reliability, making it suitable for a wide range of refrigerants.
Product Details
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 3.235 Kilogram |
| Net weight | 2.57 Kilogram |
| Volume | 5.372 Liter |
| EAN | 5702428479424 |
| Type | FIA 32 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Approval | CEUKCA |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 80.13 gal/min |
| Cv value [gal/min] 100 pleated | 105.23 gal/min |
| Cv value [gal/min] 150 plain | 77.49 gal/min |
| Cv value [gal/min] 38 plain | 85.86 gal/min |
| Cv value [gal/min] 72 plain | 83.21 gal/min |
| Cv value [gal/min] 72 pleated | 108.75 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 12 |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection size [mm] | 32 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ100 plain | 17.6 m³/h |
| Kv value [m3/h] µ150 plain | 18.2 m³/h |
| Kv value [m3/h] µ150 pleated | 23.9 m³/h |
| Kv value [m3/h] µ250 plain | 18.9 m³/h |
| Kv value [m3/h] µ250 pleated | 24.7 m³/h |
| Kv value [m3/h] µ500 plain | 19.5 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 1 1/4 in |
| Outlet connection size [mm] | 32 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
