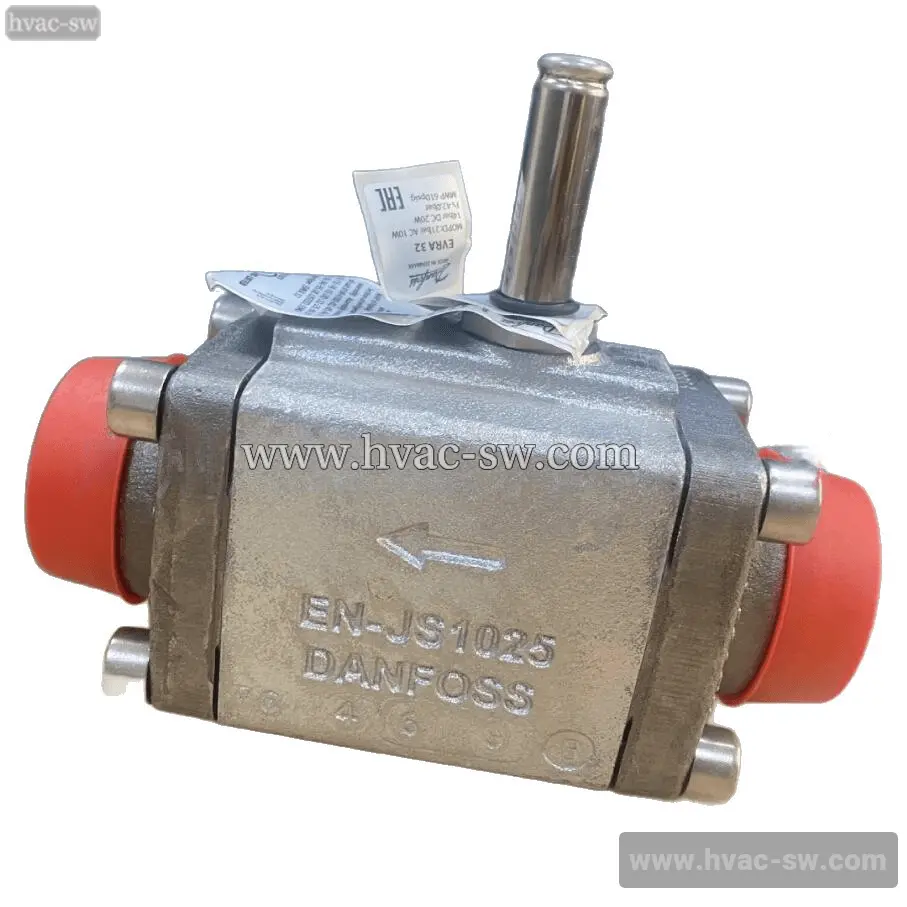

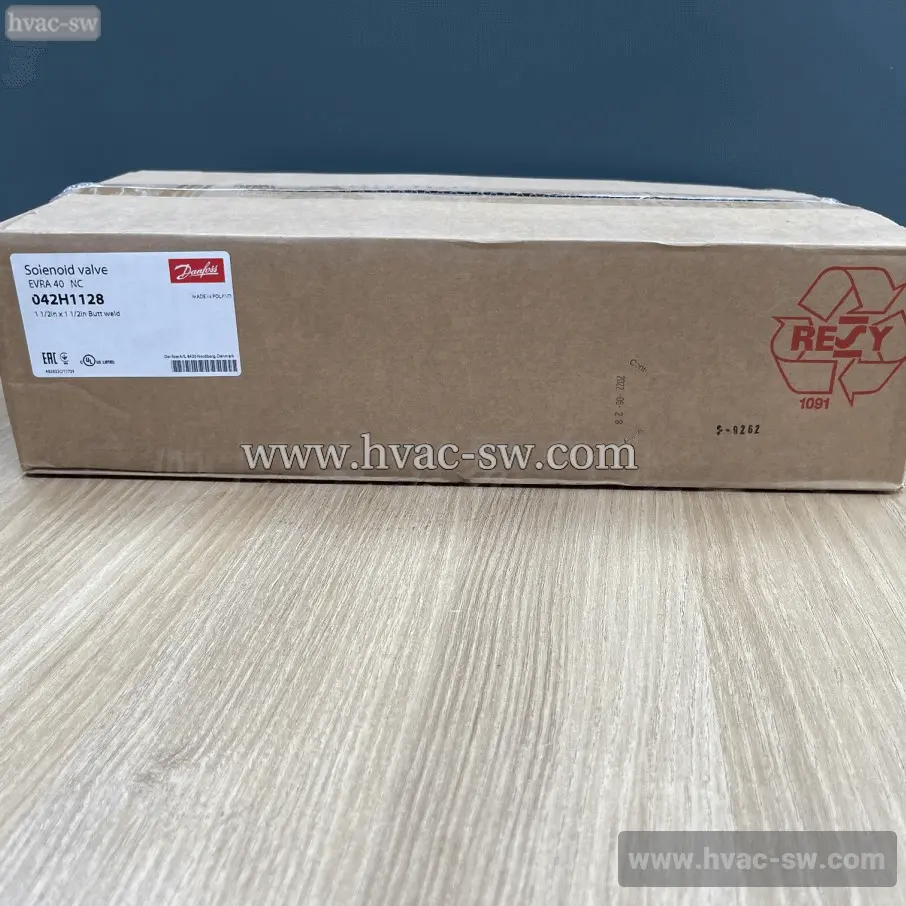

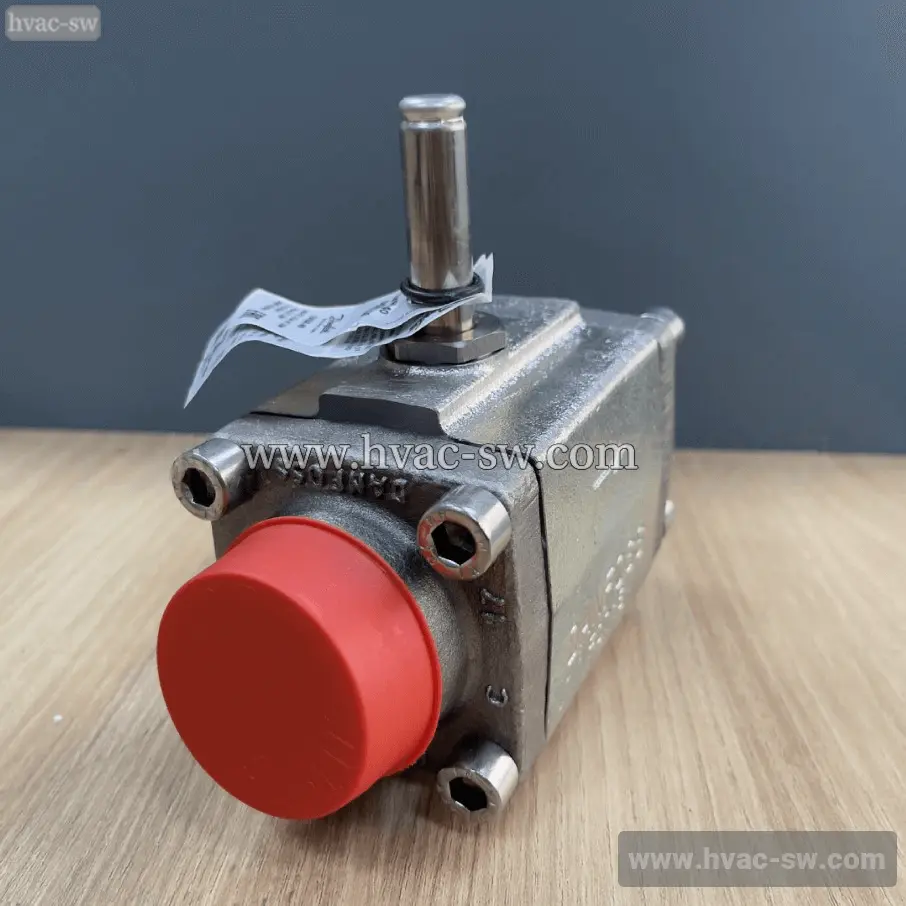

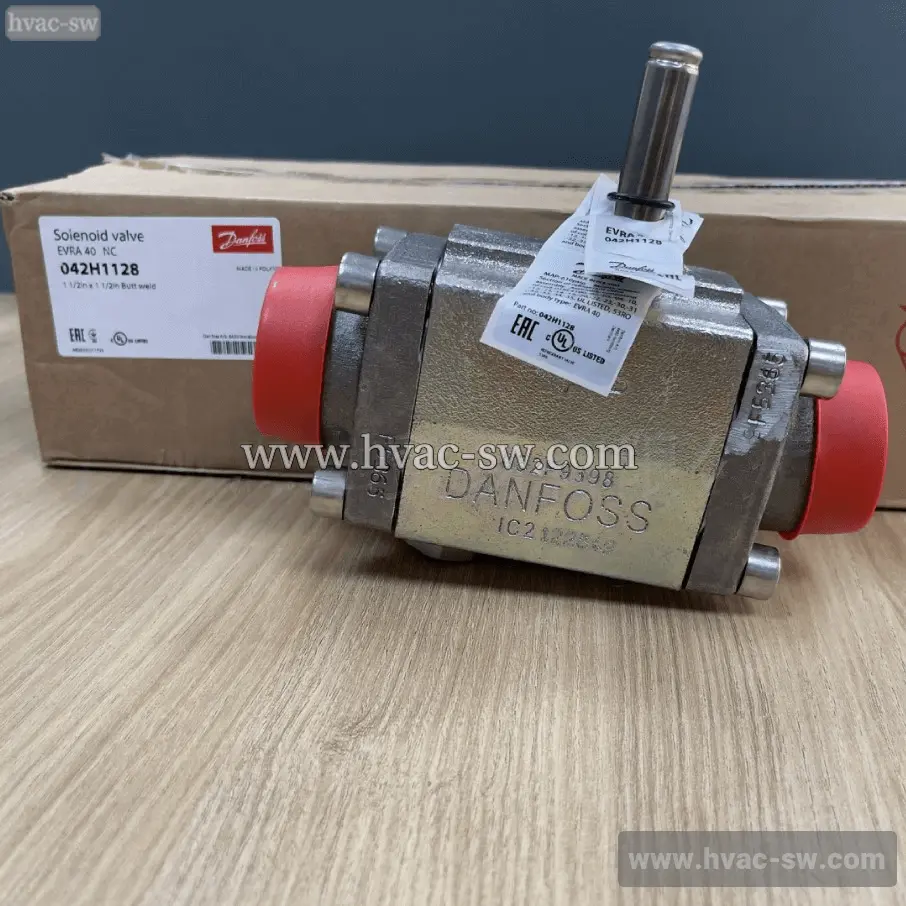

Danfoss 042H1128 Ammonia Solenoid Valve EVRA40
The Danfoss EVRA40 042H1128 is a solenoid valve designed for ammonia (R717) applications, offering reliable on/off control in industrial refrigeration systems. It ensures tight shut-off, high flow capacity, and is built for durability with materials compatible with ammonia, making it ideal for cold storage warehouses and food processing plants.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 4.698 Kilogram |
| Type | EVRA 40 |
| Actuator system [mm] | 13.5 mm |
| MaxOPD[bar] 20W DC | 14 bar |
| Net weight | 4.366 Kilogram |
| Product group | Solenoid valves |
| Ambient temperature | -40 - 80 °C |
| MaxOPD[psi] 14W AC | 300 psi |
| Volume | 7.56 Liter |
| Product Name Description | Solenoid valve |
| Ambient temperature range [°F] [max] | 175 °F |
| Medium temp. range note | Defrost max 130°C/265°F |
| EAN | 5702422171300 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature range [°F] [min] | -40 °F |
| Medium temperature range [°C] [max] | 105 °C |
| Type | EVRA 40 |
| Ambient temperature | -40 - 80 °C |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Medium temperature range [°C] [min] | -40 °C |
| Product group | Solenoid valves |
| Ambient temperature range [°F] [max] | 175 °F |
| Body material | Cast iron |
| Medium temperature range [°F] [max] | 221 °F |
| Product Name Description | Solenoid valve |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Out of scope |
| Medium temperature range [°F] [min] | -40 °F |
| Actuator system [mm] | 13.5 mm |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Coil | No |
| MinODP [bar] | 0.2 bar |
| Ambient temperature | -40 - 80 °C |
| Body material | Cast iron |
| Connection material | Steel |
| MinODP [psi] | 2.9 psi |
| Ambient temperature range [°F] [max] | 175 °F |
| China RoHS compliance | Out of scope |
| Connection standard, inlet | EN 10220 |
| Orifice size [mm] | 25.4 mm |
| Ambient temperature range [°F] [min] | -40 °F |
| Coil | No |
| Connection standard, outlet | EN 10220 |
| Outlet connection type | Butt weld |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Connection material | Steel |
| Contains batteries | No |
| Outlet size [in] | 1 1/2 in |
| Body material | Cast iron |
| Connection standard, inlet | EN 10220 |
| Cv value [gal/min] | 28.9 gal/min |
| Packing format | Single pack |
| China RoHS compliance | Out of scope |
| Connection standard, outlet | EN 10220 |
| Direction | Straightway |
| Parts Program name | EVRA / EVRAT |
| Coil | No |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Product accessories | Solenoid valve accessories |
| Connection material | Steel |
| Cv value [gal/min] | 28.9 gal/min |
| Flow direction indicator | Embossed 1-way arrow |
| Quantity per packing format | 1 pc |
| Connection standard, inlet | EN 10220 |
| Direction | Straightway |
| Function | NC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Connection standard, outlet | EN 10220 |
| EU RoHS compliance | Out of scope |
| Inlet connection type | Butt weld |
| Refrigerants | R134aR22R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507AR717 |
| Contains batteries | No |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet size [in] | 1 1/2 in |
| SCIP dossier no. | d38f86ba-12bb-4e70-8d9f-ec3fd58b7365 |
| Cv value [gal/min] | 28.9 gal/min |
| Function | NC |
| Kv value [m³/h] | 25 m³/h |
| SCIP dossier product name | EVRA EVRAT |
| Direction | Straightway |
| Inlet connection type | Butt weld |
| Manual operation option | Yes |
| Serviceable | Solenoid valve spare parts |
| EU RoHS compliance | Out of scope |
| Inlet size [in] | 1 1/2 in |
| Max. Working Pressure [bar] | 42 bar |
| Type designation | Solenoid valve |
| Flow direction indicator | Embossed 1-way arrow |
| Kv value [m³/h] | 25 m³/h |
| Max. Working Pressure [psig] | 610 psig |
| UL evaluated | Yes |
| Function | NC |
| Manual operation option | Yes |
| MaxOPD[bar] 10W AC | 21 bar |
| Valve operation | Servo-piston |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 42 bar |
| MaxOPD[bar] 12W AC | 25 bar |
