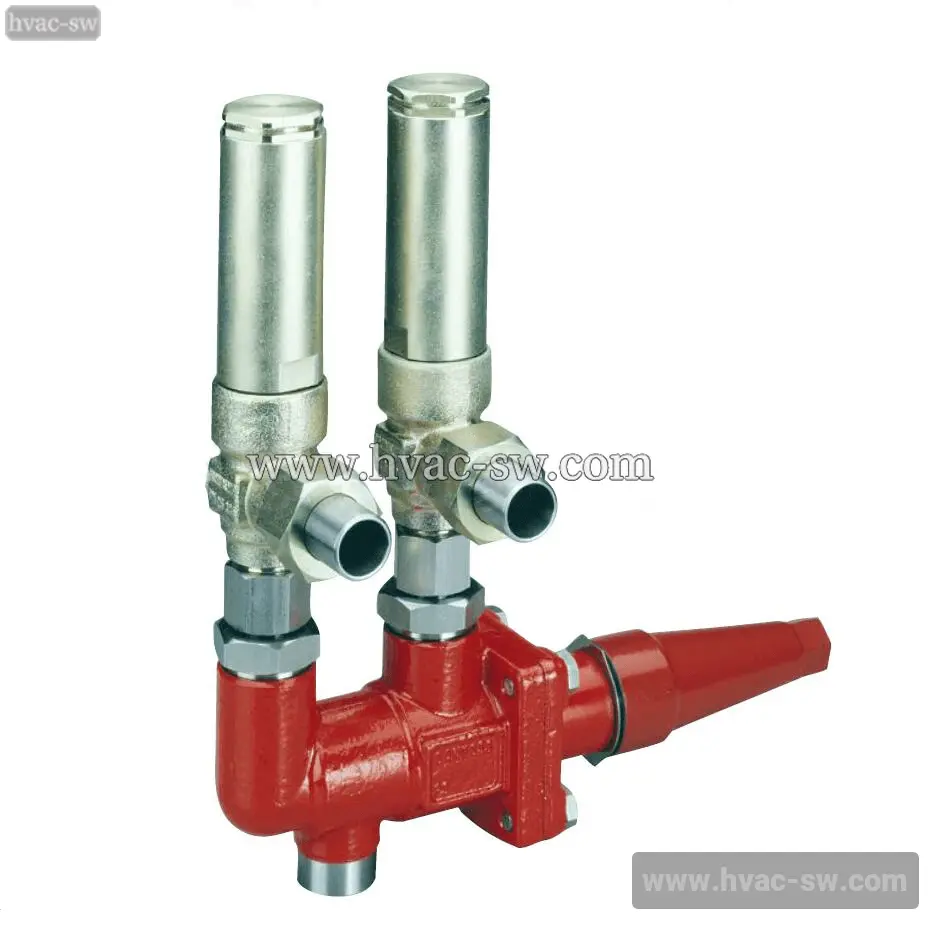

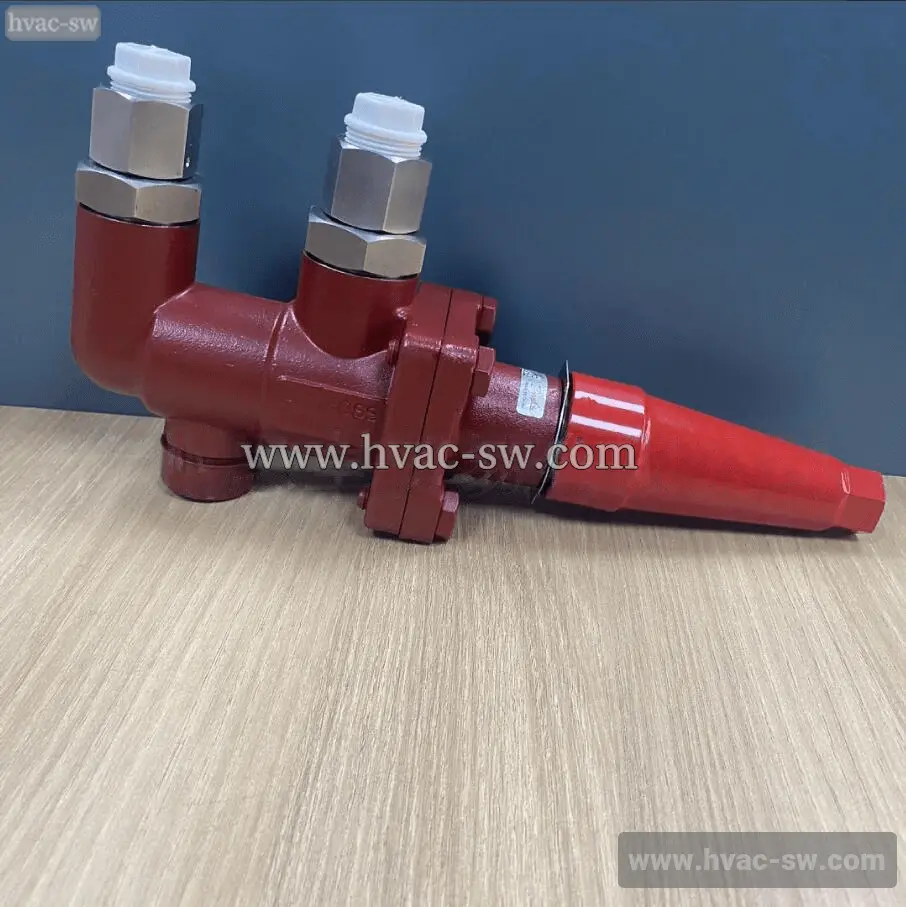

Danfoss 148F3005 Double Seat Safety Valve Seat DSV1
The DANFOSS DSV1 148F3005 is a genuine double seat safety valve seat. It is a critical spare part designed for use in DANFOSS safety valves, ensuring reliable overpressure protection in various industrial refrigeration and HVAC systems. This component guarantees a tight seal and precise actuation, maintaining the original performance and safety standards of the valve assembly.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 4.948 Kilogram |
| Type | DSV 1 |
| Approval | EACLLC CDC TYSKUKCA |
| Outlet connection type | G |
| Net weight | 4.15 Kilogram |
| Product group | Safety relief valves |
| CE evaluated | Yes |
| Outlet Internal/External | Internal |
| Volume | 12.005 Liter |
| Product Name Description | Change-over valve |
| China RoHS compliance | Out of scope |
| Packing format | Single pack |
| EAN | 5702428242547 |
| Colour Paint | Reddish brown |

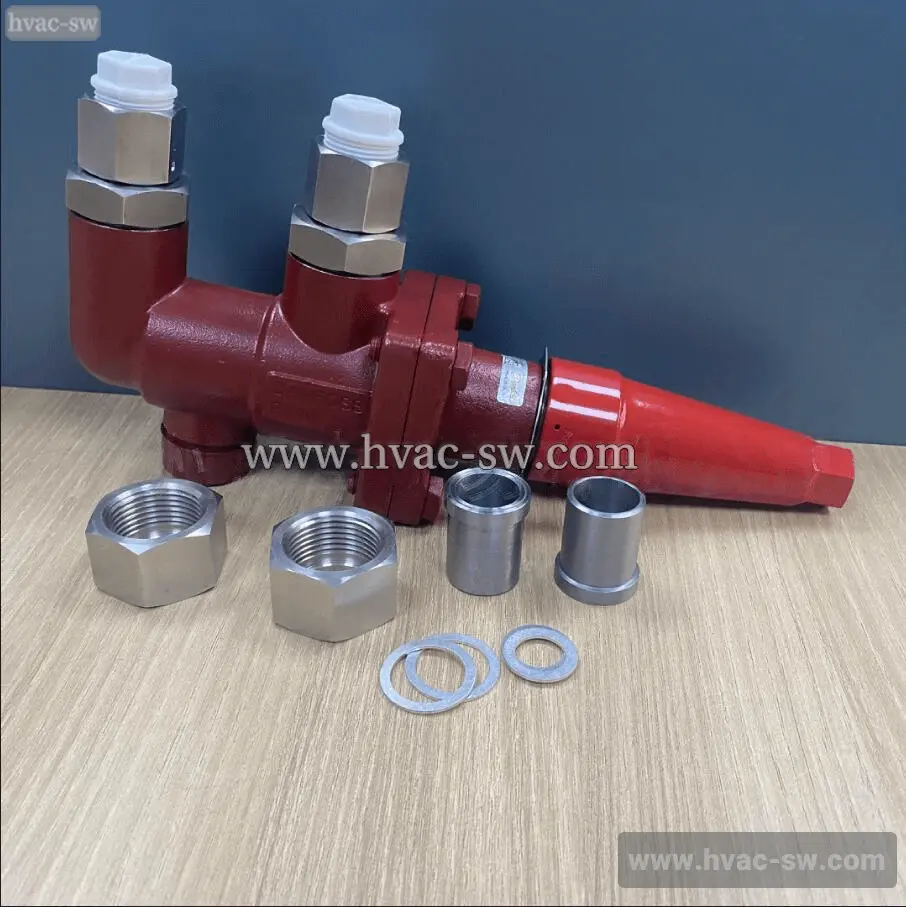

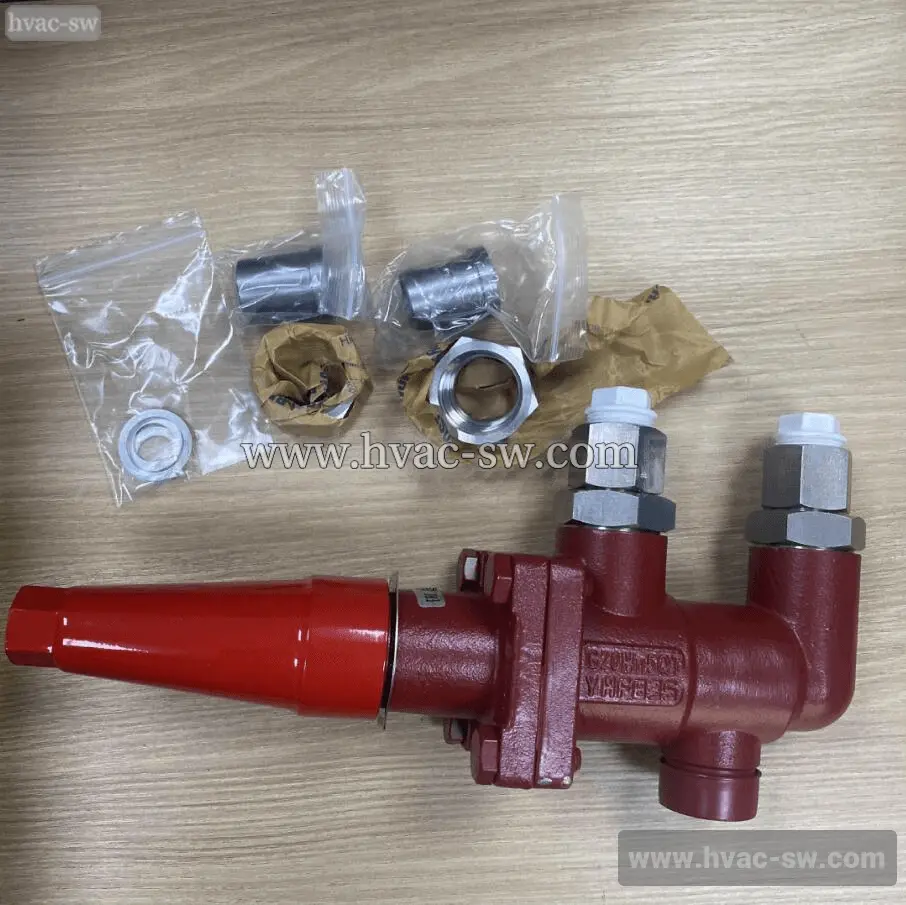

| Parts included | Incl.Kit |
| Connection standard | EN 10220ISO 228-1 |
| PED category | Art. 3, par. 3 |
| Contains batteries | No |
| Product description | Double stop valve |
| Cv value [gal/min] | 20.3 gal/min |
| Quantity per packing format | 1 pc |
| Direction | Threeway |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Equipment | Cap |
| Refrigerants | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516A |
| EU RoHS compliance | Yes with exemptions |
| Safety valve combination | 2 x SFA 15 |
| Fluid Group | 1 |
| Safety valve conn. size [in] | 3/4 in |
| Inlet connection size [in] | 1 in |
| Safety valve conn. size [mm] | 20 mm |
| Inlet connection size [mm] | 25 mm |
| Safety valve connection std | EN 10220 |
| Inlet connection type | Weld branche |
| Safety valve connection type | Weld nipples |
| Kv value [m³/h] | 17.5 m³/h |
| Temperature range [°C] [max] | 100 °C |
| Max. Working Pressure [bar] | 40 bar |
| Temperature range [°C] [min] | -50 °C |
| Max. Working Pressure [psig] | 580 psig |
| Temperature range [°F] [max] | 212 °F |
| Outlet connection comments | Union |
| Temperature range [°F] [min] | -58 °F |
| Outlet connection size [in] | 3/4 |
