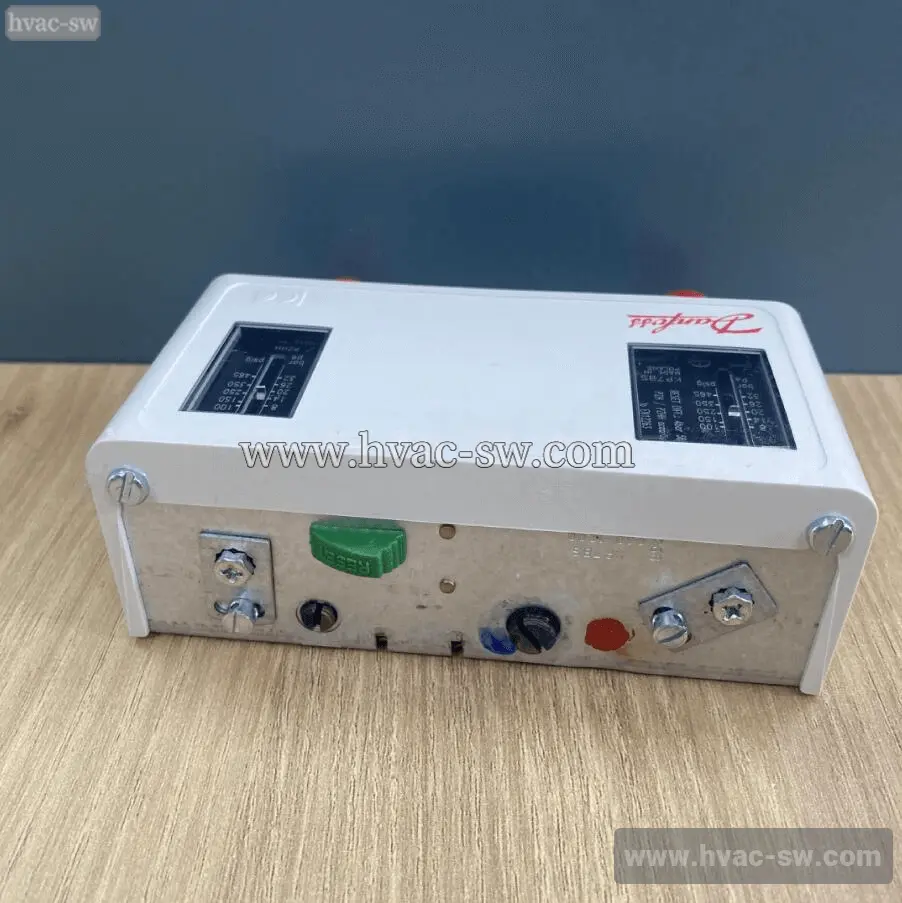

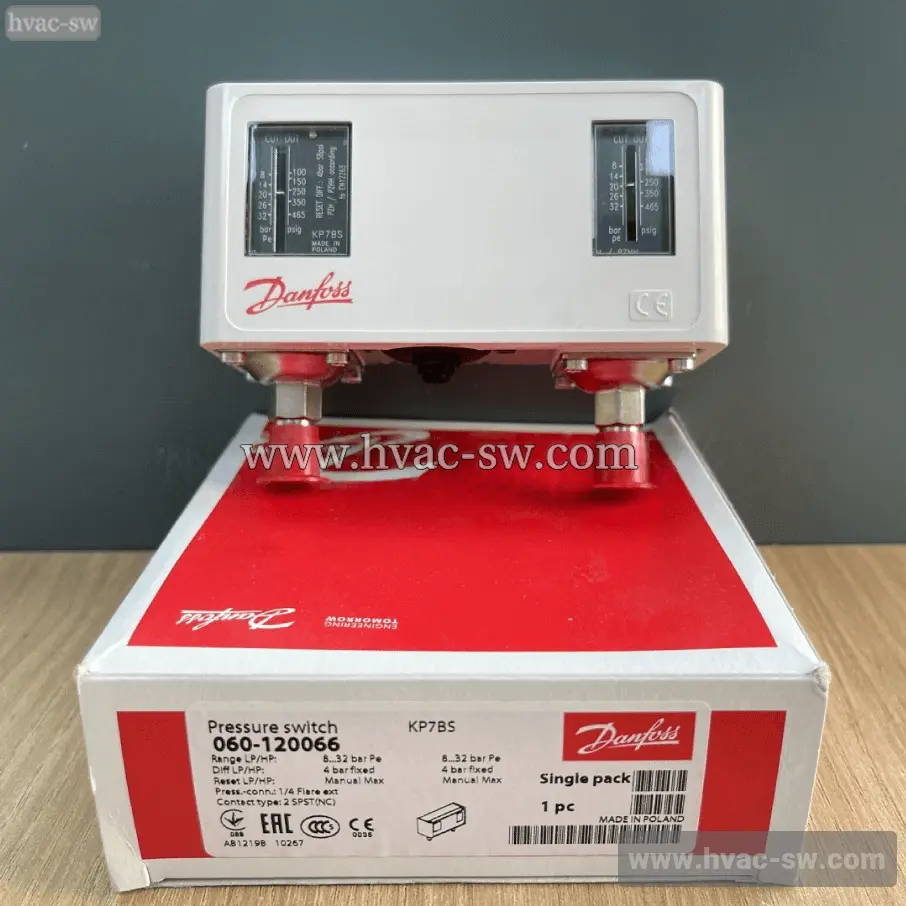

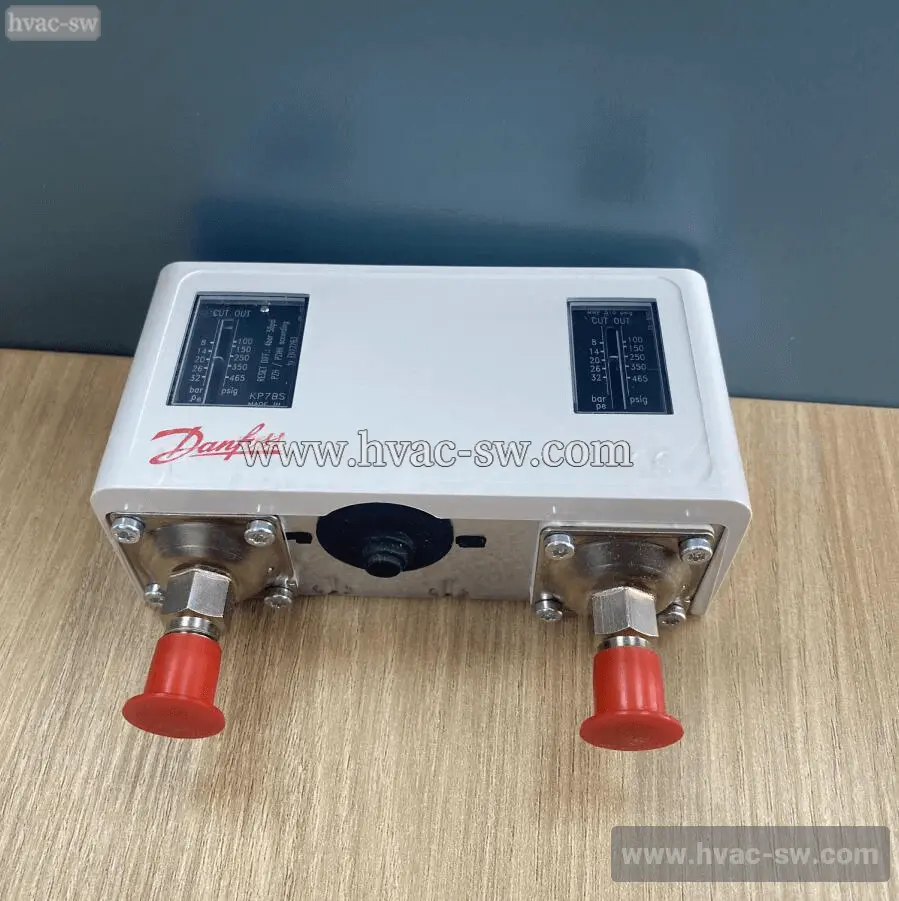

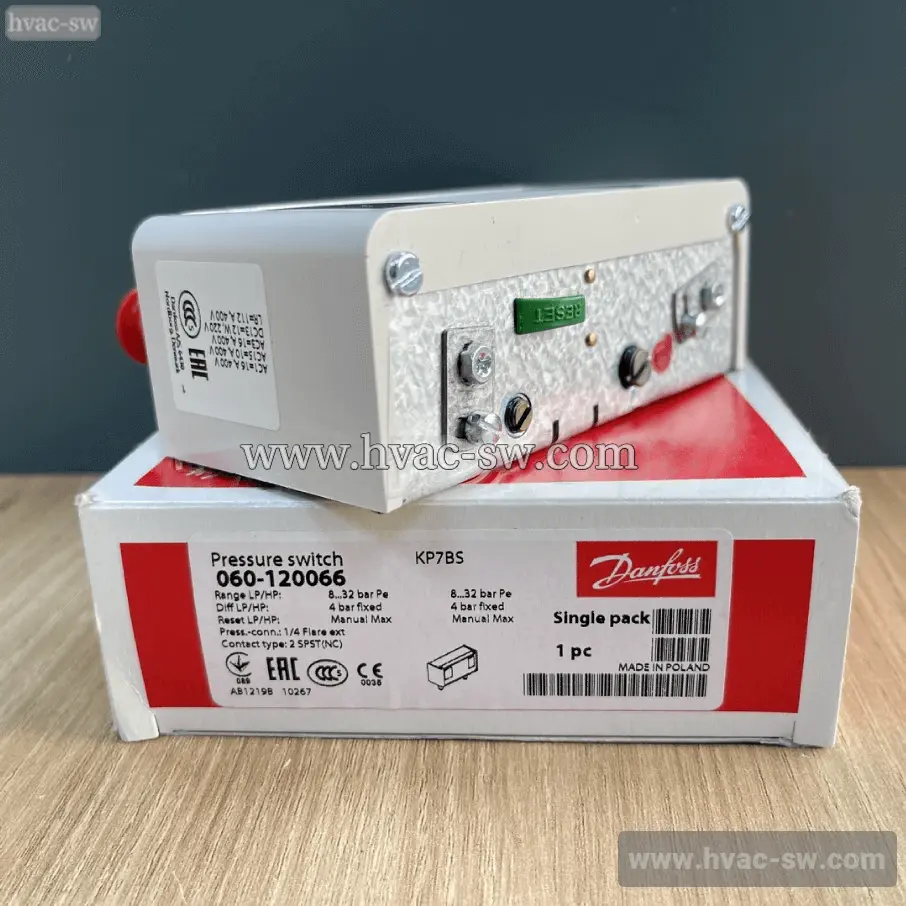

Danfoss 060-120066 KP7BS Pressure Controller Industrial
The Danfoss KP7BS 060-120066 is an industrial-grade electromechanical pressure controller featuring adjustable set point, durable construction, and SPDT switch for controlling compressors, pumps, or alarm circuits in refrigeration, air conditioning, and hydraulic systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material |
|---|---|---|---|---|
| ETS250-034G2602 | 42 | 34 | Copper | Welding |
| 034G7073 Connection Cable | DN12 | 34 | Copper | Internal Thread |
| Attribute | Value |
|---|---|
| Gross weight | 0.532 Kilogram |
| Net weight | 0.487 Kilogram |
| Volume | 0.861 Liter |
| EAN | 5702428517133 |
| Type | KP7BS |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -13 °F |
| Application note | Not applicable for liquid line |
| Burst pressure [bar] | 140 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | 2 SPST(NC) |
| Contact rating | AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V |
| Contains batteries | No |
| Differential left side [bar] | 4 bar |
| Differential left side [psi] | 58 psi |
| Differential right side [bar] | 4 bar |
| Differential right side [psi] | 58 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| In scope of WEEE | Yes |
| Lubricants compatibility | Oilfree applications |
| Max.test press.left side[bar] | 35 bar |
| Max.test press.right side[bar] | 35 bar |
| MWP left side [bar] Pe | 35 bar |
| MWP left side [psig] Pe | 510 psig |
| MWP right side [bar] Pe | 32 bar |
| MWP right side [psig] Pe | 464 psig |
| Oil free refrigerants | R134aR513AR515B |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Dual Pressure Control |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1)Cadmium oxide (CAS no.1306-19-0) |
| Refrigerants | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515BR1233zd(E) |
| Regulation left side [bar]Pe [max] | 32 bar |
| Regulation left side [bar]Pe [min] | 8 bar |
| Regulation left side [psig]Pe [max] | 464 psig |
| Regulation left side [psig]Pe [min] | 116 psig |
| Regulation right side [bar]Pe [max] | 32 bar |
| Regulation right side [bar]Pe [min] | 8 bar |
| Regulation right side [psig]Pe [max] | 464 psig |
| Regulation right side [psig]Pe [min] | 116 psig |
| Reset function, left side | Manual Max |
| Reset function, right side | Manual Max |
| SCIP dossier no. | ec459161-9478-495c-870e-4ae0f13b89b4 |
| SCIP dossier product name | KP Pressure Switch |
| Serviceable | No |
| UL approval file name | E31024 |
| UL approved refrigerants | R113R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507AR513AR515B |
| UL evaluated | Yes |
