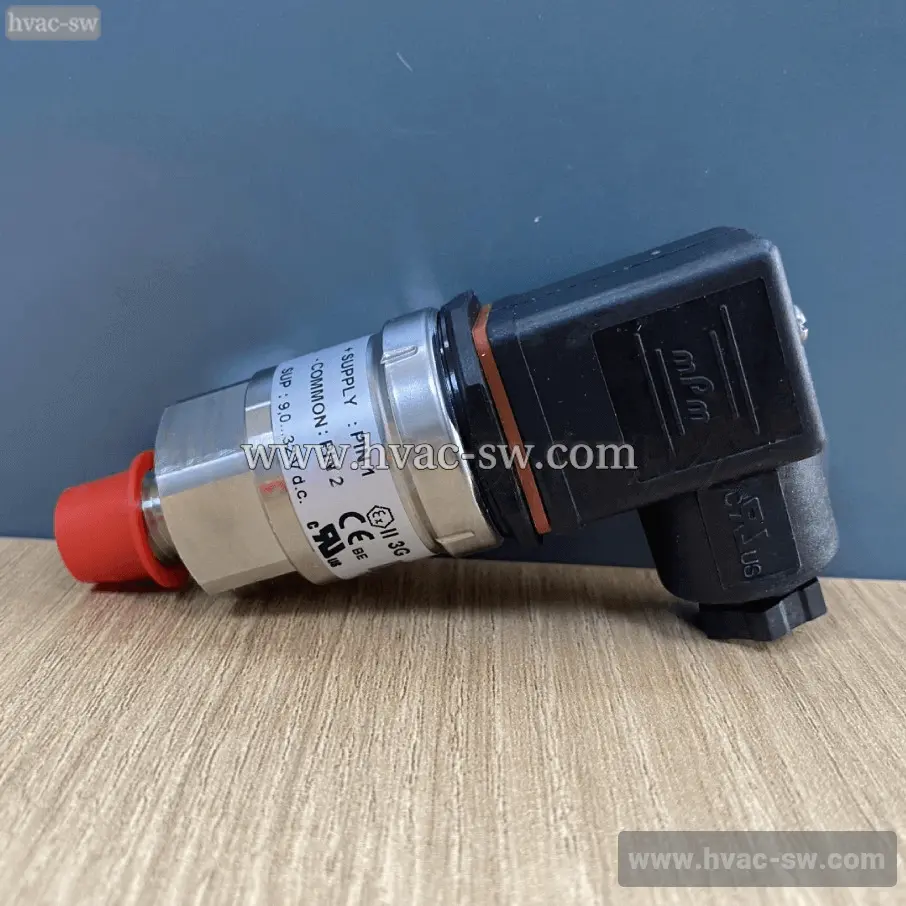

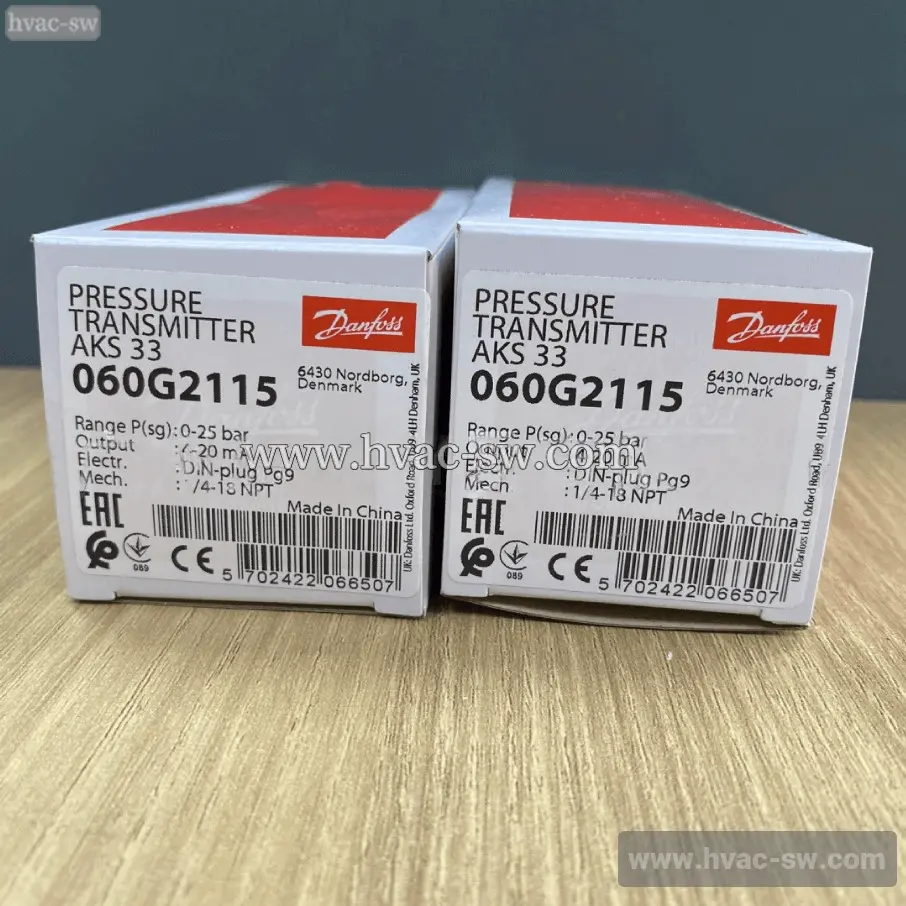

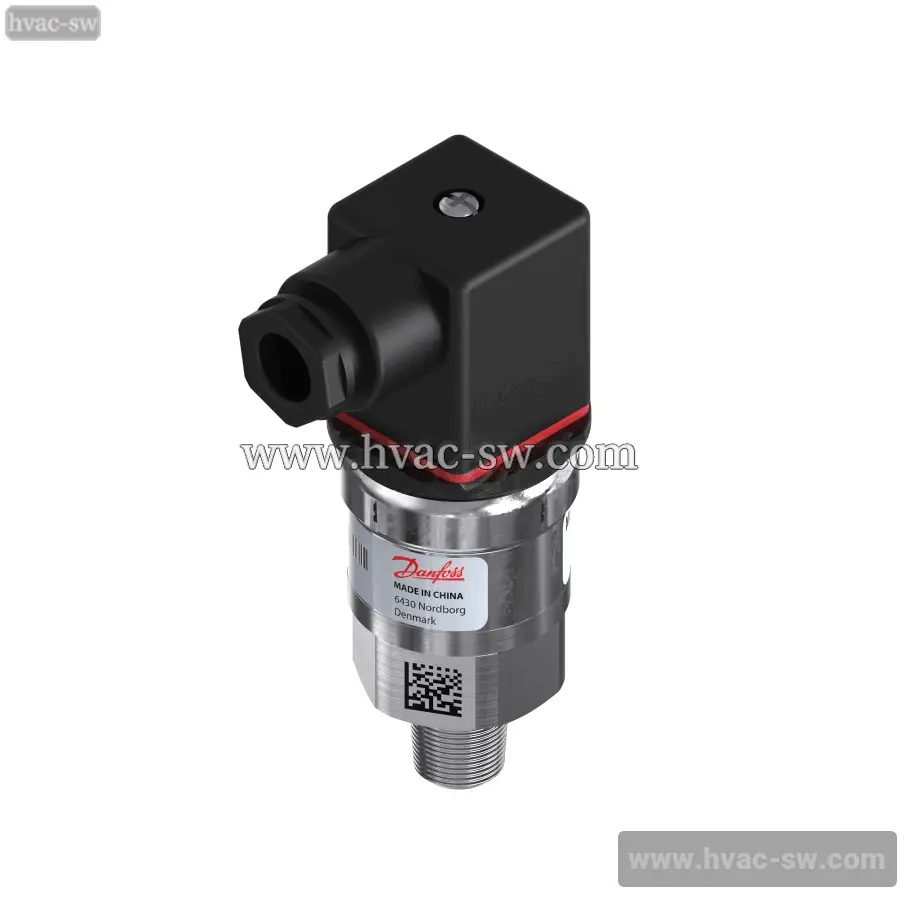

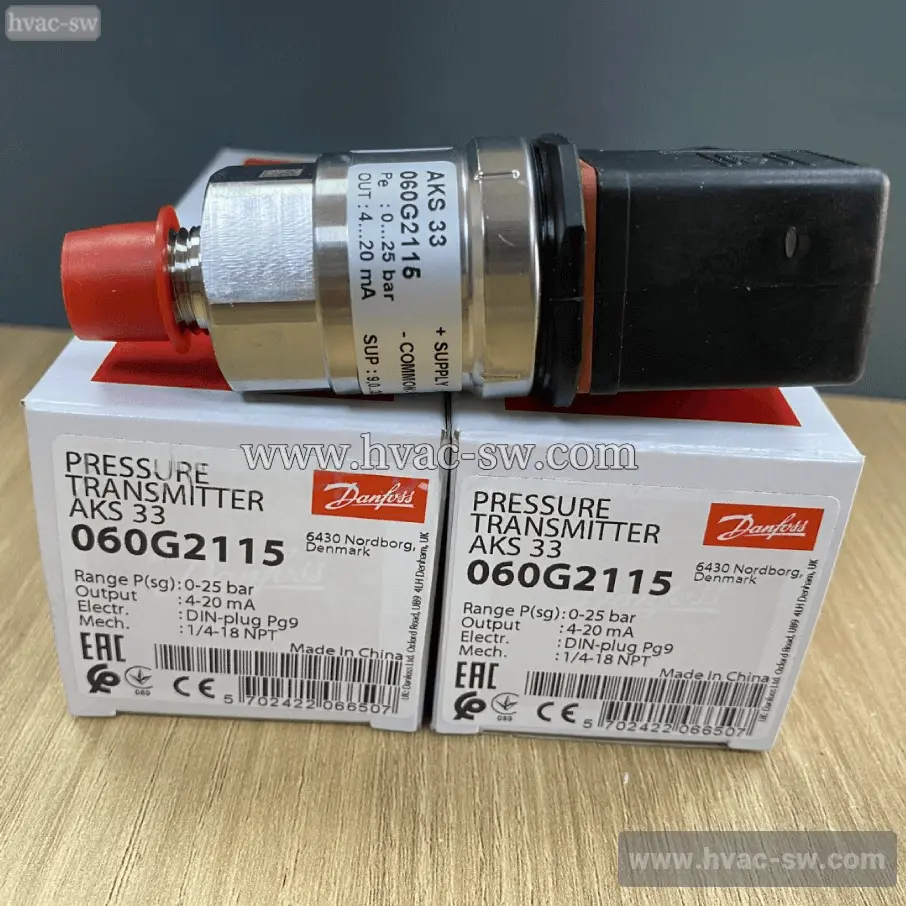

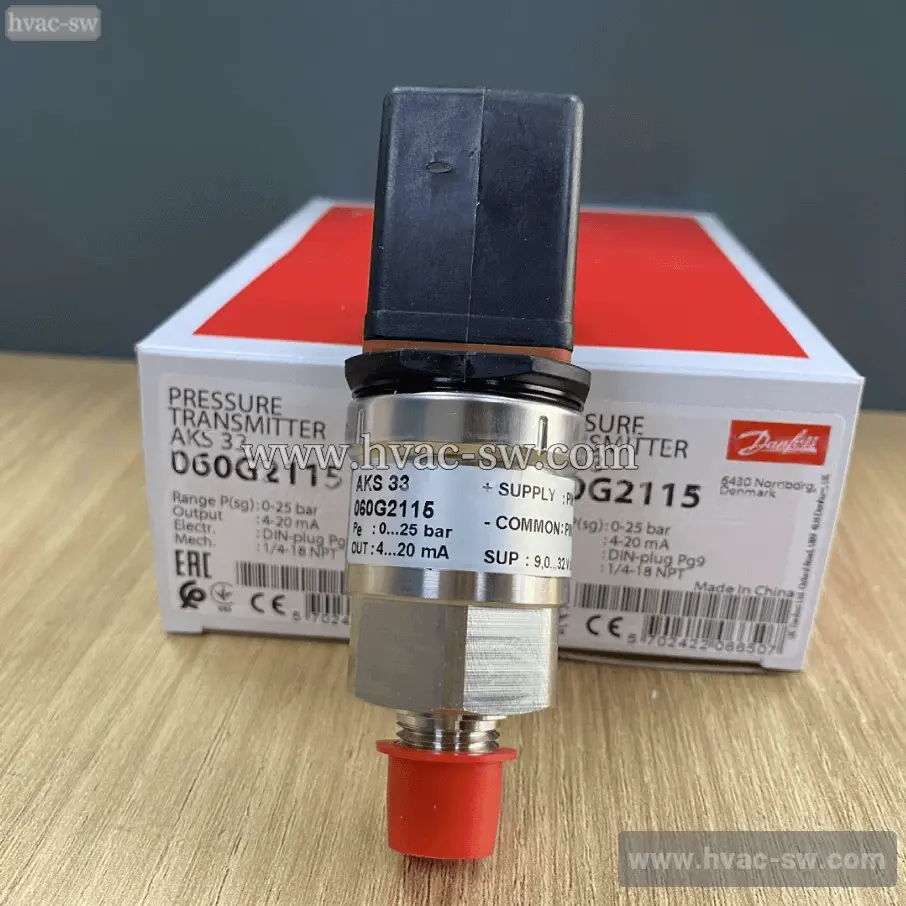

Danfoss 060G2115 AKS 33 Pressure Sensor
Danfoss 060G2115 AKS 33 is a robust pressure sensor designed for accurate and stable pressure measurement in industrial applications. It is highly durable and easy to integrate, making it ideal for hydraulic and pneumatic control systems using compatible media like oil and gas.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 0.178 Kilogram |
| Net weight | 0.157 Kilogram |
| Volume | 0.416 Liter |
| EAN | 5702422066507 |
| Type | AKS 33 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.8 % |
| Accuracy, typical [±FS%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX GOST POCC CE C UL US UL Recognized |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 E227388 E31024 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| International Article Number | 5702422066507 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 40 bar |
| Overload pressure max. [psi] | 580 psi |
| Packing format | Multi pack |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 25 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 362.5 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89 |
| SCIP dossier product name | Sensor AKS 33 |
| Specification key | AKS 33-2431-A1EC04-0 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| UL evaluated | Yes |
