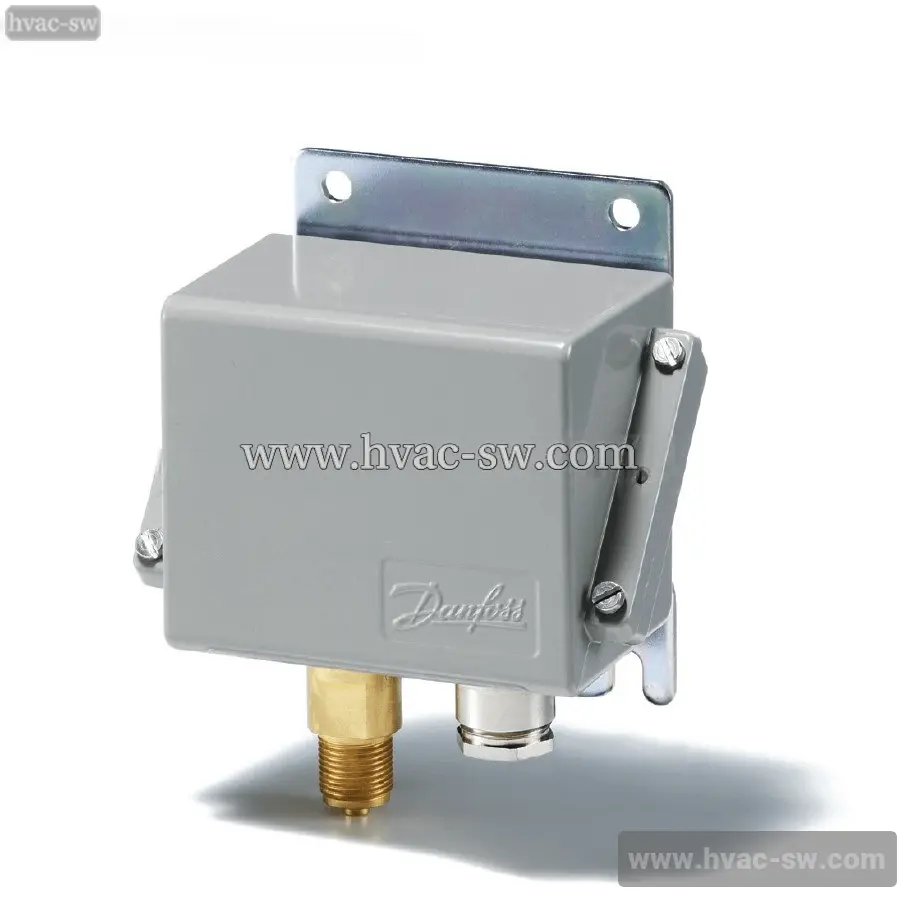

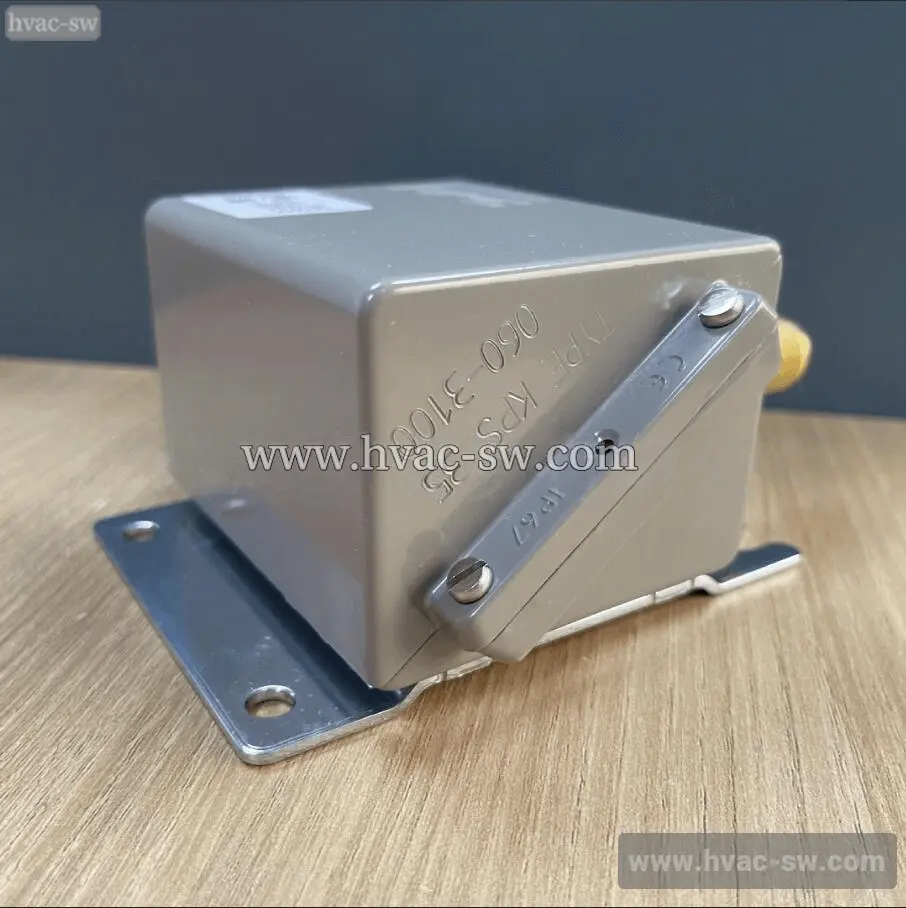

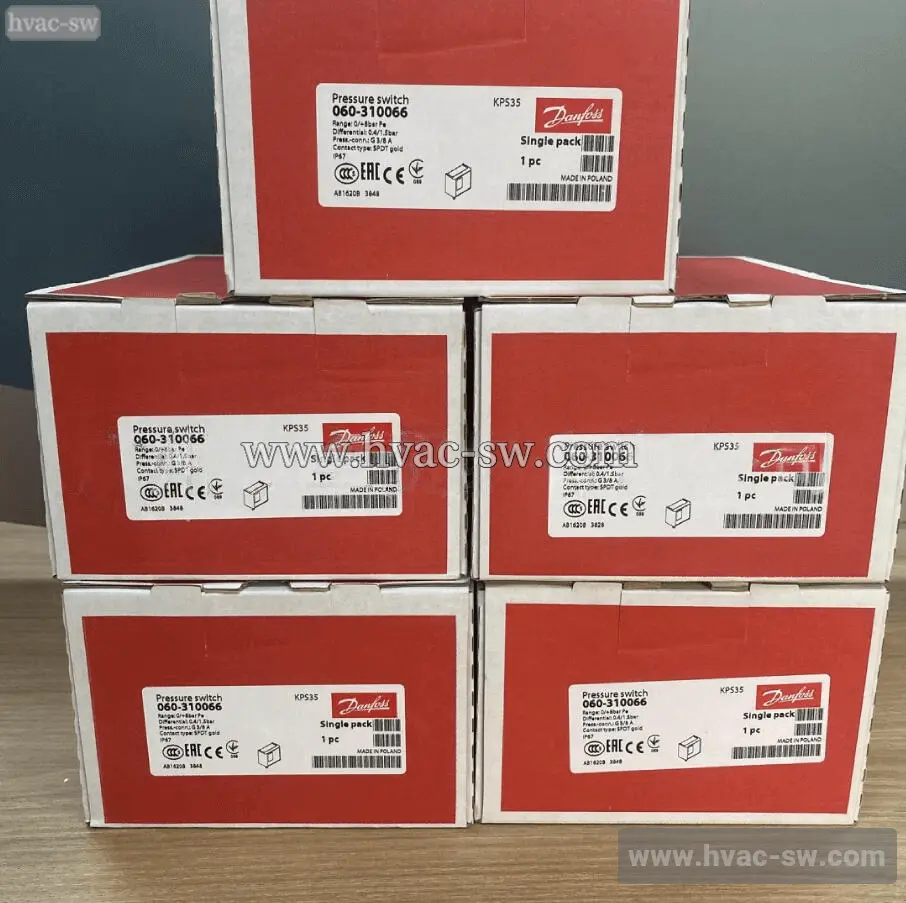

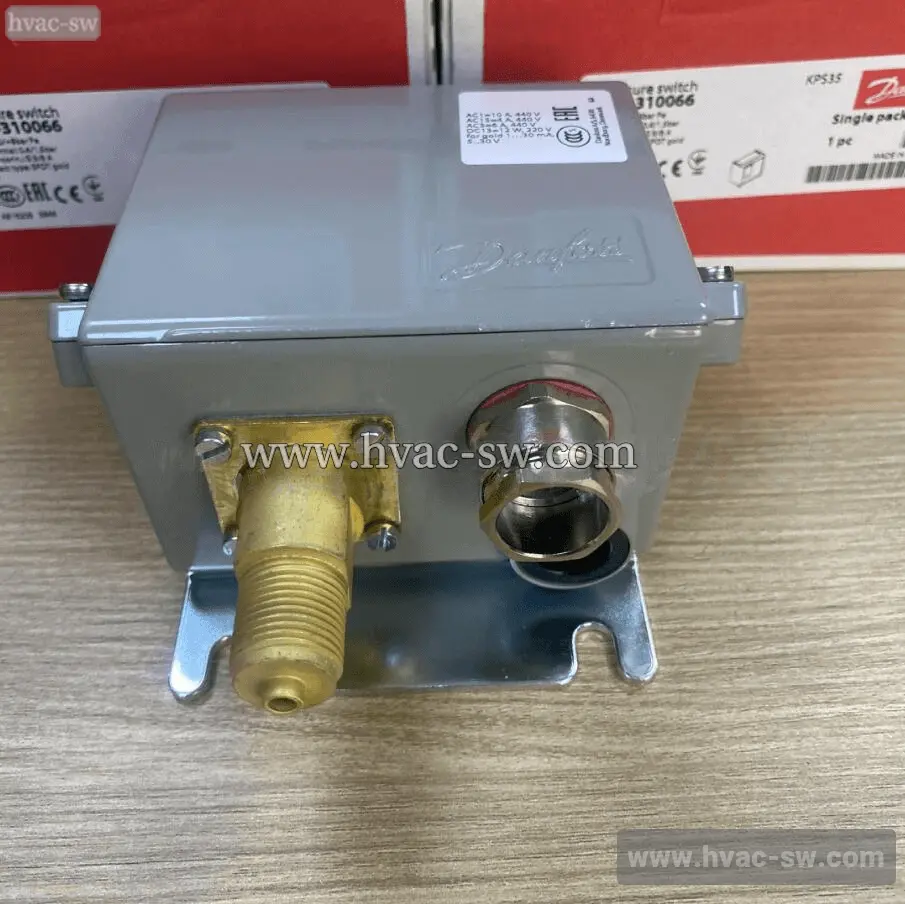

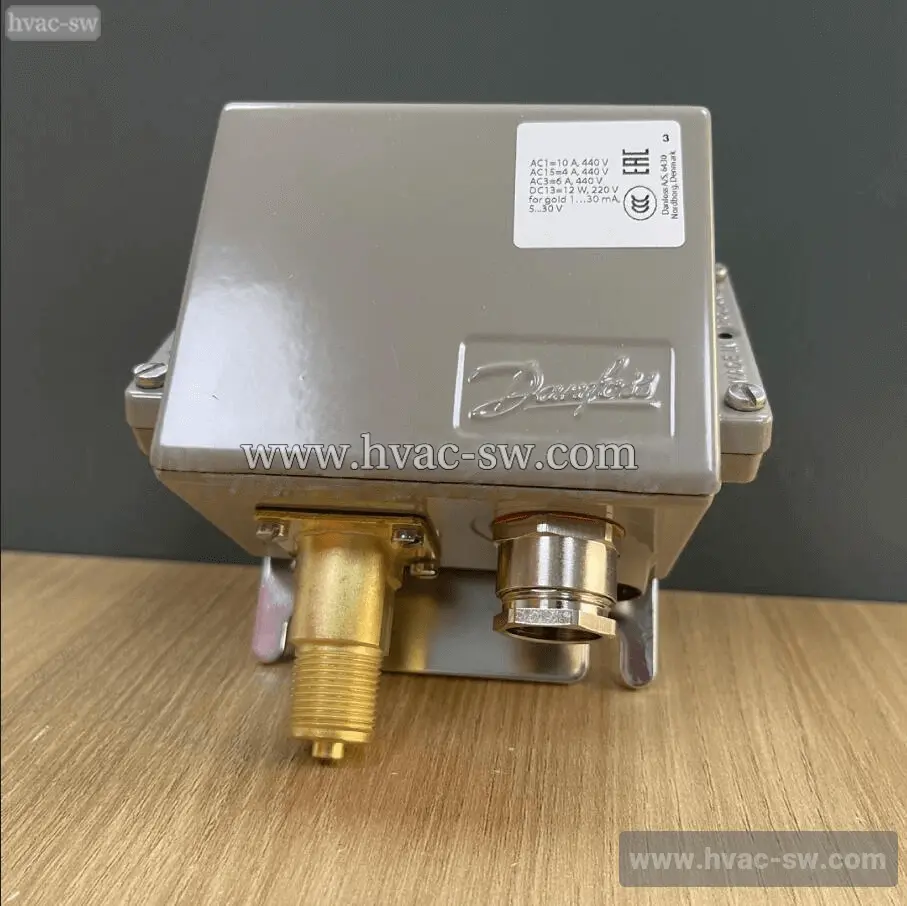

Danfoss KPS35 060-310066 Pressure Switch
The KPS35 is a series of pressure switches from DANFOSS, designed for reliable system monitoring and control. Key models include 060-310566, 060-310866, and 060-310066. These compact and robust switches offer precise pressure setting adjustment, high electrical switching capacity, and are built for durability in demanding industrial and refrigeration applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Specification | Temperature Resistance (℃) | Pressure Resistance (Mpa) |
|---|---|---|
| KPS37 060-310166 060-310666 | -40~150 | 5 |
| KPS45 060-312166 | -40~150 | 4.5 |
| 060-333366 060-104766 060-017166 | -40~150 | 4 |
| Attribute | Value |
|---|---|
| Gross weight | 1.018 Kilogram |
| Net weight | 0.92 Kilogram |
| Volume | 2.518 Liter |
| EAN | 5702423146826 |
| Type | KPS35 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABSBVCCCCCSCEDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKUL |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 440 VAC1=10 A, 440 VAC3=6 A, 440 VDC13=12 W, 220 VLR max. 50 Afor gold 1…30 mA, 5...30 V |
| Contains batteries | No |
| Differential [bar] [max] | 1.5 bar |
| Differential [bar] [min] | 0.4 bar |
| Differential [psi] [max] | 22 psi |
| Differential [psi] [min] | 6 psi |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Out of scope |
| Identical product | 060-411166 |
| Max. test pressure [bar] Pe | 12 bar |
| Max. test pressure [psig] | 174 psig |
| Max. Working Pressure [bar] | 12 bar |
| Max. Working Pressure [psig] | 174 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 8 bar |
| Regulation range [bar] Pe [min] | 0 bar |
| Regulation range [MPa] Pe [max] | 0.8 MPa |
| Regulation range [MPa] Pe [min] | 0 MPa |
| Regulation range [psig] Pe [max] | 116 psig |
| Regulation range [psig] Pe [min] | 0 psig |
| Reset function | Auto |
| SCIP dossier no. | d1127e97-408e-40d0-9aba-98480f7dad9c |
| SCIP dossier product name | KPS Pressure Switch |
| Serviceable | No |
| UL approval file name | E73170 |
| UL evaluated | Yes |
