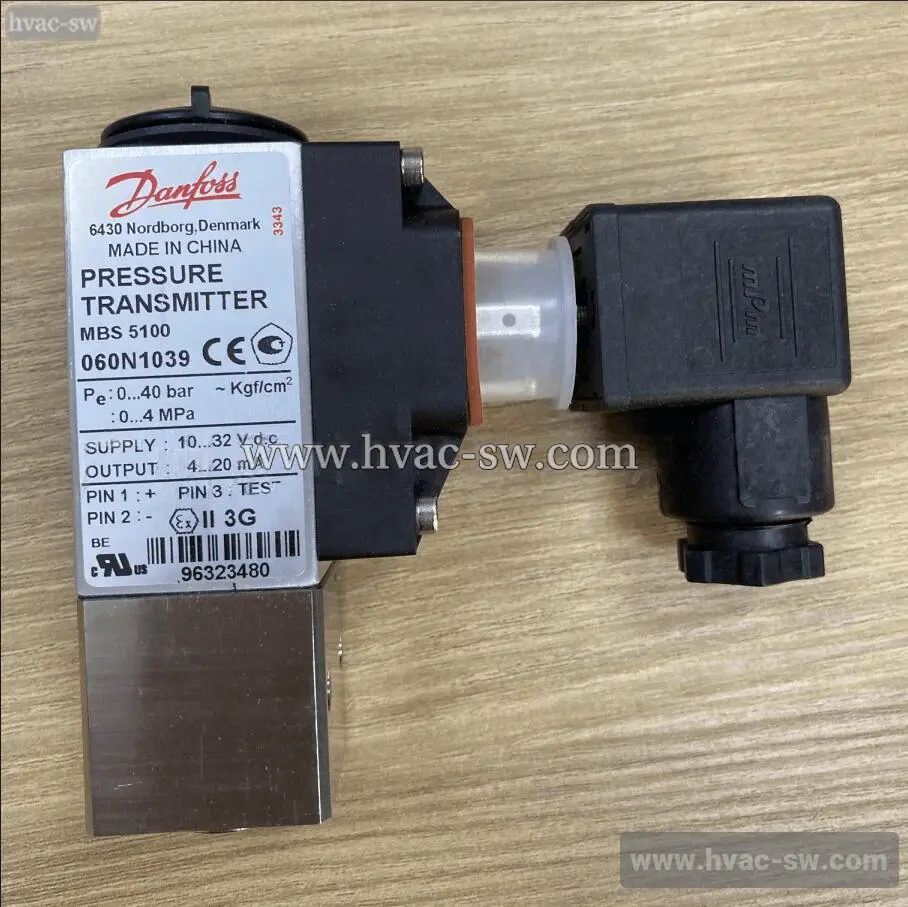

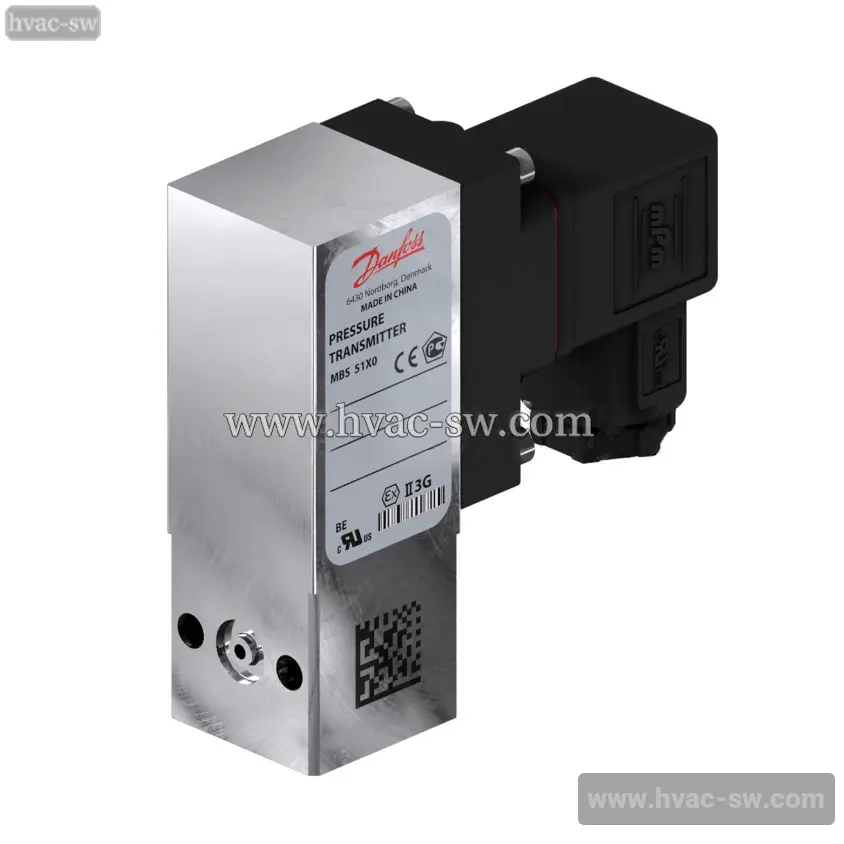

Danfoss MBS5100 Pressure Transmitter High Precision

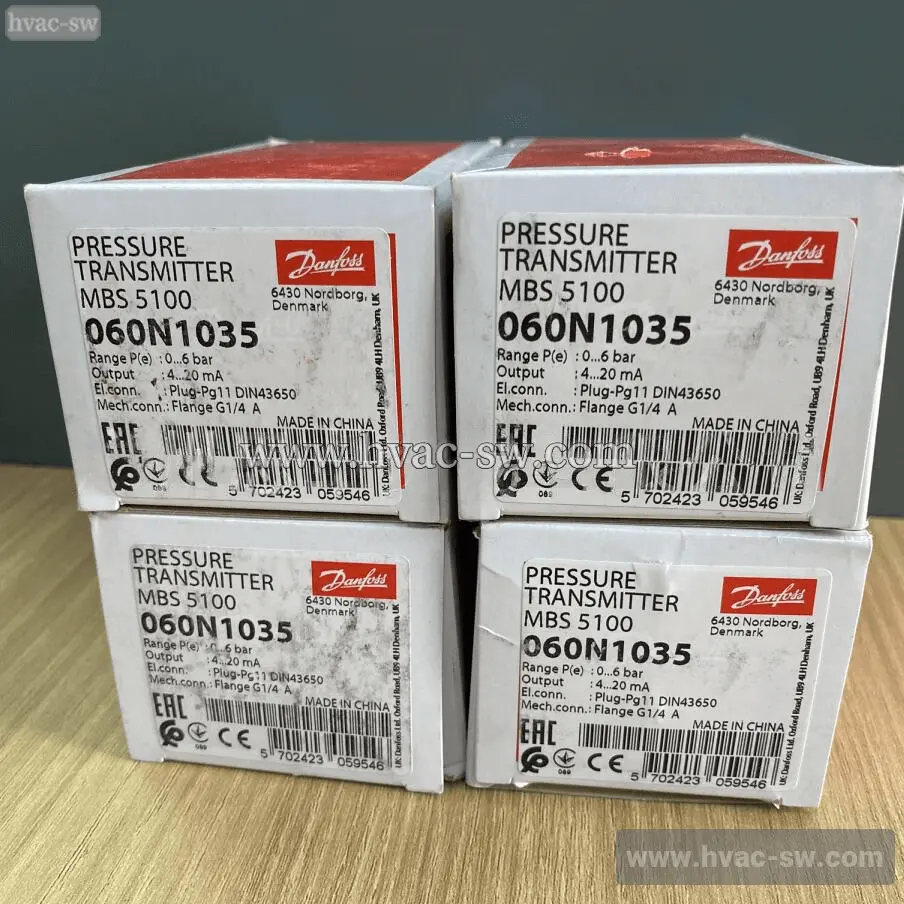

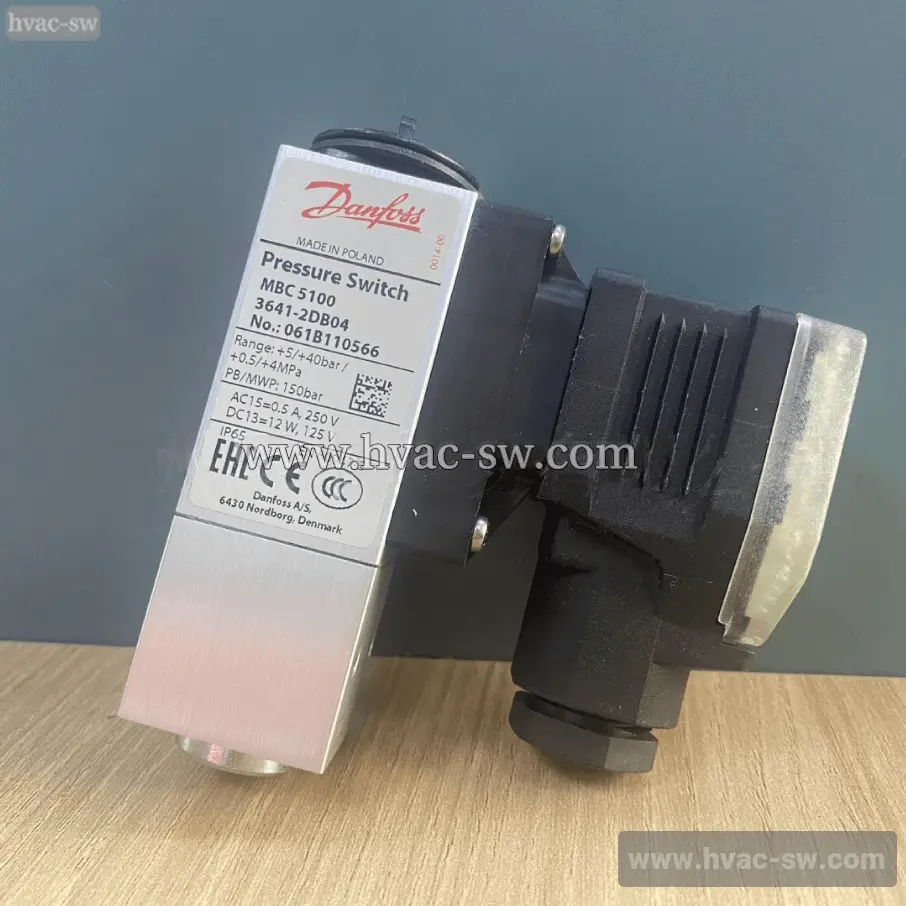

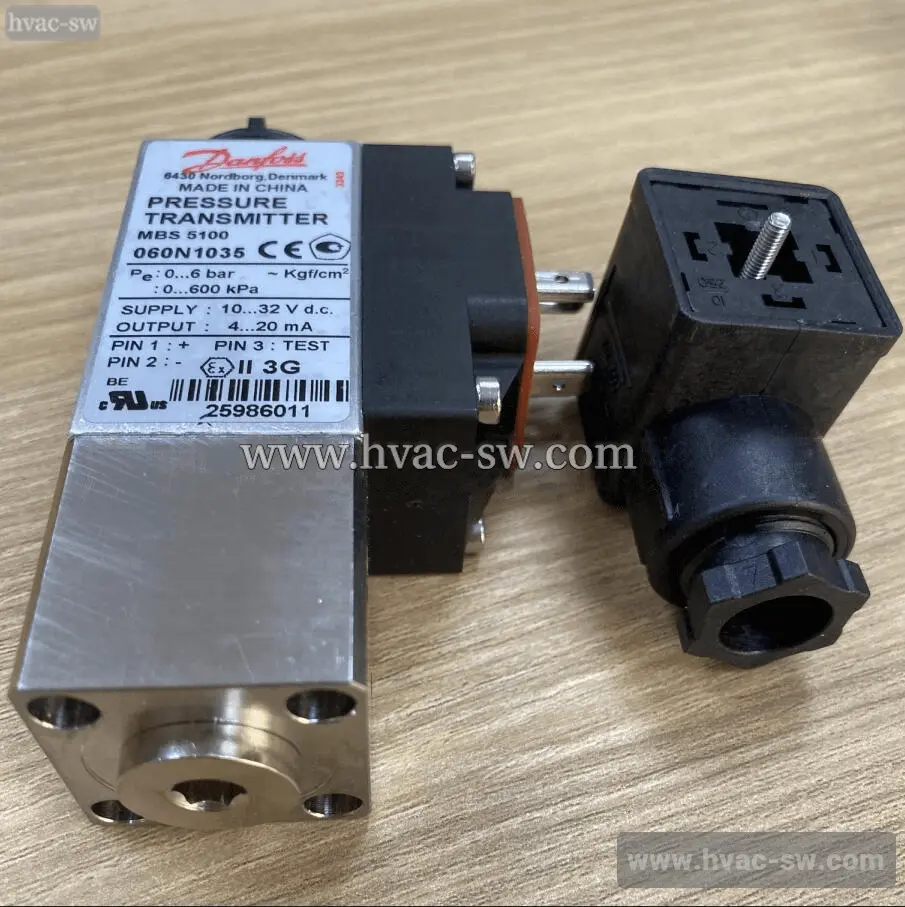

Danfoss MBS5100 and MBC5100 pressure transmitters offer precise, stable, and reliable pressure measurement for demanding industrial applications. Variants include 060N1035, 060N1036, and 060N1039, ensuring durability and accuracy for system monitoring and control.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Specification | Working Pressure (Mpa) | Working Temperature (°C) | Repeat Accuracy |
|---|---|---|---|
| MBS5100 060N1032 060N1033 060N1034 060N1035 | 2 | -15~70 | ±0.01 |
| MBS5100 060N1036 060N1037 060N1038 060N1039 | 3 | -40-85 | ±0.01 |
| MBS 5100 060N1040 060N1041 | 4 | -40-85 | ±0.01 |
| 060G1034 060G0005 060G0008 | 5 | -40-85 | ±0.01 |
| Attribute | Value |
|---|---|
| Gross weight | 0.4 Kilogram |
| Net weight | 0.332 Kilogram |
| Volume | 0.647 Liter |
| EAN | 5702423059546 |
| Type | MBS 5100 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.3 % |
| Accuracy, typical [±FS%] | 0.1 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CEC UL US UL Recognized |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| International Article Number | 5702423059546 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 20 bar |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 6 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 87 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | MBS 5100-1811-A6DB04-4 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Test Signal | PIN 3 |
| UL evaluated | Yes |
