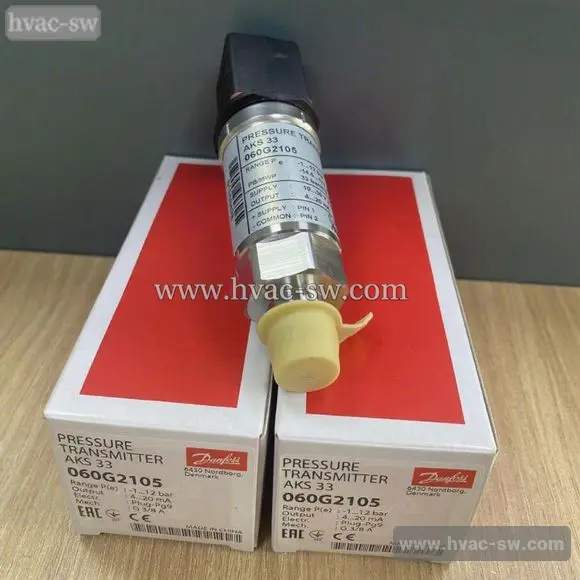

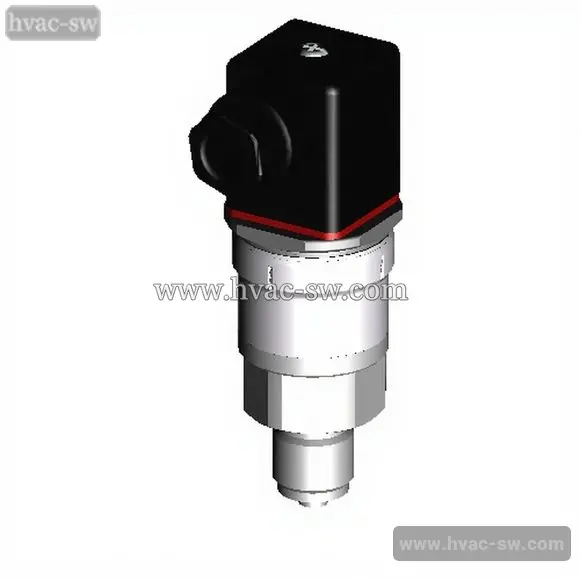

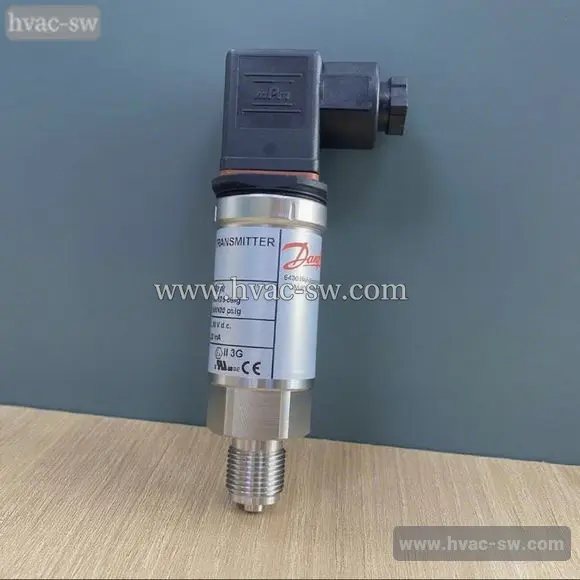

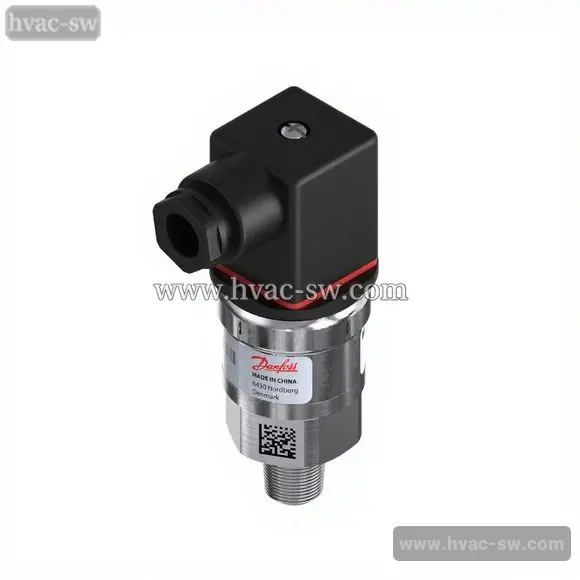

Danfoss 060G2105 AKS33 Pressure Sensor Industrial
Danfoss 060G2105 AKS33 Pressure Sensor is a high-reliability device designed for precise pressure measurement in HVAC, refrigeration, and industrial automation. It ensures accurate readings, stable performance, and seamless integration with different systems.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Valve Body Material | Connection Type |
|---|---|---|---|---|
| 068Z3400 TS2 | DN12 | 28 | Copper | Threaded |
| NO.0X-NO.06 Valve Core | DN16 | 28 | Copper | External Threaded |
| Attribute | Value |
|---|---|
| Gross weight | 0.19 Kilogram |
| Net weight | 0.168 Kilogram |
| Volume | 0.411 Liter |
| EAN | 5702422065838 |
| Type | AKS 33 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.8 % |
| Accuracy, typical [±FS%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEXGOST POCCCEC UL US UL Recognized |
| Approval comments | ATEX Ex ec IIA t4 Gc |
| Approval standard | 6967179E227388E31024 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 40 °C |
| Compensated temp. range [°C] [min] | -30 °C |
| Compensated temp. range [°F] [max] | 104 °F |
