Danfoss 067B2709 - No.06 Size Expansion Valve Orifice Assembly for TE 12 Thermostatic Expansion Valve R22 R134a R404A
The Danfoss 067B2709 Orifice Assembly represents a critical throttling component in thermostatic expansion valve systems, specifically engineered for the TE 12 series expansion valves. This precision-manufactured orifice delivers exceptional flow control accuracy, ensuring optimal refrigerant metering across diverse cooling applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
Danfoss Expansion Valve Orifice Assembly 067B2709 - Technical Specifications and Applications
Product Introduction
The Danfoss 067B2709 Orifice Assembly serves as the heart of thermostatic expansion valve functionality, providing precise refrigerant flow control in commercial and industrial cooling systems. As an original equipment manufacturer component designed exclusively for the TE 12 series expansion valves, this orifice assembly ensures optimal thermal performance and system reliability.
Design and Construction

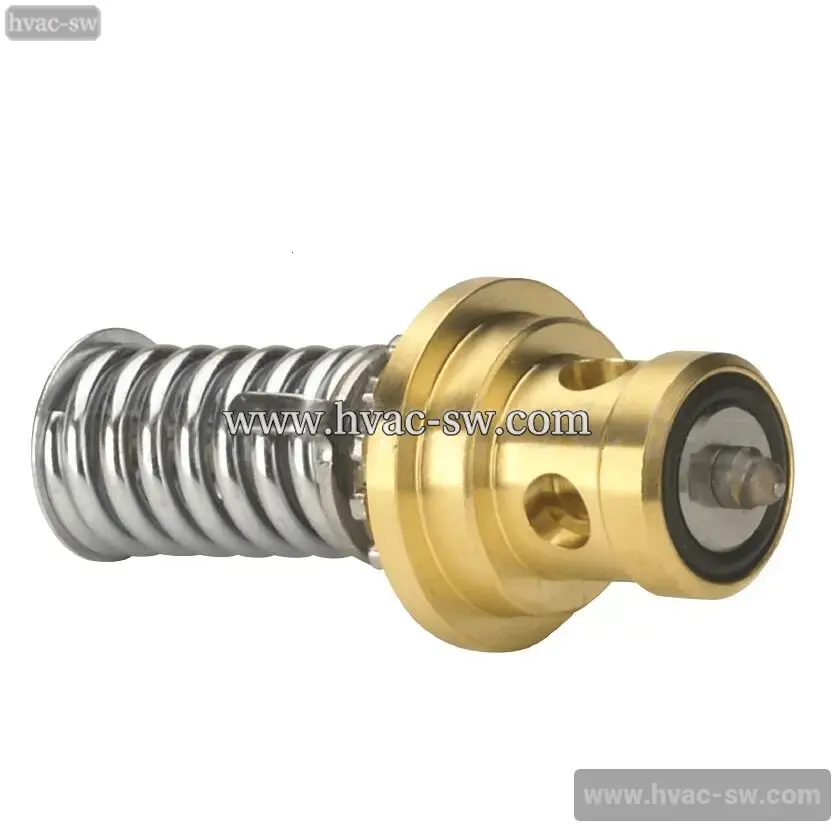

The orifice assembly features precision-machined brass or stainless steel construction, selected for excellent resistance to corrosion and mechanical wear under high-pressure refrigeration conditions. The integrated filter screen captures particulate matter and moisture, protecting sensitive system components from contamination damage.

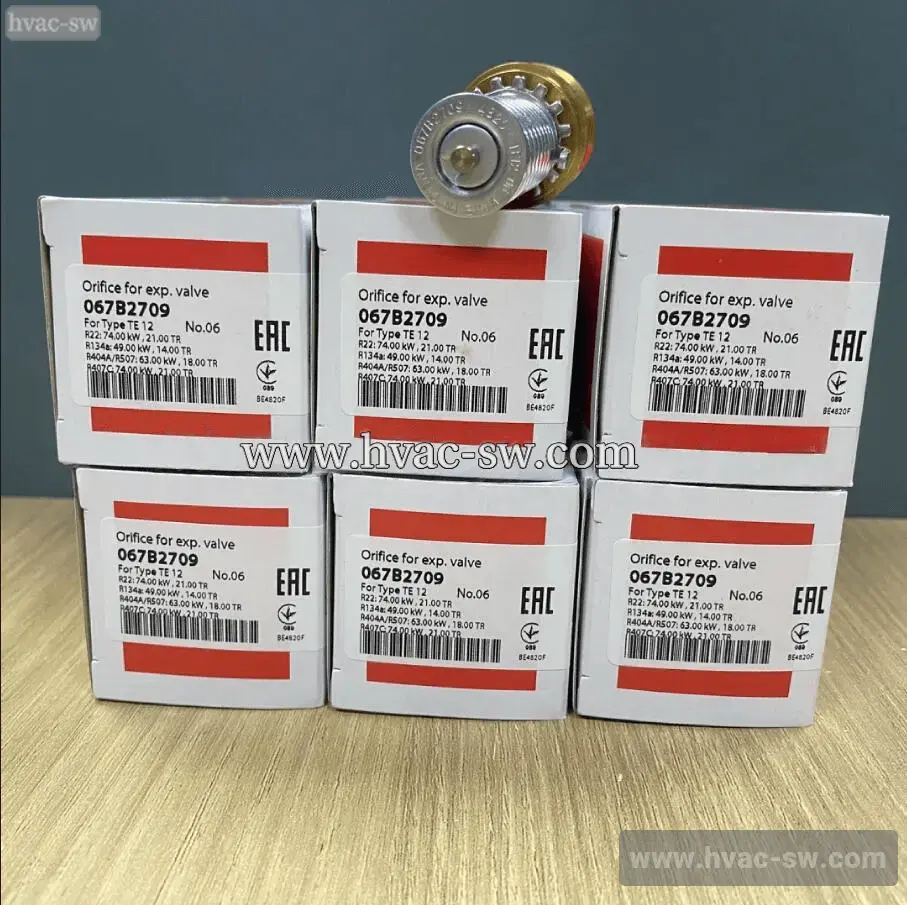

The threaded mounting configuration enables straightforward installation and replacement during maintenance procedures. Each orifice is individually marked with the order number "067B2709" and size designation "No.06" on the top surface, facilitating easy identification during inventory management and service operations.
Performance Specifications
The No.06 orifice delivers substantial cooling capacity across the most widely used refrigerants in commercial refrigeration applications:
| Refrigerant | Capacity (kW) | Capacity (TR) |
|---|---|---|
| R22 | 74.00 | 21.00 |
| R134a | 49.00 | 14.00 |
| R404A/R507 | 63.00 | 18.00 |
| R407C | 74.00 | 21.00 |
These capacity ratings enable system designers to specify appropriate orifice sizes for specific load requirements, ensuring optimal superheat control and system efficiency across varying operating conditions.
Certifications and Compliance
The orifice assembly carries EAC (Eurasian Conformity) and UA (Ukrainian) certification marks, demonstrating compliance with relevant technical regulations for European and Eurasian markets. These certifications verify that the product meets essential safety, performance, and environmental requirements established by international regulatory bodies.
Application Areas
This orifice assembly is ideally suited for integration into:
- Commercial refrigeration display cases and storage units
- Industrial cold storage and freezer facilities
- Air conditioning systems for commercial buildings
- Process cooling equipment for manufacturing facilities
- Chiller systems and central plant installations
- Transport refrigeration units
The compatibility with Danfoss TE 12 thermostatic expansion valves ensures seamless system integration and reliable performance throughout the product lifecycle.
