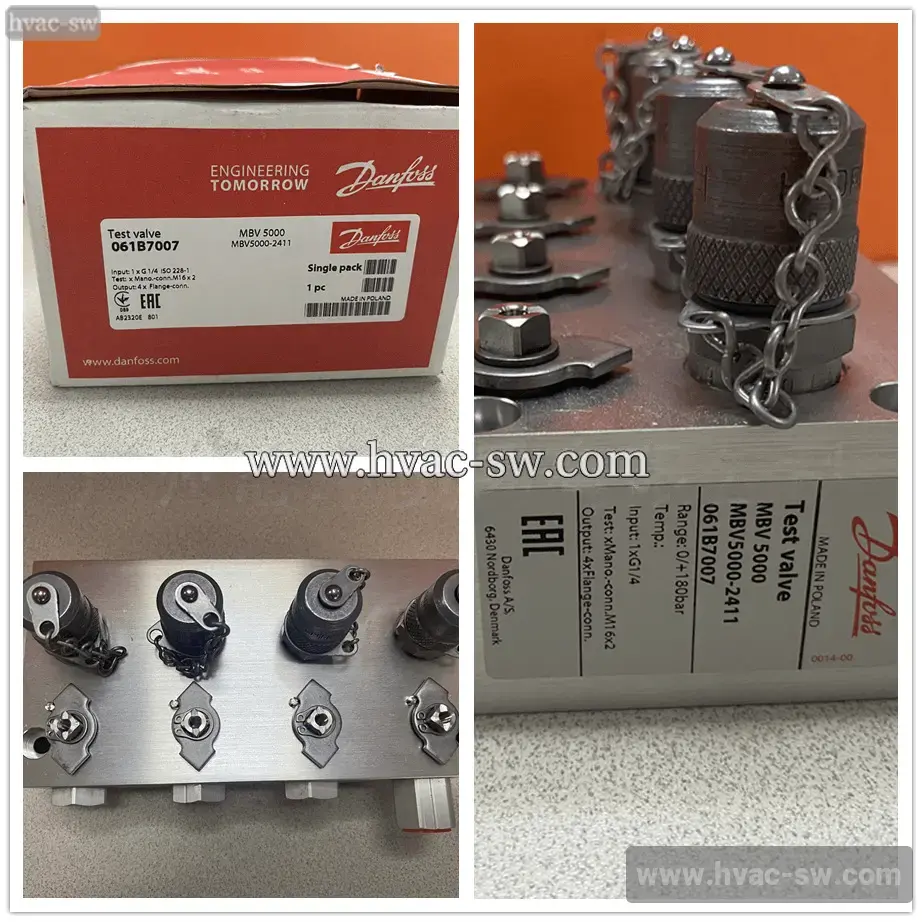

Danfoss MBV5000-2411 061B7007 Multi-Channel Test Valve, 0-180 bar, 4 Flange Connections, Made in PolandDescription
The Danfoss MBV5000-2411 (SKU PCN PN: 061B7007) is a multi-channel test valve designed for pressure monitoring and debugging in industrial refrigeration and hydraulic systems. With a working pressure range of 0-180 bar, it features 1×G1/4 input and 4×flange output connections, allowing simultaneous connection of multiple pressure gauges or sensors. Manufactured in Poland and EAC certified, this integrated valve simplifies system pressure testing, reduces leak points, and facilitates maintenance and troubleshooting in HVAC&R, ammonia refrigeration, and industrial fluid applications.
Product Details

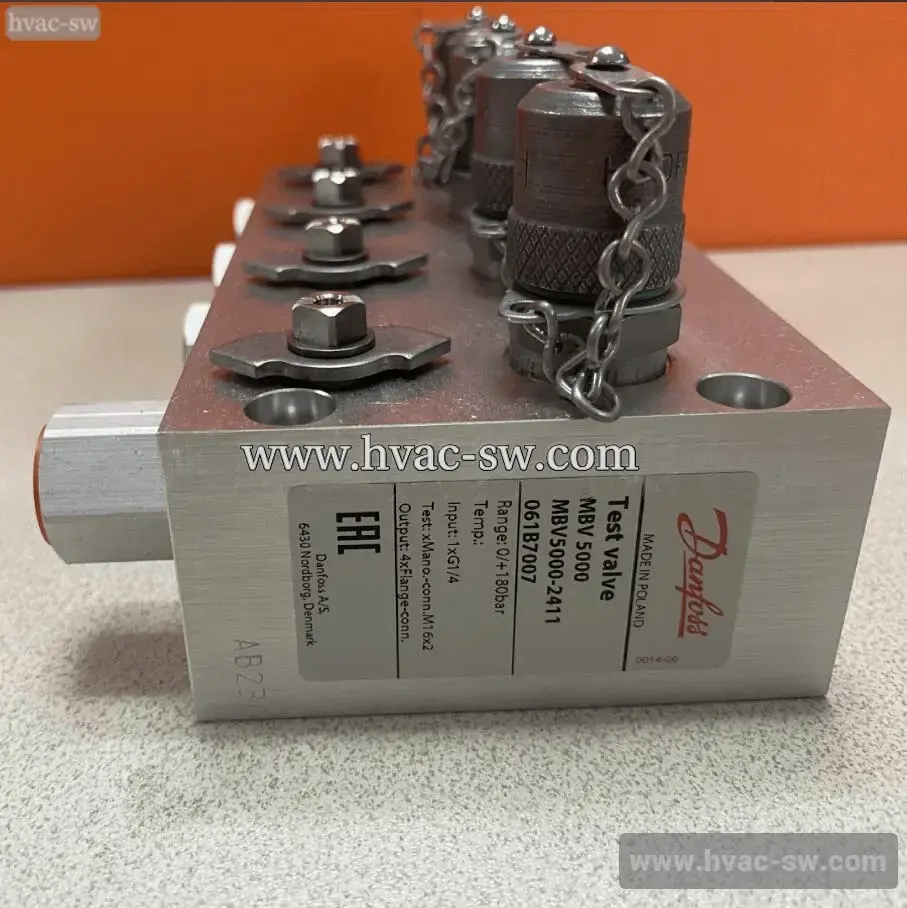

Danfoss MBV5000-2411 (061B7007) Multi-Channel Test Valve
Key Features & Benefits
Multi-Channel Design: Features 1×G1/4 input connection and 4×flange output connections, allowing simultaneous monitoring of multiple pressure points with a single valve assembly.
Wide Pressure Rating: Rated for a working pressure range of 0-180 bar, suitable for high-pressure industrial refrigeration and hydraulic applications.
Robust Construction: Machined from high-quality aluminum alloy, ensuring durability, corrosion resistance, and leak-free performance in harsh industrial environments.
Protected Test Connections: Each test port is equipped with a chain-protected cap, preventing contamination and accidental damage to the connection points.
EAC Certified: Manufactured in Poland to Danfoss' strict quality standards, ensuring compliance with international safety and performance norms.
Leak Reduction: Integrated manifold design minimizes the number of pipe connections, reducing potential leak points and improving system reliability.
Application Scenarios
Industrial refrigeration systems and ammonia plants
Hydraulic power units and process control systems
HVAC&R system commissioning and maintenance
Compressor stations and cold storage facilities
Pressure monitoring and troubleshooting projects
| Parameter | Specification |
|---|---|
| Brand | Danfoss |
| Series | MBV 5000 |
| Model Number | MBV5000-2411 |
| Part Number | 061B7007 |
| Product Type | Multi-Channel Pressure Test Valve |
| Working Pressure Range | 0 – 180 bar |
| Working Temperature Range | -40℃ ~ +80℃ |
| Input Connection | 1 × G1/4 |
| Output Connections | 4 × Flange Connection (M16×2) |
| Body Material | Aluminum Alloy |
| Certifications | EAC Certified |
| Origin | Made in Poland |
| Application | Industrial Refrigeration, Ammonia Systems, Hydraulic Systems, HVAC&R Pressure Monitoring |
