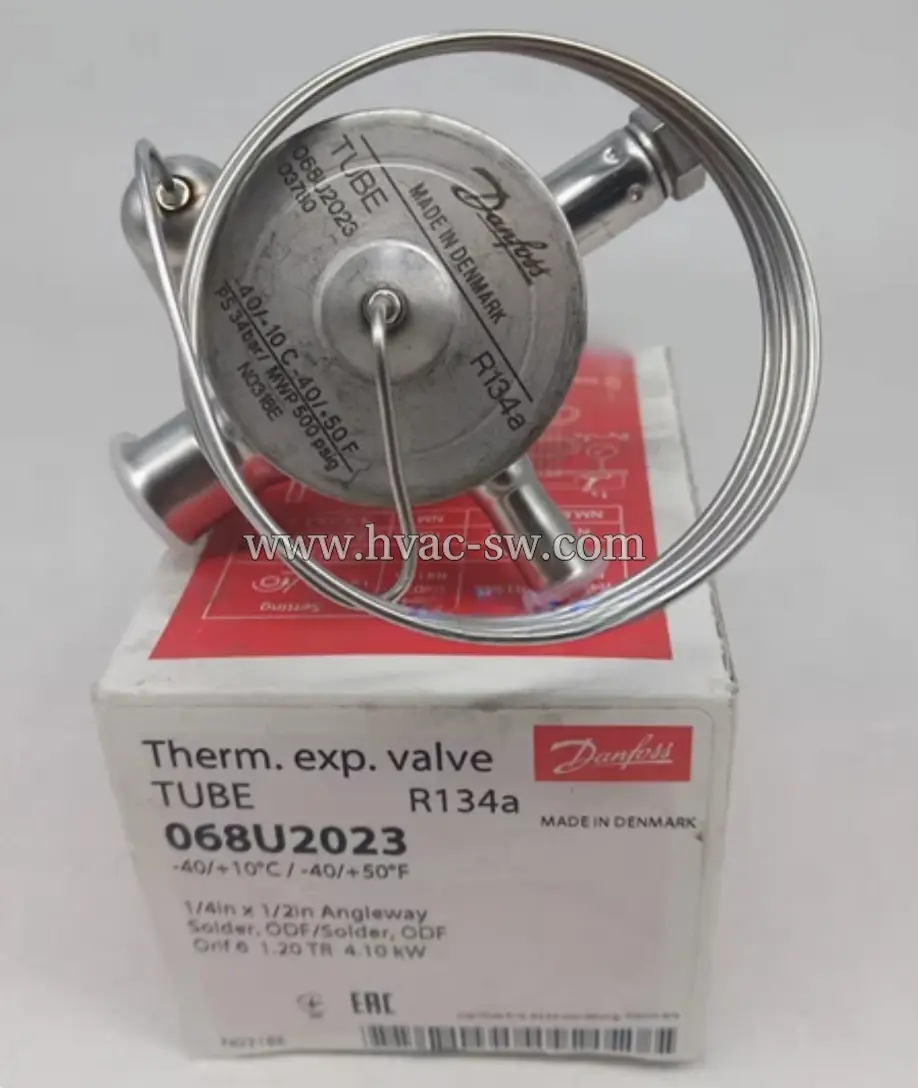

Danfoss TUBE 068U2023 Thermostatic Expansion Valve 1.2TR R134a Angleway 1/4"×1/2" ODF
The Danfoss 068U2023 is a TUBE series thermostatic expansion valve designed for R134a refrigerant systems. With a rated capacity of 1.20 TR (4.10 kW), this angleway valve features 1/4" x 1/2" ODF solder connections and operates within an evaporating temperature range of -40℃ to +10℃. Made in Denmark and EAC certified, it provides precise refrigerant flow control to ensure optimal heat exchange, prevent liquid slugging.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview

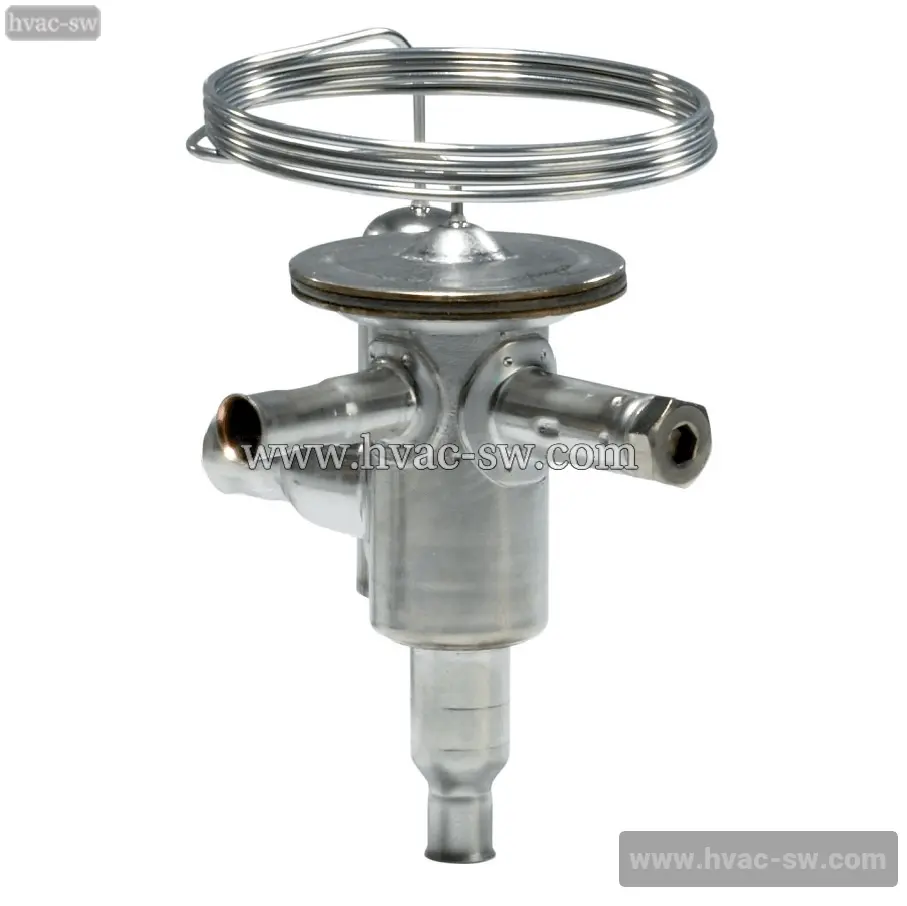

Danfoss TUBE 068U2023 Thermostatic Expansion Valve
Key Features & Benefits
Precise Capacity Matching: Rated for 1.20 TR (4.10 kW), making it ideal for small to medium R134a refrigeration systems.
Wide Operating Range: Designed for evaporating temperatures from -40℃ to +10℃, suitable for both medium and low-temperature applications.
Angleway Design: 1/4" x 1/2" ODF solder connections allow flexible installation in tight spaces, simplifying piping design.
Reliable Control Mechanism: Features a capillary tube and remote sensing bulb for accurate superheat control, ensuring stable system operation under varying load conditions.
Premium Construction: Manufactured in Denmark with high-quality materials, ensuring durability, corrosion resistance, and long service life in harsh refrigeration environments.
Certified Quality: EAC certified, meeting international safety and performance standards for refrigeration components.
Application Scenarios
Commercial air conditioning and split systems
Water chillers and heat pump units
Cold storage warehouses and walk-in coolers
Industrial refrigeration and process cooling systems
R134a-based refrigeration equipment retrofits and new installations
| Parameter | Specification |
|---|---|
| Brand | Danfoss |
| Series | TUBE |
| Model Number | 068U2023 |
| Product Type | Thermostatic Expansion Valve (TXV) |
| Compatible Refrigerant | R134a |
| Rated Capacity | 1.20 TR (4.10 kW) |
| Connection Type | Angleway, ODF Solder |
| Inlet Connection Size | 1/4 in |
| Outlet Connection Size | 1/2 in |
| Evaporating Temperature Range | -40℃ ~ +10℃ (-40℉ ~ +50℉) |
| Max Working Pressure (MWP) | 34 bar (500 psig) |
| Certifications | EAC Certified |
| Origin | Made in Denmark |
| Application | HVAC&R Systems, Chillers, Cold Storage, Heat Pumps, R134a Refrigeration Equipment |
| Attribute | Value |
|---|---|
| Grossweight | 0.16Kilogram |
| Netweight | 0.149Kilogram |
| Volume | 0.402Liter |
| EAN | 5702422140634 |
| Type | TUBE |
| Productgroup | Expansionvalves |
| ProductNameDescription | Thermostaticexpansionvalve |
| Approval | EACLLCCDCTYSKUL |
| Bodymaterial | Stainlesssteel |
| Capillarytubelength[in] | 31in |
| Capillarytubelength[mm] | 800mm |
| ChinaRoHScompliance | Outofscope |
| Connectionmaterial | Bi-metal:Steel/copper |
| Containsbatteries | No |
| Direction | Angleway |
| Equalizationconnectiontype | Solder,ODF |
| Equalizationsize[in] | 1/4in |
| EURoHScompliance | Yeswithexemptions |
| EURoHSexemptionclause | 6(a)6(c) |
| Flowdirection | Bi-flow |
| Flowdirectionindicator | Laserengraved1-wayarrow |
| FluidGroup | 2 |
| Inletconnectiontype | Solder,ODF |
| Inletsize[in] | 1/4in |
| Max.WorkingPressure[bar] | 34bar |
| Max.WorkingPressure[psig] | 500psig |
| Orificecapacities[kW] | 0.7kW |
| Orificecapacities[TR] | 0.19TR |
| Orificesize | 1 |
| Outletconnectiontype | Solder,ODF |
| Outletsize[in] | 1/2in |
| Packingformat | Multipack |
| Partsincluded | Bulbstrap |
| PEDcategory | Art.4,par.3 |
| Pressureequalization | Externallyequalized |
| Productaccessories | TXVaccessories |
| Quantityperpackingformat | 24pc |
| REACHCandidateListsubstances | Lead(CASno.7439-92-1) |
| Refrigerants | R404A/R507A |
| SCIPdossierno. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIPdossierproductname | TU/TC-Thermostaticexpansionvalve |
| Seal | No |
| Serviceable | No |
| StaticSuperheat(SS)[°C] | 4°C |
| StaticSuperheat(SS)[°F] | 7.2°F |
| Superheatsetting | Adjustable |
| Temperaturerange[°C][max] | 10°C |
| Temperaturerange[°C][min] | -40°C |
| Temperaturerange[°F][max] | 50°F |
| Temperaturerange[°F][min] | -40°F |
| UAaddress | UA_2L.png |
| ULapprovedrefrigerants | R404AR507A |
| ULevaluated | Yes |
