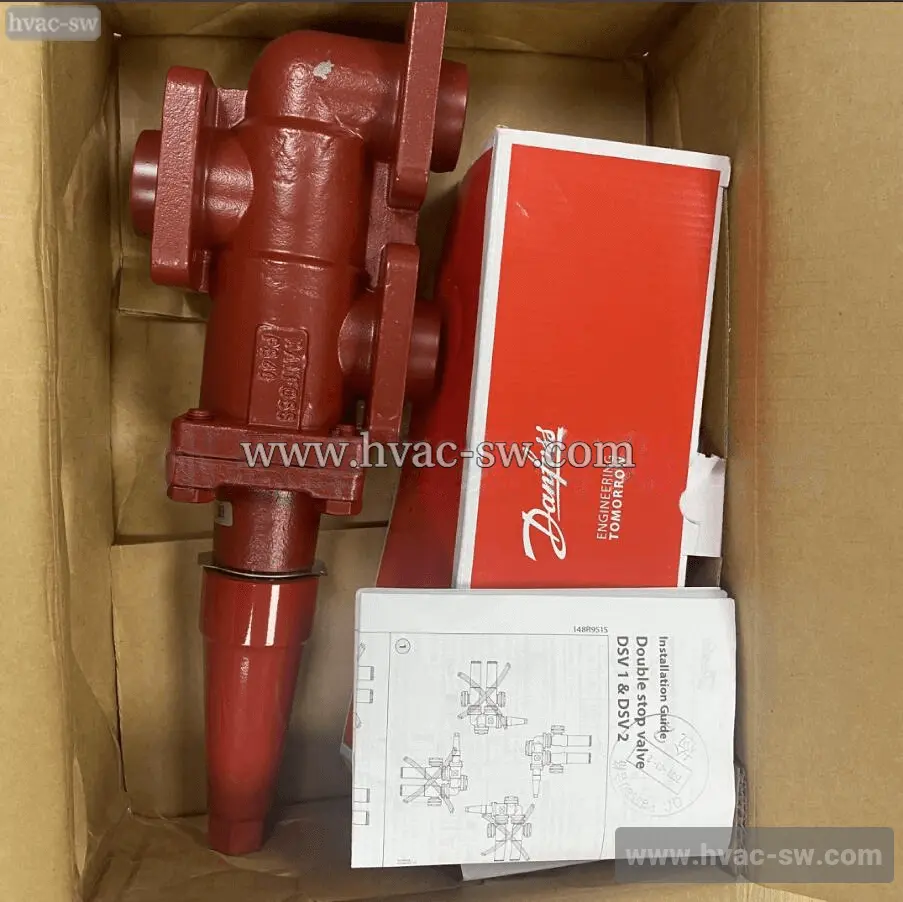

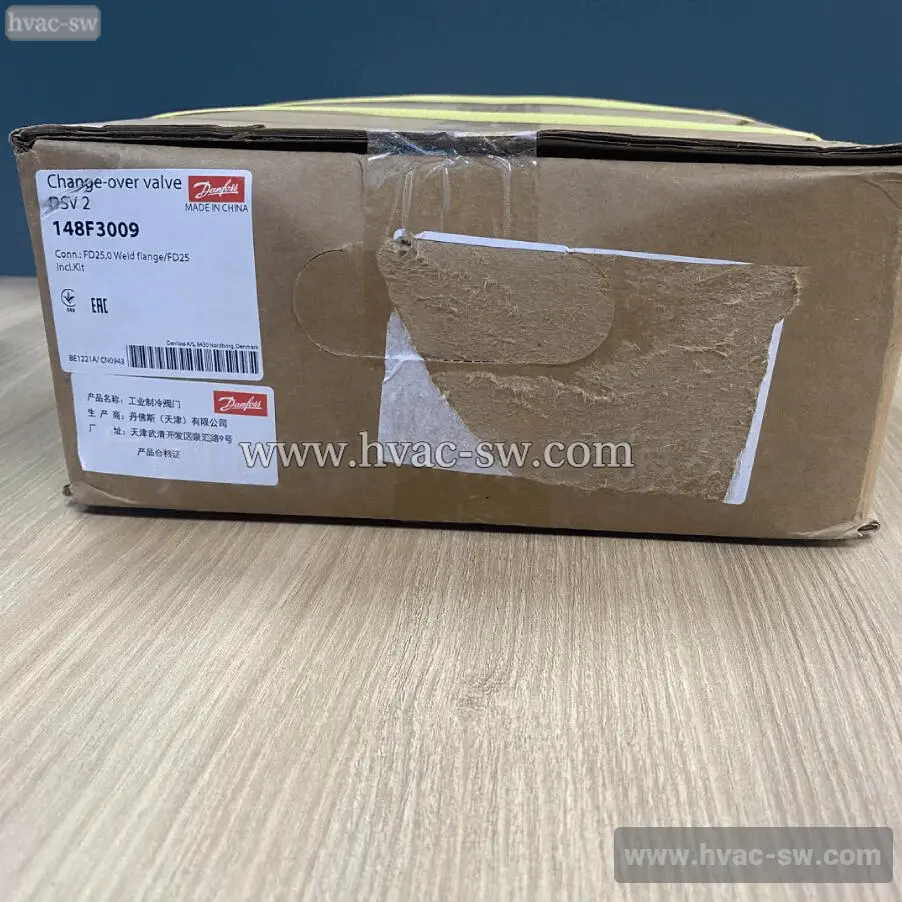

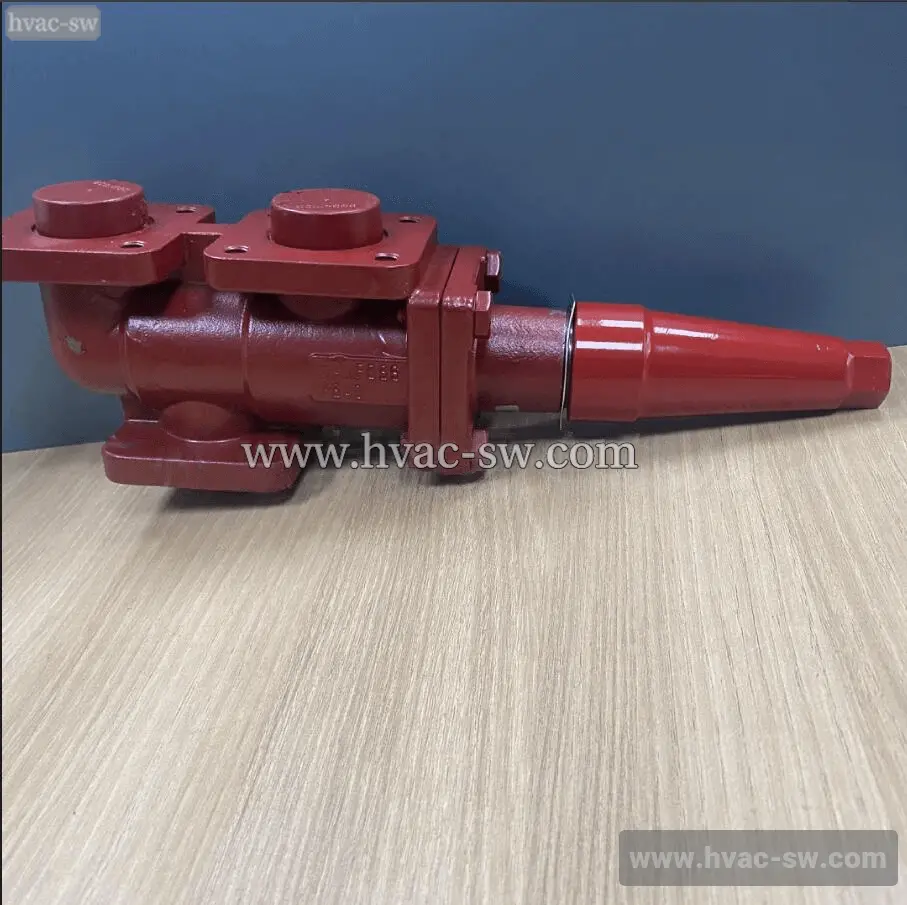

Danfoss 148F3009 DSV2 Double Seat Safety Valve
DANFOSS 148F3009 is a genuine DSV2 double seat safety valve seat designed for precise sealing and durability in refrigeration and HVAC systems. This OEM replacement part ensures reliable overpressure protection while maintaining original performance and safety standards.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 11.774 Kilogram |
| Type | DSV 2 |
| Approval | EACLLC CDC TYSKUKCA |
| Outlet connection type | G |
| Net weight | 5.9 Kilogram |
| Product group | Safety relief valves |
| CE evaluated | Yes |
| Outlet Internal/External | Internal |
| Volume | 12.784 Liter |
| Product Name Description | Change-over valve |
| China RoHS compliance | Out of scope |
| Packing format | Single pack |
| EAN | 5702428242509 |
| Colour Paint | Reddish brown |

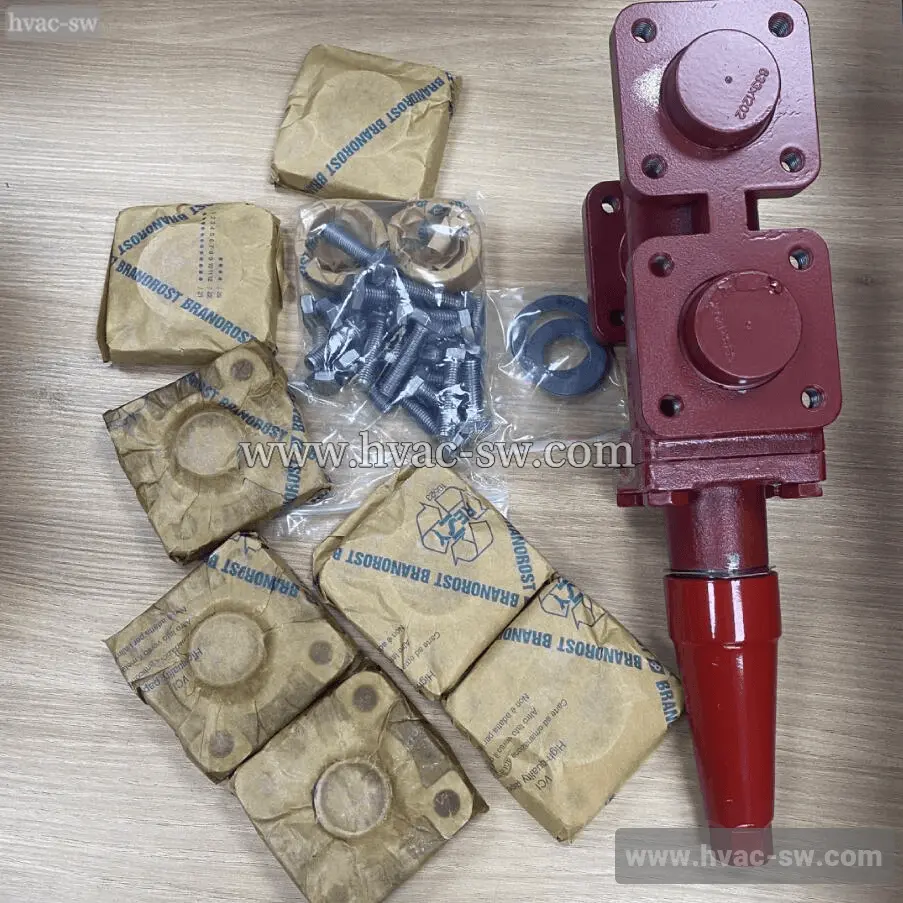

| Parts included | Incl.Kit |
| Connection standard | EN 10220ISO 228-1 |
| PED category | Art. 3, par. 3 |
| Contains batteries | No |
| Product description | Double stop valve |
| Cv value [gal/min] | 34.8 gal/min |
| Quantity per packing format | 1 pc |
| Direction | Threeway |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Equipment | Cap |
| Refrigerants | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516A |
| EU RoHS compliance | Yes with exemptions |

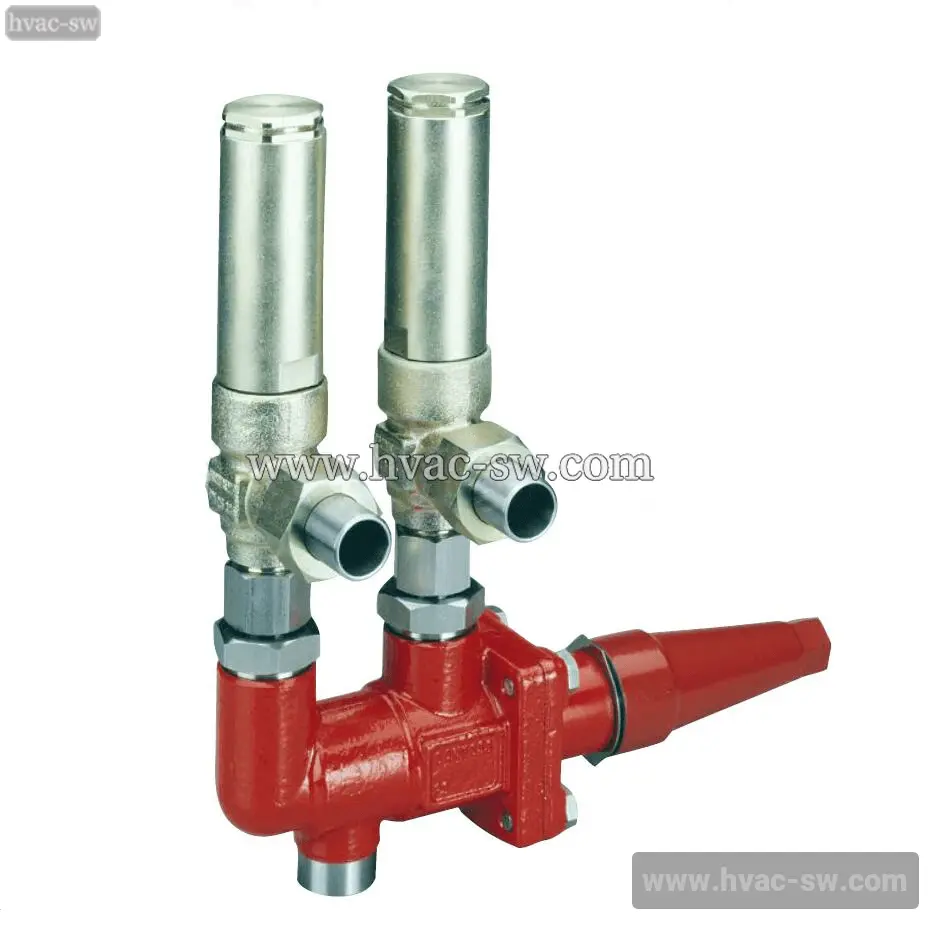

| Safety valve combination | 2 x SFV 20 |
| Fluid Group | 1 |
| Safety valve conn. size [in] | 1 in |
| Inlet connection size [in] | 1 in |
| Safety valve conn. size [mm] | 25 mm |
| Inlet connection size [mm] | 25 mm |
| Safety valve connection std | EN 10220 |
| Inlet connection type | Weld flange |
| Safety valve connection type | Weld flange |
| Kv value [m³/h] | 30 m³/h |
| Temperature range [°C] [max] | 100 °C |
| Max. Working Pressure [bar] | 40 bar |
| Temperature range [°C] [min] | -50 °C |
| Max. Working Pressure [psig] | 580 psig |
| Temperature range [°F] [max] | 212 °F |
| Outlet connection comments | Thread flange |
| Temperature range [°F] [min] | -58 °F |
| Outlet connection size [in] | 1 |
