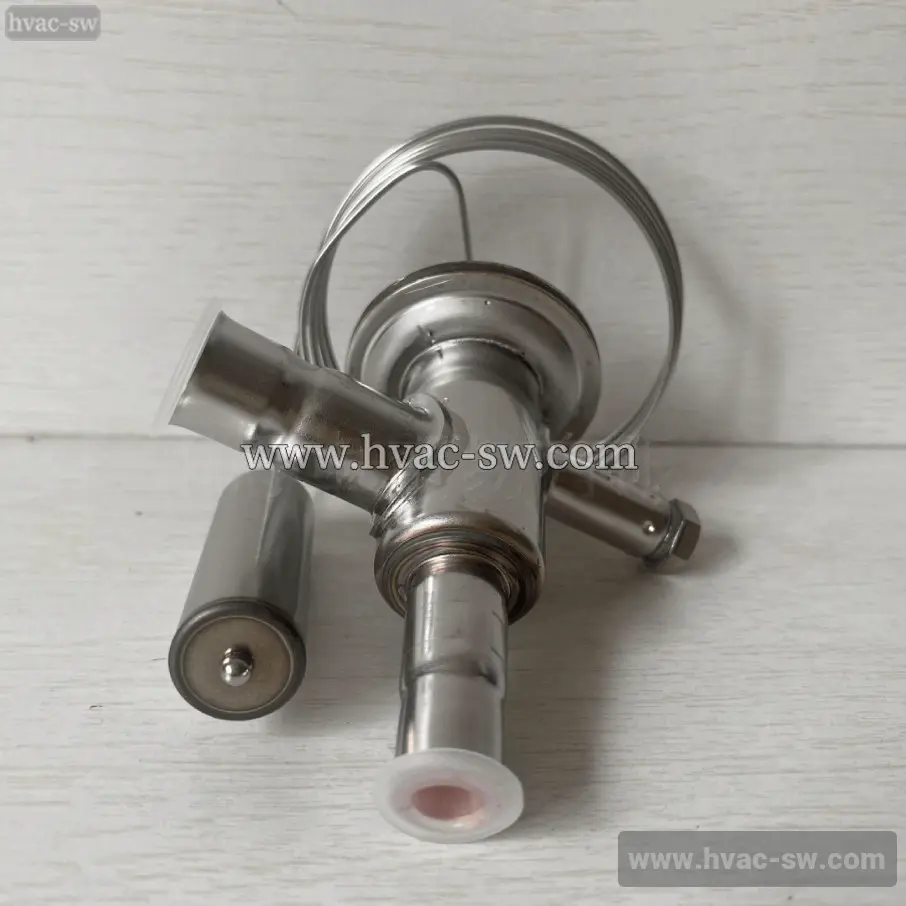

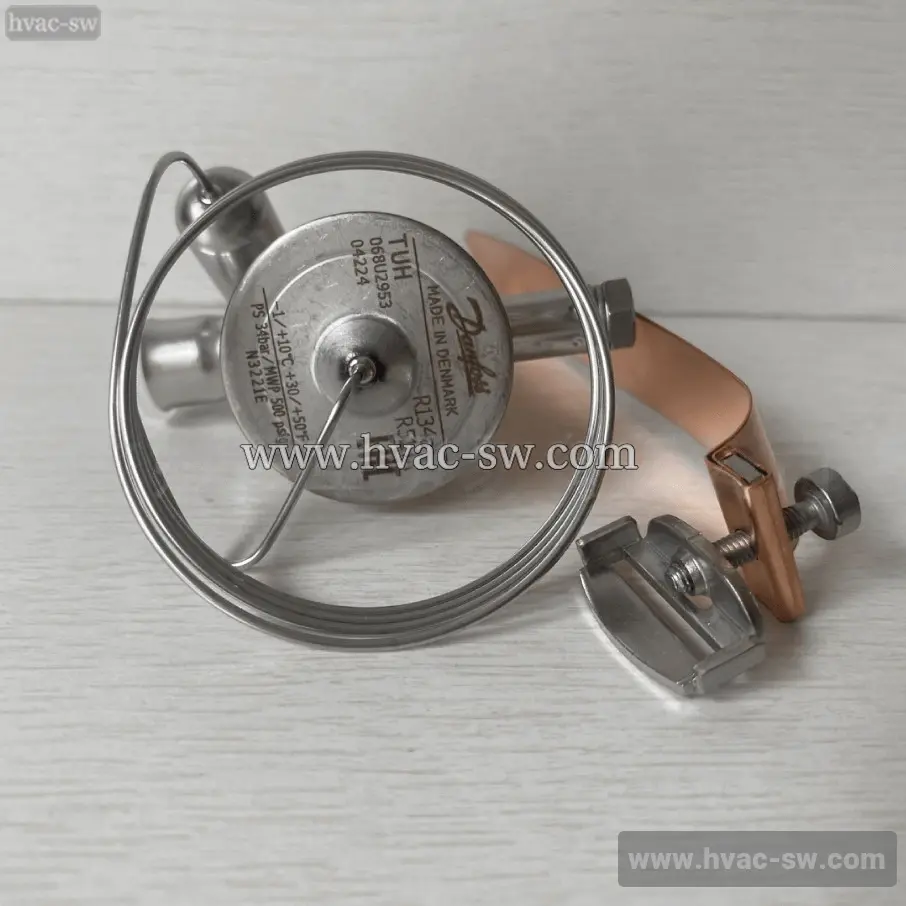

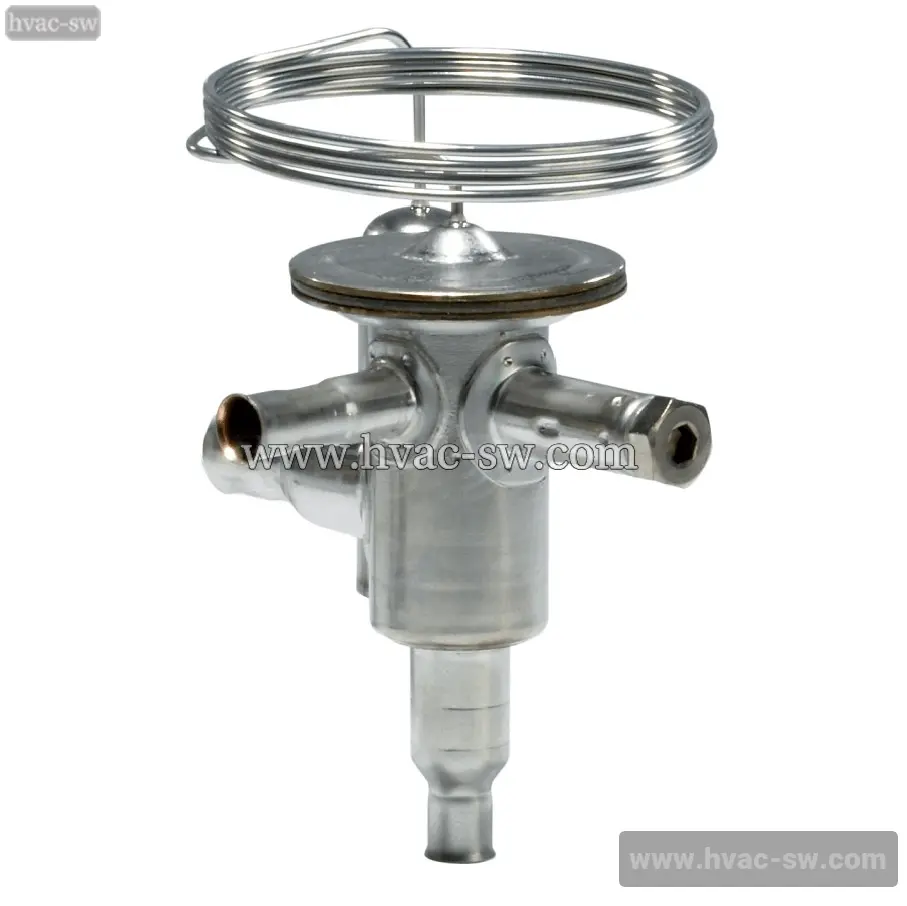

Danfoss 068U2026 High-Performance Expansion Valve
Danfoss 068U2026 Expansion Valve is crucial for refrigeration and air-conditioning systems. It ensures precise refrigerant flow control, leading to efficient heat exchange, stable operation, and optimal energy efficiency. Ideal for various cooling applications, this valve guarantees reliable performance and longevity.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Valve Body Material | Connection Type |
|---|---|---|---|---|
| PMFL80-5 027F3055 DN25 PMFH80-2 | DN25 | 4.2 | Cast Steel | Flange |
| EVM 027B1120 | DN12 | 42 | Cast Steel | Male Thread |
| Attribute | Value |
|---|---|
| Gross weight | 0.164 Kilogram |
| Net weight | 0.148 Kilogram |
| Volume | 0.402 Liter |
| EAN | 5702422138631 |
| Type | TUBE |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Approval | EACLLC CDC TYSKUL |
| Body material | Stainless steel |
| Capillary tube length [in] | 31 in |
| Capillary tube length [mm] | 800 mm |
| China RoHS compliance | Out of scope |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Angleway |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Orifice capacities [kW] | 12 kW |
| Orifice capacities [TR] | 3.5 TR |
| Orifice size | 9 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, p |
