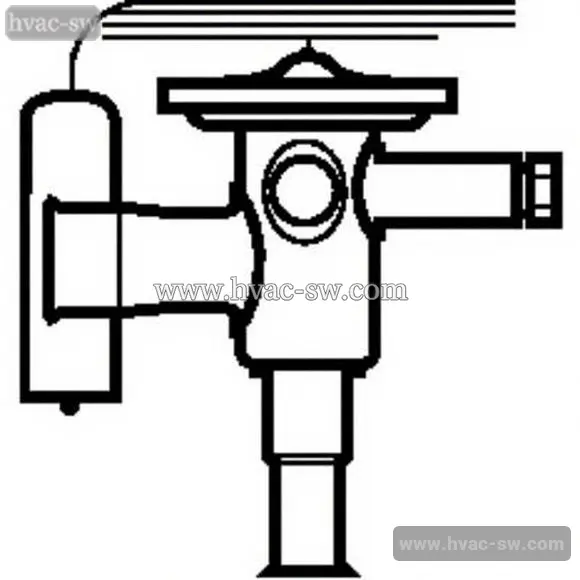

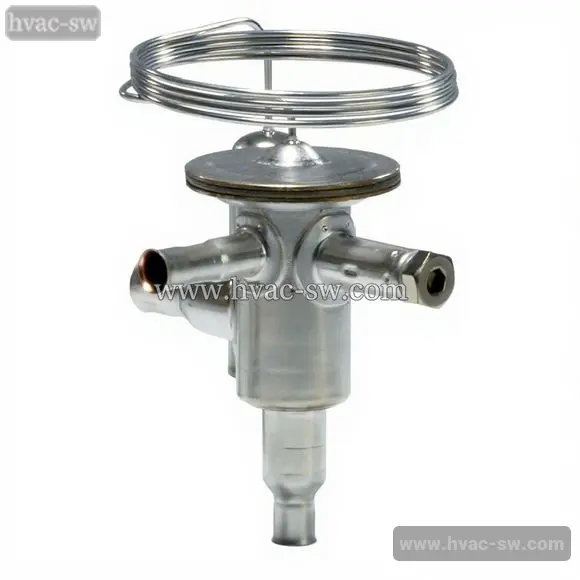

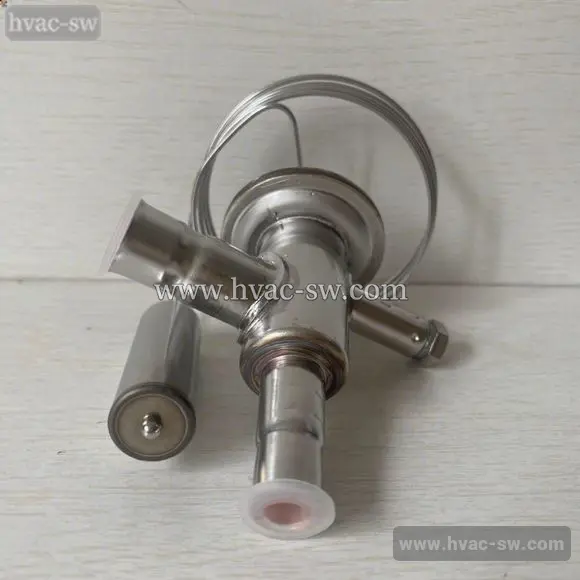

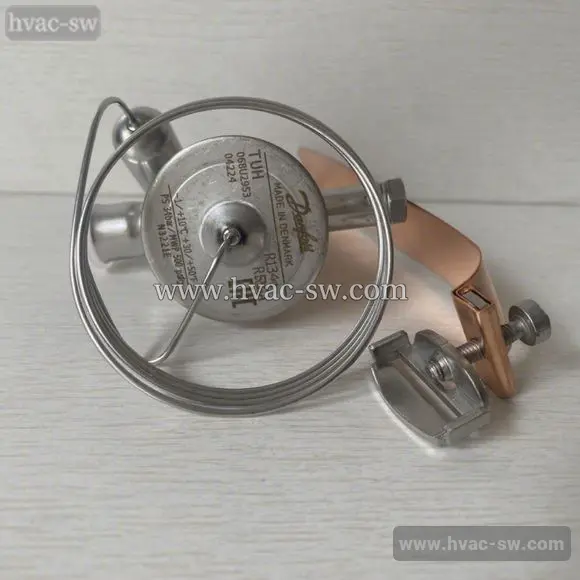

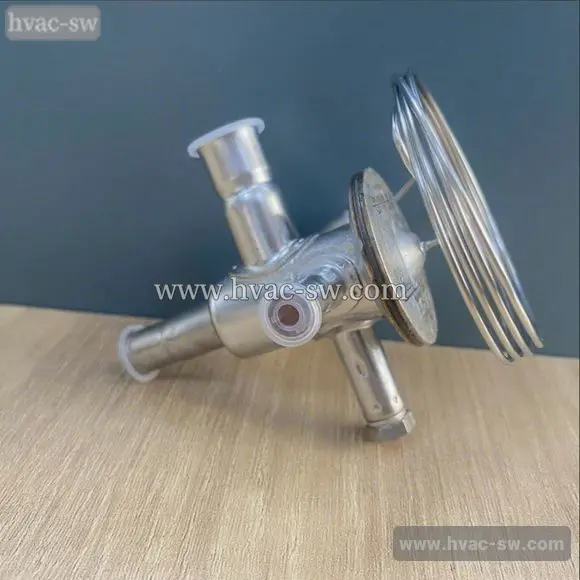

Danfoss 068U2110 Expansion Valve for HVAC Systems
Danfoss 068U2110 Expansion Valve optimizes refrigerant flow, ensuring stable cooling and energy efficiency in HVAC systems. Essential for maintaining optimal performance in industrial and commercial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Valve Body Material | Connection Type |
|---|---|---|---|---|
| PMFL80-5 027F3055 DN25 PMFH80-2 | DN25 | 4.2 | Cast Steel | Flange |
| EVM 027B1120 | DN12 | 42 | Cast Steel | Male Thread |
| Attribute | Value |
|---|---|
| Gross weight | 0.16 Kilogram |
| Net weight | 0.149 Kilogram |
| Volume | 0.402 Liter |
| EAN | 5702422140634 |
| Type | TUBE |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Approval | EACLLC CDC TYSKUL |
| Body material | Stainless steel |
| Capillary tube length [in] | 31 in |
| Capillary tube length [mm] | 800 mm |
| China RoHS compliance | Out of scope |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Angleway |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a)6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/4 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Orifice capacities [kW] | 0.7 kW |
| Orifice capacities [TR] | 0.19 TR |
| Orifice size | 1 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
