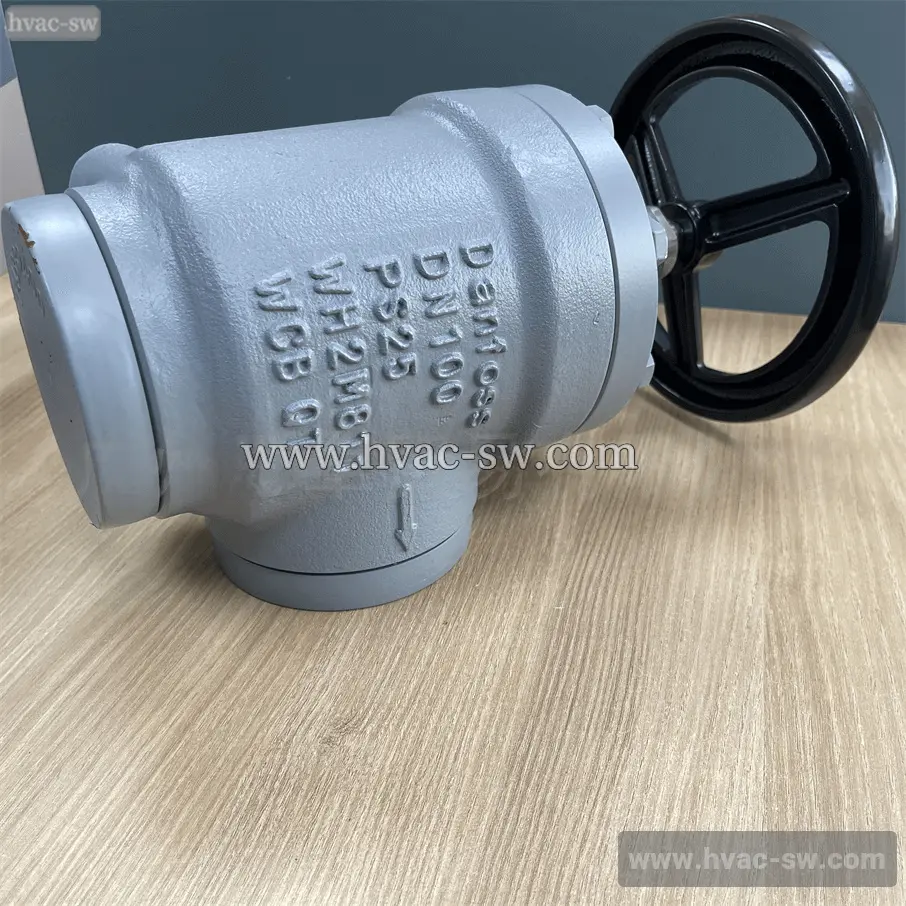

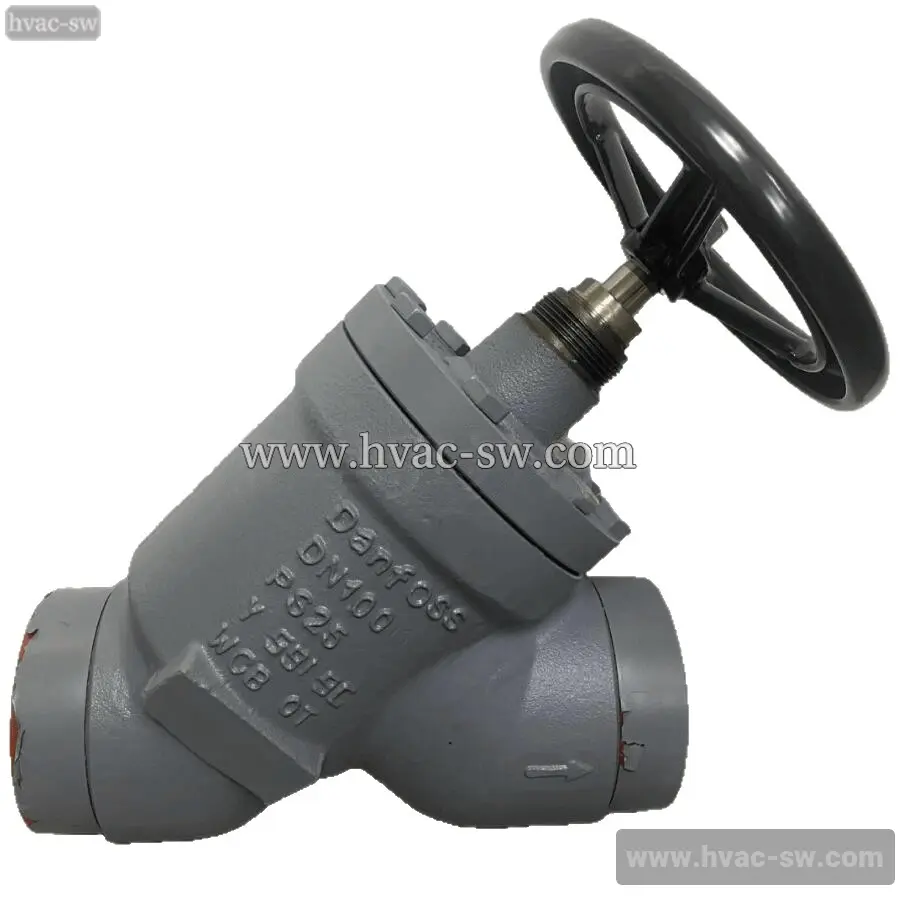

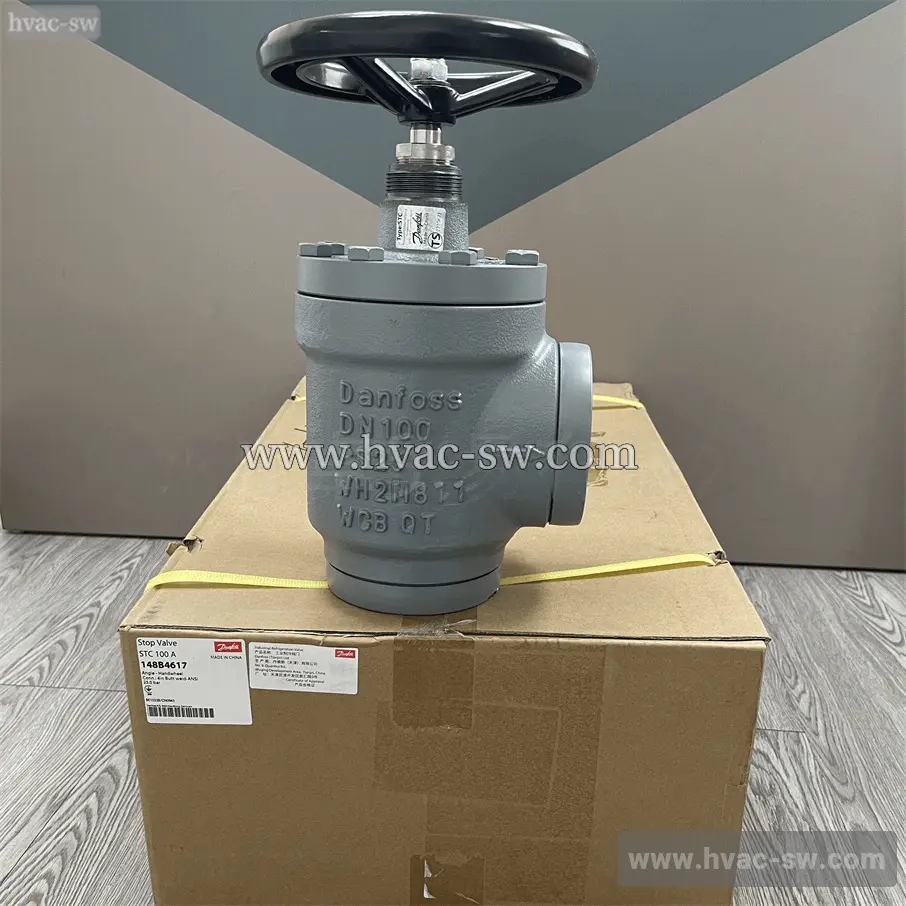

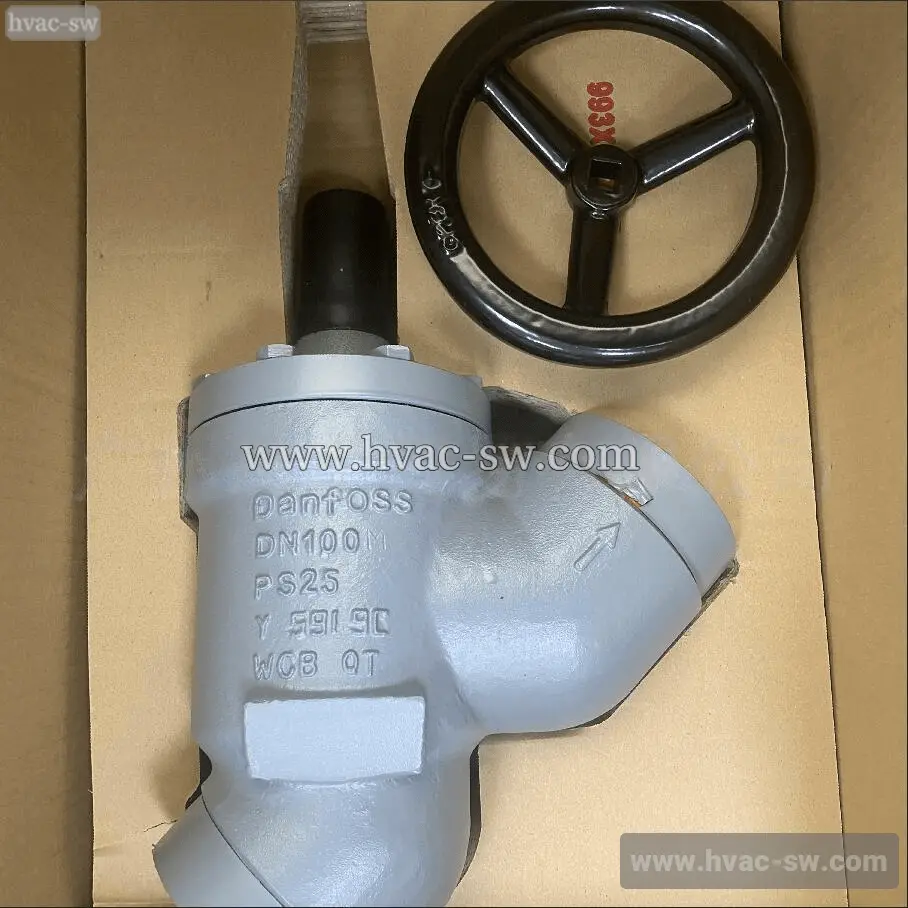

Danfoss 148B4617 148B4683 Globe Valve STC100 A M
Danfoss
Description
The STC100 is a globe valve from DANFOSS, designed for precise flow control in industrial applications. Key features include models 148B4617 and 148B4683, a DN100 flange connection, and pressure ratings of PS25 and PS40. It is engineered for reliable shut-off and durable performance in various systems.
Product Details
| Attribute | Value |
|---|---|
| Gross weight | 19.508 Kilogram |
| Net weight | 14.8 Kilogram |
| Volume | 56.025 Liter |
| EAN | 5702428884051 |
| Type | STC 100 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| China RoHS compliance | Out of scope |
| Colour Paint | Gray |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Direction | Angleway |
| Equipment | Handwheel |
| EU RoHS compliance | Out of scope |
| Inlet connection size [in] | 4 in |
| Inlet connection size [mm] | 100 mm |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 365 psig |
| Outlet connection size [in] | 4 in |
| Outlet connection size [mm] | 100 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR717R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
