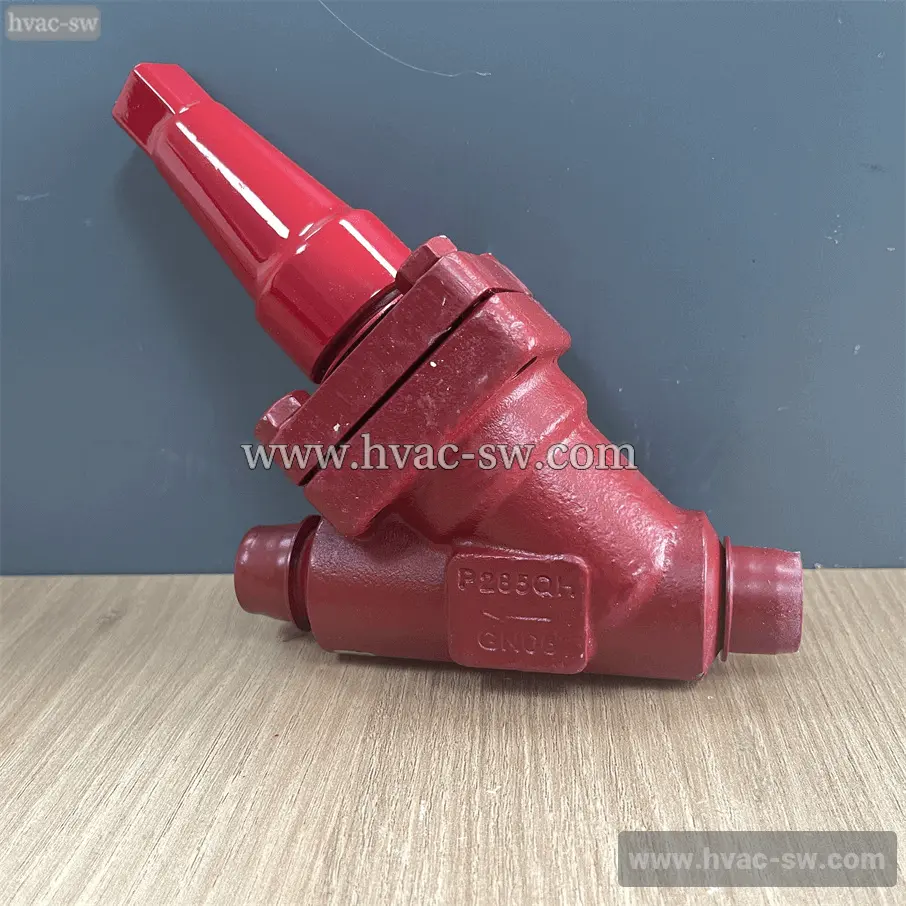

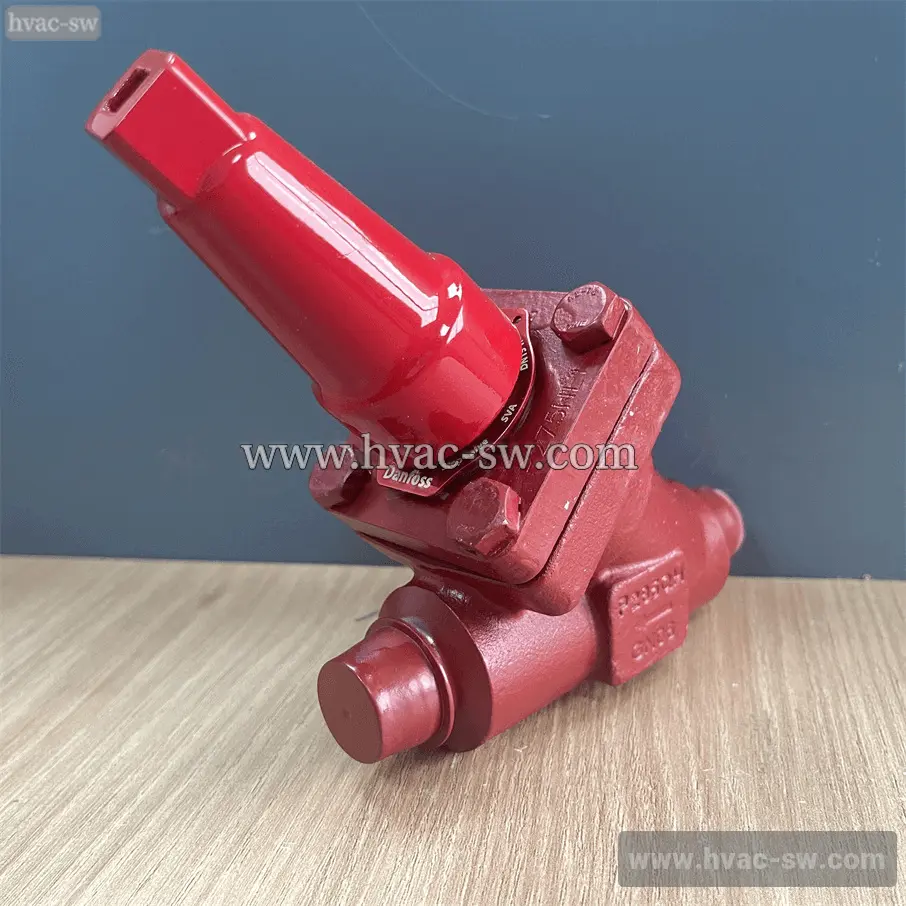

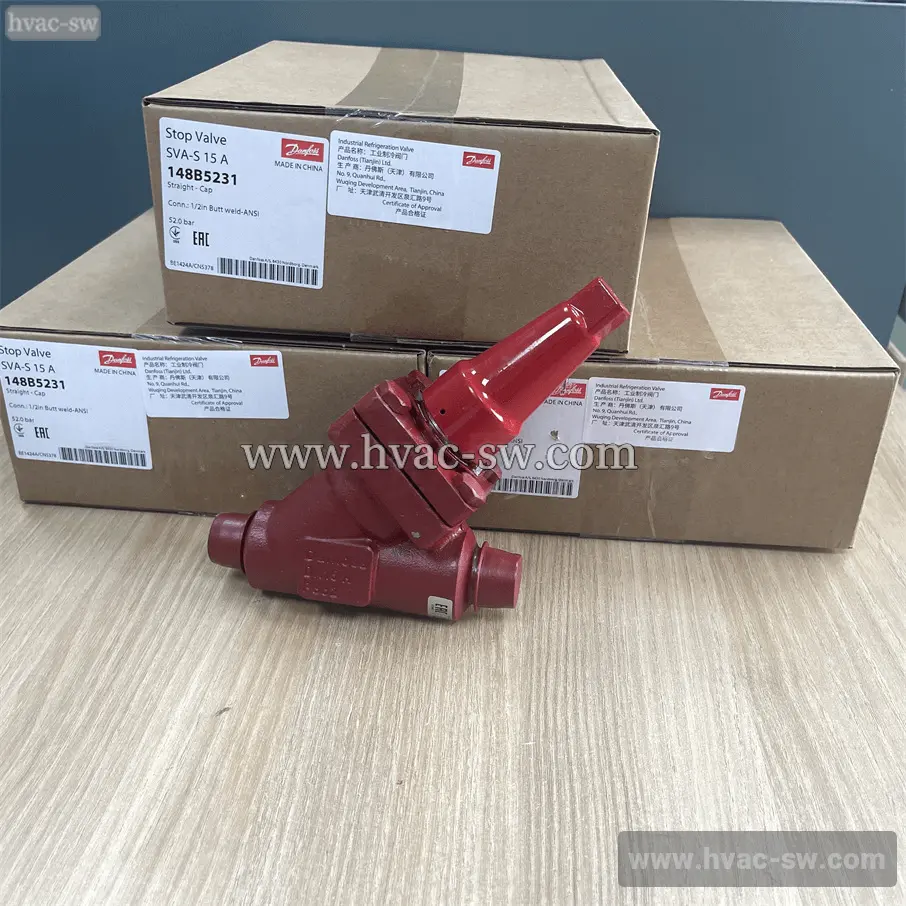

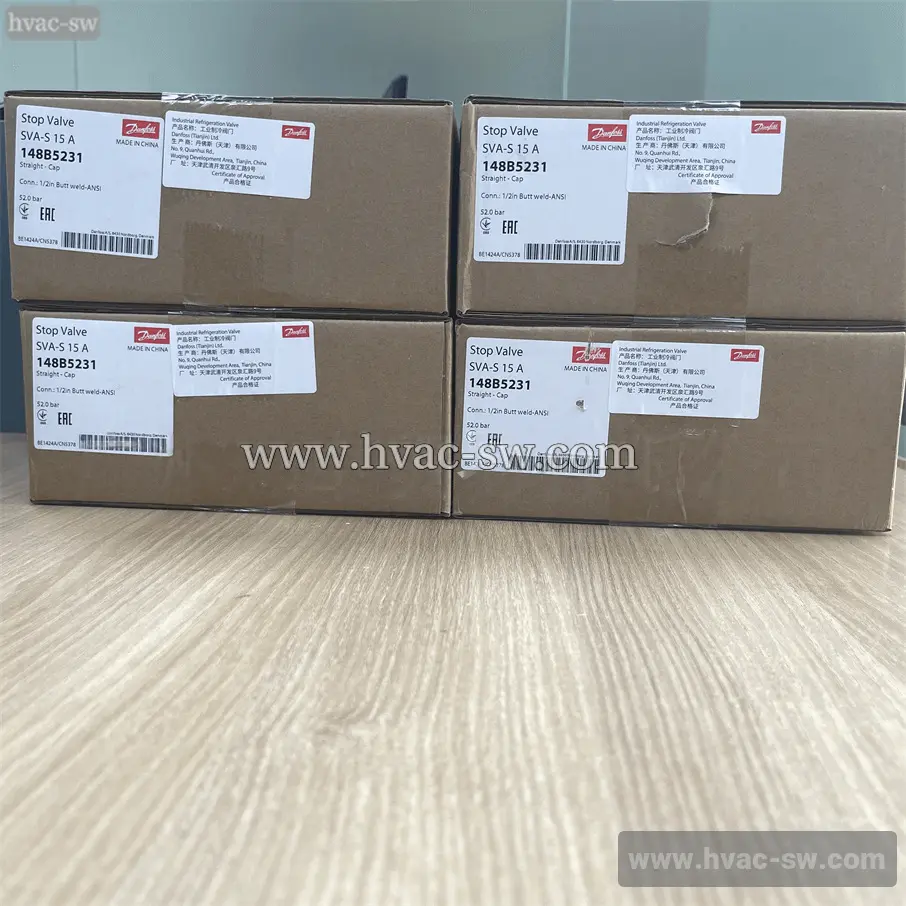

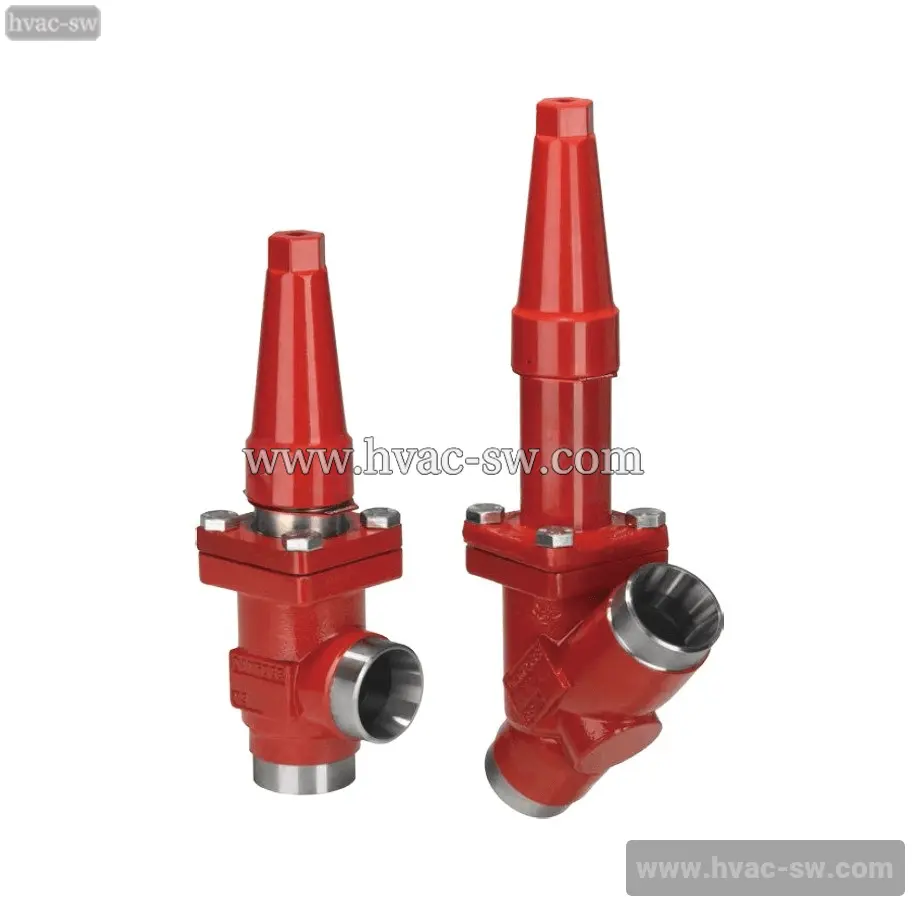

Danfoss 148B5231 Globe Valve SVA-S 15A
The Danfoss 148B5231 SVA-S15A is a compact globe valve designed for precise flow control in heating and HVAC applications. With DN15 connections, it offers reliable shut-off and regulation, featuring a union design for easy installation and maintenance. Rated for PS52 and PS40 pressure classes, this robust valve ensures durable performance in various system conditions.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Model | Specification | Nominal Diameter (DN) (mm) | Nominal Pressure (PN) (MPa) | Body Material | Connection Type |
|---|---|---|---|---|---|
| ICS3 32 027H3030 ICS3-32 D | DN32 | 52 | Cast Steel | Welding | Large |
| CVVP | DN65 | 52 | Cast Steel | Welding | Large |
| Attribute | Value |
|---|---|
| Gross weight | 2.236 Kilogram |
| Net weight | 1.95 Kilogram |
| Volume | 4.037 Liter |
| EAN | 5702428467209 |
| Type | SVA-S 15 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Approval | EACLLC CDC TYSK |
| Body material | Steel |
| Brand | SVL Flexline |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] | 5.7 gal/min |
| Direction | Straightway |
| Equipment | Cap |
| EU RoHS compliance | Out of scope |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 4.9 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Standard |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SVA-S / SVA-L |
| PED category | Art. 3, par. 3 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113R114R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R170R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
