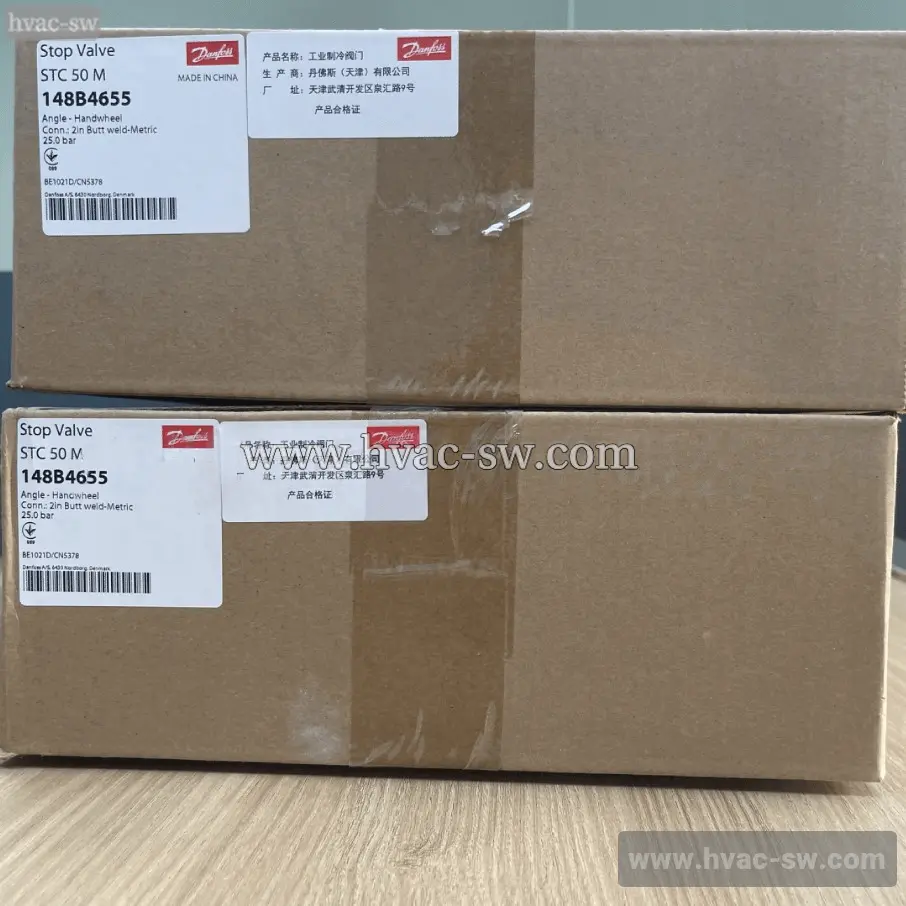

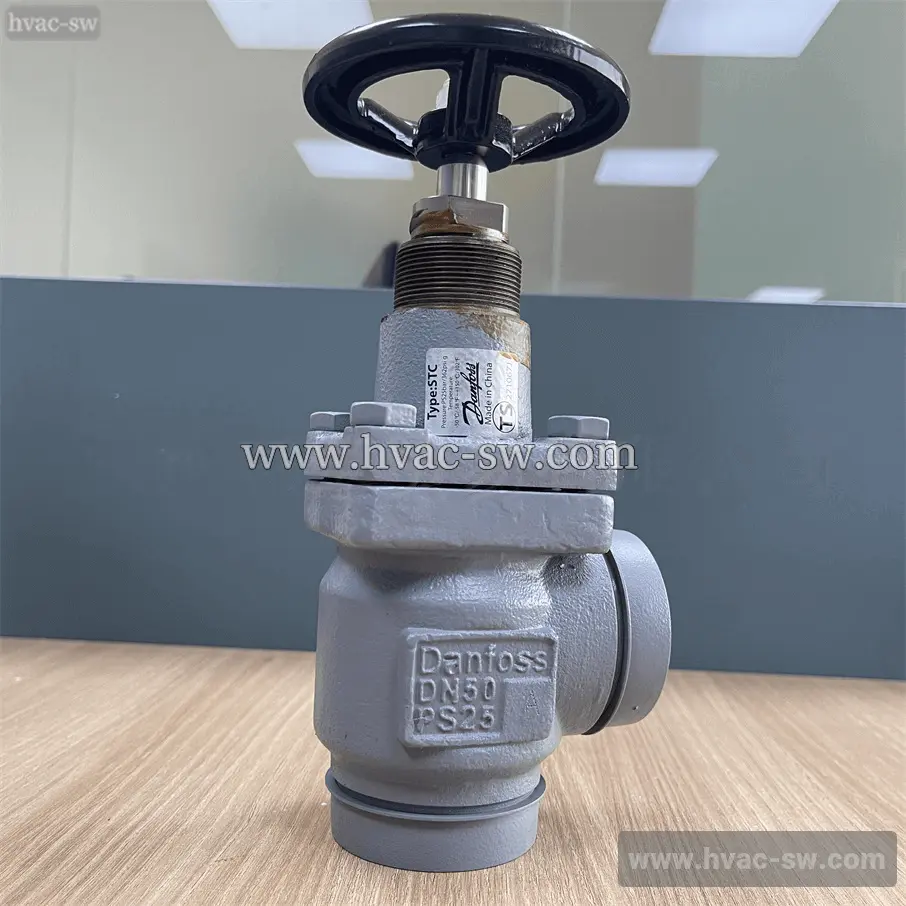

DANFOSS 148B4655 STC50 Shut-Off Valve
The STC50 by DANFOSS (148B4655) is a compact angle pattern shut-off valve designed for reliable isolation in refrigeration and air conditioning systems. This robust brass valve ensures tight sealing, easy operation, and is suitable for various industrial and commercial applications.
Need help confirming this part?
Send us the part number, equipment model, nameplate information or a product photo. We can check available sourcing options, pricing and lead time.
Product Overview
| Attribute | Value |
|---|---|
| Gross weight | 4.6 Kilogram |
| Net weight | 3.6 Kilogram |
| Volume | 12.933 Liter |
| EAN | 5702428883535 |
| Type | STC 50 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| China RoHS compliance | Out of scope |
| Colour Paint | Gray |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Direction | Angleway |
| Equipment | Handwheel |
| EU RoHS compliance | Out of scope |
| Inlet connection size [in] | 2 in |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Max. Working Pressure [bar] | 25 bar |
| Max. Working Pressure [psig] | 365 psig |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134aR22R404AR717R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
